Optoma EH330UST Projector – 3600 Lumens, 16:9 Full HD 1080p
Optoma EH330UST Projector
3600 Lumens, 16:9 Full HD 1080p
- Description
- Specifications
- Downloads
-
Ultra Short Throw Projector
The EH330UST is perfect for businesses, schools, and colleges. It is bright with an ultra-short throw meaning it can project a 100” image from less than 0.5m away. Having the projector installed so close to the wall avoids any shadows being cast across the screen from the presenter(s).
It provides a complete package for engaging learning with many new features, including two HDMI inputs, a powered USB port, a native office viewer, and a powerful 16W built-in speaker.
Bright FullHD 1080p projector – 3600 ANSI Lumens
Ultra short throw lens – 100″ image from less than half a meter away
Ultimate Control – Crestron, Extron, AMX, PJ-Link, and Telnet LAN commands
Easy connectivity – 2x HDMI and built-in 16W speaker
Ultra Short Throw
With an ultra-short throw lens, you can project an impressive image greater than 100” from less than a meter away from the projection surface. This allows you to place the projector closer to the wall, reducing shadows so you can present with ease; perfect for interactive applications.
Full HD 1080p
1080p resolution gives you sharp and detailed images from HD content without downscaling or compression; perfect for watching Blu-ray movies, HD broadcasting, and playing video games.
Amazing colours
Give powerful presentations and educational lessons with stunning colors. Optoma projectors provide reliable color performance suitable for any content and environment, from accurate sRGB colors for lifelike images to vibrant punchy presentations. We have a display mode to specifically meet your needs. Perfect for a range of graphic and video presentations.
Superior contrast
Add more depth to your image with a high-contrast projector. Compared to competing technology, Optoma DLP projectors provide you with brighter whites and ultra-rich blacks, images come alive and text appears crisp and clear – ideal for business and education applications.
Native office viewer
Give presentations directly from your projector without the need for a laptop or PC using the built-in office viewer. Simply copy your Word, Excel, PowerPoint, PDF, or JPEG files to a USB stick, SD card, or microSD (depending on the projector input*) and display them on the big screen.
*See projector specs for a full list of inputs
USB display
Connect your projector directly to a laptop and display the desktop using a USB cable. No need for a bulky VGA lead.
Control
Featuring a wide range of options you can control and monitor the projector remotely.
RS232
Optoma projectors come with an extensive set of RS232 commands making it simple and easy to manage using any control system.
AMX compatible
Dynamic discovery protocol is incorporated into the projector allowing for easy installation with AMX control systems.
Crestron RoomView
Using the compatible RoomView® software you can power on/off, monitor, manage, and control up to 250 projectors at the same time from any computer
Extron IPLink compatible
Allows for easy installation with Extron control systems
LAN display
Display your PC or laptop screen on the projector via the network connection*.
*EZCast Pro software required on your device
Wireless presentations
Instantly connect and present wirelessly from your PC, Mac, or mobile device using the free EZCast Pro App* and optional wireless USB dongle. The app gives you the freedom to wirelessly share and present documents, photos and your device’s camera turning it into a document camera. Creating a more connected and collaborative experience for everyone.
* Available on Windows, MacOS, android and iOS
Four corner correction
Four corner correction enables the keystone of the projector to be adjusted in both the vertical and horizontal plane, so you can individually warp each corner of the projected image to make it perfectly square. Ideal for uneven walls or in spaces where the projector placement is awkward or limited and needs to be installed at an angle.
Integrated speaker
A powerful built-in speaker provides exceptional sound quality and an easy setup without the need for costly external speakers.
Full 3D
Display true 3D content from almost any 3D source, including 3D Blu-ray players, 3D broadcasting, and the latest generation game consoles.
USB-Power
Use the USB-A port to power external devices (5V/1.5A)
Remote mouse with built-in laser pointer
Keep your audience’s attention focused on the right things using the simple, yet powerful remote with mouse control and built-in laser pointer.
Eco+
Eco+ technology brings together high contrast, improved lamp life, and energy-saving features that are easy to use while reducing power consumption.
Energy saving
Using the specially designed lamp modes, you can reduce power consumption by up to 70%. Each mode also has a positive effect on the lamp life, while reducing maintenance and helping to save on both energy and running costs.
Eco AV mute
Stay in control of your presentation with Eco AV mute. Direct your audience’s attention away from the screen by blanking the image when no longer needed. This also reduces power consumption by up to 70%, further prolonging the life of your lamp.
Quick resume
This feature allows the projector to be instantly powered on again if it is accidentally switched off.
Auto power off
There may be instances when the projector is left running when not in use. To help save energy, the “auto power off” feature automatically turns off the projector after a set period if it is not being used
Direct power on
The projector will start up instantly when power is supplied to the unit. This eliminates the need to manually turn on the projector via the remote control or the keypad, which is ideal for use in rooms with a “master” power switch.
Direct power off
Power off your projector immediately or directly at the mains. This means you don’t have to wait for the projector to cool down before turning it off.
24/7 operation
Optoma projectors have been designed to operate 24 hours a day in standard orientation. Perfect for applications where prolonged periods of use are required. Subject to 24-hour terms and conditions.
24/7 Operation – standard lamp warranty applies. The projector warranty is based on standard business usage hours. For optimum performance, Optoma recommends that your projector be turned off or placed in standby mode for 30 minutes every 24 hours to prolong the life of your lamp.
EPSON® replacement adapter
Update your EPSON® ultra short throw projector with an Optoma UST projector without changing your existing mount or whiteboard. -

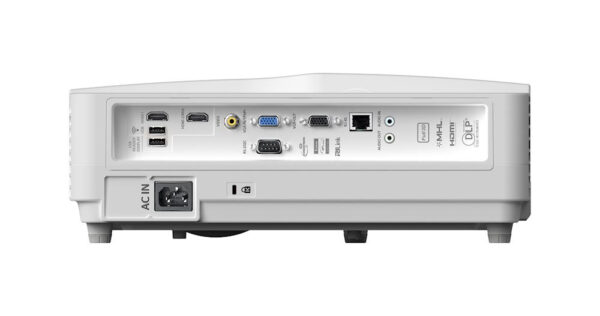

Specification Details Display technology DLP™ Resolution 1080p Full HD (1920×1080) Brightness 3,600 lumens Contrast ratio 20,000:1 Native aspect ratio 16:9 Aspect ratio – compatible 4:3, 16:9 Keystone correction – horizontal +/-4° Keystone correction – vertical +/-4° Horizontal scan rate 15.375 ~ 91.147Khz Vertical scan rate 24 ~ 85 (120 for 3D)Hz Uniformity 80% Screen size 2.03m ~ 2.54m (80″ ~ 100″) diagonal Light source type Lamp Lamp watts 240 Lamp life hours (up to) 4000 (Bright), 12000 (Dynamic), 10000 (Eco), 15000 (Eco+) Throw ratio 0.25:1 Projection distance (m) 0.45m – 0.56m Zoom type Fixed Focal length (mm) 3.72mm/0.146″ Native offset 118% Connections Inputs 1 x HDMI 1.4a 3D support + MHL, 1 x HDMI 1.4a 3D support, 1 x VGA (YPbPr/RGB), 1 x Composite video, 1 x Audio 3.5mm, 2 x USB-A reader/wireless Outputs 1 x VGA, 1 x Audio 3.5mm Control 1 x RS232, 1 x RJ45 LAN – wireless networking Yes – optional Noise levels Noise level (typical) 26dB Noise level (max) 28dB Compatibility PC compatibility FHD, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac 2D compatibility NTSC M/J, 3.58MHz, 4.43MHz PAL B/D/G/H/I/M/N, 4,43MHz SECAM B/D/G/K/K1/L, 4.25/4.4MHz 480i/p, 576i/p, 720p(50/60Hz), 1080i(50/60Hz), 1080p(50/60Hz) 3D compatibility 3D compatibility Side-by-Side:1080i50 / 60, 720p50 / 60 Frame-pack: 1080p24, 720p50 / 60 Over-Under: 1080p24, 720p50 / 60 3D Full 3D Security Security Security bar, Kensington Lock, Password protected interface OSD / display languages OSD / display languages 25 languages: Arabic, Czech, Danish, Dutch, English, Farsi, Finnish, French, German, Greek, Hungarian, Indonesian, Italian, Japanese, Norwegian, Polish, Portuguese, Romanian, Russian, Chinese (simplified), Spanish, Swedish, Chinese (traditional), Turkish, Vietnamese Operating conditions Operating conditions 5°C 40°C/41°F104°F, max altitude 3000M/9843ft, max humidity 85%Remote control Remote control Data remote with laser and mouse function Speaker Speaker count 1 Watts per speaker 16W In the box In the box AC power cord, Remote control, 2x AAA batteries, Basic user manual Operating system compatibility Operating system compatibility Windows 7 / 8 / 8.1 / 10, MacOSX 10.9 +, Android 4.0+, iOS 8+ Optional wireless models HDCast Pro, QuickCast Bundle, QuickCast starter kit, WHD200, WUSB LAN – control Yes LAN – display Yes LAN – wireless networking Yes – optional Power supply 100 ~ 240V, 50 ~ 60Hz Power consumption Power consumption (standby) 0.5W Power consumption (min) 200W Power consumption (max) 275W Dimensions and Weight Dimensions (W x D x H) mm 343 x 383 x 112 Gross weight 5.77 kg Net weight 3.9 kg -
Type of Manual Download Manuals Download Multimedia manuals Download Datasheets Download CAD Download Basic user manuals Download RS232 Download
