• Novastar VX1000 All-In-One Video Processor


  The VX1000 is a powerful video processor that offers an all-in-one solution for driving your big LED screen(s). As the bigger brother to the VX4S-N, it can drive much higher resolutions and more LED screens. It drives up to 6,500,000 pixels in total, at up to 10,240 pixels wide or up to 8,192 pixels high, which is ideal for ultra-wide and ultra-high LED screen applications.

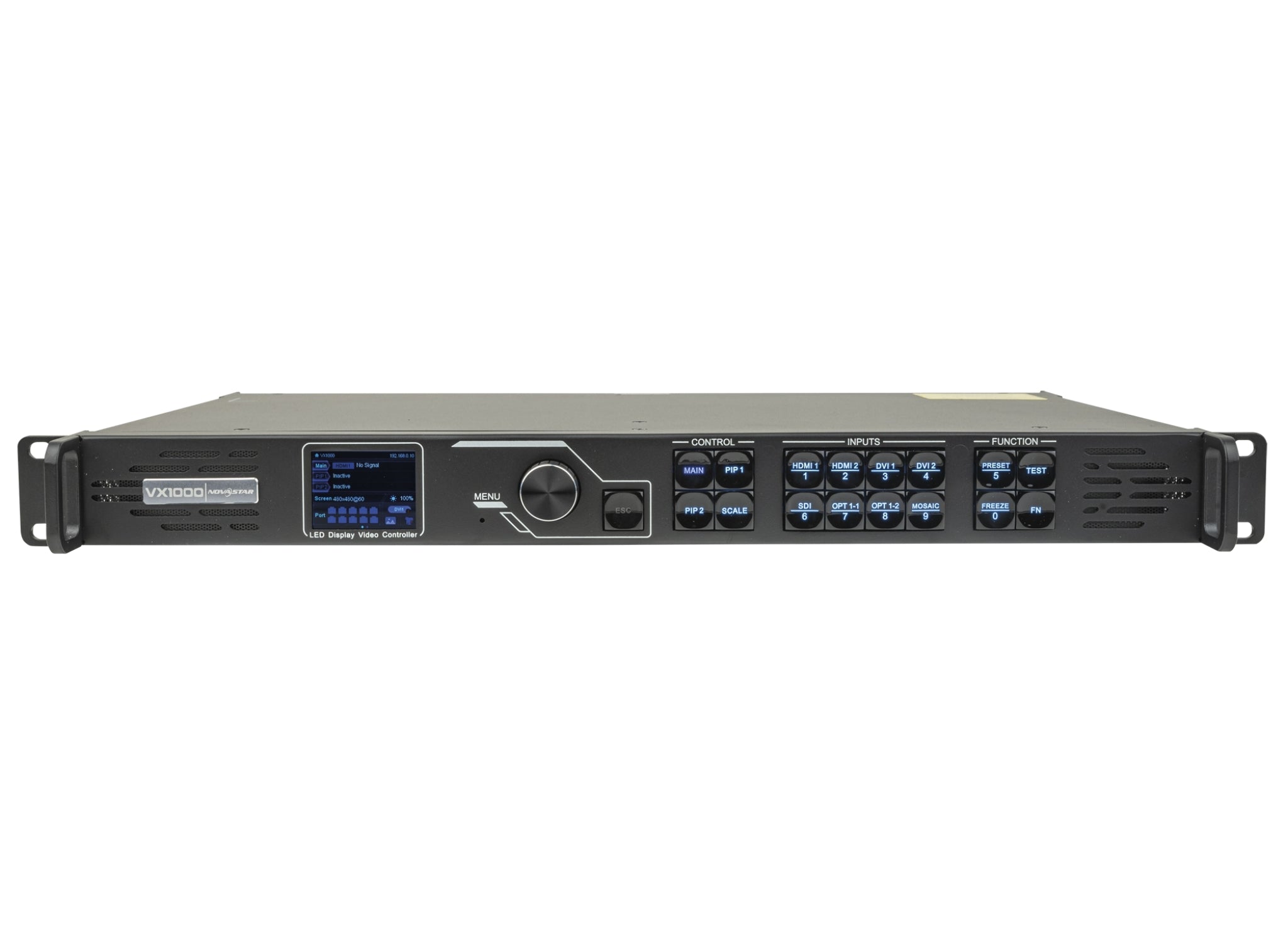

  It features powerful front-end processing and eliminates the need of an external scaler. The Image Mosaic function enables you to combine up to four units to drive large LED screens with great ease. The VX1000 allows you to switch seamlessly between several input sources and it is capable of displaying two PIP windows (location and size can be adjusted), offers colour correction, and accepts the most commonly used image interfaces. The input can be selected easily with the direct access buttons on the front and the bright LCD display allows you to navigate through the intuitive menus.

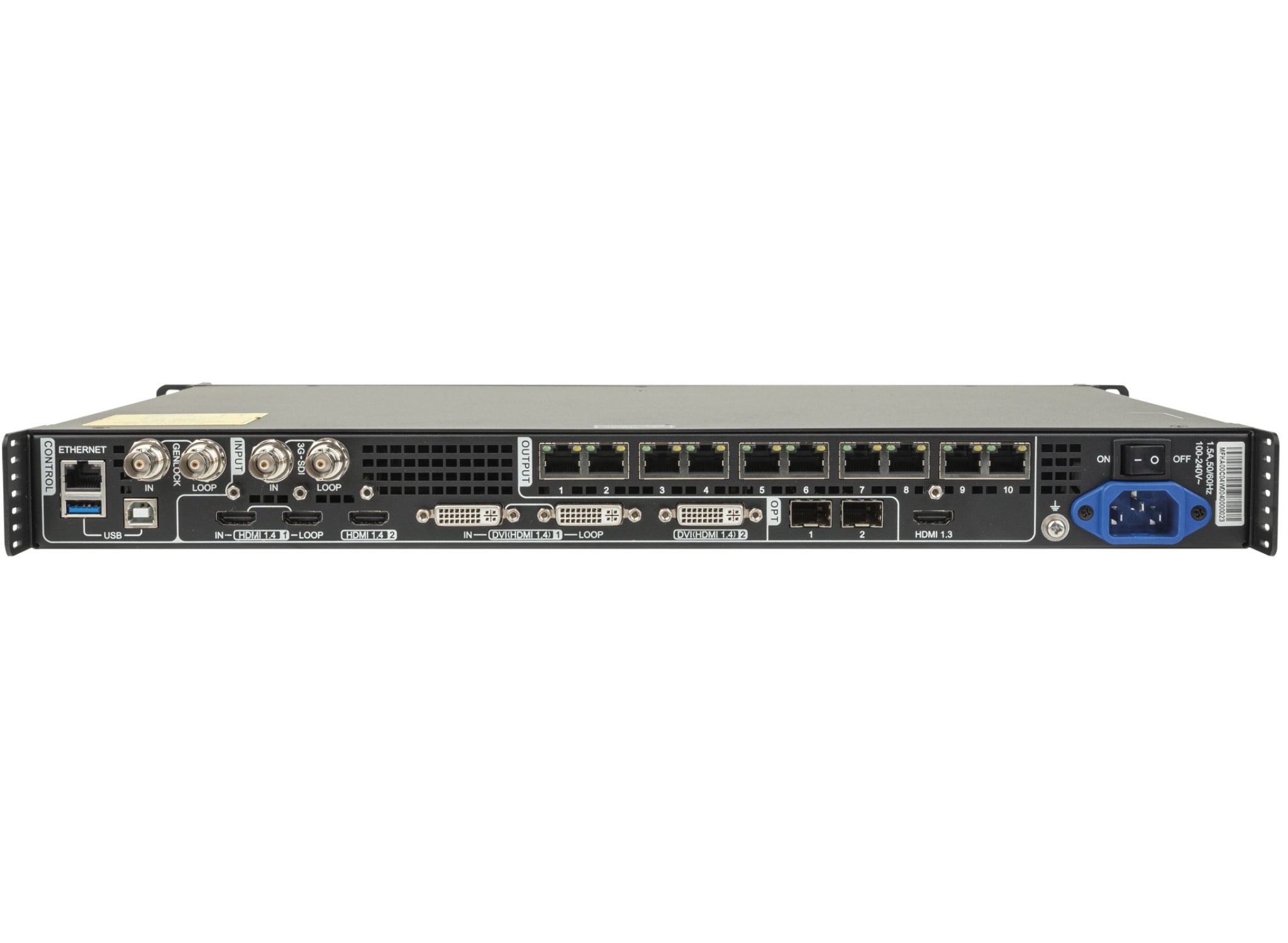

  Besides the built-in sending card with 10 Ethernet ports, it offers the option to install an SFP module (order code 101623). With these you can cover bigger distances than the 100-metre limit of Ethernet cables and drive another VX1000, which then drives your LED screens. The second fibre output serves as a backup and is automatically used in case something happens to the main output (“Output 1”).

• Category	Specifications
  Inputs	HDMI 1.4a: 2 Ports
  	Dual Link DVI: 2 Ports
  	3G-SDI: 1 Port
  Outputs	Main Outputs: 10
  	HDMI 1.3 (MVR): 1 Port
  	HDMI 1.4a (Loop): 1 Port
  	Dual Link DVI (Loop): 1 Port
  	3G-SDI (Loop): 1 Port
  Optical	SFP Slot Type: 10G
  	SFP Slot Quantity: 2
  Software Specifications	Control Software: NovaStar LCT, Smart LCT, Vcan
  	Scaling Function: Yes
  	Image Mosaic: Yes
  	PIP: Yes
  	Layers: 3
  	GenLock: In & Out
  Control & Programming	Display: LCD
  	Max Loading Capacity: 6.5 Mpx
  	Max Input Resolution: 3840 x 1080
  	Control Options: Ethernet, USB
  Electrical Specs	Power Supply: 100-240 V AC, 50/60 Hz
  	Power Consumption: 28W
  	Power Connector: IEC
  Data Connections	Data In: RJ45, USB
  	Data Out: RJ45, USB
  Mechanical Specs	Width (w/ handles): 483 mm (19.016″)
  	Width (w/o handles): 440 mm (17.323″)
  	Height (w/o handles): 50 mm (1.969″)
  	Depth (w/ handles): 351 mm (13.819″)
  	Depth (w/o handles): 321 mm (12.638″)
  	Weight: 4.05 kg (8.929 lb)
  	Rack Units: 1U
  IP Rating	IP20 (Indoor use only)
  Color	Black
  Cooling	Active Cooling
  Thermal Specifications	Max Temp: 60°C (140°F)
  	Min Temp: -10°C (14°F)
  	Humidity: 20-90% RH

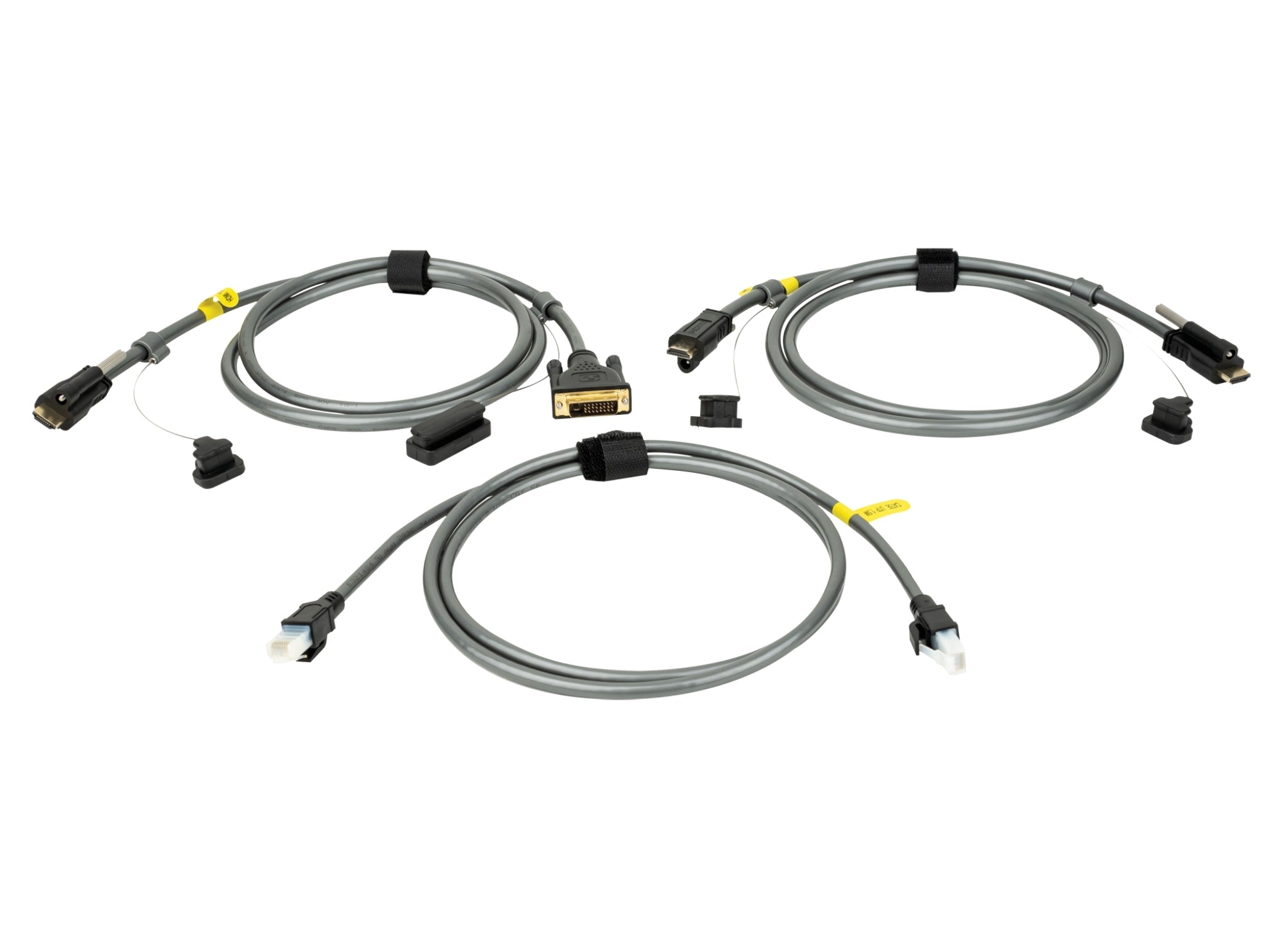

  Included Items	CAT-5 Cable, DVI-HDMI Cable, HDMI-HDMI Cable, IEC Cable, USB-A to USB-B Cable
