• Novastar MX40 Pro New Range 4K Video Controller

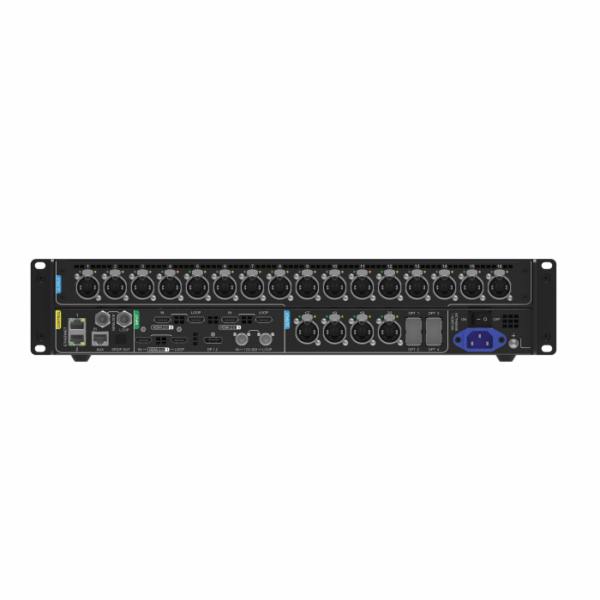

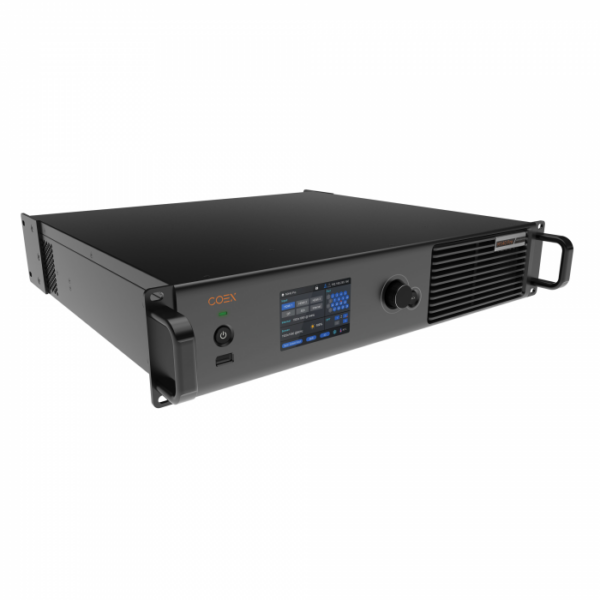

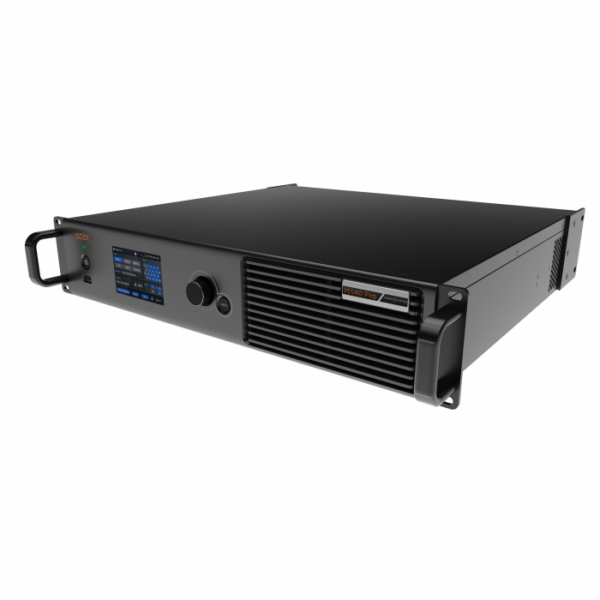

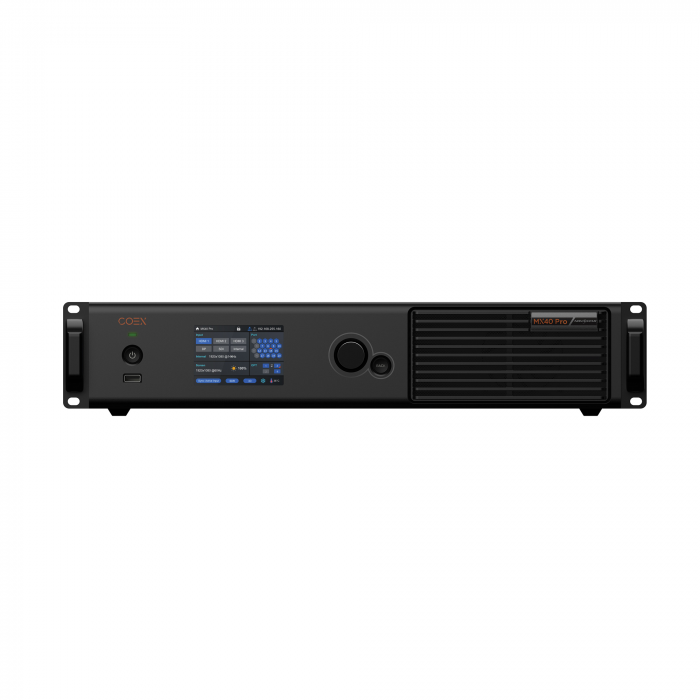

  The MX40 Pro is NovaStar’s flagship 4K LED display controller with lots of new options that offers an all-in-one solution for driving big LED screens at high resolutions. It has HDMI 2.0, DP 1.2, and 12G-SDI inputs that accept input resolutions of up to 4096×2160@60 Hz at up to 12 bit. The 20 Ethernet output ports and/or 4 SFP fibre optic outputs can be used to drive the LED screens directly. Please note that the required SFP modules and CVT10 fibre convertors need to be purchased separately.
  The MX40 Pro’s internal capabilities support the best possible image quality. The Dynamic Booster improves contrast and lowers panel power consumption. HDR10 and HLG video sources are supported, providing a more lifelike image. The LED Image Booster improves the colour gamut by switching between multiple gamuts, it improves greyscale images by allowing individual corrections of the greyscale in 16-bit, and it prevents greyscale loss in low-brightness scenes by using 22bit+ technology. The 4K video controller is capable of processing 3D imaging, using the EMT200 3D emitter and 3D glasses.
  The MX40 Pro can be controlled by the new, intuitive, and user-friendly VMP software platform, which allows you to configure your screens in almost any layout you want. Regular and irregular screen sizes can be configured extremely fast. Up to ten MX40 Pro devices can be cascaded and uniformly controlled via the control PC. The integrated Genlock function enables you to easily synchronise multiple controllers.

• Category	Specification
  Inputs
  DP 1.2	1
  HDMI 2.0	3
  12G-SDI	1
  Ethernet Speed	1 Gbit/s
  Outputs
  Main Outputs	20
  HDMI 2.0 (Loop)	3
  12G-SDI (Loop)	1
  S/PDIF (Out)	1
  Optical
  SFP Slot Type	10G
  SFP Slot Quantity	4
  Software Specifications
  Control Software	VMP
  Extra Features	Scaling Function: Yes
  	GenLock: In & Out
  Control and Programming
  Display	TFT
  Control System	Novastar
  Max Loading Capacity	13 Mpx
  Max Input Resolution	4096 x 2160, 8192 x 1080
  Control Options	Ethernet
  Greyscale Processing	22 bit
  Electrical Specifications
  Power Supply	100-240 V AC 50/60 Hz
  Power Consumption	70 W
  Power Connector In	IEC
  Data Connector In	RJ45, USB
  Data Connector Out	etherCON, RJ45
  Mechanical Specifications
  Width (Including Handles)	483 mm (19.016″)
  Width (Without Handles)	440 mm (17.323″)
  Height (Including Handles)	94 mm (3.701″)
  Height (Without Handles)	88 mm (3.465″)
  Depth (Including Handles)	467 mm (18.386″)
  Depth (Without Handles)	437 mm (17.205″)
  Weight	7.5 kg (16.535 lb)
  Rack Units	2 U
  IP Rating	IP20 (indoor use only)
  Housing	Metal
  Colour	Black
  Product Properties
  Cooling	Active
  Thermal Specifications
  Max Ambient Temp	60 °C (140 °F)
  Min Ambient Temp	-20 °C (-4 °F)
  Operating Humidity	0-95 %rH
  Included Items
  Included Cables	CAT-5 Cable, DP-DP Cable, HDMI-HDMI Cable, IEC Cable
