NovaStar MX30 LED Display Controller

• Description
• Specifications

• NovaStar MX30 LED Display Controller

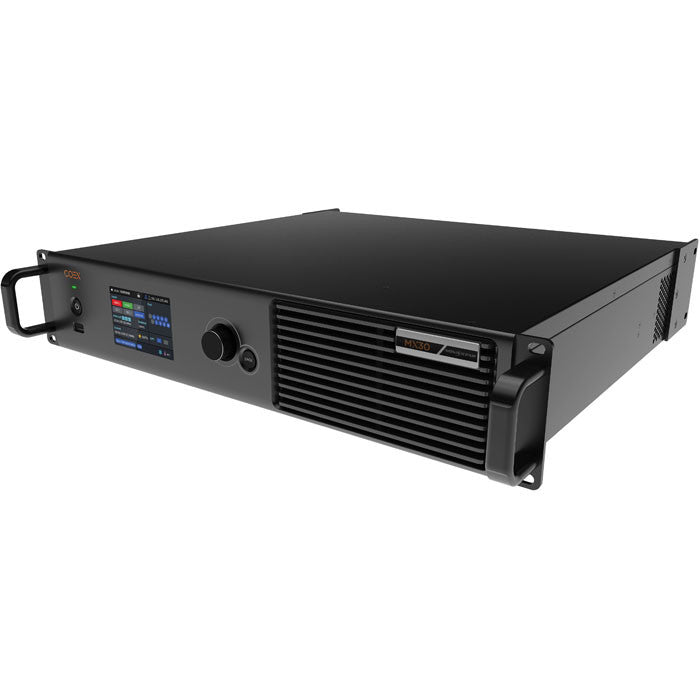

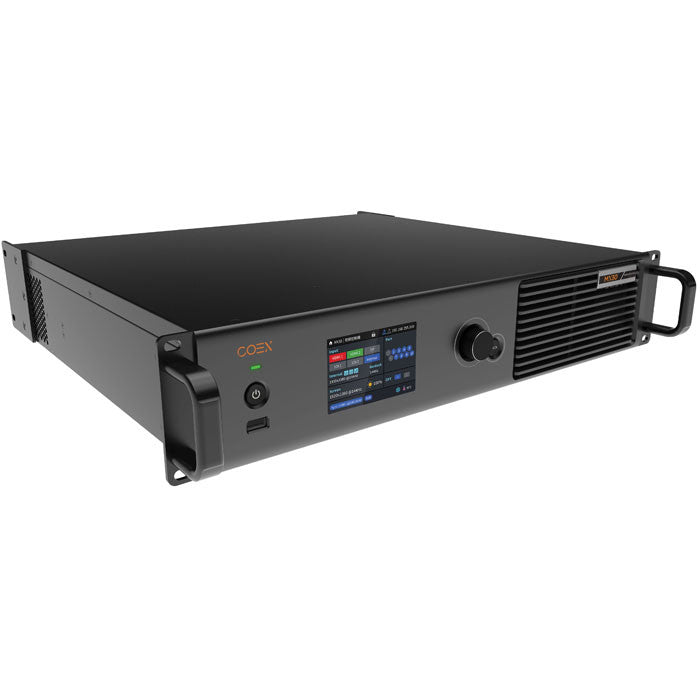

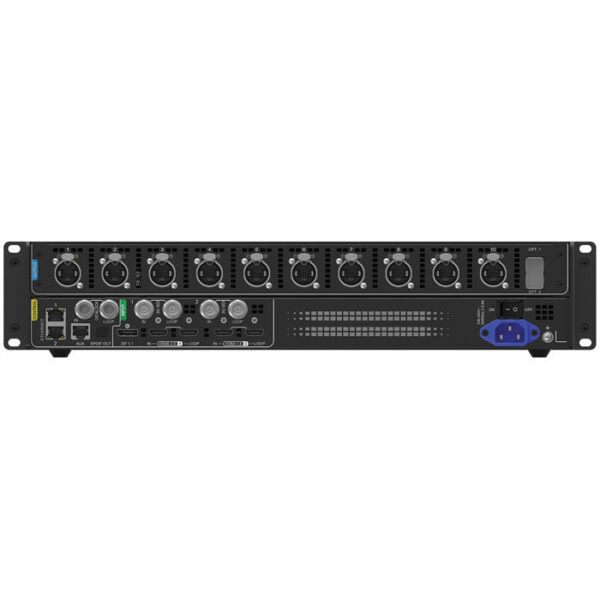

  Novastar’s MX30 is an all-in-one LED display controller that integrates video processing and LED system control. With multiple inputs and outputs on board, the MX30 offers several setup possibilities. It’s equipped with one HDMI 2.0 + loop, one HDMI 1.4 + loop, one DP 1.1 and two 3G-SDI inputs + loop. Its outputs include ten Gigabit Ethernet ports, two 10G optical ports and one S/PDIF optical port. There are also two network ports and one auxiliary port on board as well as a Genlock input and loop. A control knob and a back button, together with a 3.5-inch TFT screen, make it easy to control the device. The MX30 can also be controlled by the comprehensive, user-friendly VMP software, which ensures easy operation and control. Cascading control via Ethernet is also possible and both SNMP and Art-Net protocols are supported. Advanced features include three independent layers, image scaling, 14Ch colour correction, low latency support and display system monitoring. The MX30 can be mounted in a 19-inch rack.

• Category	Specification
  Inputs
  DP 1.1	1
  HDMI 1.4a	1
  HDMI 2.0	1
  3G-SDI	2
  Outputs
  Main Outputs	10
  HDMI 1.4a (Loop)	1
  HDMI 2.0 (Loop)	1
  3G-SDI (Loop)	2
  S/PDIF (Out)	1
  Ethernet Speed	1 Gbit/s
  Optical
  SFP Slot Type	10G
  SFP Slot Quantity	2
  Software Specifications
  Control Software	VMP
  Scaling Function	Yes
  Layers	3
  GenLock	In & Out
  DMX Control	Art-Net
  Control and Programming
  Display	TFT
  Display Size	3.5″
  Maximum Loading Capacity	6.5 Mpx
  Maximum Input Resolution	4096 x 2160
  Control Options	Ethernet
  Electrical Specifications
  Power Supply	100-240 V AC 50/60 Hz
  Power Consumption	55 W
  Power Connector In	IEC
  Data Connector In	RJ45
  Data Connector Out	etherCON, RJ45
  Mechanical Specifications
  Width (Including Handles)	483 mm (19.016″)
  Width (Without Handles)	446 mm (17.559″)
  Height (Including Handles)	881 mm (34.685″)
  Depth (Including Handles)	467 mm (18.386″)
  Depth (Without Handles)	394 mm (15.512″)
  Weight	7.2 kg (15.873 lb)
  Rack Units	2 U
  IP Rating	IP20 (indoor use only)
  Colour	Black
  Thermal Specifications
  Maximum Ambient Temperature	50 °C (122 °F)
  Minimum Ambient Temperature	-20 °C (-4 °F)
  Operating Humidity	0-80 %rH
  Included Items
  Included Cables	CAT-5 Cable, DP-DP cable, HDMI-HDMI cable, IEC cable
