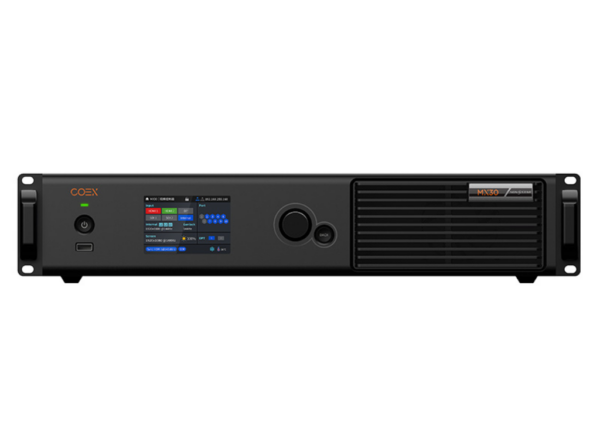

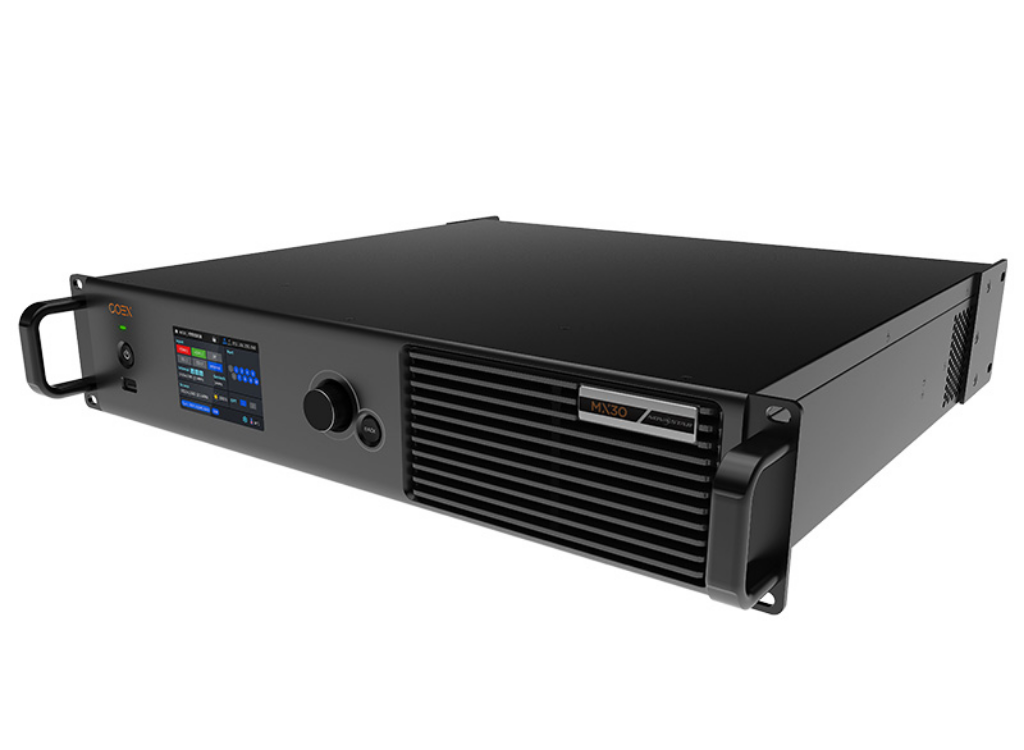

NovaStar MX30 LED Display Controller

• Description
• Specifications

• NovaStar MX30 LED Display Controller

  The MX30 is part of NovaStar’s COEX series. This controller integrates video processing and controlling in one device.

  In conjunction with NovaStar’s new VMP software (Vision Management Platform), the user is offered simple operation with extensive functions.


  Hardware features:

  Inputs:
  1x HDMI 2.0 (max. 4096×2160@60Hz(forced); min. 800×600@60Hz)
  Custom EDID’s: max. width: 8192 (8192×1080@60Hz); max. height: 7680 (1080×7680@60Hz)
  1x HDMI 1.4 (max 4096×1080@60Hz(forced); min 800×600@60Hz)
  Custom EDID’s: max. width 4096 (4096×1080@60Hz); max. height: 4096 (1080×4096@60Hz)
  1x DP1.1 (max. 4096×1080@60Hz (forced), min. 800×600@60Hz)
  Custom EDID’s: max width: 4096 (4096×1080@60Hz); max height: 4096(1080×4096@60Hz);
  2x 3G-SDI
  Supports ST-424(3G), ST-292(HD) & ST-259(SD) video inputs

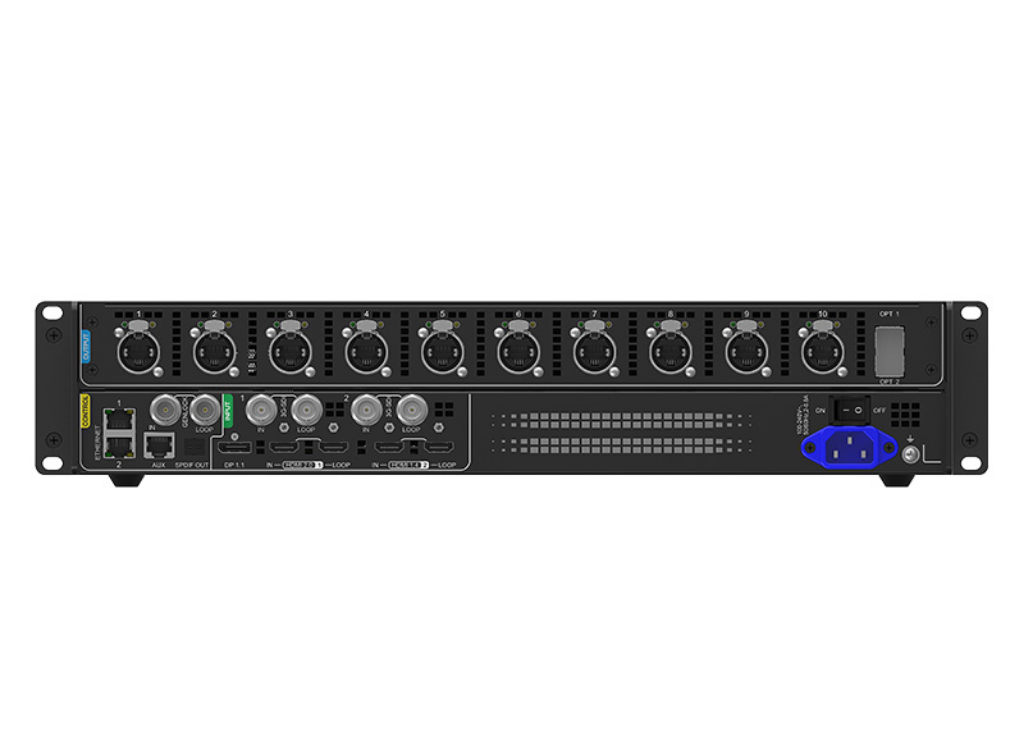

  Outputs:
  10x LED-Out (RJ45):
  8Bit@60Hz: 659,000 pixels
  10Bit@60Hz: 494,000 pixels (with A10s Pro)
  1x HDMI 2.0 Loop
  1x HDMI 1.4 Loop
  1x 3G-SDI Loop
  2x OPT-Out (10G)
  1x SPDIF (reserved)

  further features:
  LOCK OF GENLOCK
  3x Layer
  14Ch Color Correction
  Full Grayscale Calbration
  low latency
  integrated network switch for cascading multiple devices

  general specifications:
  Supply voltage: 100-240V~, 50/60Hz
  max. power consumption: 55w
  Dimensions: 482.6 x 94.2 x 466.07mm (WxDxH)
  Weight: 7,2kg

• Category	Details
  Weight	10.2 kg
  Size	660 × 570 × 210 cm
  WEEE Number	DE 501 113 91
