NovaStar LED Screen Synchronous Sending Card | ‎MSD300-1

• Description
• Specifications
• Downloads

• NovaStar LED Screen Synchronous Sending Card

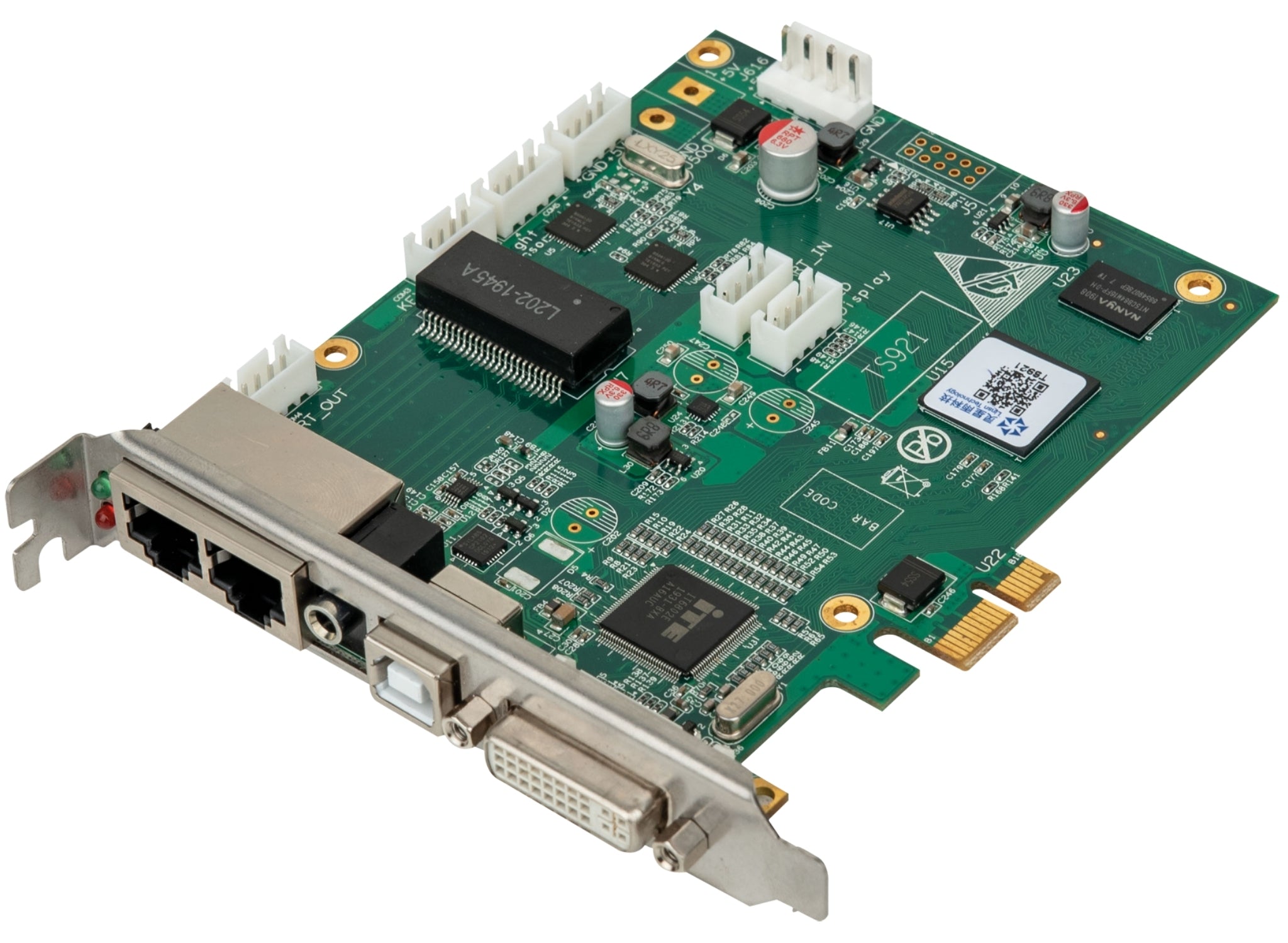

  The NovaStar MSD-300-1 is a basic sending card for use in a PCI slot in a PC or for stand-alone use. It allows you to control LED screens of up to 1.3 megapixels with a NovaStar control system and display PC content directly on the LED screen. It has a DVI video input, a light sensor input and two outputs for LED screens. The light sensor input can be used with a Novastar Light Sensor for automatic brightness adjustment according to changes in ambient light.

• Category	Specifications
  Inputs	Single Link DVI: 1, Light Sensor Port: 1
  Outputs	Main Outputs: 2
  Extra Features	Scaling Function: No
  Control and Programming	Control System: Novastar
  Max Loading Capacity	1,300,000 Mpx
  Max Input Resolution	Width & Height User-Defined
  Electrical Specifications	Power Supply: 5V DC
  Power Consumption	3W
  Data Connector (In)	USB B
  Data Connector (Out)	RJ45, USB B
  Mechanical Specifications	Weight: 0.1 kg (0.22 lb)
  IP Rating	IP20 (Indoor Use Only)

• Description	Downloads
  NovaStar LED Screen Synchronous Sending Card | ‎MSD300-1 User’s Manual	Downloads
