• NovaStar KU20 LED Display Controller

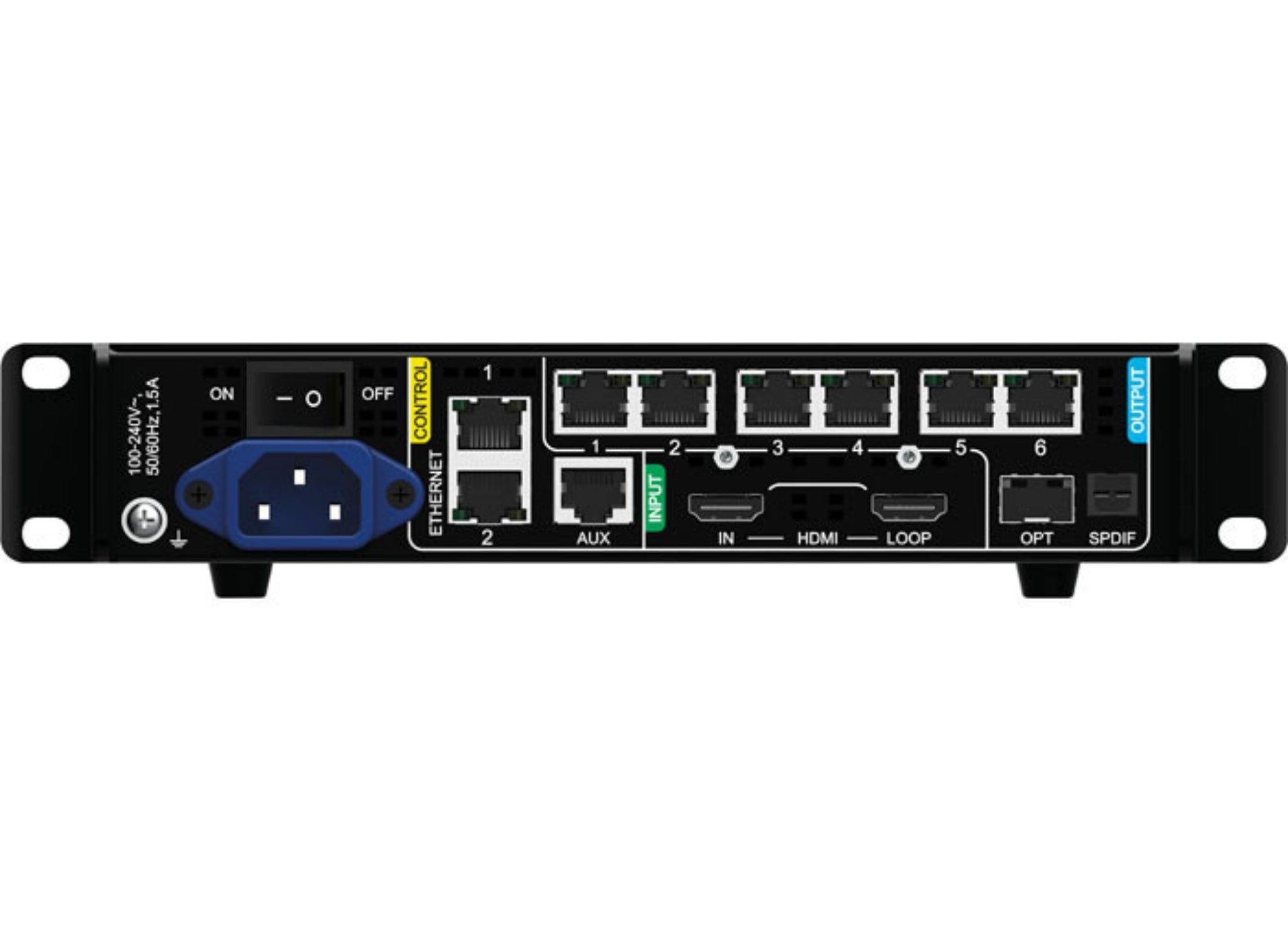

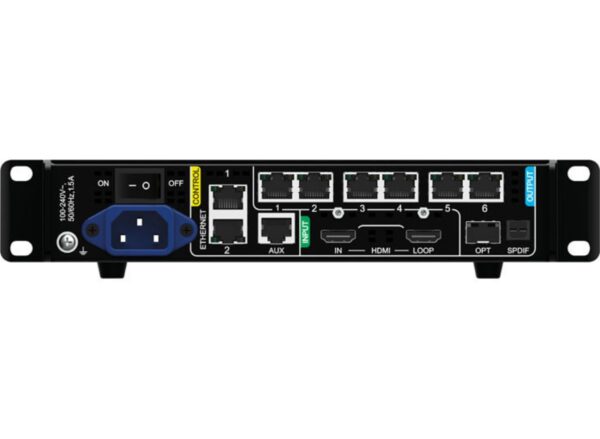

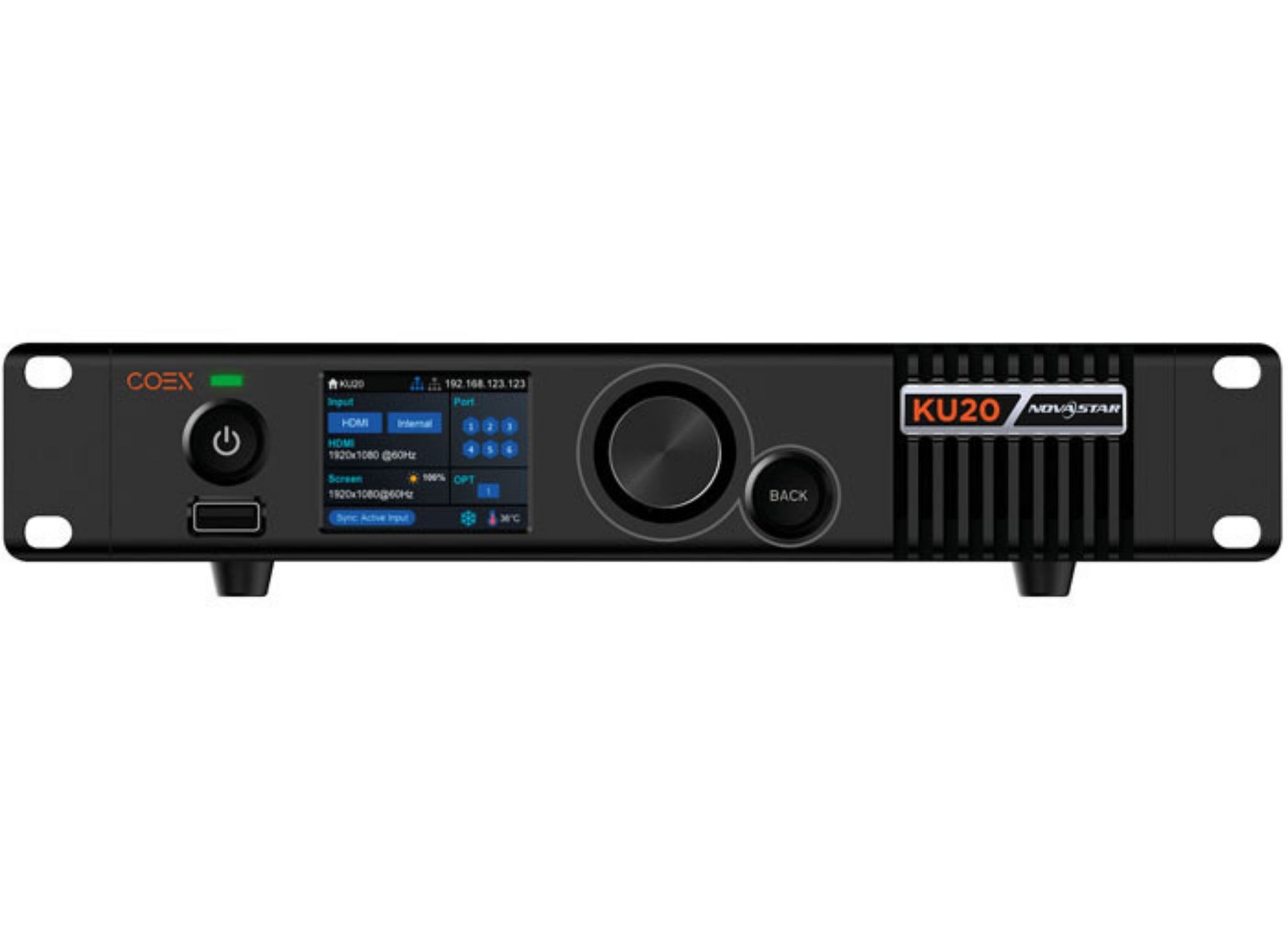

  Novastar’s KU20 is an LED display controller with an HDMI 1.3 input and a loop. It has six Ethernet outputs as well as optical and S/PDIF outputs. There are also two network ports and one auxiliary port on board. A control knob and a back button, together with a 2-inch LCD screen, make it easy to control the device. The KU20 can also be controlled by the comprehensive, user-friendly VMP software, which ensures easy operation and control. Cascading control via Ethernet is also possible and both SNMP and Art-Net protocols are supported. Advanced features include image scaling, pixel level brightness and chroma calibration, low latency support and display system monitoring. The KU20 can be mounted in a 19-inch rack and comes complete with a mounting plate.

• Category	Specification
  Inputs	HDMI 1.3: 1 port
  Outputs	Main Outputs: 6 ports
  	HDMI 1.3 (Loop): 1 port
  	S/PDIF (Out): 1 port
  Ethernet Speed	1 Gbit/s
  Optical	SFP Slot Type: 10G
  	SFP Slot Quantity: 1
  Software Specifications	Control Software: VMP
  Extra Features	Scaling Function: Yes
  	DMX Control: Art-Net
  Control & Programming	Display: LCD (2″)
  	Max Loading Capacity: 3.9 Mpx
  	Max Input Resolution: 1920 x 1200
  	Control Options: Ethernet
  Electrical Specifications	Power Supply: 100-240 V AC 50/60 Hz
  	Power Consumption: 25W
  	Power Connector: IEC
  Data Connections	Data In: RJ45
  	Data Out: RJ45
  Mechanical Specifications	Width (w/ handles): 255 mm (10.039″)
  	Width (w/o handles): 217 mm (8.543″)
  	Height (w/ handles): 44 mm (1.732″)
  	Depth (w/ handles): 290 mm (11.417″)
  	Depth (w/o handles): 263 mm (10.354″)
  	Weight: 2.1 kg (4.63 lb)
  	Rack Units: 1U
  	IP Rating: IP20 (Indoor Use Only)
  Colour	Black
  Thermal Specifications	Max Temp: 50°C (122°F)
  	Min Temp: -20°C (-4°F)
  	Operating Humidity: 0-80% rH
  Included Items	CAT-5 Cable, HDMI Cable, IEC Cable
  Included Accessories	Connection Plate, Screws
