• NovaStar Independent Controller

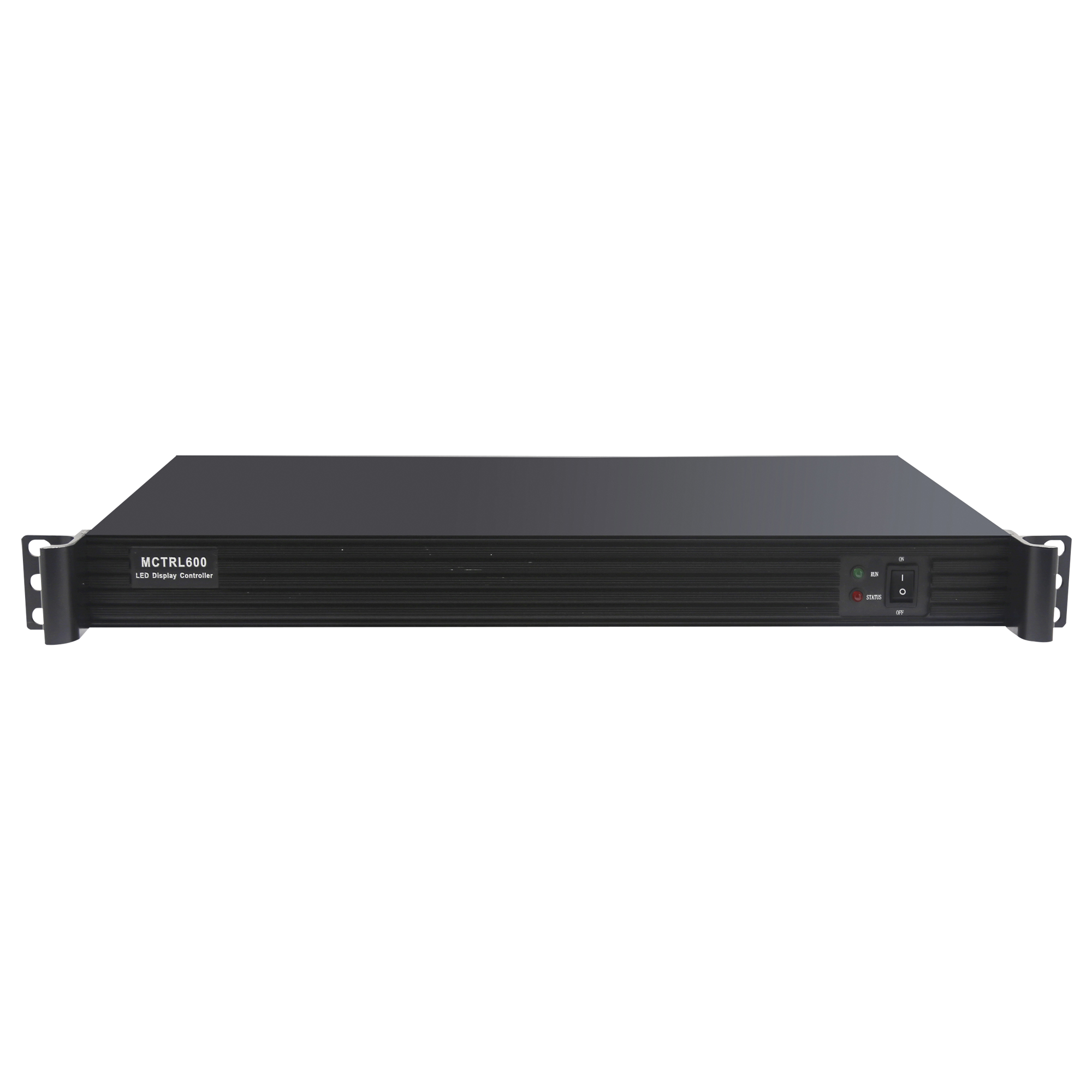

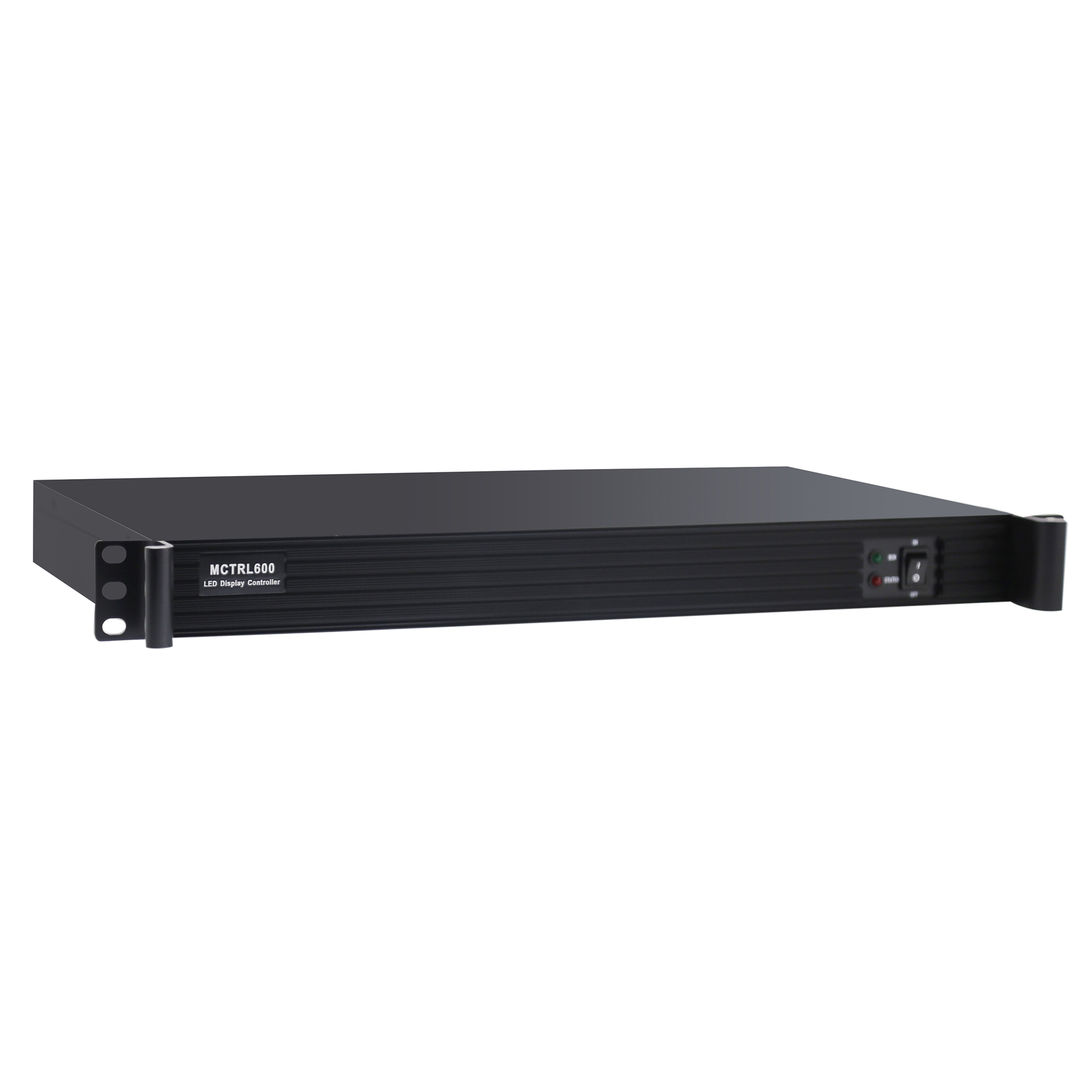

  MCTRL600 is a controller developed by NovaStar with a single-unit loading capacity of 1920×1200@60Hz. MCTRL600 utilizes UART to cascade and control multiple units. Suitable for a variety of applications, especially rental and fixed installations such as stage broadcasts, monitoring centers, sports arenas, and more.
  12bit/10bit HDMI input, DVI input
  HDMI input, external signal input
  HDCP Blue-Ray input
  8bit video source loading capacity of 1920×1200@60Hz.
  12bit video source loading capacity of 1440×900@60Hz
  Support for custom resolutions: 3840 pixels of H resolution, 3840 pixels of V resolution Supports cascading for control of multiple units Support for multiple signal formats: RGB, YCrCb4:2:2, YCrCb4:4:4 Certifications, CE, RoHS, FCC, EAC, IC

• Category	Specifications
  Electrical Parameters
  Input Voltage	AC 100 V–240 V, 50/60 Hz
  Rated Power Consumption	16 W
  Operating Environment
  Temperature Range	-20°C to 60°C
  Humidity Range	0% RH to 90% RH (non-condensing)
  Physical Dimensions
  Dimensions (W x D x H)	482 mm × 268.5 mm × 44.4 mm
  Weight	2.9 kg
  Space Requirement	1U Rack Space
  Certifications	FCC, RoHS, EAC, IC, PFOS, LVD, EMC

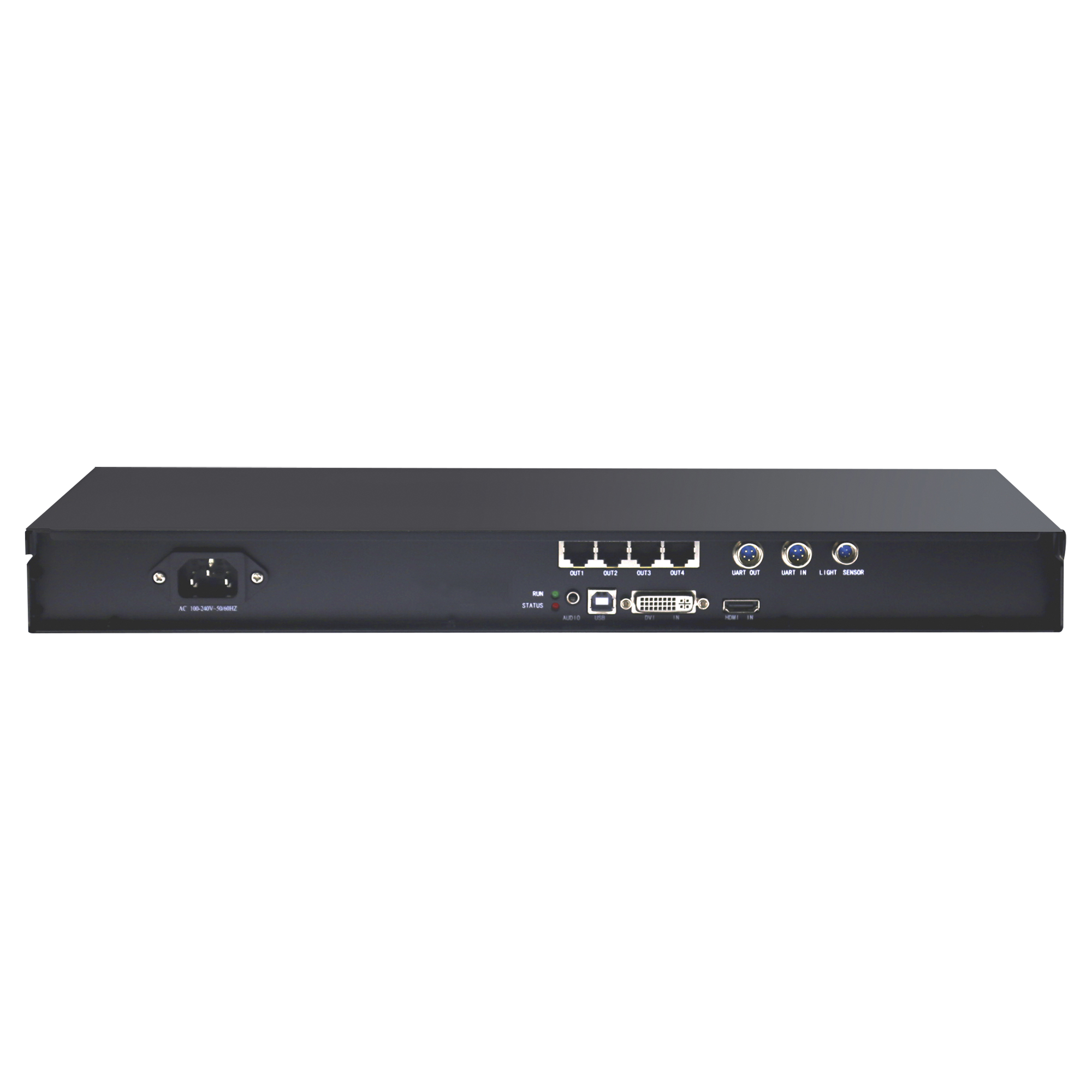

  Video Inputs
  DVI Input	1 × DVI
  HDMI Input	1 × HDMI 1.3
  Audio Input	1 × Audio Input
  Light Sensor Connector	1 × Light Sensor Port
  Video Output
  Max Resolution	1920 × 1200 @ 60Hz (with downward compatibility)
  Ethernet Outputs	4 × RJ45 Gigabit Ethernet (up to 650,000 pixels each)
  USB Control Port	1 × Type-B USB
  UART Control Ports	UART IN and UART OUT for device cascading
  Calibration Technology	Supports NovaStar calibration technology for fast and efficient performance
  Supported Video Formats	Multiple standard video formats supported
  Packing Information
  Carrying Case	530 mm × 140 mm × 370 mm (Craft paper box with NovaStar print)
  Accessory Box	402 mm × 347 mm × 65 mm (Craft paper box)
  Included Accessories	1 × Power Cord, 1 × USB Cable, 1 × DVI Cable
  Packing Box	550 mm × 440 mm × 175 mm (Craft paper box with NovaStar print)
