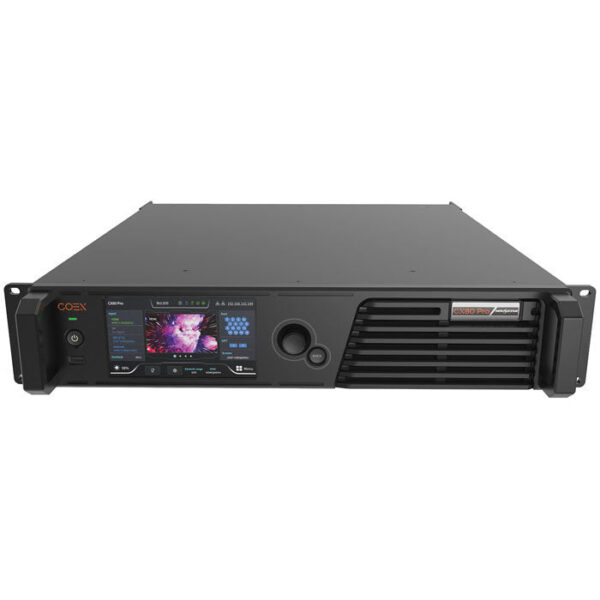

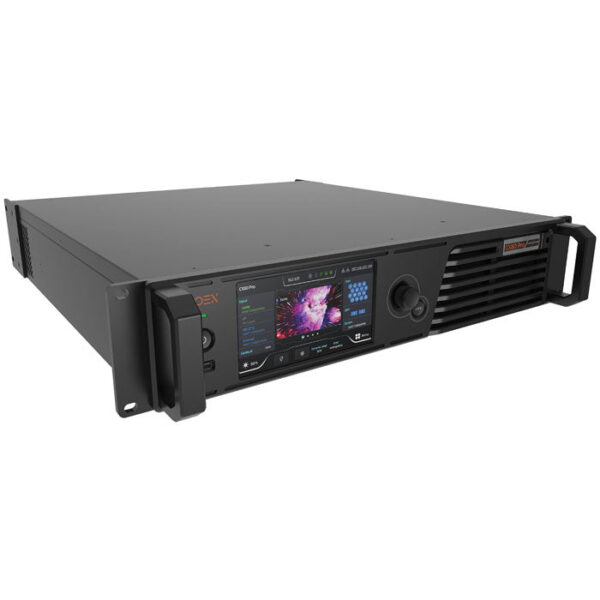

NovaStar CX80 Pro LED Display Controller

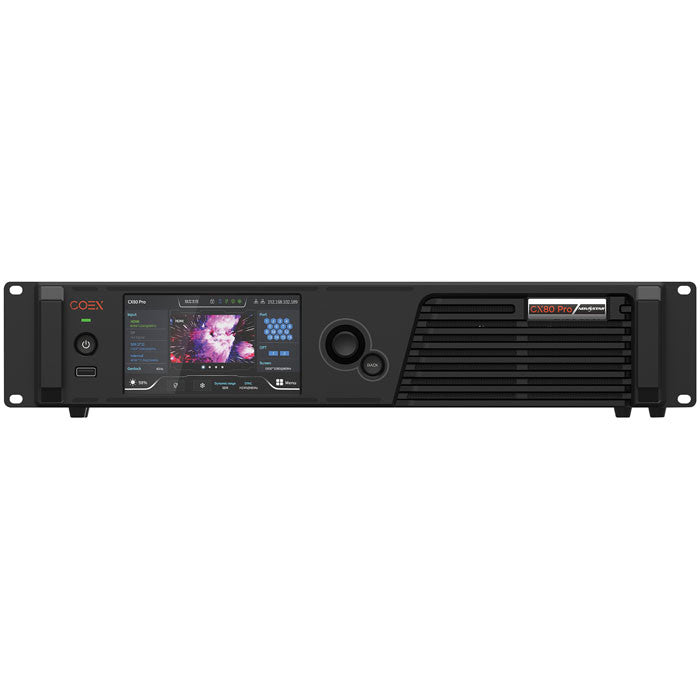

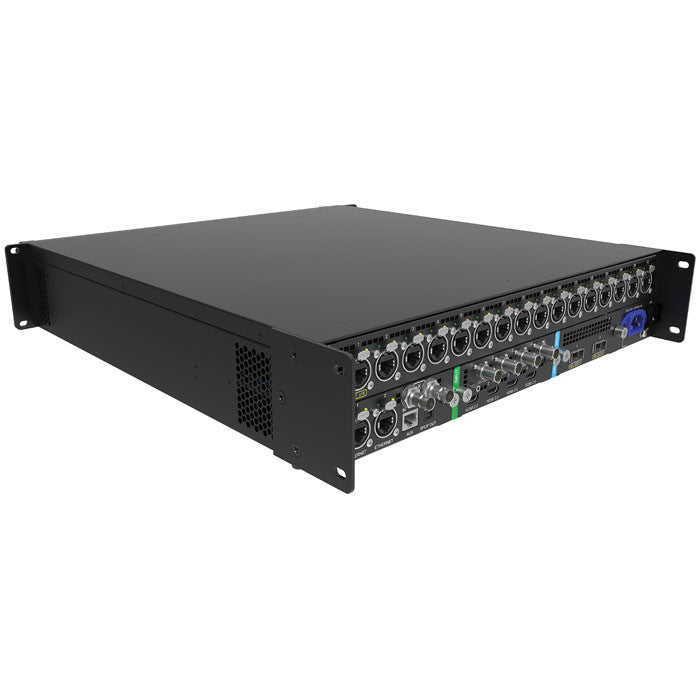

The CX80 Pro is Novastar’s flagship 8K LED display controller. It offers a range of inputs and outputs for ultimate flexibility. There are four HDMI 2.0 and four 12G-SDI inputs, while the outputs consist of sixteen 5GB Ethernet ports and two 40G optical ports. There are also two network ports, one auxiliary port, an S/PDIF optical out and a Genlock input and loop on board. A 5.5-inch LCD touchscreen, a control knob and a back button on the device make it easy to control when you don’t want to use the comprehensive, user-friendly VMP software. Cascading control via Ethernet is possible too. Advanced features include three independent layers, image scaling, colour replacement, 14Ch colour correction, low latency support and display system monitoring. Note that the CX80 Pro uses a new type of receiver card (CA50E/CA50C/XA50) and is, therefore, not backwards compatible.
-
Category Specification Inputs HDMI 2.0: 4 ports, 12G-SDI: 4 ports Outputs Main Outputs: 16 ports, S/PDIF (Out): 1 Ethernet Speed 5 Gbit/s Optical SFP Slot Type: 40G, SFP Slot Quantity: 2 Software Specifications Control Software: VMP Extra Features Scaling Function: Yes, GenLock: In & Out Control & Programming Display: Touch, Display Size: 5.5″ Max Loading Capacity 35.4 Mpx Max Input Resolution 4096 x 2160 Control Options Ethernet Electrical Specs Power Supply: 100-240 V AC 50/60 Hz Power Consumption 170 W Power Connector In IEC Data Connector In etherCON, RJ45 Data Connector Out etherCON Mechanical Specs Width (w/ handles): 483 mm (19.016″) Width (w/o handles): 446 mm (17.559″) Height (w/ handles): 881 mm (34.685″) Depth (w/ handles): 528 mm (20.787″) Depth (w/o handles): 480 mm (18.898″) Weight 10.5 kg (23.149 lb) IP Rating IP20 (Indoor use only) Colour Black Thermal Specifications Max Temp: 45°C (113°F) Min Temp: -10°C (14°F) Operating Humidity: 0-80% RH Included Items CAT-5 Cable, HDMI-HDMI Cable, IEC Cable
