Novastar CX40 Pro LED Display Controller

• Description
• Specifications

• Novastar CX40 Pro LED Display Controller

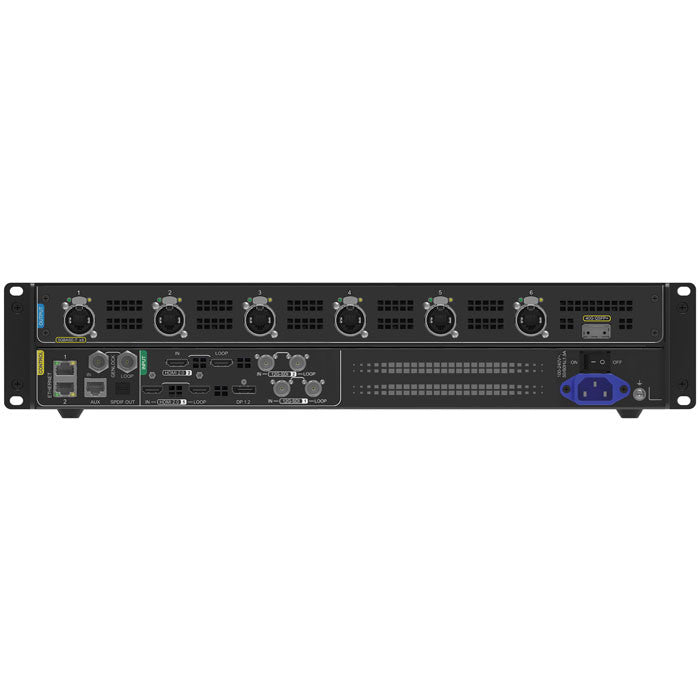

  The CX40 Pro is a 4K LED display controller by Novastar. A 5.5-inch LCD touchscreen, a control knob and a back button on the device make it easy to control when you don’t want to use the comprehensive, user-friendly VMP software. Cascading control via Ethernet is possible too. The CX40 Pro offers a range of inputs and outputs for ultimate flexibility. Inputs include two HDMI 2.0 + loop, one DP 1.2 and two 12G-SDI + loop, while the outputs consist of six 5GB Ethernet ports and one 40G optical port. There are also two network ports, one auxiliary port, an S/PDIF optical out and a Genlock input and loop on board. Advanced features include three independent layers, image scaling, colour replacement, 14Ch colour correction, low latency support and display system monitoring. Note that the CX40 Pro uses a new type of receiver card (CA50E/CA50C/XA50) and is, therefore, not backwards compatible.

• Category	Specification
  Inputs	DP 1.2 (1), HDMI 2.0 (2), 12G-SDI (2)
  Outputs	Main Outputs (6), HDMI 2.0 Loop (2), 12G-SDI Loop (2), S/PDIF (Out) (1)
  Ethernet Speed (LED Screen)	5 Gbit/s
  Optical	SFP Slot Type: 40G, SFP Slot Quantity: 1
  Software Specifications	Control Software: VMP
  Extra Features	Scaling Function: Yes, Layers: 3, GenLock: In & Out
  Control and Programming	Display: Touch, Display Size: 5.5″
  Maximum Loading Capacity	9 Mpx
  Maximum Input Resolution	4096 x 2160
  Control Options	Ethernet
  Electrical Specifications	Power Supply: 100-240 V AC 50/60 Hz, Power Consumption: 105 W
  Power Connector In	IEC
  Data Connector In	RJ45
  Data Connector Out	etherCON, RJ45
  Mechanical Specifications	Width (w/ handles): 483 mm (19.016″), Width (w/o handles): 446 mm (17.559″)
  	Height (w/ handles): 881 mm (34.685″)
  	Depth (w/ handles): 472 mm (18.583″), Depth (w/o handles): 424 mm (16.693″)
  Weight	8.1 kg (17.857 lb)
  IP Rating	IP20 (indoor use only)
  Colour	Black
  Thermal Specifications	Max Temp: 45°C (113°F), Min Temp: -10°C (14°F)
  Operating Humidity	0-80 % RH
  Included Items	CAT-5 Cable, DP-DP Cable, HDMI-HDMI Cable, IEC Cable
