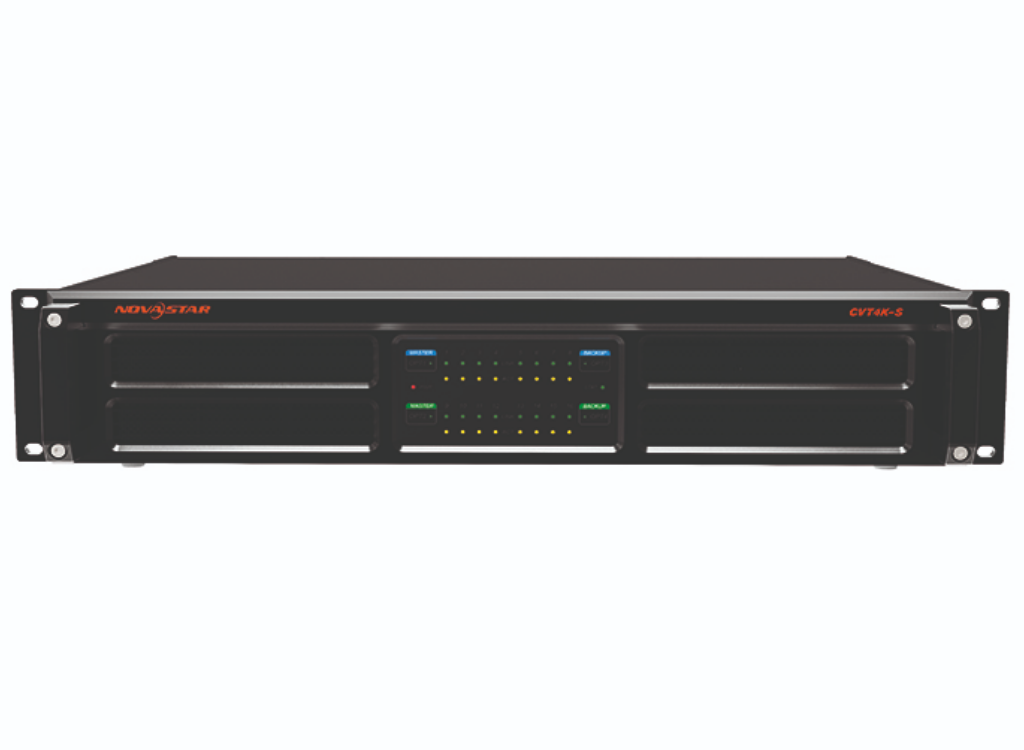

NovaStar CVT4K-S Fiber Optic Converter (Single Mode)

• Description
• Specifications

• NovaStar CVT4K-S Fiber Optic Converter (Single Mode)

  The NovaStar CVT4K-S is a fibre optic converter with 4 optical outputs that enable a data transfer of 10 gigabits. The range of the signal transmission can be up to 15 kilometres. The required SFP modules with LC interface are already integrated in the CVTK4K-S.

  The device also has 16 Ethernet ports. Each Ethernet port has a status display on the front of the device, which greatly simplifies the control of the signal flow.

  A further feature of the device is the possibility of a redundant power supply via the 3-pole cold device connection and the powerCON connection. Of course only one of the power supply inputs can be used.

  With these features, the NovaStar CVT4K guarantees that your event runs smoothly.


  Features
  16 Neutrik Ethernet Outputs
  4 SFP fiber optic outputs
  Redundant or dual power supply
  Supply voltage: AC 100 – 240V, 50/60 Hz
  Plug’n’Play: no drivers required
  Control via USB or LAN
  Certificates: EMC, LVD, RoHS, FCC, UL/CUL, CB, EAV, IC

• Category	Details
  Weight	11 kg
  Size	55 × 45 × 22 cm
  WEEE Number	DE 501 113 91
