• NovaStar 6-Output Sender Box

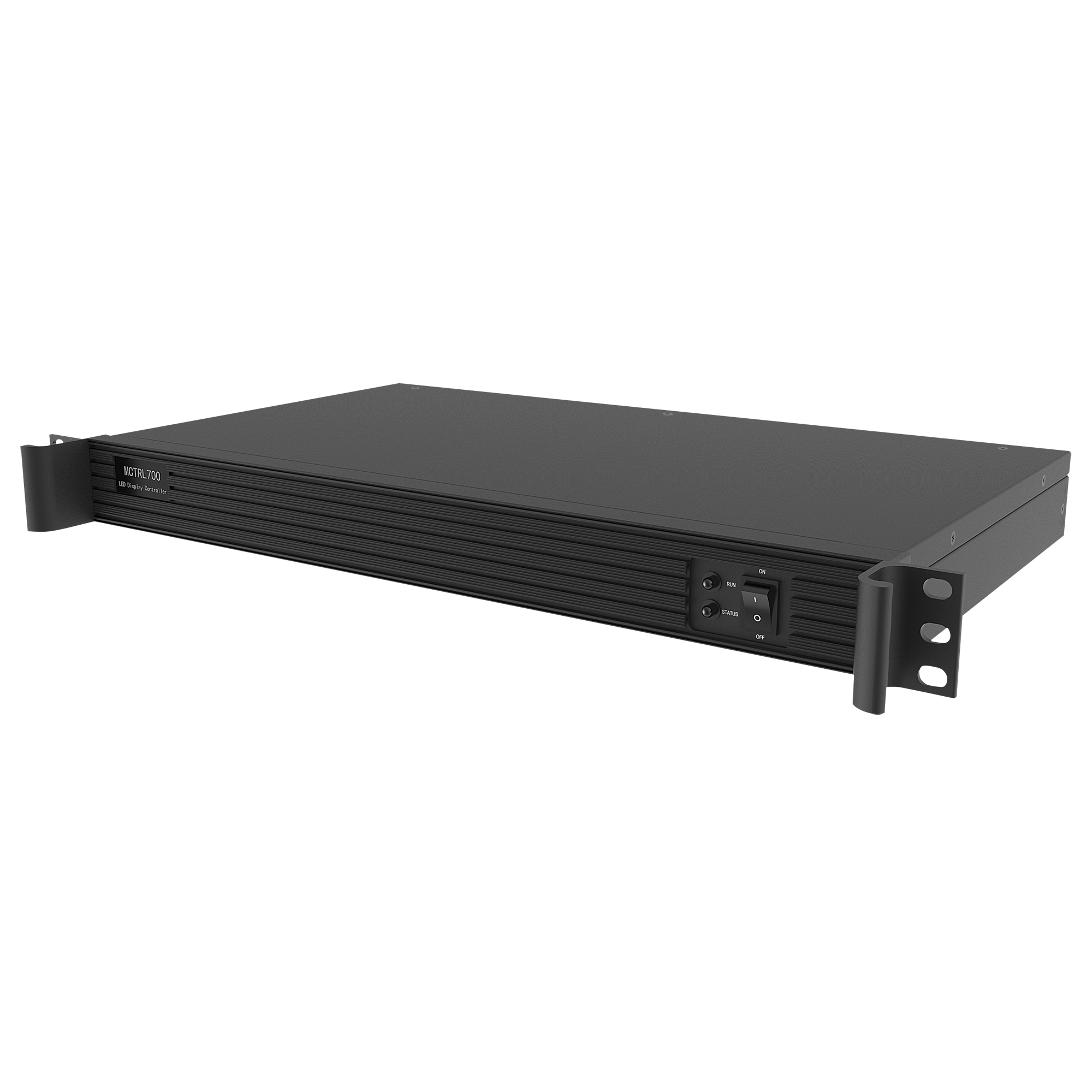

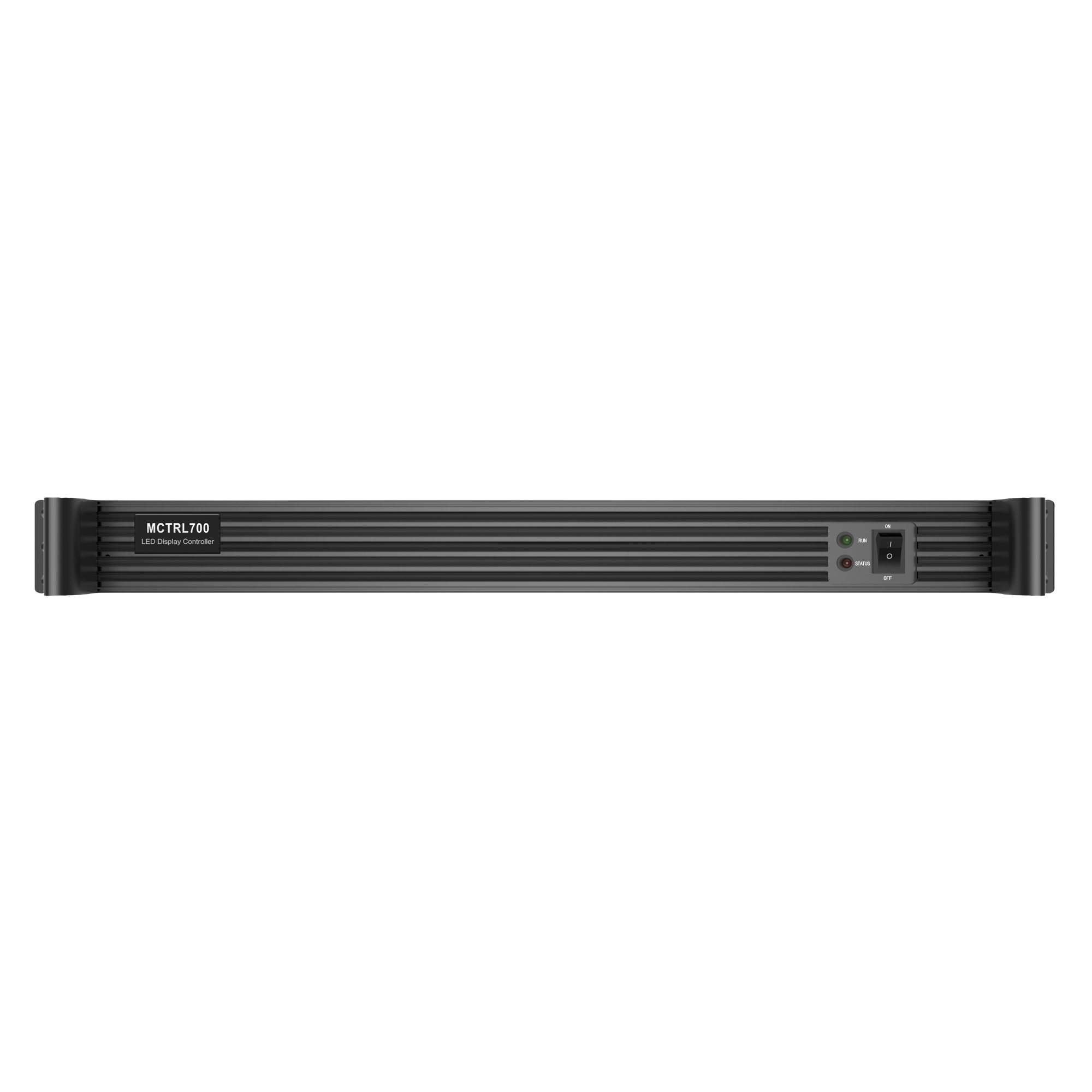

  MCTRL700 is a video controller developed by NovaStar. It supports 1x DVI input, 1× HDMI input, 1× audio input, and 6 Ethernet outputs. A single unit can load 1920×1200@60Hz.
  MCTRL700 utilizes USB IN to connect with a PC, and serial UART to perform cascading. MCTRL700 is mainly suitable for applications in the rental and fixed installation sectors, such as concerts, live broadcasting, monitoring centers, Olympic events, sports arenas, and more.

  Supports 3 types of inputs:
  1×SL-DVI（IN-OUT）
  1×HDMI 1.3（IN-OUT）
  1×AUDIO
  8bit video source loading capacity of 1920×1200@60Hz.
  12bit video source loading capacity of 1440×900@60Hz
  Supports 6x 1G network port outputs.
  Supports 1× USB control port
  Supports 2× UART control ports for cascading up to a maximum of 20 units.

  Point to point brightness and color calibration provided by NovaLCT and NOVACLB software. This software performs brightness and color calibration on every LED lamp, reducing color discrepancies, and ensuring uniform brightness and color over the entire display, providing a higher quality image.

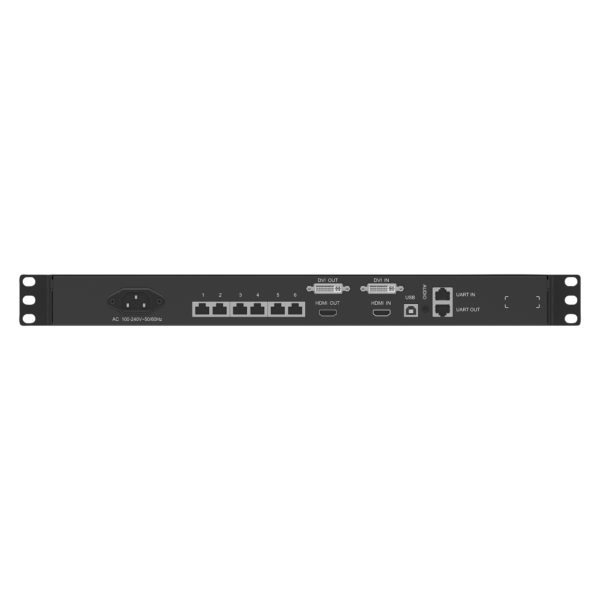

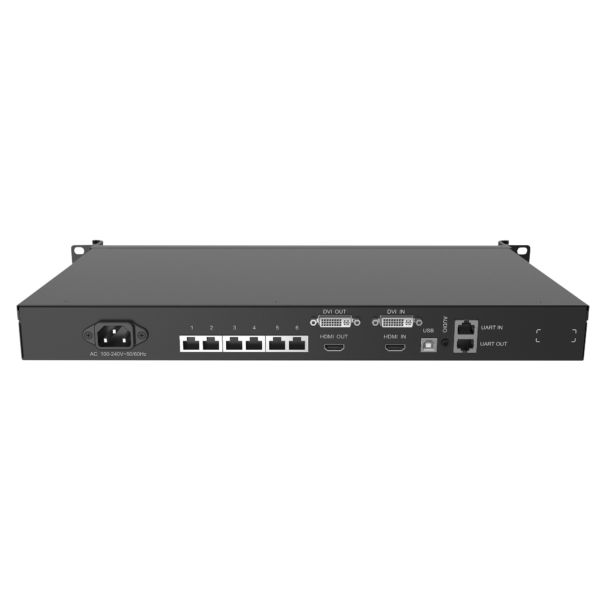

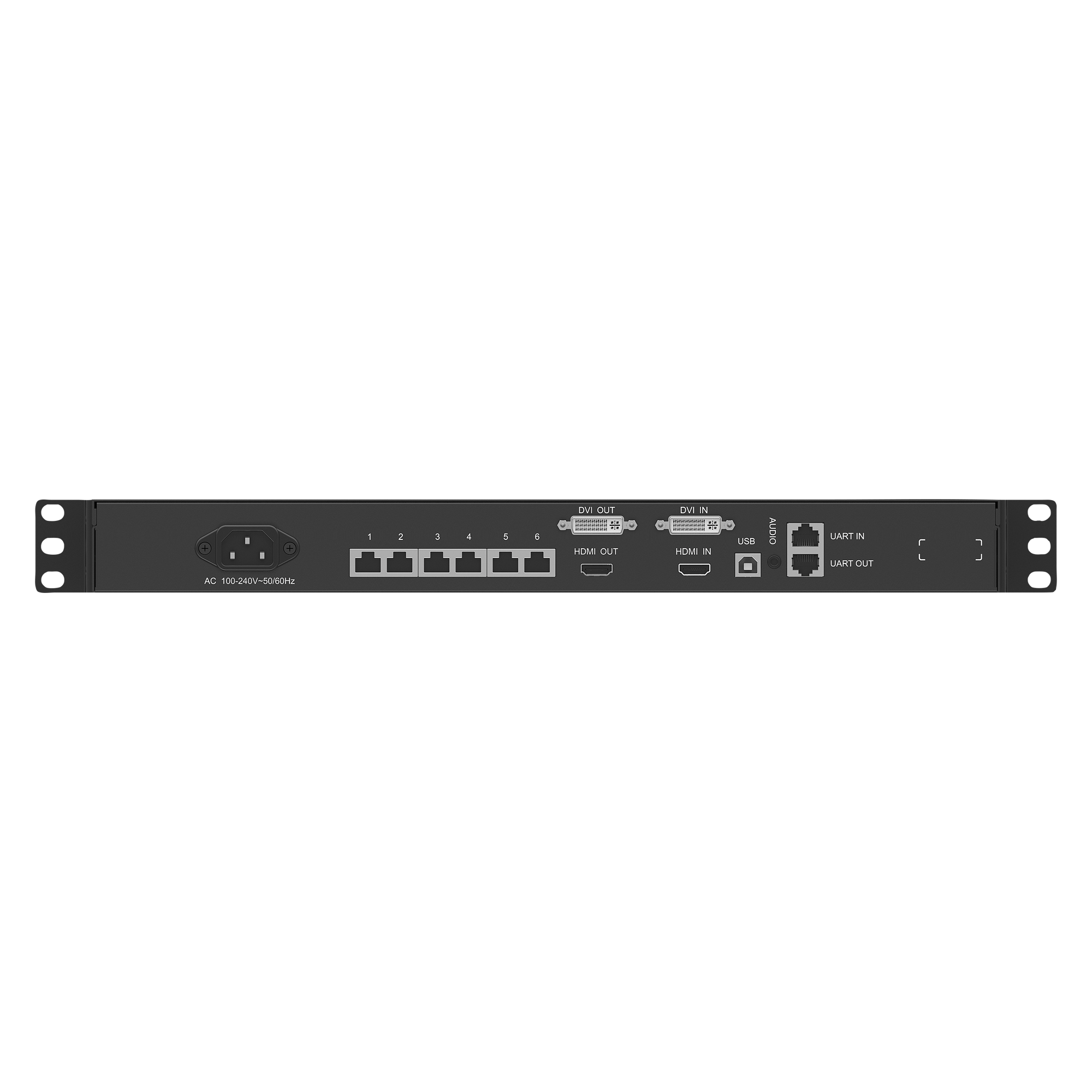

• Connector Type	Connector Name	Description
  Input	DVI IN	1x SL-DVI input, up to 1920×1200@60Hz, Custom resolutions supported: Max Width: 3840, Max Height: 3840. HDCP 1.4 compliant. No interlaced input support.
  	HDMI IN	1x HDMI 1.3 input, up to 1920×1200@60Hz, Custom resolutions supported: Max Width: 3840, Max Height: 3840. HDCP 1.4 compliant. No interlaced input support.
  	AUDIO IN	Audio input connector for external audio sources.
  Output	RJ45 Ports	6x RJ45 Gigabit Ethernet ports, up to 650,000 pixels per port. Redundancy supported between ports.
  	HDMI OUT	1x HDMI 1.3 output for cascading.
  	DVI OUT	1x SL-DVI output for cascading.
  Control	USB	Type-B USB 2.0 port for PC connectivity.
  	UART IN/OUT	Input and output ports for cascading up to 20 devices.
  Power	Power Supply	AC 100V-240V ~ 50/60Hz
  Key Features	Calibration	Pixel-level brightness and chroma calibration for enhanced image quality and color uniformity.
  	Control Software	Works with NovaLCT and NovaCLB for LED calibration and display optimization.
  Additional Features	Redundancy	Redundancy support for uninterrupted display in case of signal loss.
