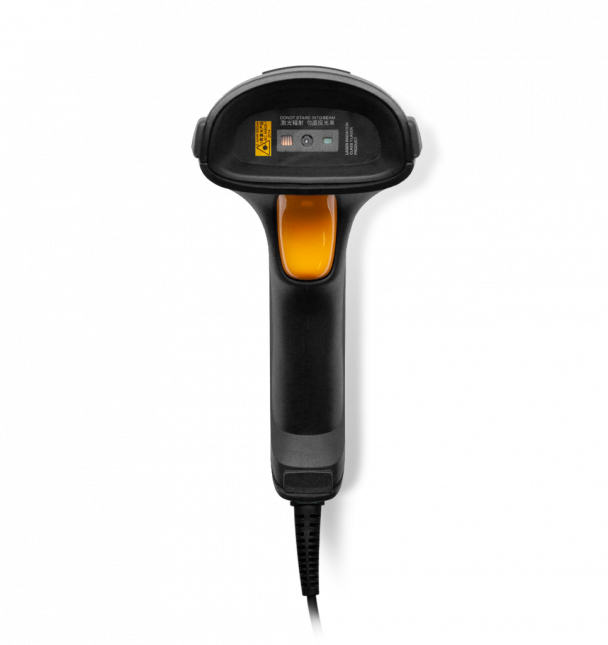

Newland HR52 Bonito Handheld Bar Code Reader, 1D/2D CMOS, Black | NLS-HR5280RT-SF

• Description
• Specifications
• Downloads

• Newland HR52 Bonito Handheld Bar Code Reader, 1D/2D CMOS, Black | NLS-HR5280RT-SF

  Giving it one of the quickest and most accurate scanning performances available, the HR52 Bonito Corded includes a megapixel barcode scanner that reads both 1D and 2D codes with ease. Barcodes that are creased, damaged or covered by cellophane are no problem for this scan engine.


  Scan with impressive accuracy at your POS.
  Giving it one of the quickest and most accurate scanning performances available, the HR52 Bonito Corded includes a megapixel barcode scanner that reads both 1D and 2D codes with ease. Barcodes that are creased, damaged or covered by cellophane are no problem for this scan engine.


  Suggested industries


  Features
  Developed for scanning at the POS.
  Equipped with a megapixel barcode scanner, the HR52 Bonito Corded provides you with some of the snappiest and most accurate scanning on the market. It reads virtually all 1D or 2D barcode in any condition, including DotCode on tobacco products.

  Perfected for precise aiming.
  Soft, white illumination combined with a clear cross laser aimer provide ideal conditions for point-and-shoot scanning. One press of the trigger is sure to capture the correct barcode, even if surrounded by other barcodes, by using Newland’s Acuscan aiming technology.

  Adjusts to your environment.
  No matter where the scanner needs to fit into your business, the HR52 Bonito Corded suits the setting. Its stand can be set for hands-free scanning, optimising work at your POS while keeping the device fully charged. In the stockroom or your warehouse, it can be mounted vertically or horizontally for easy access.

  Durable design.
  The built-in durability of the HR52 Bonito Corded makes the handheld scanner a reliable solution. Everyday drops to the floor or bumps on the counter are no match for its 1.8m drop resistance.

• Category	Feature	Specification
  Data Capture	1D	All major 1D symbologies, including EAN-13, UPC-A, Codabar, Code 128, ITF-14, MSI-Plessey, etc.
  	2D	All major 2D symbologies, including PDF417, QR Code, Data Matrix, Aztec, Maxicode
  	Image Sensor	1280×800 CMOS
  	Aiming	650nm laser diode
  	Illumination	White LED
  Depth of Field	EAN 13 (13mil)	35mm-280mm
  	Code 39 (5mil)	70mm-210mm
  	PDF417 (6.67mil)	50mm-160mm
  	DataMatrix (10mil)	40mm-170mm
  	QR (15mil)	20mm-230mm
  Field of View	Horizontal	42°
  	Vertical	28°
  Scan Angle	Roll	360°
  	Pitch	±55°
  	Skew	±55°
  Performance	Motion Tolerance	50cm/s
  	Minimal Print Contrast	20%
  Physical	Current @ 5VDC Operating	272mA (typical)
  	Current @ 5VDC Standby	81mA
  	Dimensions	95.5(L)x77.5(W)x172.5(H)mm
  	Input Voltage	5VDC±5%
  	Interfaces	RS-232, USB
  	Notifications	Beep, LED indicator, vibration
  	Power Consumption	1308mW
  	Weight	180g
  Environmental	Operating Temperature	-20℃ to 50℃ (-4°F to 122°F)
  	Storage Temperature	-40℃ to 70℃ (-40°F to 158°F)
  	Humidity	5% to 95% (non-condensing)
  	Electro Static Discharge (ESD)	±15 kV (air discharge), ±8 kV (direct discharge)
  	Drop	1.8m
  	IP Rating	IP54
  Accessories	Standard	USB Cable
  	Optional	RS232 Cable
  Software	Configuration Tools	EasySet
  Certifications	Hardware	FCC Part 15, Class B, CE EMC Class B, CB IEC/EN62368 – 60825
  Warranty	Standard	5 years
