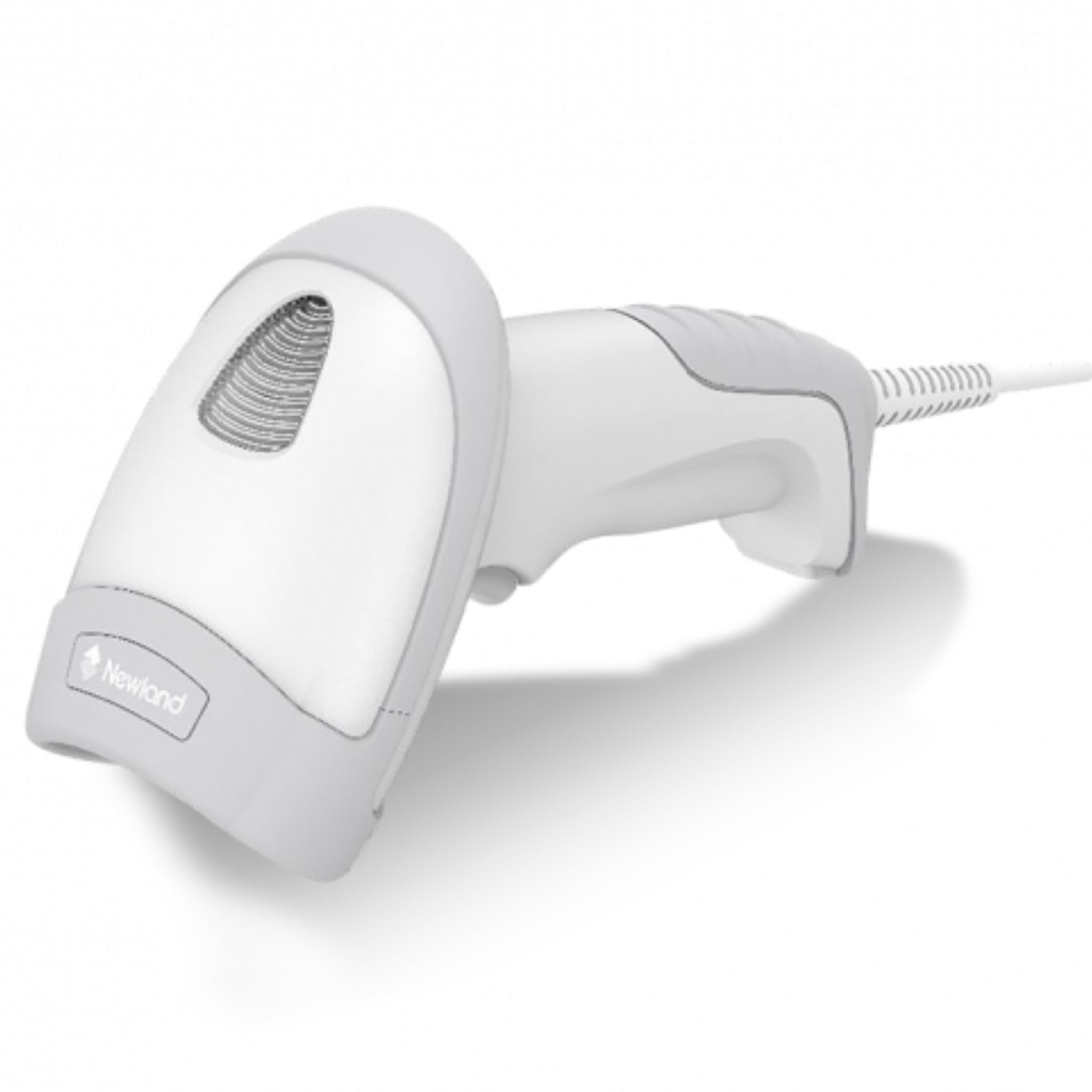

Newland HR32 Marlin II 2D CMOS Mega Pixel Health Care Handheld Reader
The ideal handheld solution for scan-intensive use in retail and healthcare.
The HR32 Marlin Corded HC is a barcode scanning powerhouse. No matter what type of barcode is presented, the megapixel camera allows users to scan 1D and 2D barcodes, including very small and high-density ones, with impressive speed and ease. Add in the antimicrobial coating and this device is ready for healthcare or extra safety at your POS.
Megapixel camera.
The HR32 Marlin Corded HC is a barcode scanning powerhouse. No matter what type of barcode is presented, the megapixel camera allows users to scan 1D and 2D barcodes, including very small and high resolution codes, with impressive speed and ease.
Durable Construction.
Users in healthcare setting will enjoy the strong exterior and drop resistance up to 1.5m. With an IP42 rating, the device is protected against water and dust.
Superior ergonomics.
The HR32 Marlin Corded HC is the ideal solution for scan-intensive use in retail and healthcare. The scanner fits comfortably in any user’s hand, reducing the fatigue of long-time operation.
All-round scanning capability.
Whether you need a barcode scanner that can be used on paper or displayed on screen, you’ll be set with the HR32 Marlin Corded HC. The device delivers unmatched scanning performance for both conventional and emerging applications.
Foldable smart stand available.
It is possible to order a foldable smart stand as an accessory or as a set with the scanner. -
Power Description Maximum Operating Power Consumption 1.29 W Interfaces/Ports Host Interface USB, Serial Processor & Chipset Processor Speed 1 GHz Processor Model X1500 General Information Product Type Barcode Scanner Kit Manufacturer Part Number NLS-HR3280-S0-HC Manufacturer Website Address http://www.newland-id.com Manufacturer Newland Product Name HR32 Marlin Corded HC Product Series HR32 Brand Name Newland Physical Characteristics Weight (Approximate) 162 g Form Factor Handheld Height 159 mm Width 113.5 mm Depth 73.3 mm Product Color White Product Material Polycarbonate (PC) Miscellaneous Application/Usage Retail, Hospitality, Healthcare, Warehouse Package Contents HR32 Marlin Corded HC, 2 meter USB cable Environmentally Friendly Yes Ingress Protection (IP) Rating IP42 Technical Information Barcode Symbology Supported 1D: EAN-8, EAN-13, UPC-E, UPC-A, Code128, Coupon, UCC/EAN128, CodaBar, I2Of5, Febraban, ITF14, ITF6, Matrix 25, Code39, Code93, ISSN, ISBN, Industrial 25, Standard 25, China Post 25, Plessey, Code 11, MSI Plessey, UCC/EAN Composite, GS1 Databar, Code 49, Code 16K, AIM 128, ISBT 128. 2D: PDF417, QR Code, Data Matrix, Aztec, Maxicode Connectivity Technology Cable Scanning Distance 510 mm Light Source LED Drop Specification 1.5m Drop Depth of Field EAN 13 (13mil) 45-510mm, Code 39 (5mil) 75-220mm, PDF417 (6.67mil) 70-215mm, Data Matrix (10mil) 50-220mm, QR (15mil) 20-330mm Image Sensor Type CMOS Scan Mode Trigger Cable Type Included USB Scanning Capability 2D, 1D Field of View (Horizontal) 39° Field of View (Vertical) 24° Reading Angle (Skew) 55° Reading Angle (Pitch) 55° Reading Angle (Roll) 360° Maximum Ambient Light 100000 lux Minimum Print Contrast 25% Maximum Element Resolution (Code 39) 0.13 mm Maximum Element Resolution (DataMatrix) 0.25 mm Maximum Element Resolution (PDF417) 0.17 mm -
Description Downloads Newland HR32 Marlin II User Guide Downloads Newland HR32 Marlin II Datasheet Downloads
