Newland HR23 Dorada Bluetooth Handheld Scanner | NLS-HR2300-BT
- Description
- Specifications
- Downloads
-

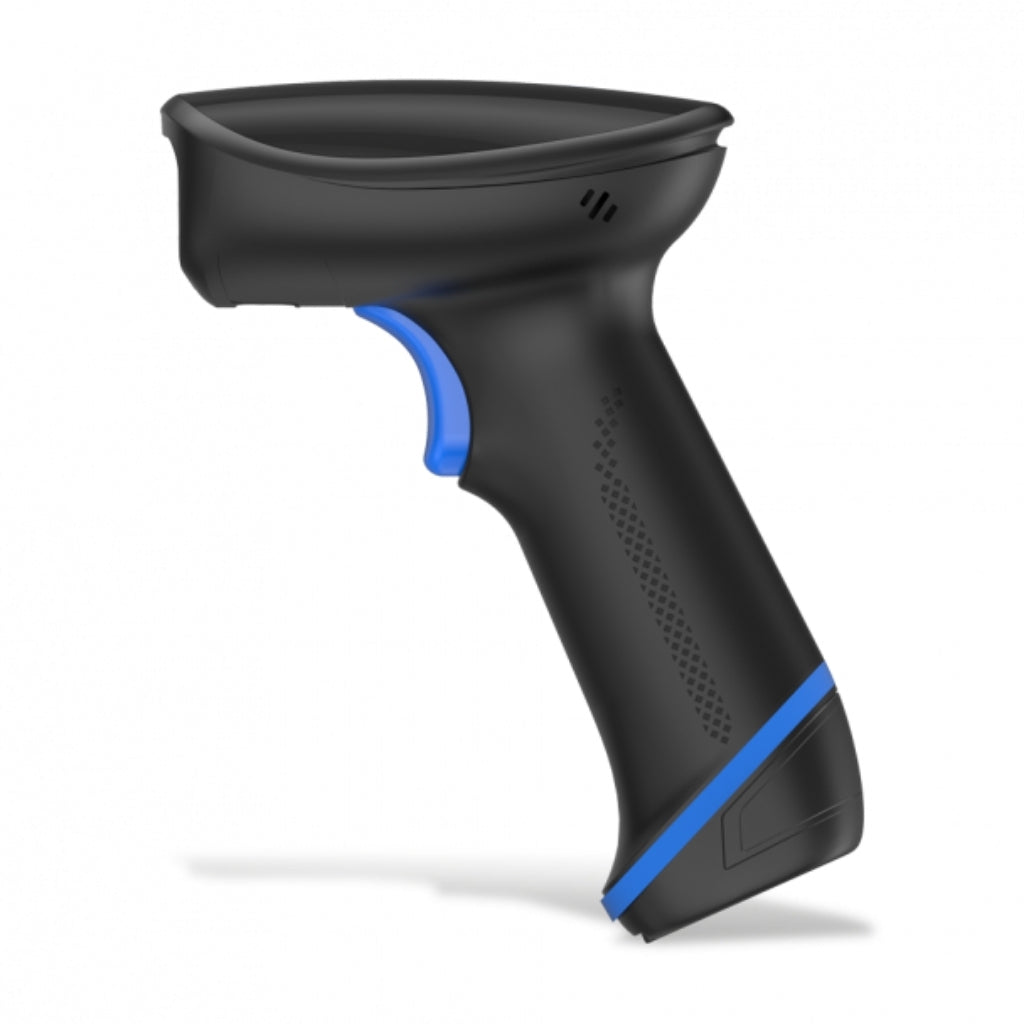

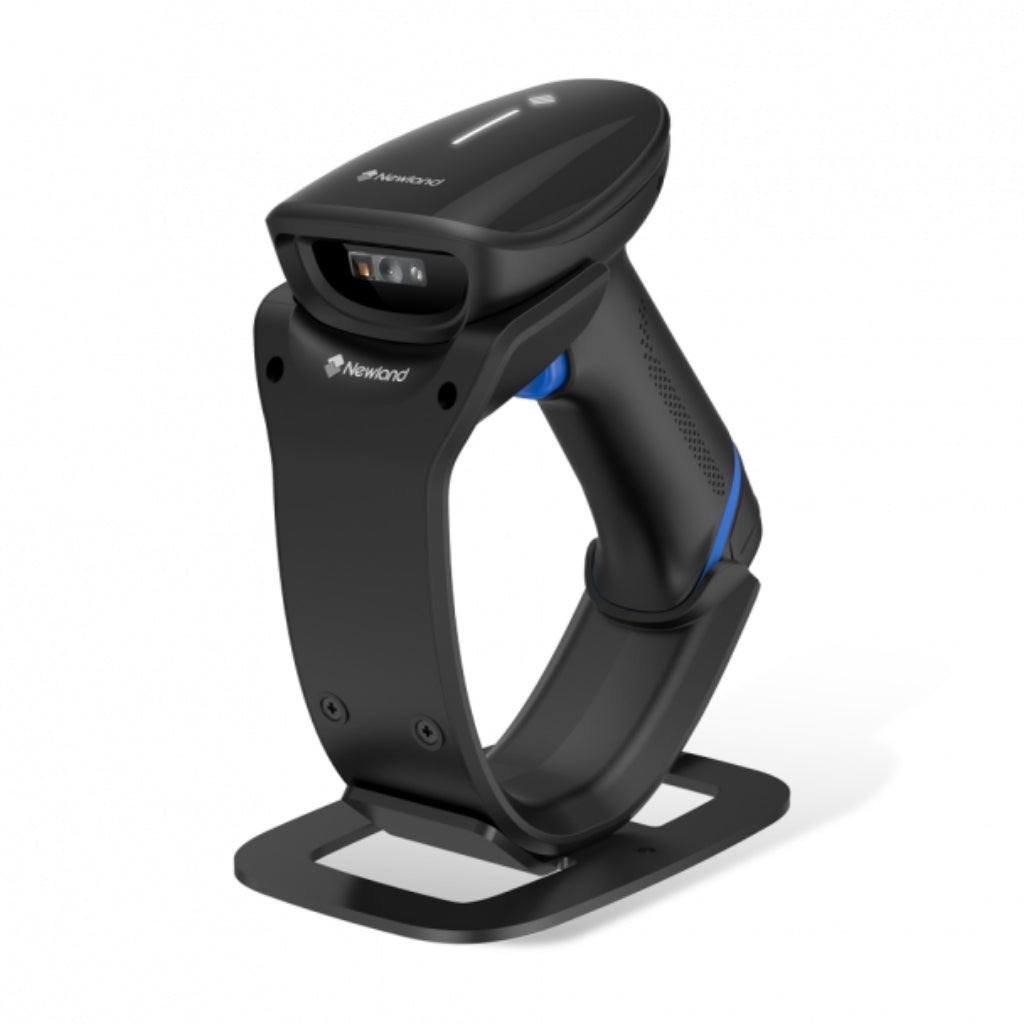

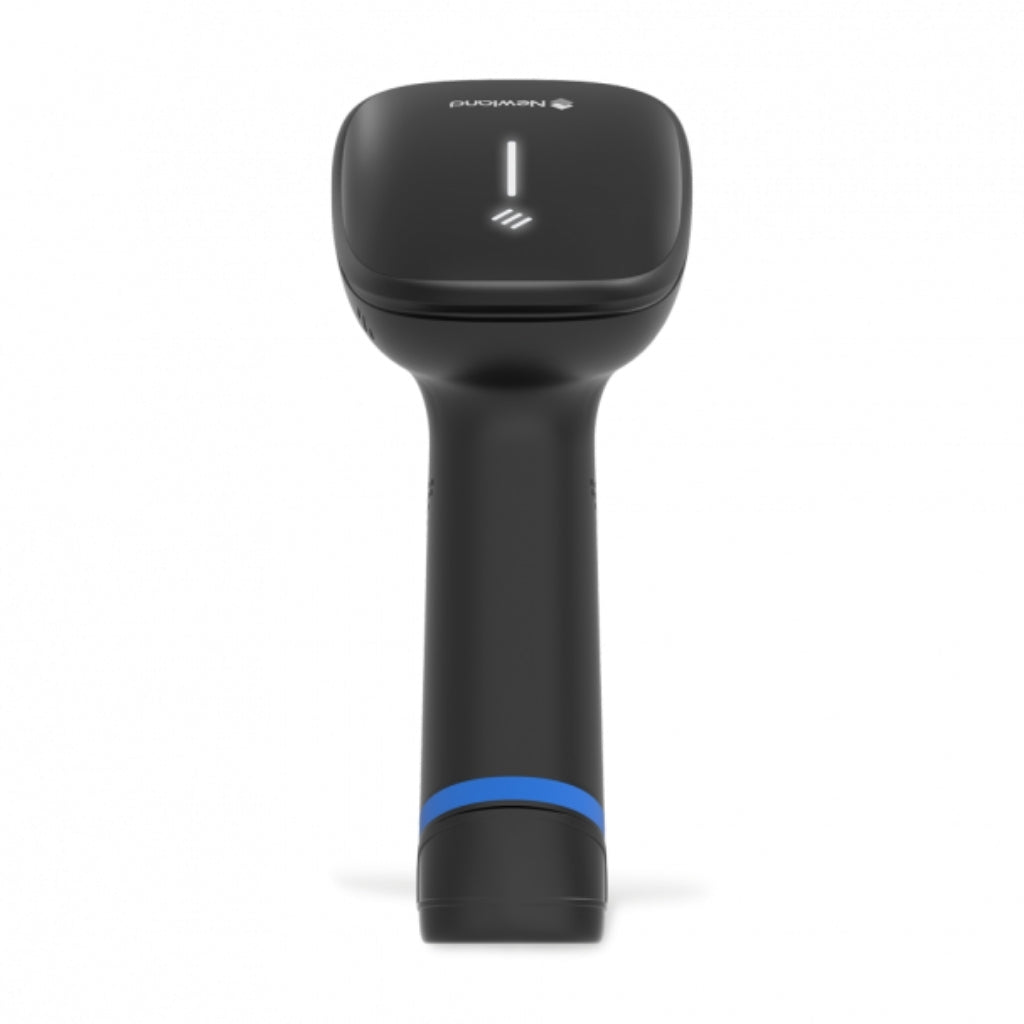

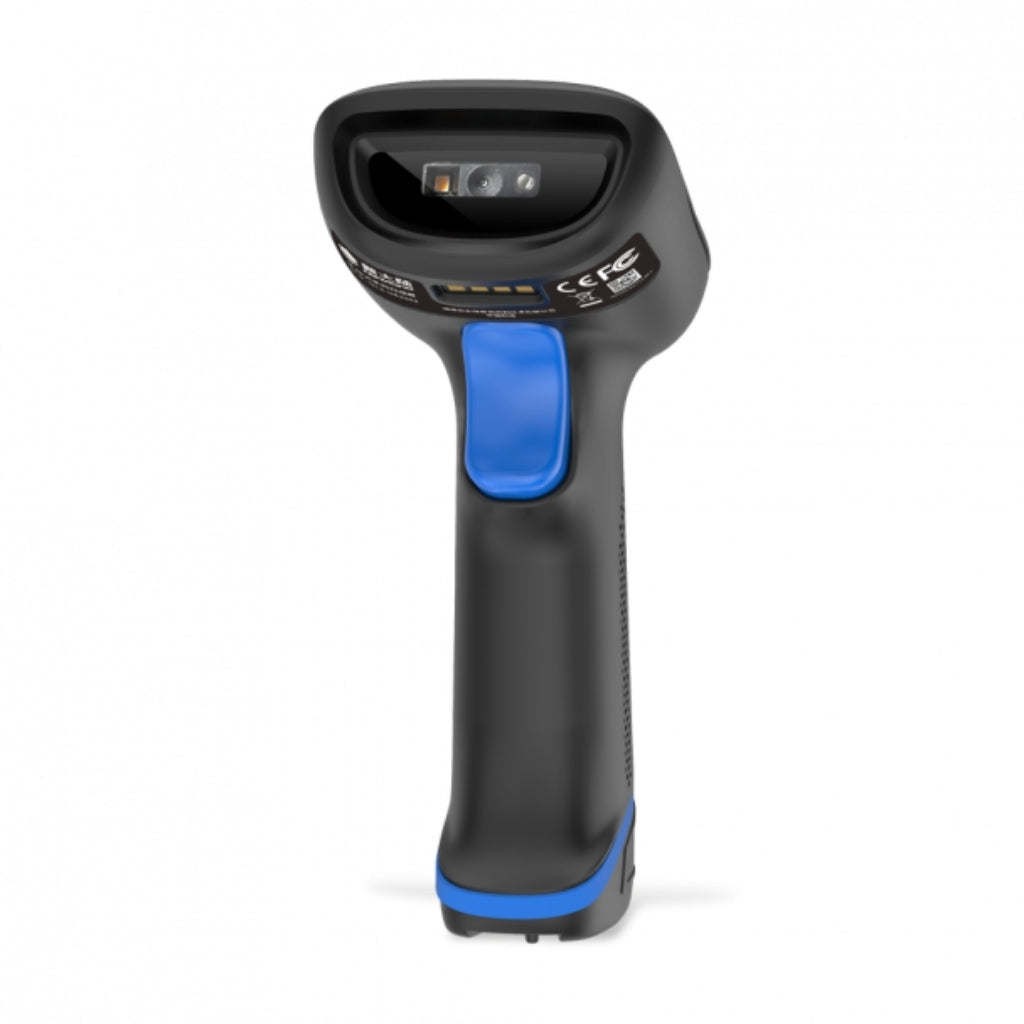

Newland HR23 Dorada Bluetooth Handheld Scanner
Dorada’s replaceable Battery
If the 12 hours of continuous use the battery gives the HR23 is not enough, the latest Bluetooth device in the Dorada series comes with an easily removable battery, which allows for uninterrupted usage and enhances operational efficiency. Furthermore, the device has a new charging contact design ensures reliable and long-lasting connections, significantly improving the battery life-cycle compared to its predecessor.
Enhanced Connectivity
The HR23 Dorada, like the HR22, comes with Bluetooth 5.0 connectivity. However, we have taken it up a notch and increased its wireless range up to 100 meters in open spaces to enhance our customers’ flexibility. Moreover, the HR23 Dorada ensures seamless synchronous, asynchronous, and batch communication modes for all scanning requirements.
Rugged Reliability
With an IP52 rating and the ability to survive a 1.5m drop onto concrete, the HR23 Dorada is well-suited to any environment and is an ideal companion for demanding scanning tasks.
Advanced Scanning
The HR23 Dorada is a scanning device equipped with the latest Newland key decoding technology. It can scan all types of barcodes, even those that are distorted, damaged, or high-density. The device’s field of view covers both horizontal and vertical directions. Additionally, the HR23 Dorada offers a seamless scanning experience, allowing for a smooth transition from 1D to 2D scanning. All these features come at an entry-level price, making it an affordable option for those looking for a reliable and efficient scanning device.
Stylish and comfortable
The HR23 Dorada boasts a well-balanced and ergonomic design, allowing the scanner to fit perfectly in the user’s hand. Its lightweight and simple yet innovative design provides comfort and high productivity for tasks performed with efficiency.
Easyset Compatible
The HR23 Dorada comes with EasySet, a configuration software developed by Newland. This software simplifies the scanner configuration process, making it easy and efficient for users. They can send the configuration directly to the scanner, save it for future deployment on other scanners, or display it as a series of barcodes in a single document. -
Category Details Data Capture 1D: Code 11, Code 128, Code 39, GS1-128 (UCC/EAN-128), AIM 128, ISBT 128, Codabar, Code 93, UPC-A, UPC-E, Coupon, GS1 Composite, EAN-13, EAN-8, ISSN, ISBN, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, ITF-6, ITF-14, Standard 2 of 5, China Post 25, MSI-Plessey, Plessey, GS1 DataBar (RSS) 2D: PDF417, QR Code, Aztec, Data Matrix, Micro PDF417, Micro QR, Chinese Sensible Code Image Sensor 640×480 CMOS Aiming Red LED Illumination White LED Resolution ≥3mil Depth of Field EAN 13 (13mil) 50mm-280mm Depth of Field Code 39 (5mil) 50mm-120mm Depth of Field PDF417 (6.7mil) 40mm-120mm Depth of Field DataMatrix (10mil) 30mm-125mm Field of View Horizontal 45° Field of View Vertical 34° Scan Angle Roll 360° Scan Angle Pitch ±60° Scan Angle Skew ±60° Minimal Print Contrast 20% Performance Memory Flash: ≥16,384 code entries (above 60 bytes) Physical Battery Type: 2600mAh lithium-ion battery, Dimensions (Cradle): 140x90x144.5mm, Dimensions (Scanner): 117.5×67.5x144mm, Expected Battery Life: ≥16 hours, Expected Charge Time: ≤6 hours, Input Voltage: 5V DC±5%, Interfaces: USB (Type A), support USB-KBW, USB-CDC, HID-POS, Notifications: Beep, LED, Vibration, Weight: Cradle: 340.5g, Scanner: 209g Wireless Radio Technology: Bluetooth 5.0, Wireless Distance (max.): ≥100m (in open space), Communication Modes: Synchronous, asynchronous, and batch mode Environmental Operating Temperature: -10°C to 50°C (14°F to 122°F), Storage Temperature: -40°C to 70°C (-40°F to 158°F), Charge Temperature: 0°C to 45°C (32°F to 113°F), Humidity: 5%~95% (non-condensing), Electro Static Discharge (ESD): ±8 KV (contact discharge); ±15 KV (air discharge), Drop: Scanner: 1.5m drops to concrete, Cradle: 1.2m, IP Rating: IP52 Accessories Standard: Charging cradle Certifications Hardware: CE Red, FCC ID, RoHS 2.0, IEC62471 -
Description Downloads Newland HR23 Dorada Bluetooth Handheld Scanner | NLS-HR2300-BT User Guide Downloads Newland HR23 Dorada Bluetooth Handheld Scanner | NLS-HR2300-BT Datasheet Downloads Newland HR23 Dorada Bluetooth Handheld Scanner | NLS-HR2300-BT Quick Guide Downloads
