• Newland Handheld Bar Code Reader 1D Linear Black | NLS-BS8060-3V

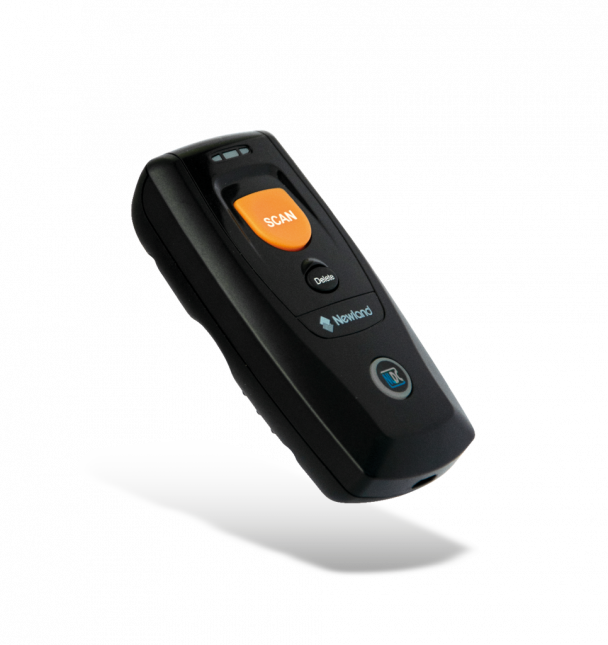

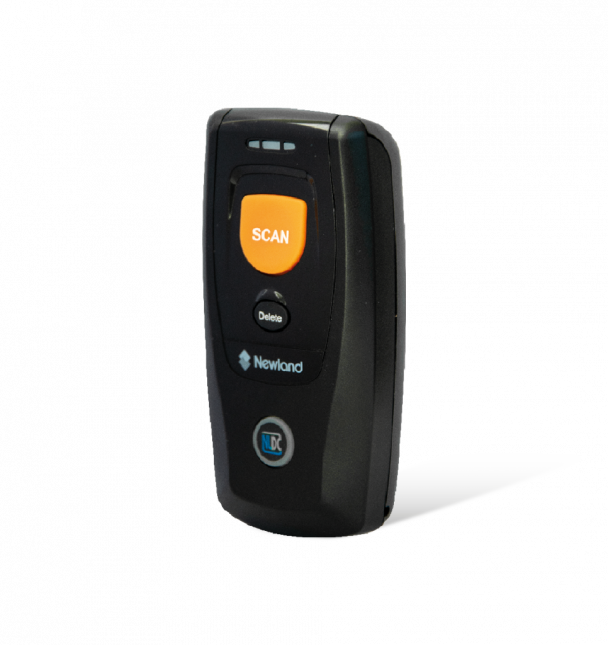

  BS8060 Piranha
  The Piranha can be defined by its snappy reading performance and portability, providing the convenience of always having a scanner at your fingertips. With dimensions of 88 x 46 x 24.5mm it is small enough to fit into a pocket and light enough to carry around all day. Despite its small size, the Piranha maintains an excellent performance, scanning virtually all 1D/2D barcodes seamlessly. The Bluetooth wireless function can be used to pair the Piranha with a PDA, smart phone and PAD application. This adaptability and portability makes it the perfect solution for application in retail, warehousing and O2O markets like electronic ticketing and electronic ordering.

  Superior reading performance.
  The BS8060 Piranha is offered in 2 versions, containing a 1D or a 1D+2D engines. These engines are capable of reading virtually any barcode from paper or screen. The 2D device has been equipped with a laser aimer with a red cross to make barcode reading easier and faster.

  Easy Bluetooth pairing.
  Via Bluetooth 4.0 Class 1 wireless technology, the BS8060 can be paired with any Android, iOS or Windows device, five times faster than regular Bluetooth.


  Can be used anywhere, anytime.
  The BS8060 Piranha is small enough to fit into your pocket and light enough to carry around all day, providing you with the convenience of always having a scanner at your fingertips.

  Convenient communication.
  Use the interface that suits your application best. The BS8060 Piranha gives you the flexibility to choose your preferred communication method with options like HID keyboard and Virtual COM.

  Hassle-free battery capacity.
  The high capacity Li-ion battery in the scanner provides up to 11 hours of continuous use per charge, allowing you to work hassle-free all day.

• Category	Specification
  Battery
  Battery Capacity (Wh)	0 Wh
  Battery Type	UN3481 – Lithium ION, inside equipment
  Design
  Certification	FCC Part15 Class B, CE EMC Class B
  IP Code	IP42
  LED Indicators	Yes
  Product Colour	Black
  Protection Features	Shock resistant
  Operational Conditions
  Operating Humidity	5 – 95 %
  Operating Temperature	-20 – 50 °C
  Storage Temperature	-40 – 70 °C
  Package Dimensions
  Depth Verified	9.5 cm
  Gross Weight Verified	0.194 kg
  Height Verified	5.8 cm
  Width Verified	13.6 cm
  Performance
  Buzzer	Yes
  Internal Memory	1 MB
  Ports & Interfaces
  Bluetooth Version	4.0
  Connectivity Technology	Wired & Wireless
  Standard Interfaces	Bluetooth/USB
  Wireless Range	50 m
  Power
  AC Adapter Output Voltage	100 – 240 V
  Battery Capacity	900 mAh
  Battery Life	6 Hours
  Battery Technology	Lithium-Ion (Li-Ion)
  Battery Voltage	5 V
  Charging Time	3.5 Hours
  Input Frequency	50 – 60 Hz
  Input Voltage	5 V
  Power Consumption	500 mA
  Power Source Type	Battery/DC
  Product Dimensions
  Net Weight	0.19 kg
  Product Depth	8.8 cm
  Product Height	2.45 cm
  Product Width	4.6 cm
  Scanning
  Linear (1D) Barcodes	Codabar/Code 128/Code 39/Code 93/EAN 128/EAN-13/EAN-8/GS1 DataBar/Interleaved 2 of 5/ISBN/ISSN/UPC-A/UPC-E
  Pitch Reading Angle	-55 – 55 °
  Scanner Resolution	5 mm
  Scanner Type	1D
  Sensor Type	Linear
  Tilt Reading Angle	-25 – 25 °
  Working Distance	41 cm
  Yaw Reading Angle	-75 – 75 °
  Vendor Information
  Brand Name	Newland
  Warranty
  Warranty Duration	2 Years
