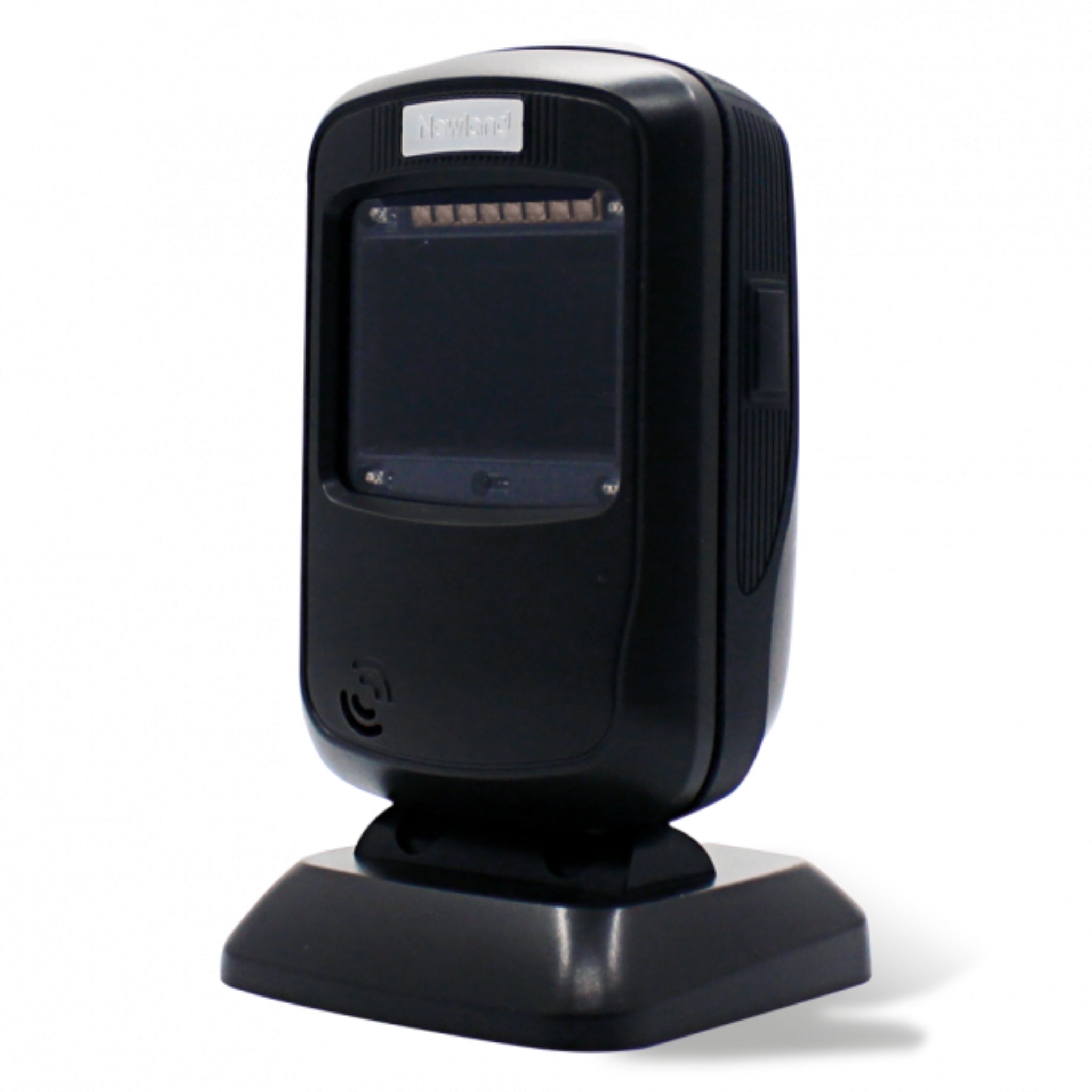

Newland FR40 Koi 2D Mega Pixel CMOS Omnidirectional Presentation Desktop Scanner
The first megapixel presentation scanner on the market.
With user-friendliness being at the forefront of POS systems, the FR40 Koi features soft illumination with a 10-degree tilt that ensures comfort for both employees and customers. Combined with its superior performance and level of comfort, theFR40 Koi is the perfect addition to any POS system.
First megapixel presentation scanner.
At the top of the line, the FR40 Koi reads 1D and 2D barcodes, including Aztec, with speed and accuracy. It is the first presentation scanner on the market that includes a megapixel camera and is capable of reading even the most complex codes. This makes it the perfect solution for applications like POS systems in retail and pharmacy, ticket verification and more.
Unmatched flexibility.
With a switch to toggle between paper and screen mode, the FR40 Koi is ready for any barcode that it is presented with. This added flexibility, leaves this hardware unaffected.
Comfortable Illumination.
With a 10° angle and soft illumination, the FR40 Koi guarantees comfort to both customers and employees. When facing outwards, the illumination will not draw unnecessary attention.
IP52 rated sealing.
With an IP52 rated seal, the FR40 Koi is protected against dust, water and other contaminants.
1.2 drop resistance.
The FR40 Koi withstands multiple 1.2m drops to concrete (six sides, one drop per side).
IR trigger.
The IR sensor in the FR40 Koi enables the speedy capture of any barcode presented to it, markedly increasing output and productivity. -
Category Details Network & Communication Infrared: Yes Power Description Maximum Operating Power Consumption: 1.04 W Interfaces/Ports Host Interface: Serial, USB Physical Characteristics Weight: 293 g Form Factor: Desktop Dimensions (HxWxD): 148 mm x 83 mm x 81 mm Product Color: Black General Information Product Type: Barcode Scanner Manufacturer Part Number: NLS-FR4080-20 Manufacturer Website: Newland Manufacturer: Newland Product Model: FR40 Product Name: FR40 Koi Brand Name: Newland Miscellaneous Application/Usage: Retail, Healthcare, Hospitality Package Contents: FR40 Koi, 2 meter USB cable Environmentally Friendly: Yes Ingress Protection (IP) Rating: IP52 Technical Information Barcode Symbology Supported: 1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar, Code 39, Code 11, MSI-Plessey, Plessey 2D: PDF417, Data Matrix, QR Code, Micro QR Code, Aztec Connectivity Technology: Cable Scanning Distance: 210 mm Drop Specification: 1.2m Drop Depth of Field: EAN 13 (13mil): 10-210mm QR (15mil): 10-180mm Scan Pattern: Omni-directional Image Sensor Type: CMOS Cable Type Included: USB Scanning Capability: 1D, 2D Field of View (Horizontal): 51° Field of View (Vertical): 32° Reading Angle (Skew): 45° Reading Angle (Pitch): 50° Reading Angle (Roll): 360° Motion Tolerance: 2500 mm/s Minimum Print Contrast: 25% Air Electrostatic Discharge (+/-): 14kV -
Description Downloads Newland FR40 Koi 2D Mega Pixel CMOS User Guide Downloads Newland FR40 Koi 2D Mega Pixel CMOS Datasheet Downloads
