• Newland FR27 Urchin 2D CMOS Desktop Area Imager Reader With 1.5m USB Cable, White | NLS-FR2780-20

  The FR27 Urchin, Newlands smallest presentation scanner, strikes the perfect balance between performance and play. Its large scan window and outstanding motion tolerance makes self-service scanning a breeze. All whilst maintaining a small & sleek footprint, fit to enhance your countertop design.


  Newland continues to define the customer journey in self-scanning.
  With the possibility to be mounted horizontally, vertically and to manipulate the cable, the FR27 Urchin can be installed to blend into its environment. This plug-and-go USB scanner just made your self-service scanning childsplay.


  Suggested industries


  Features
  Superior self-service scanning from screen
  The FR27 Urchin is primarily designed to be easy to use for self-service scanning from customers’ phone screens. A remarkably wide field of view means even the largest codes presented on the largest phone screens are scanned easily.

  Snappy scanning from paper, metal and plastic
  Printed barcodes are still used in many applications, so the FR27 Urchin makes sure it can cope with them. It maintains top performance with all types of 1D and 2D codes presented to it on paper, metal and plastic surfaces. Even curved and creased codes pose no challenge.

  Small and stylish

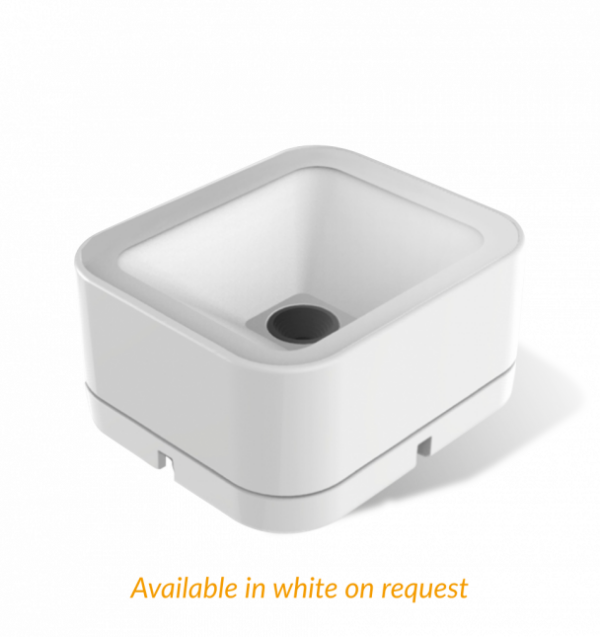

  The FR27 Urchin packs all its scanning power into a small, sleek design. Making not only a great space saver but looking good while doing so. The scanner has a smooth and simple finish that blends well with any countertops design from boutique to café.

  Fast scanning with outstanding motion tolerance
  The FR27 Urchin has an outstanding 2.7m per second motion tolerance for applications where fast scanning on moving codes is vital. Clearing lines of customers self-scanning or clearing baskets of items at the point of sale, the FR27 gives you more speed than ever before.

  Clear visual feedback
  Using soft white illumination to scan barcodes, the FR27 Urchin also utilises its white background to project a green led, indicating a good read. Visual feed-back in a self-service application makes all the difference in giving customers confidence in achieving a successful scan.

  Flexible mounting options

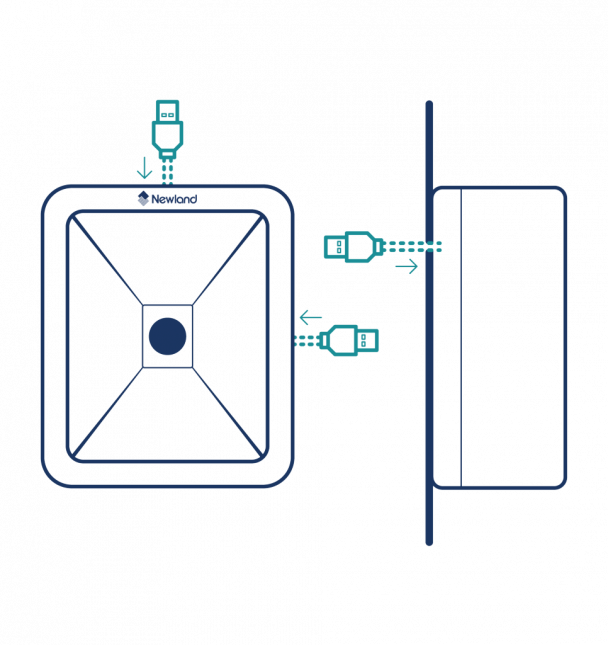

  Mindful that the FR27 Urchin can suit access control and kiosk applications, its case has a design that allows you to manipulate the cable for mounting portrait or landscape. It also has threaded fixing points for vertical mounting.

• Category	Specification
  Data Capture
  1D	All major 1D symbologies
  2D	All major 2D symbologies, including QR Code, Data Matrix, Aztec, Micro PDF, Micro QR, PDF417
  Image Sensor	640×480 CMOS
  Illumination	White LED
  Scan Modes	Sense Mode, Continuous Mode
  Depth of Field EAN 13 (13mil)	20mm-105mm
  Depth of Field PDF417 (6.67mil)	30mm-40mm
  Depth of Field DataMatrix (10mil)	30mm-45mm
  Depth of Field QR (15mil)	0mm-85mm
  Field of View Horizontal	68°
  Field of View Vertical	Vertical: 51°, Diagonal: 84.8°
  Scan Angle Roll	360°
  Scan Angle Pitch	±75°
  Scan Angle Skew	±75°
  Motion Tolerance	2.7 m/s
  Minimal Print Contrast	20%
  Physical
  Current @ 5VDC Operating	140mA (typical)
  Current @ 5VDC Standby	100mA (typical)
  Dimensions (mm)	66.3(W) x 76.3(D) x 38(H) mm (max.)
  Input Voltage	5VDC±5%
  Interfaces	USB
  Power Consumption	698mW
  Weight	120g
  Environmental
  Ambient Light	0~100,000lux (natural light)
  Operating Temperature	-20℃ to 60℃ (-4°F to 140°F)
  Storage Temperature	-40℃ to 70℃ (-40°F to 158°F)
  Humidity	5% to 95% (non-condensing)
  Electro Static Discharge (ESD)	±12 kV (air discharge), ±8 kV (direct discharge)
  Drop	1.5m
  IP Rating	IP42
  Software
  Configuration Tools	EasySet
  Certifications
  Hardware	VCCI, RoHS, CE, FCC, RoHS
  Warranty
  Standard	5 years
