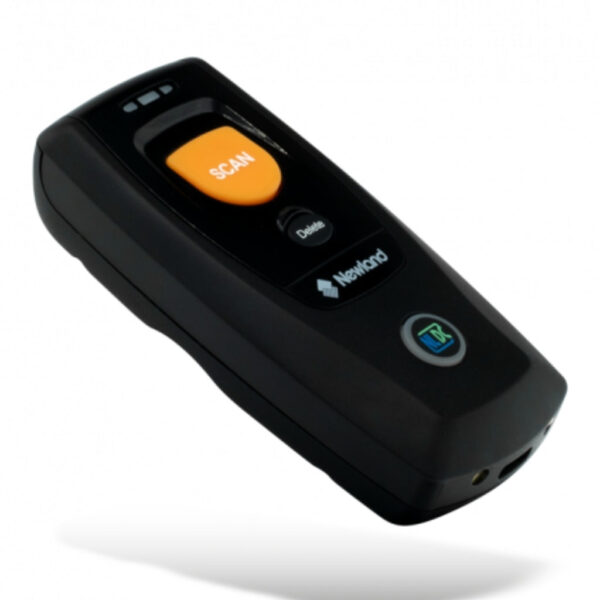

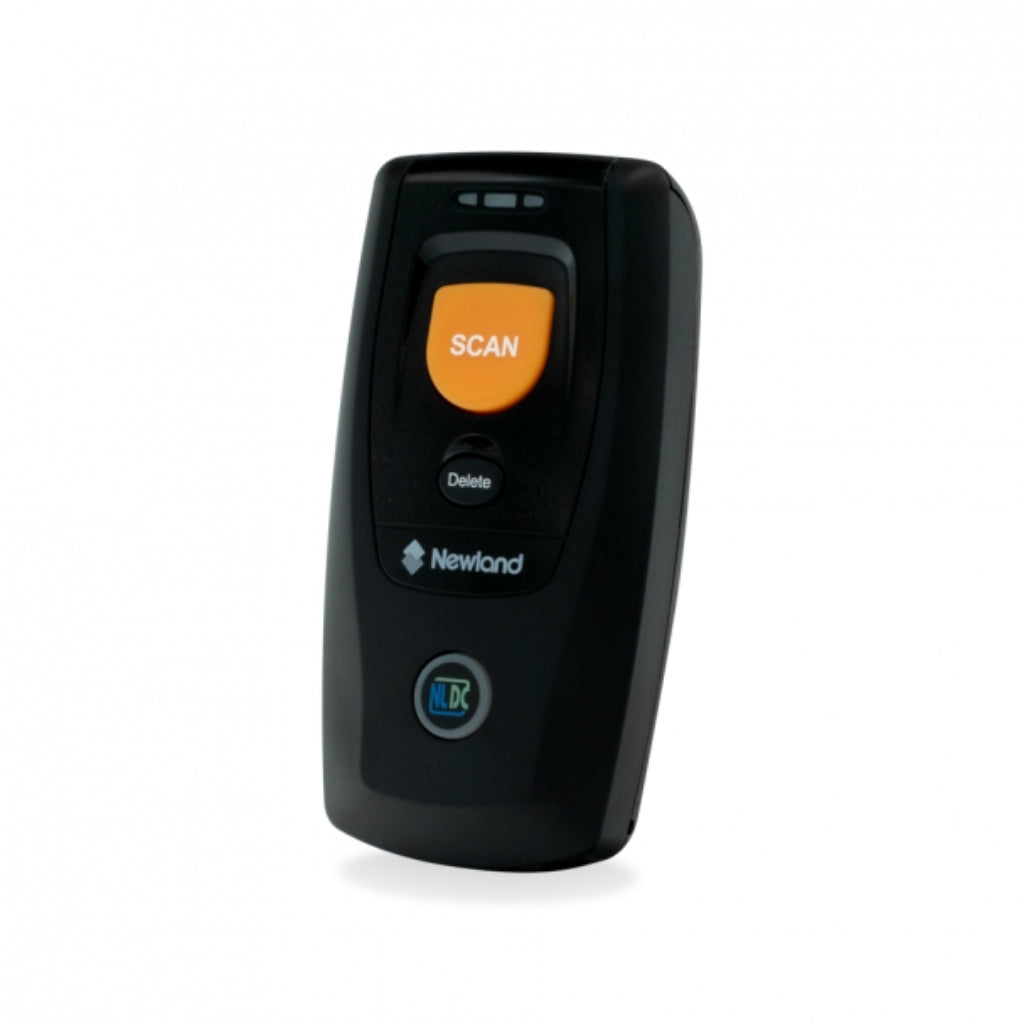

Newland BS80 Piranha II 2D Handheld Scanners
Providing the convenience of always having a scanner at your fingertips.
Bluetooth wireless can be used to pair the Piranha II with a mobile computer, consumer phone, tablet or micro kiosk. This adaptability and portability makes it the perfect solution for industries like retail, warehousing and online to offline (O2O) applications like electronic ticketing and electronic ordering.
Superior Reading Performance
The BS80 Piranha II is offered in 2 versions, containing a 1D or a 1D+2D barcode scanning engine. Both of these engines read virtually any barcode from paper or screen. The 2D device has been equipped with a laser aimer with a red cross to make barcode reading easier and faster.
Easy Bluetooth Pairing
With Bluetooth 4.0 wireless technology, the BS80 Piranha II enables effortless pairing to any Android, iOS, or Windows device, making it simple and convenient for users to transmit data.
Seamless Barcode Capture and Storage
Offering versatile barcode scanning capabilities, the BS80 Piranha II enables fast real-time scanning with seamless data transfer to the host via Bluetooth. However, users can also take advantage of the 1MB memory when operating in batch collection mode, which can store thousands of barcodes offline for subsequent download via Bluetooth or cable.
Edits On the Go
The BS80 Piranha II boasts not only a reliable scan button but also two extra buttons for convenient data editing. For data collection mode, the Delete button allows users to quickly rectify scanning errors by deleting the last scanned barcode. Meanwhile, the Function button serves as a virtual keyboard recall feature, enabling manual data input on a wide range of host devices, including iOS products. This makes the BS80 Piranha II an ideal companion for all your data collection needs.
Versatile Charging & Communication
The BS80 Piranha II features a fast and reliable USB-C port that can be used both for charging and establishing a connection to a host to download data or access the EasySet configuration software. In addition, the device also supports the use of pogo pins to charge via the cradle.

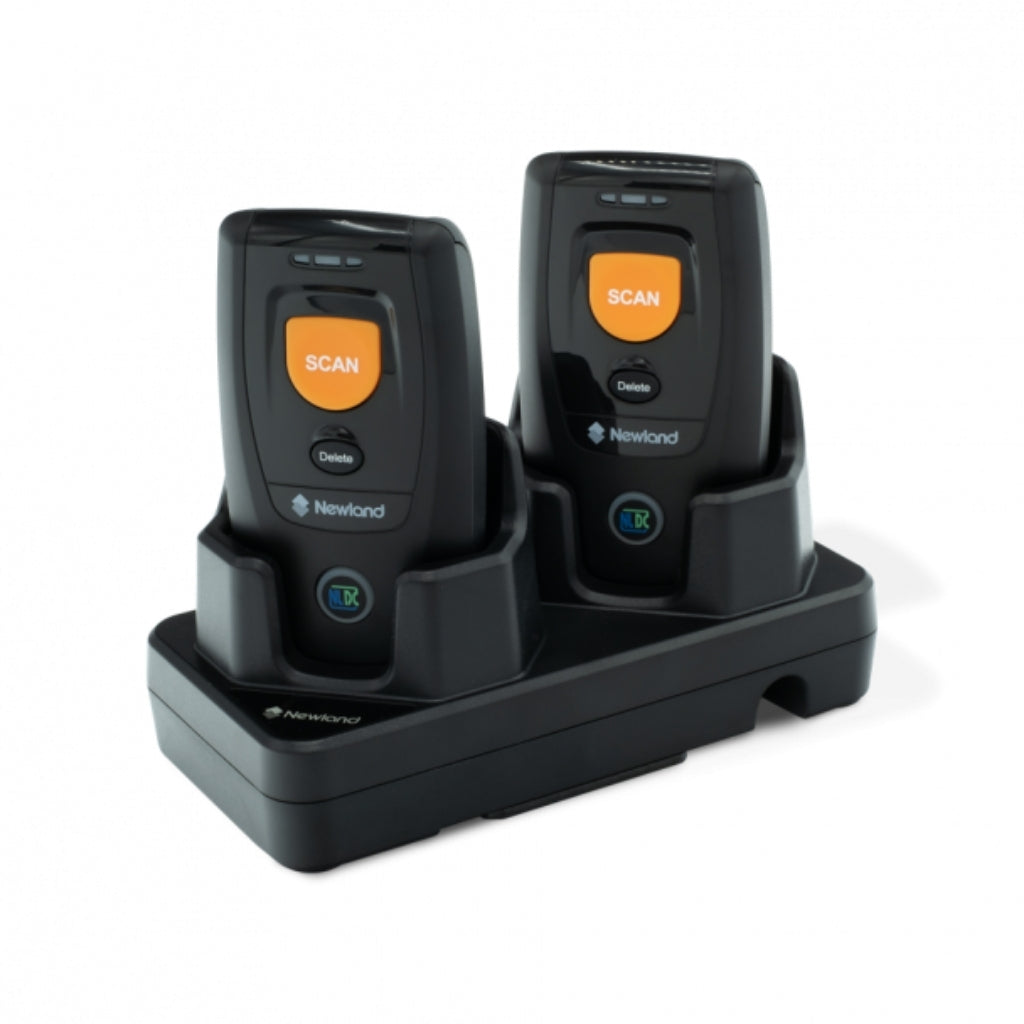

Multi-Device Charging
The BS80 Piranha II offers an optional two-bay charging solution that can be easily linked together to create a multi-charging station. With optimized charging capabilities, users can daisy-chain up to five cradles, allowing them to charge up to ten scanners simultaneously using a single power supply. -
Category Description Data Capture 1D All major 1D symbologies, including Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, ISSN, Interleaved 2 of 5, ISBN, Code 93, UCC/EAN-128, GS1 Databar, etc. 2D All major 2D symbologies, including PDF417, QR Code, Data Matrix, etc. Image Sensor 1280×800 CMOS Resolution ≥5mil Depth of Field EAN 13 50-540mm Depth of Field Code 39 65-260mm Depth of Field Code 128 38-411mm Depth of Field DataMatrix 40-250mm Depth of Field QR 20-320mm Scan Angle Roll 360°; Pitch ±60°; Skew ±60° Minimal Print Contrast 20% Physical Battery Type 3.7V 900mAh rechargeable Li-ion battery Current Operating/Standby 280mA (Bluetooth is on)/11 mA Dimensions (mm) 88.0(L) × 46.0(W) × 24.5(H) mm Expected Battery Life 5 hours of continuous operation (scan once per 6s) Interfaces Type-C USB, Bluetooth HID/SPP/BLE profiles Notifications Beep, LED and vibration Weight 63g Wireless Wireless Standards 2.4 – 2.5GHz ISM band, compatible with Bluetooth 4.0/3.0/2.1+EDR Bluetooth Transmission Range 50m (open space) Environmental Operating Temperature -20℃ to 50℃ (-4°F to 122°F) Storage Temperature -40℃ to 70℃ (-40°F to 158°F) Charge Temperature 0°C to 45°C (32°F to 113°F) Humidity 5%~95% (non-condensing) Electro Static Discharge (ESD) ±4 KV (direct discharge); ±12 KV (air discharge) Drop 1.2m IP Rating IP42 Software Configuration Tools EasySet Certifications Hardware CE RED, CE UK, FCC, TELEC, IEC 62471, RoHS, IEC60825 Warranty Standard 3 years -
