Netgear XSM4324CS-100NES 24x10G and 4xSFP+ (shared) Managed Switch

• Description
• Specifications
• Downloads

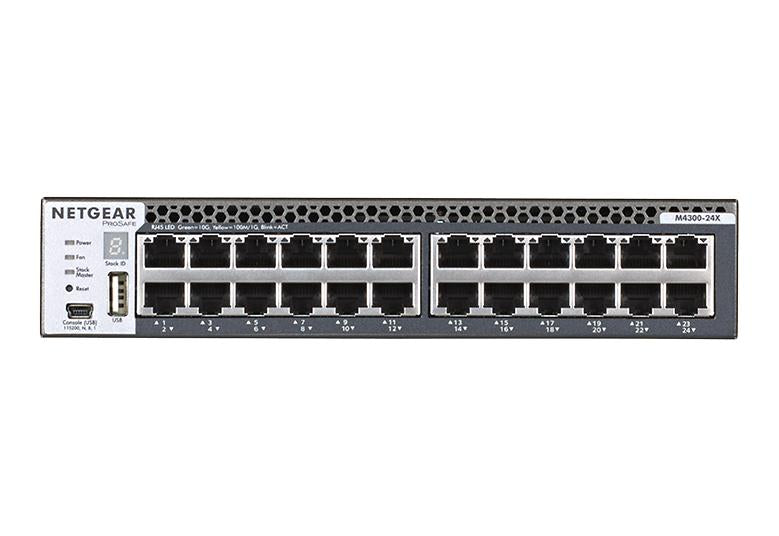

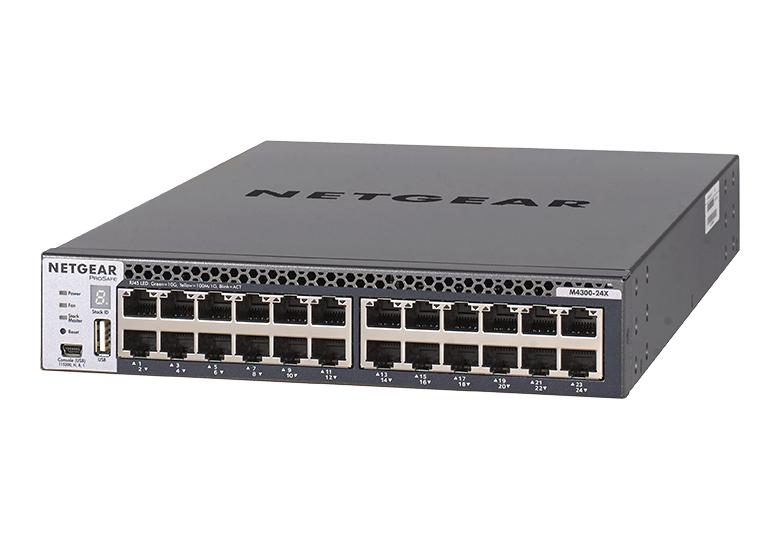

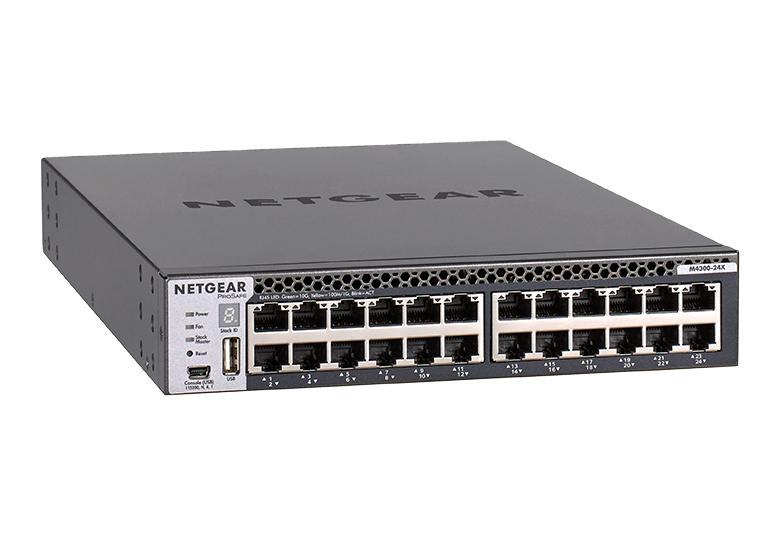

• Netgear XSM4324CS-100NES 24x10G and 4xSFP+ (shared) Managed Switch

  M4300-24X (XSM4324CS)
  24x10G and 4xSFP+ (shared) Managed Switch
  Half-Width 24x10G Stackable Managed Switch with 24x10GBASE-T

  High Availability (HA)
  Non-stop forwarding (NSF) virtual chassis architectures with hitless failover across the stack

  Multi-Resiliency
  Stacking and distributed link aggregation allow for zero downtime and load balancing capabilities

  PVST+ Interoperability
  Per VLAN Spanning Tree and Per VLAN Rapid Spanning Tree (PVSTP/PVRSTP)

  Link Dependency
  Enables or disables ports based on link state of different ports

  Advanced IPv4/IPv6 security
  Malicious code detection, DHCP Snooping, IP Source Guard protection and DoS attacks mitigation

  Half-Width ToR
  Combine 2 half-width models in a single rack space for redundant Top-of-Rack (select m4300 models)

  Simple GUI
  Full- functional Web console (GUI) for IT admins who prefer an intuitive graphical interface

  Flexible & Efficient
  Line-rate Spine and Leaf topologies offer many possibilities for server rooms, branch collapsed cores, or at the edge of growing networks.

  Mix & Match Stacking
  Stack between 10/40 Gigabit and 1 Gigabit models using any 10G/40G port, with any media type (RJ45, SFP+, DAC cables). Vertical, horizontal, manage as one unit

  Room to Grow
  With PoE+ (30 watts per port), plug and play ports, and hot swap, you’re ready to grow whenever you need to.

  Zero Touch AV-over-IP
  Pre-configured for Out-of-Box L2 Multicast (SDVoE-ready)

  No Delay
  Non-Blocking Fabric for Near-Zero Switch Latency

  NETGEAR IGMP Plus™
  Prevent network flooding with effortless multicast implementation of Layer 2 Multicast

  Dedicated Design
  ProAV Engineering Services for AV Network Design and Install Support [email protected]

• SUPPORT & WARRANTY
  Warranty	NETGEAR ProSAFE® Limited Lifetime Hardware Warranty
  Hardware Replacement	Lifetime Next Business Day Hardware Replacement
  Warranty Details	[Coverage, availability, and terms and conditions](link here)
  Support	ProSUPPORT 24×7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five-year contracts. ProSUPPORT Lifetime 24×7 Advanced Technical Support via chat.

  TECHNICAL SPECS
  Hardware Specifications
  Model Number	XSM4324CS
  Ports	24 Ports Copper 100M / 1G / 10G. 4 Ports SFP+ 1G / 10G (shared)
  Modular Bay with PSU	One (1) 250W Modular PSU included APS250W
  Switching Fabric	480 Gps
  Fan	Fixed Fan Front-to-Back 37dB
  Management Options

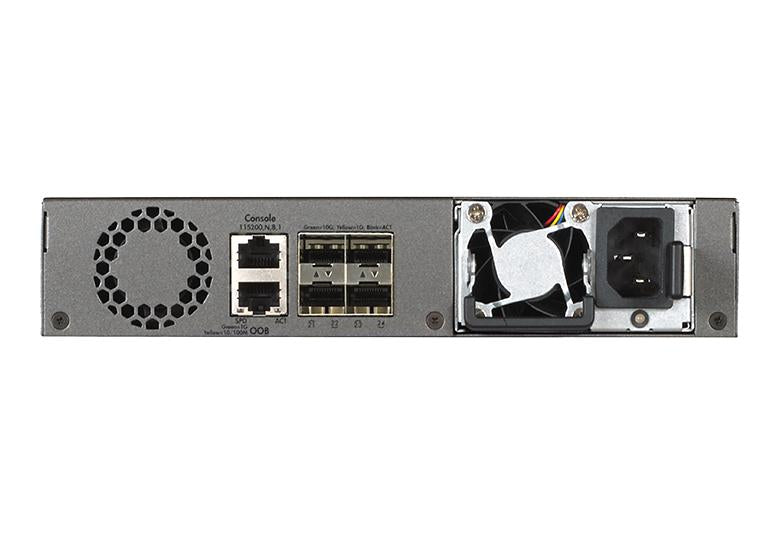

  Ethernet	Out-of-band 1G port (Back)
  Console	RJ45 RS232 (Back). Mini-USB (Front)
  Storage	USB (Front)
  Management Platform	Single-pane-of-glass NMS300 management platform with mass-configuration support
  Firmware and Configuration	Dual firmware image and configuration file for updates with minimum service interruption
