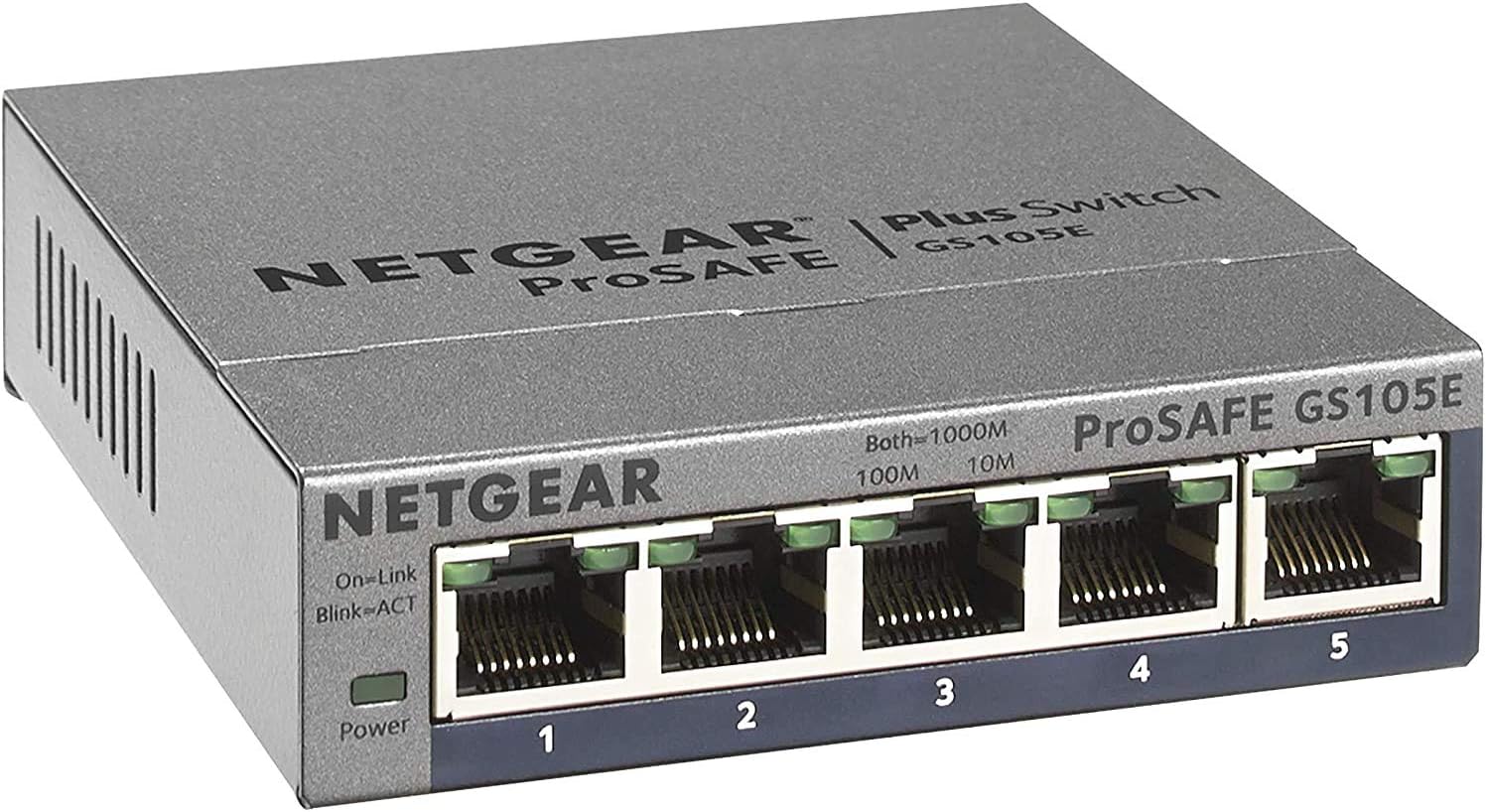

Netgear ProSafe Plus GS105E-200UKS 5 Port L2/L3 Managed Non-POE Network Switch
NETGEAR GS105E-200UKS 5-Port Gigabit Switch
The NETGEAR GS105E ProSAFE F5-Port Desktop Gigabit Switch meets the growing needs of small businesses by providing fundamental network features that will help optimise the performance their networks. On top of the Plug-n-Play Gigabit Ethernet connectivity, this NETGEAR GS105PE switch also offer essential networking features such as VLAN, QoS, IGMP Snooping, Link Aggregation (LAG), rate limiting and traffic monitoring. This NETGEAR GS105E ProSAFE Switch is an exceptional value for businesses looking to add intelligence to their network beyond what unmanaged switches can provide.Prioritise Voice/Video
With the ability to set up and configure QoS, this NETGEAR GS105E ProSAFE switch can detect different types of network traffic and assign the desired priority to latency-sensitive traffic, such as voice and video. This helps improve the delivery quality of related applications such as VoIP, multimedia broadcasting, and video conferencing.Build Multiple Network Groups
The NETGEAR GS10PE ProSAFE switch can help divide big networks into smaller more manageable groups and have resources dedicated for one or several groups rather than making the same resources open to all. This feature improves overall network performance, adds security to network traffic, and makes more efficient use of network resources.Troubleshoot Cable Problems
This NETGEAR GS105E ProSAFE switch comes with a cable diagnostic feature that enables users to easily find out the health status of their network cables. If there are any problems, this feature helps quickly locate the point where the cabling fails; allowing connectivity issues to be fixed much faster, potentially saving technicians hours of troubleshooting.IGMP Snooping for Optimised Multimedia Traffic Delivery
By listening in on the IGMP conversation between hosts and routers, the NETGEAR GS105E ProSAFE switch can maintain a map as to which links need which IP multicast streams. The NETGEAR GS105E ProSAFE switch therefore will be able to forward multicast traffic only to the links that have asked for them and cut multicast traffic from links that do not contain a multicast listener. Essentially, IGMP snooping helps optimise multicast performance at Layer 2 and is especially useful for bandwidth-intensive IP multicast applications such as IPTV. -
PRODUCT SUMMARY Brand Netgear SKU 10008411 Manu Part # GS105E-200UKS EAN 606449101539 FEATURES Plug-and-Play Yes Configuration Utility Yes Bi-directional Bandwidth Up to 2000 Mbps Quality of Service (QoS) Yes Virtual LAN (VLAN) Yes Cable Test Yes Port Mirroring Yes Bandwidth Management Yes Traffic Monitoring Yes Broadcast Storm Control Yes Placement Desktop/ Wall Mount Energy Efficiency IEEE802.3az compliant Silent Operation Yes Case Colour Silver Fixed Port Speed (Mbps) 1000 Fixed Ports/Connectors 5 Management Capabilities Netgear ProSafe Mounting Type Desktop/ Wall Mount GENERAL Number of Fixed Ports 5 Product Type Network Switch -
Description Downloads GS105E-200UKSInstallationGuide.pdf Download GS105E-200UKSDataSheet.pdf Download
