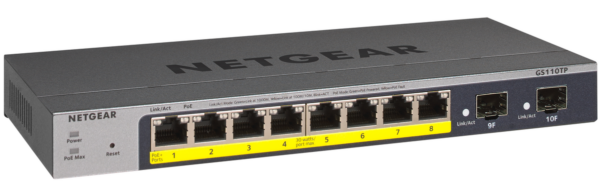

• Netgear ProSafe GS110TPv3 8 Ports Manageable Ethernet Switch


  Small, Yet Powerful Gigabit Smart Switch Packed with Advanced Features
  Joining the NETGEAR® ProSAFE® family of Smart Managed Switches with high performance and cost efficiency, this 10-port Gigabit Smart Managed Switch is packed with powerful L2 features capable of enhancing any type of business network. The GS110TP is designed for customers who need a low port density solution with the combination of Gigabit speed and PoE capability. The GS110TP comes with 8 dedicated 10/100/1000 Mbps copper ports to connect to your end devices and two additional Gigabit Fiber ports for uplinks with greater distance. With PoE capability on all 8 copper ports, the GS110TP can automatically detect PoE on the end devices and dynamically manage power assignments and priority. It is capable of delivering up to 15.4W of power per port, up to a maximum total of 46W across all connected PoE devices, and network connectivity concurrently across a single ethernet cable, to power devices such as wireless access points, IP phones and IP cameras, providing flexibility and ease of deployment to your network.

  The GS110TP comes with a comprehensive set of features, such as enhanced VLAN and QoS, access control lists (ACL), 802.1x port authentication (MD5), rate limiting and IGMP snooping and many more, to provide businesses with networks that are geared for growth while ensuring performance and reliability. Both an intuitive Web-browser GUI interface and Smart Control Center (Windows PC required), offer simple Smart Managed Switch management, making it a snap to monitor switch performance, configure ports, even set up port trunks, VLANs, and traffic prioritization.

  With the fanless design and compact form factor, the GS110TP offers quiet operation and is suitable for deployments in any type of environment, especially the ones which are sensitive to noise.

• Category	Attribute	Value
  General Information	Product Type	Ethernet Switch
  	Part Number	GS110TP-300EUS
  	Website	http://www.netgear.co.uk
  	Manufacturer	Netgear, Inc
  	Product Model	GS110TPv3
  	Product Name	ProSafe GS110TPv3 Ethernet Switch
  	Product Line	ProSafe
  	Brand Name	Netgear
  Management & Protocols	Manageable	Yes
  Network & Communication	Layer Supported	3
  Power Description	Power Source	Power Adapter
  Miscellaneous	Country of Origin	China
  	Environmentally Friendly	Yes
  I/O Expansions	Expansion Slot Type	SFP (mini-GBIC)
  	Number of SFP Slots	2
  	Total Expansion Slots	2
  Interfaces/Ports	Modular	Yes
  	Uplink Port	Yes
  	Network Ports	8
  	Port Details	8 x Gigabit Ethernet PoE+
  	Expansion Slot Details	2 x Gigabit Ethernet Expansion
  Media & Performance	Network Technology	1000Base-X, 10/100/1000Base-T
  	Ethernet Technology	Gigabit Ethernet
  	Media Type Supported	Optical Fiber, Twisted Pair
  Physical Characteristics	Weight (Approx.)	610 g
  	Form Factor	Wall Mountable, Desktop
  	Height	27 mm
  	Width	236 mm
  	Depth	101 mm
