• Netgear MSM4352-100NES 44×2.5G, 4x10G/Multi-gig PoE++ (194W base, up to 3,314W) and 4xSFP28 25G (MSM4352) Managed Switch

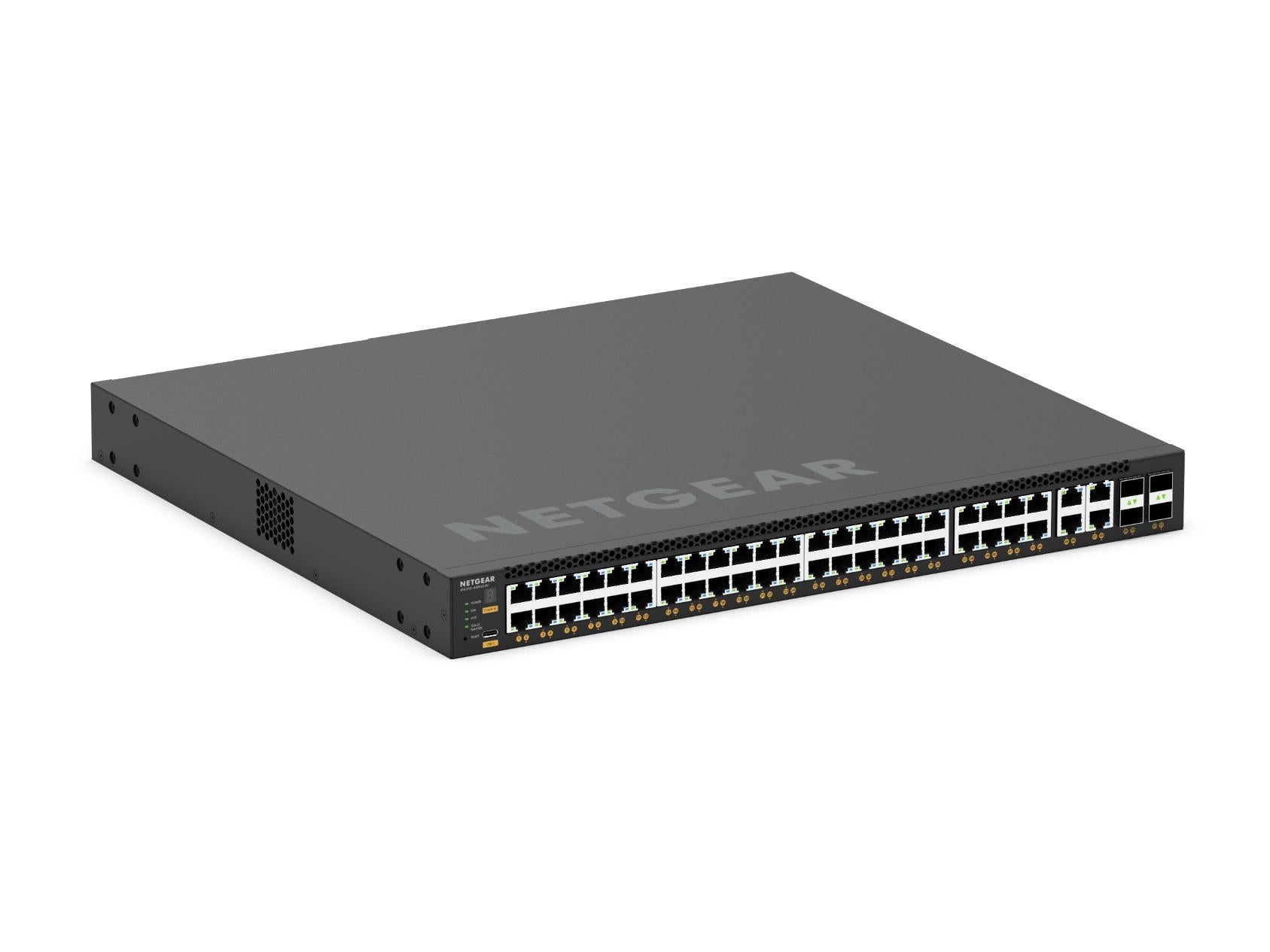

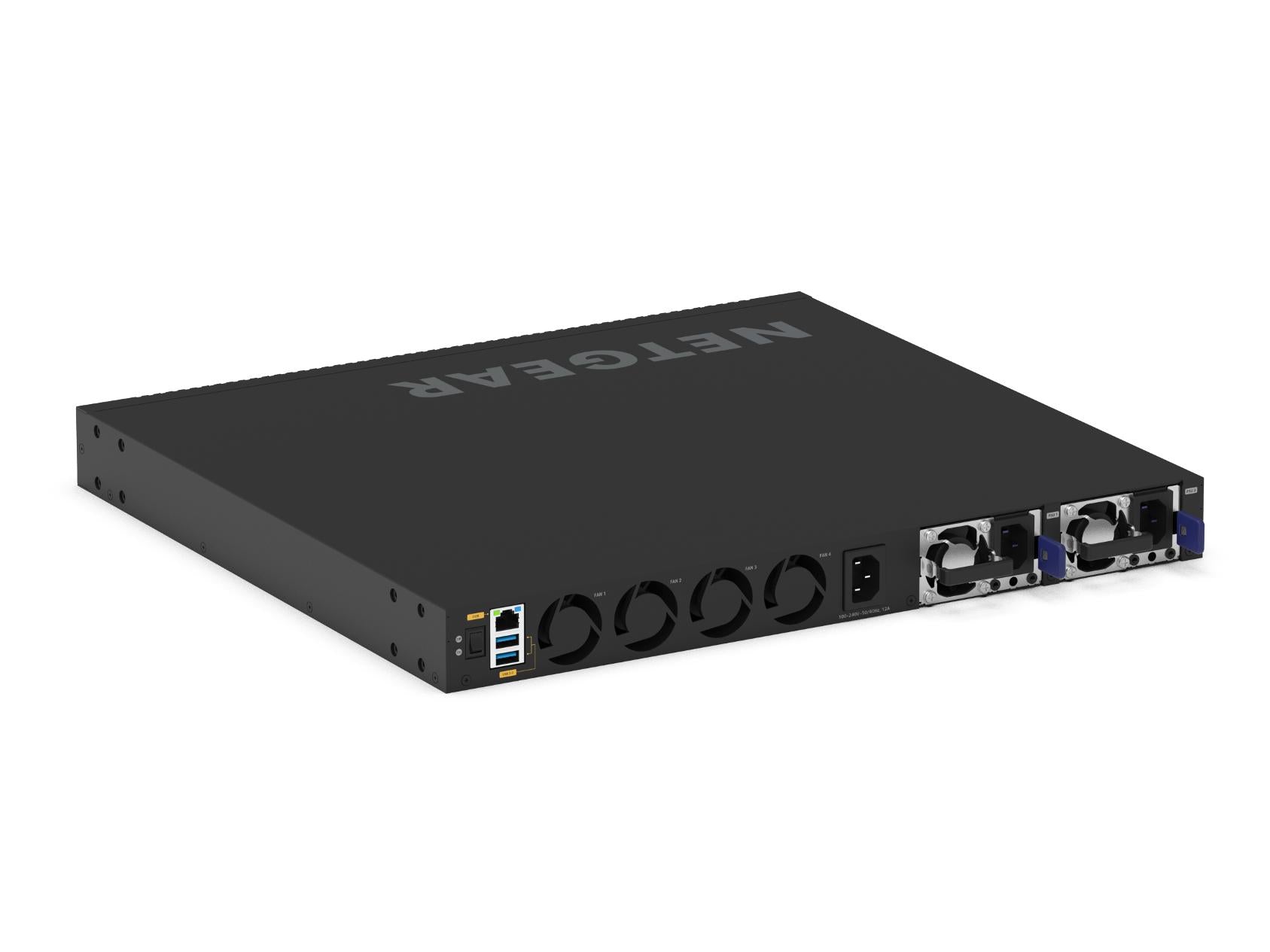

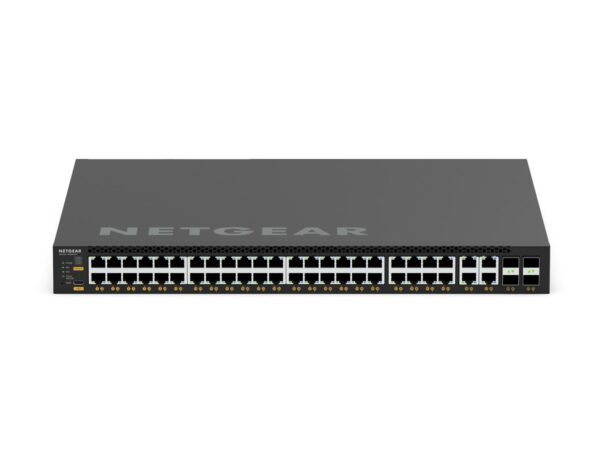

  M4350-44M4X4V Fully Managed Switch (MSM4352)
  44×2.5G, 4x10G/Multi-gig PoE++ (194W base, up to 3,314W) and 4xSFP28 25G (MSM4352) Managed Switch

  POWER AND
  THROUGHPUT

  Edge to core stackable platform, from 1 Gigabit to 100 Gigabit, all within 15.75in (40cm) of depth.

  Groundbreaking AV GUI
  A simplified user interface makes it easy to assign configuration profiles to each port.

  Multicast in an Instant
  NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.

  Sleek, Quiet Design
  Less fan noise, and mounting ears included for rack mounting.

  Automatic Configuration
  Auto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.

  FAST, EASY
  CONFIGURATION
  FOR AV PROS
  A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.

  FOCUS ON THE EVENT
  NOT FAN NOISE
  Most models have quiet mode which greatly reduces fan noise.

  DESIGNED FOR
  AV OVER IP
  RIGHT OUT OF
  THE BOX
  With built-in NETGEAR IGMP Plus™, there’s little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.

  MAXIMIZE
  PERFORMANCE
  WITH PRO WIFI
  ACCESS POINTS
  Enable powerful, reliable WiFi at your location with Pro WiFi access points, powered by PoE or an external power adapter.

  PRO AV
  RESOURCES
  All the resources you need to learn about NETGEAR AV over IP solutions, including family brochures, product data sheets, tech tips and more.

• WHAT’S INCLUDED
  Product Model	M4350-44M4X4V (MSM4352)
  Power cord(s)	1
  Console USB Type-C cable	1
  Rack-mounting standard bracket set	1
  Set of longer brackets for recessed mounting	1
  Rubber footpads for tabletop installation	4
  Installation guide	1

  TECHNICAL DETAILS
  Width	440mm
  Depth	400mm
  Height	43.2mm
  Weight	7.34kg (16.18lb)
  Primary Port Speed	2.5 Gigabit
  Number of Ports	52 (44 x 2.5G PoE++, 4 x 10G/Multi-Gig PoE++, 4 x 25G SFP28)
  PoE Ports / Budget	48 PoE++ (90W/port), 194W Base, up to 3,314W Budget
  IGMP Support	Enhanced (NETGEAR IGMP Plus™)
  Jumbo Frame Support	Yes, up to 12kb
  AVB Support	Yes, included
  Acoustics	Quiet Mode 34dB@25ºC
  Power Consumption	With PoE: 351.5W/1198.62Btu/hr
  	Without PoE: 133.5W/419.19Btu/hr
  	Standby without any port connection: 56.5W/177.41Btu/hr
  PSU Compatible Models	APS350Wv1
  	APS600Wv2
  	APS920Wv1
  	APS2000Wv1

  MANAGEMENT
  NETGEAR Engage Controller	Centralized application to configure all switches across your entire network. Lightweight and portable, you can run it from a USB thumb drive.
  Learn More

  WARRANTY

  Warranty

  NETGEAR ProSAFE® Limited Lifetime Hardware Warranty. Phone and chat technical support provided for 90 days from purchase date. This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorized reseller, and covers unmodified hardware, fans, and internal power supplies – not software or external power supplies. Requires product registration at NETGEAR Registration within 90 days of purchase; see NETGEAR Warranty for details. Intended for indoor use only.
