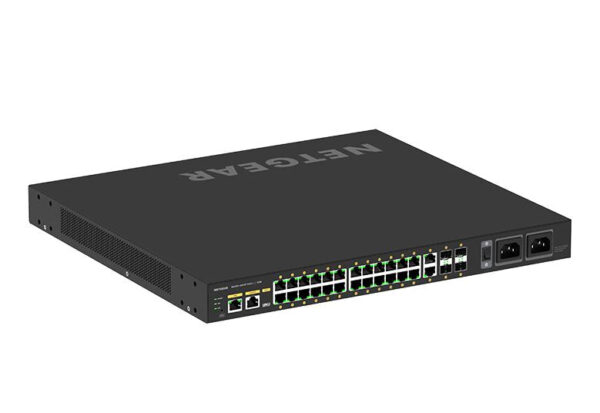

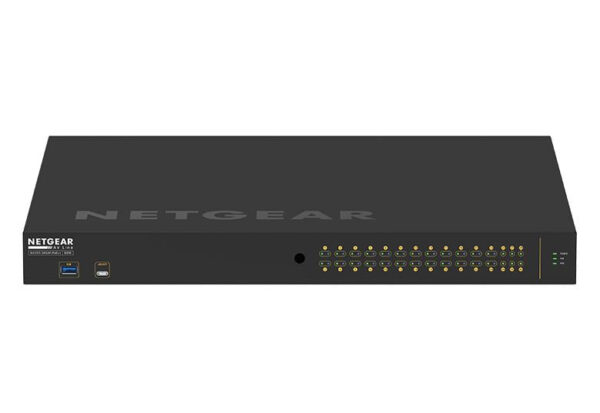

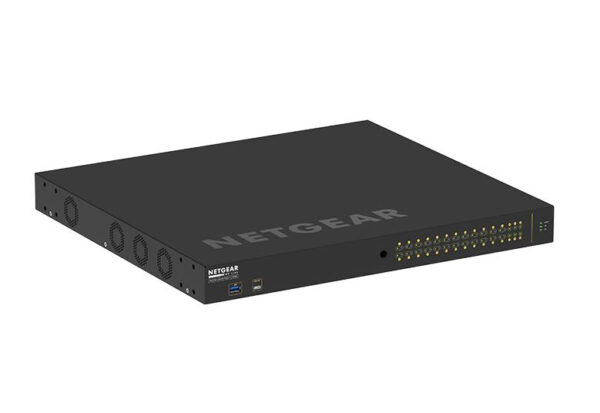

Netgear GSM4230UP-100EUS 24x1G PoE++ 1,440W 2x1G and 4xSFP Managed Switch

• Description
• Specifications
• Downloads

• Netgear GSM4230UP-100EUS 24x1G PoE++ 1,440W 2x1G and 4xSFP Managed Switch



  POWERFUL AV SWITCHES
  MADE SIMPLE
  Pre-configured to get you up and running faster

  Groundbreaking AV GUI
  A simplified user interface makes it easy to assign configuration profiles to each port.

  Multicast in an Instant
  NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.

  Sleek, Quiet Design
  Less fan noise, and mounting ears included for under-table or wall mounting.

  Automatic Configuration
  Auto-trunk and auto-LAG functionality auto connects with other M4250 (and M4300) switches.

  FAST, EASY
  CONFIGURATION
  FOR AV PROS
  A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.

  FOCUS ON THE EVENT
  NOT FAN NOISE
  Most models have quiet mode which greatly reduces fan noise, and some models are even fanless.

  DESIGNED FOR
  AV OVER IP
  RIGHT OUT OF
  THE BOX
  With built-in NETGEAR IGMP Plus™, there’s little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.

  REFINED DESIGN
  PROVIDES MOUNTING
  FLEXIBILITY
  Clean lines and port activity status is featured in the front of the switch, while cabling is neatly in the back. Universal mounting options allow VESA mounting or in standard racks.

• PHYSICAL SPECIFICATION
  Dimensions (WxDxH)	440 x 400 x 43.2 mm
  Weight	6.75Kg (14.87lb)

  TECHNICAL SPECS
  Primary Port Speed	1 Gigabit
  Number of Ports	30 (24x 1G PoE++, 2x 1G, 4x SFP)
  PoE Ports / Budget	24 PoE++ (90W/port), 1,440W Budget
  IGMP Support	Enhanced (NETGEAR IGMP Plus™)
  Jumbo Frame Support	Yes, up to 12kb
  AVB Support	Yes. Electronic license required, activation key sent via email (AVB4230UP-10000S)
  Acoustics	Fanless or 60dB@25ºC
  Power Consumption	Single AC With PoE: 889W/3035.05Btu/hr
  	Dual AC With PoE: 1734W/5919.88Btu/hr
  	Without PoE: 48.8W/166.6Btu/hr
  	Standby without any port connection: 36.9W/125.98Btu/hr
  Third party support	Domotz

  SUPPORT & WARRANTY

  Warranty

  This product is backed by a NETGEAR ProSAFE ® Limited Lifetime Hardware Warranty. Phone and chat technical support provided for 90 days from purchase date. This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorized reseller, and covers unmodified hardware, fans and internal power supplies – not software or external power supplies, and requires product registration at https://www.netgear.com/business/registration within 90 days of purchase; see https://www.netgear.com/about/warranty for details. Intended for indoor use only.
