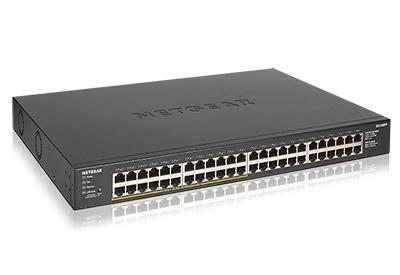

Netgear GS348PP-100EUS 48-Port Gigabit Ethernet Unmanaged PoE+ Switch (380W)

• Description
• Specifications
• Downloads

• Netgear GS348PP-100EUS 48-Port Gigabit Ethernet Unmanaged PoE+ Switch (380W)


  SOHO Ethernet Unmanaged (GS348PP)
  48-Port Gigabit Ethernet Unmanaged PoE+ Switch (380W)
  24 PoE+ ports with 380W power budget. Unmanaged 300-Series PoE Switches are easy, reliable, and affordable network connectivity for home and small offices. Providing power and data from a single Ethernet cable

  ETHERNET PORT CONFIGURATION:
  48 Gigabit ports

  PLUG-AND-PLAY:
  Simple set up with no software to install or configuration needed

  FULL PERFORMANCE:
  Non-blocking switching architecture for maximum throughput at wire speed

  POWER-OVER-ETHERNET:
  24 PoE+ ports with 380W total power budget

  CONNECT DEVICES:
  power IP Security Cameras, VoIP phones, wireless access points, and other PoE PD-powered devices

  PoE POWER AUTO-BALANCE AND ALLOCATION:
  NETGEAR’s unique PoE technology automatically balances the PoE power at the most granular level on each port, depending on the device needs.

  SILENT OPERATION:
  The fanless design means zero added noise wherever its located, making it ideal for noise-sensitive environments

  ENERGY EFFICIENT:
  Designed to optimize power usage lowering its cost to operate.

  Metal Case
  Durable and Rugged

  VERSATILE MOUNTING OPTIONS:
  Supports desktop and wall placement. Includes wall mount kit in the box

  STANDARDS-BASED DESIGN
  Ensure interoperability with any standards-based PDs

• PHYSICAL SPECIFICATION
  Dimensions	440 x 310 x 43 mm (17.3 in. x 12.2 in. x 1.7 in.)
  Weight	4.56 kg (10.05 lb)

  TECHNICAL SPECS
  Product name	NETGEAR 48-Port Gigabit Ethernet Unmanaged PoE+ Switch with 24-Ports PoE+ (380W)
  Model description	(GS348PP) NETGEAR Gigabit Ethernet Unmanaged PoE+ Switch with 48 ports and 380W total power budget, with up to 30W of power per port.
  Speed	Gigabit
  Number of Ports	48
  Energy Efficient Ethernet support	Yes
  Jumbo frame support	12288 bytes
  PoE ports/Max power output	24 PoE ports/380W
  MAC table size	8K
  Packet buffer size	1.5 MB
  PoE Auto balance	Yes
  PoE budget	Up to 380W

  SUPPORT & WARRANTY
  Warranty	This product is backed by a NETGEAR limited Hardware Warranty up to 3 years (depending on region).
  Support	Phone and chat technical support provided for 90 days from the purchase date.
  Warranty Details	This product’s warranty is valid only if purchased from a NETGEAR authorized reseller, and covers unmodified hardware, fans, and internal power supplies—not software or external power supplies, and requires product registration at NETGEAR Warranty Registration within 90 days of purchase; see NETGEAR Warranty Details for more information. Intended for indoor use only.
