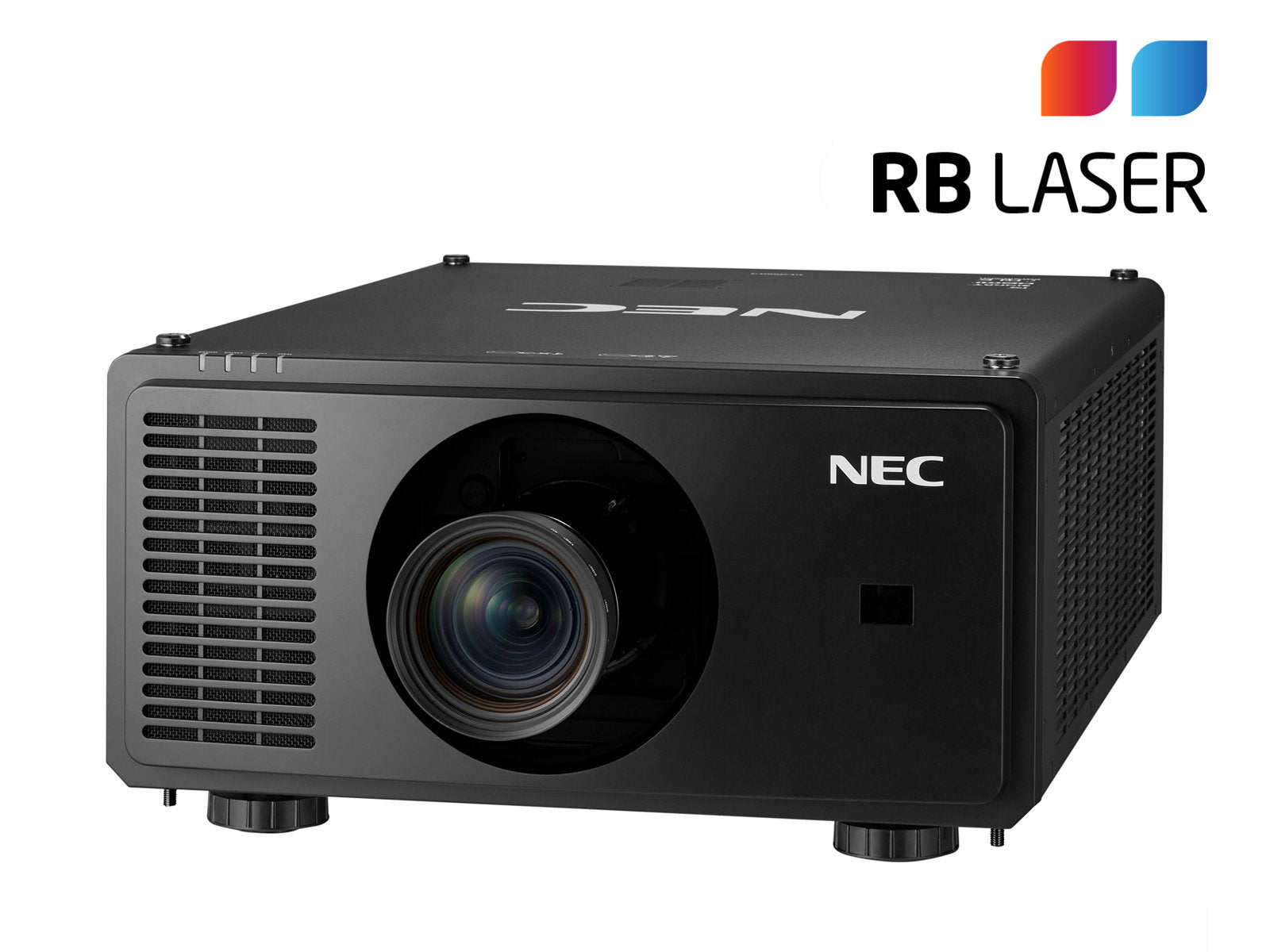

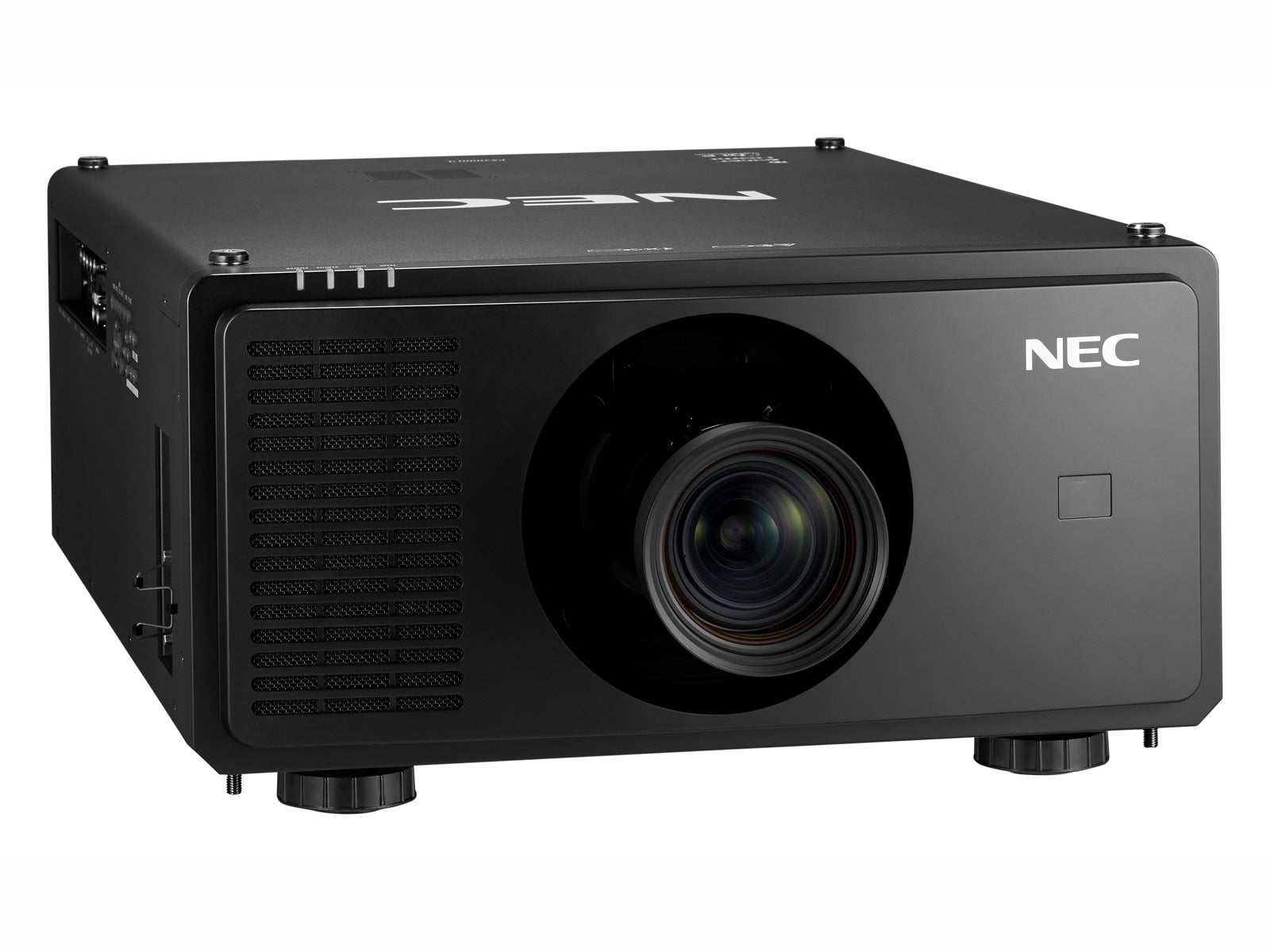

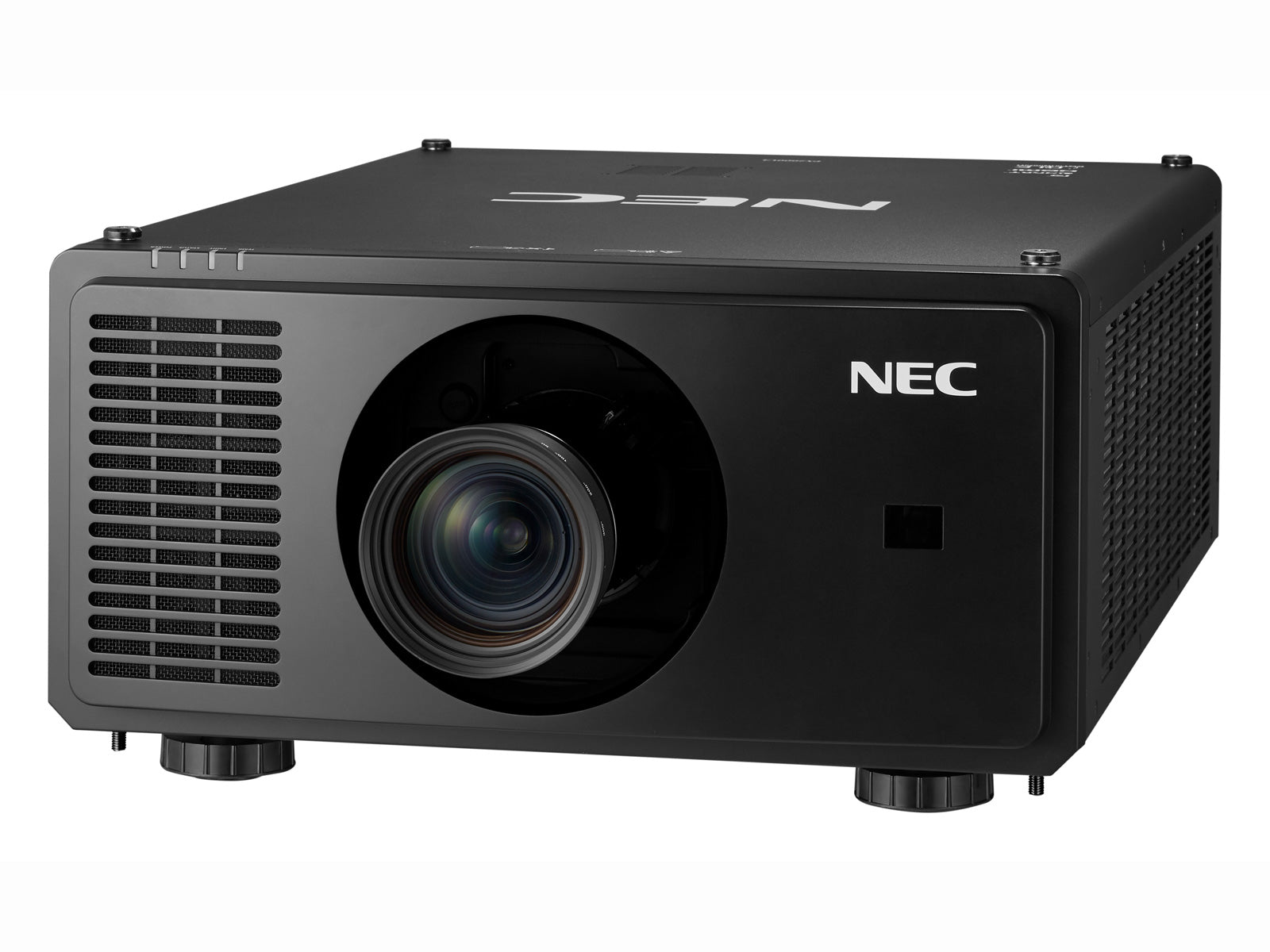

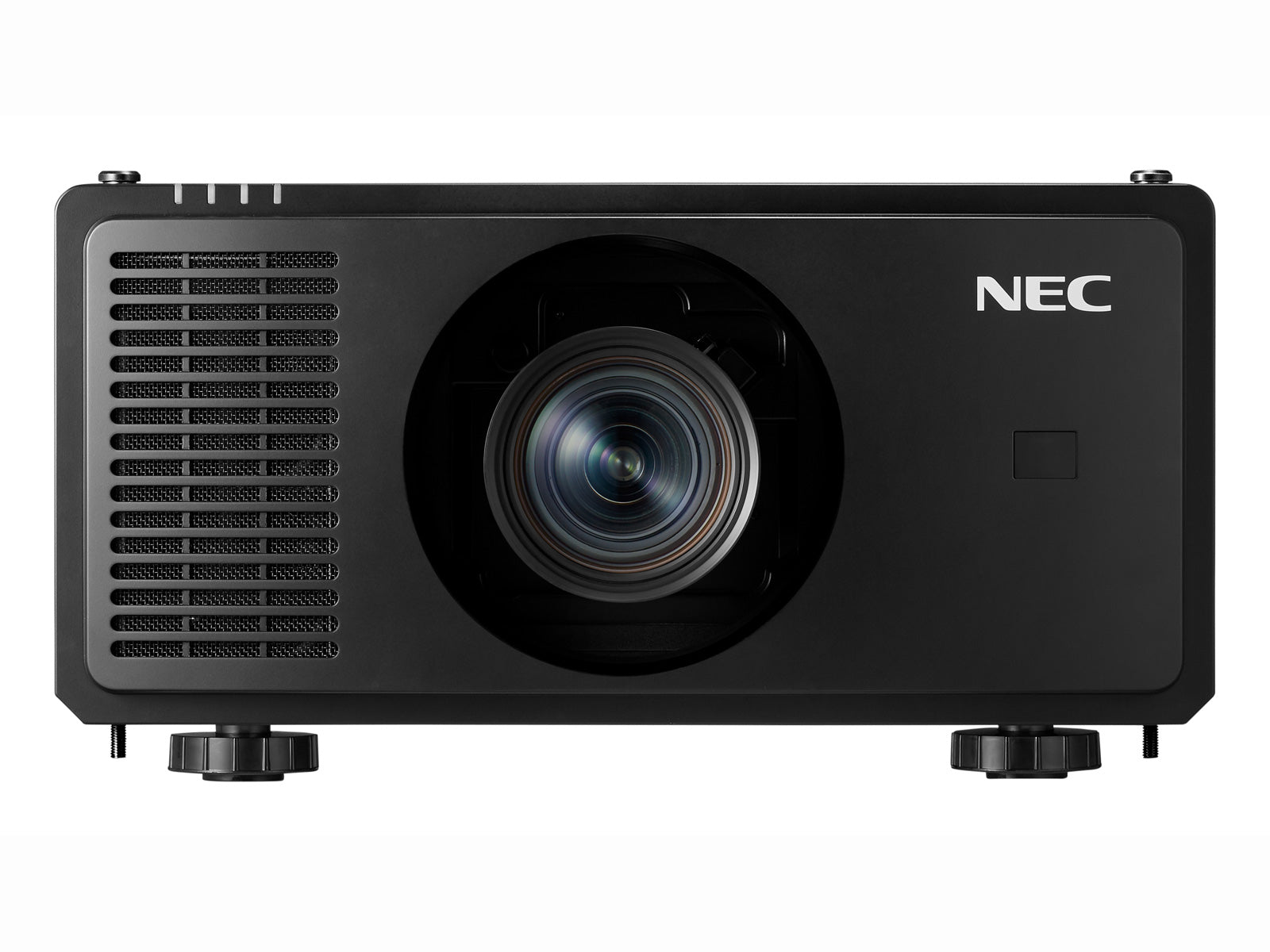

• NEC PX2201UL Professional Advanced 1DLP Laser Installation Projector – 20500 Lumens

  Advanced performance in compact form

  Compact and easily transportable, and yet this large venue projector is packed with advanced technological features. The PX2201UL offers a truly impressive price/ performance ratio delivering superb, richly intense colour through RB laser technology, almost equal in performance to a 3DLP projector. The ultra-bright 20,500 lumen projection can be multiplied using wide interface selection and Edge Blending technology supporting two or more projectors for wider, larger, even brighter images, whilst geometric correction eliminates distortion.

  The filter-free optical system protects against dust ingress for performance longevity and minimal maintenance, just as remote adjustment capability means there is no requirement to physically access the projector once its installed. With a low noise level, flexible installation features, SDI interface and 3D support, this innovative projector perfectly services the visualisation needs of higher education and the leisure industry, especially in museums and for mapping.

  Superb imaging quality – the RB laser technology uses red lasers, increasing the colour gamut to produce more vivid images, unprecedented for single chip DLP projectors, with high light levels supported by a special Brightness Boost Mode.

  Maintenance-free performance – the filter-free laser projector uses a special NEC phosphor wheel requiring minimal attention during its lifetime beyond its initial setup.

  Hassle-free remote adjustment – motorized lens shift, focus and zoom allows easy and flexible setup without the need for cumbersome physical access to the projector.

  Easy handling – its light weight construction (51kg) and robust design means this model is semi-portable making it suitable for flexible applications.

• IMAGE
  Projection Technology	1-chip DLP™ Technology
  Native Resolution	1920 x 1200 (WUXGA)
  Aspect Ratio	16:10
  Contrast Ratio	10000:1 with DynamicBlack™
  Brightness	20500 Normal / 16400 Eco ANSI Lumen; 21500 Centre Lumen
  Lamp	Laser Light Source
  Light Source Life [hrs]	20000
  Lens	5 optional bayonet lenses
  Lens shift	H:-15,+15, V:-50,+50
  Keystone correction	+/- 60° manual horizontal / +/- 40° manual vertical
  Projection Factor	Depending on lens selection
  Projection Distance [m]	0.81 – 84
  Screen Size (diagonal) [cm] / [inch]	Maximum: 1,270 / 500″; Minimum: 100 / 40″
  Zoom	Motorized
  Focus Adjustment	Motorized
  Supported Resolutions	See list
  CONNECTIVITY
  RGB (analog)	Input: 1 x 5BNC; 1 x Mini D-sub 15 pin<br>Output: 1 x Mini D-sub 15 pin
  Digital	Input: 1 x 3G-SDI; 1 x DisplayPort; 1 x DVI-D; 1 x HDBaseT; 2 x HDMI™<br>Output: 1 x 3G-SDI
  Control	Input: 1 x 3.5 mm Stereo Mini Jack (Wired Remote); 1 x D-Sub 9 pin (RS-232), Ethernet<br>LAN: 1 x RJ45
  3D Sync	Output: 1 x BNC IN; 1 x BNC OUT
  Video Signals	NTSC; PAL; SECAM
  REMOTE CONTROL
  Remote Control	See list
  ELECTRICAL
  Power Supply	200-240 V AC; 50 – 60 Hz
  Power Consumption [W]	1775 Normal Mode
  MECHANICAL
  Dimensions (W x H x D) [mm]	530 x 248 x 745 (without lens and feet)
  Weight [kg]	51
  Fan Noise [dB (A)]	46 / 48 (Eco / Normal)
  Colour Versions	Black
  ENVIRONMENTAL CONDITIONS
  Operating Temperature [°C]	0 to 40
  Operating Humidity [%]	0 to 80
  ERGONOMICS
  Safety and Ergonomics	CE; EAC; ErP; RoHS
  ADDITIONAL FEATURES
  Special Characteristics	See list
  GREEN FEATURES
  Energy Efficiency	Laser Light Source
  Ecological Materials	100% recyclable packaging; Downloadable manuals
  Ecological Standards	ErP compliant
  WARRANTY
  Projectors	3 years pan-European service
  Light Source	3 years or 10000h (whatever comes first)
  SHIPPING CONTENT
  Shipping Contents	IR Remote Control (RD – 480E); Power Cord; Projector; Quick Setup Guide; Users Manual on CD-ROM
  OPTIONAL ACCESSORIES
  Optional Accessories	XpanD 3D Glasses (X105-RFX2); XpanD 3D RF Emitter (AD025-RF-X1)<br>Lenses: NP45ZL, NP46ZL, NP47ZL, NP48ZL, NP49ZL
