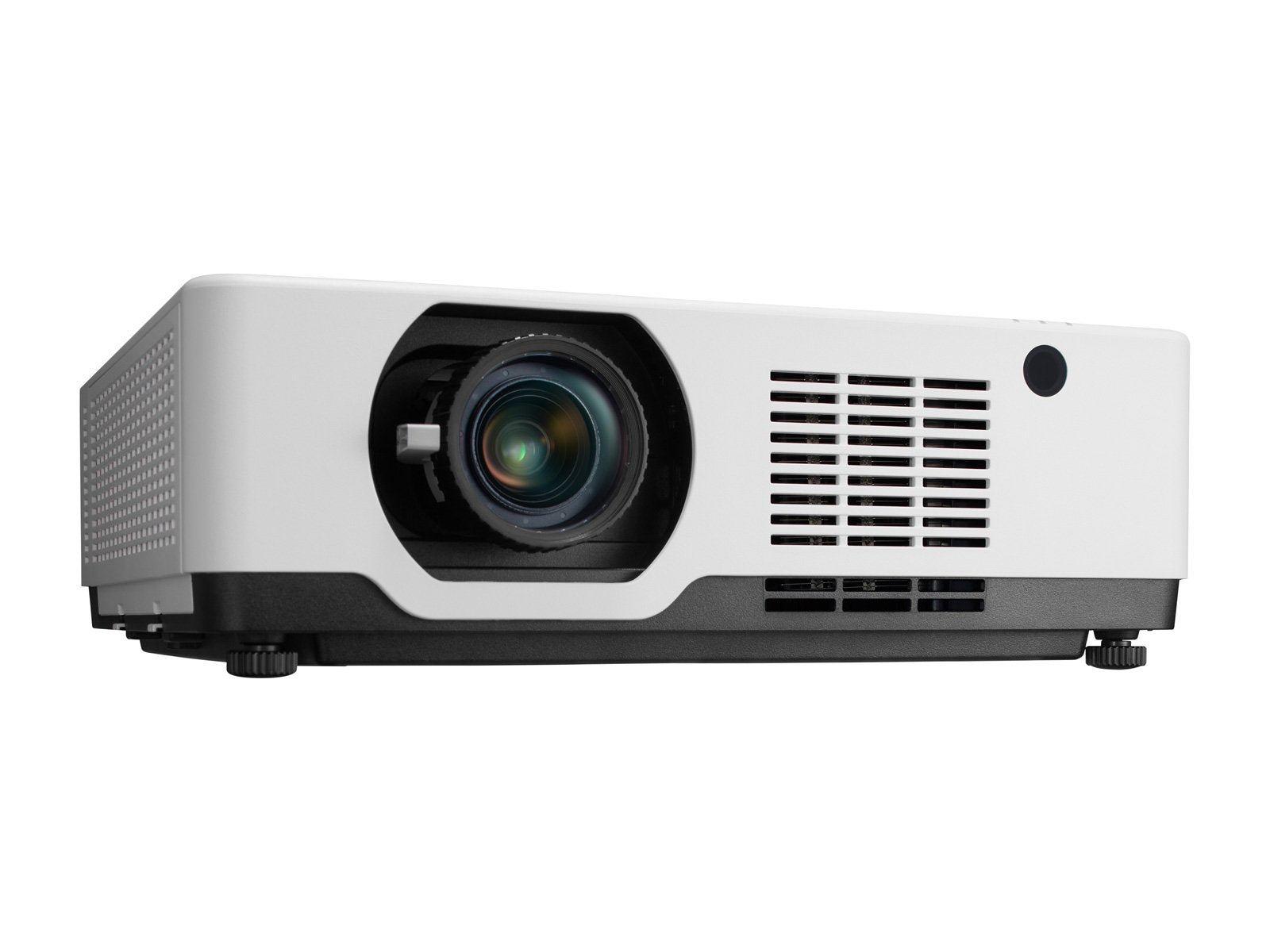

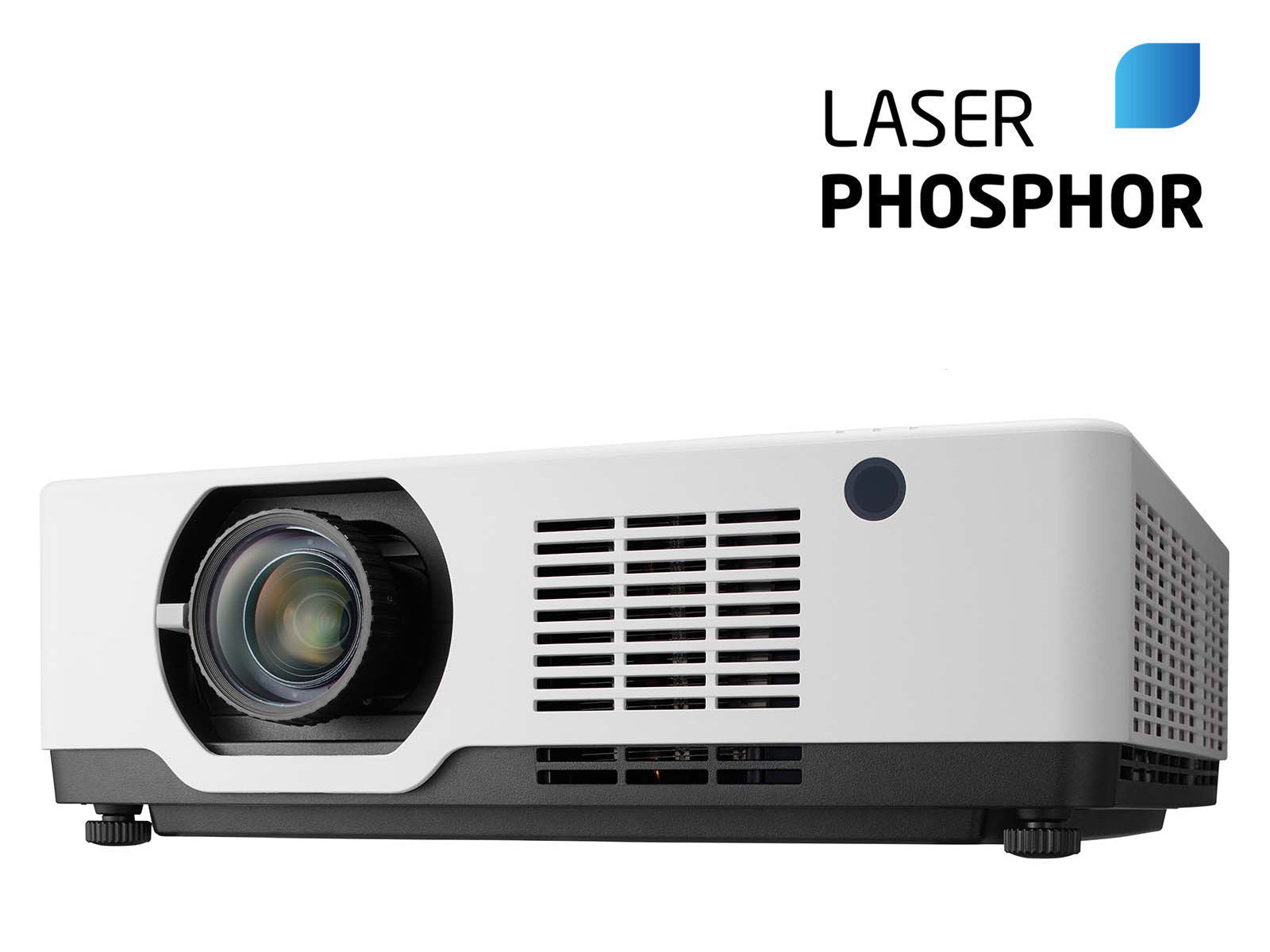

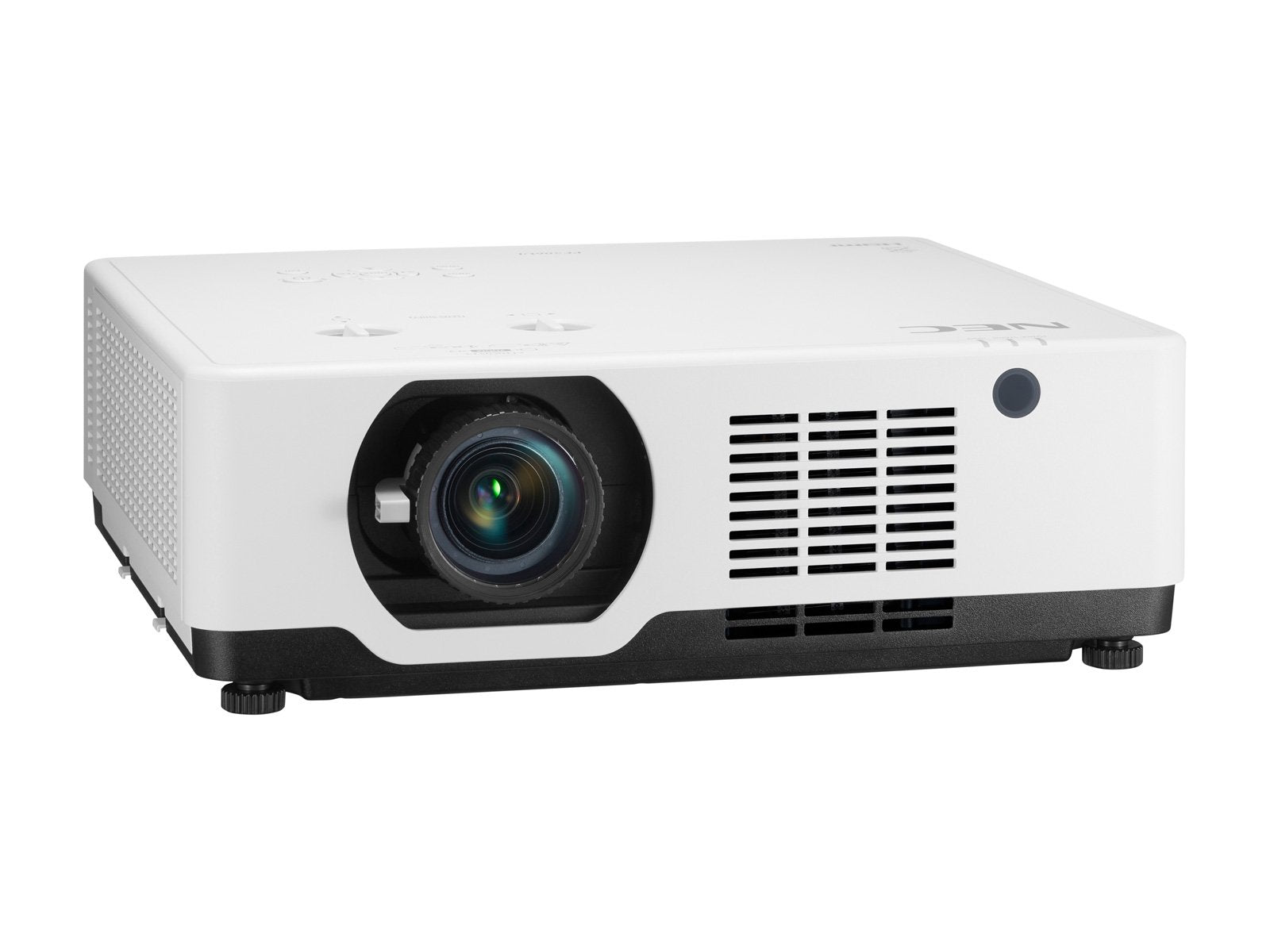

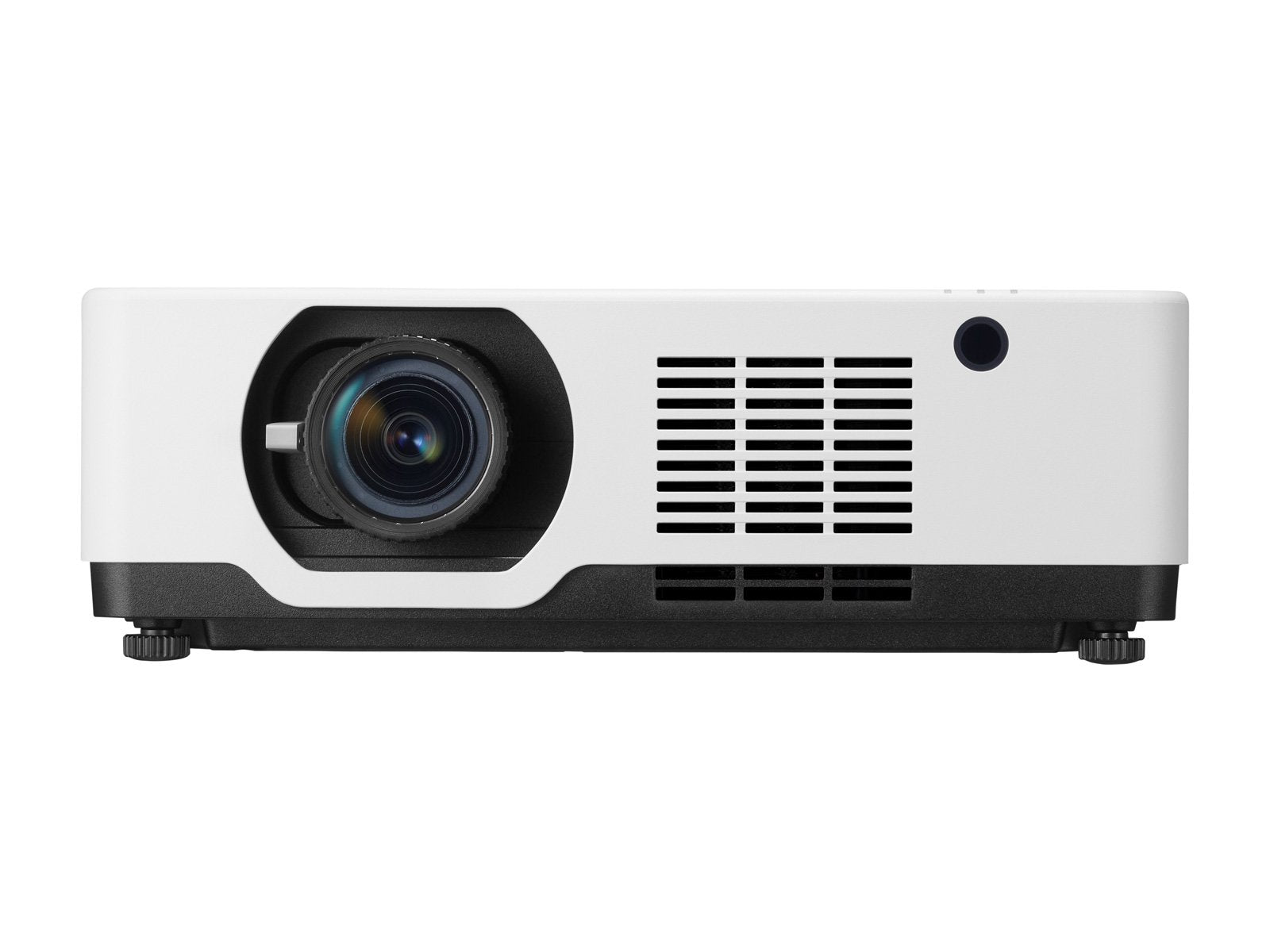

NEC PE506UL Professional LCD Laser Projector – 5200 Lumens

• Description
• Specifications
• Downloads

• NEC PE506UL Professional LCD Laser Projector – 5200 Lumens

  High brightness in compact format

  With a long life cycle, the PE506UL brings an exceptionally low cost of ownership for cost-conscious users requiring professional and reliable projection performance. Lighter in weight and more compact compared to its predecessor, yet this powerful projector generates a higher brightness level at 5,200 ANSI lumen and the vivid brilliance of 3 LCD technology.

  For seamless hand-over between presenters, the projector provides advanced wireless capabilities with an embedded MultiPresenter function, allowing multiple users to connect and share content without having to switch cables. The PE506UL is feature packed for classrooms, training rooms and meeting rooms.

  Professional and Flexible Installation – versatile projection characteristics allow for simple positioning of the projector, making installation easy and potentially saving set up costs.

  Enjoy a Lower TCO – highest reliability, maintenance free operation, low power consumption and up to 20000 hours life; the Laser light source results in a significantly lower total cost of ownership.

  Risk Group 2 – because of the Risk Group 2 compliance, no prescribed safety precautions are necessary.

  Cost Saving Device Management – save effort whilst administrating all connected NEC devices from a centralised location by using the NaViSet Administrator 2 software tool.

• Category	Specification
  Projection Technology	3LCD Technology
  Native Resolution	1920 x 1200 (WUXGA)
  Aspect Ratio	16:10
  Contrast Ratio	3000000:1
  Brightness	5200 ANSI Lumen
  Lens shift	H:-29,+29, V:-0,+60
  Keystone correction	+/- 30° manual horizontal / +/- 30° manual vertical
  Projection Factor	1.2 – 2 : 1
  Projection Distance [m]	0.75 – 13
  Screen Size (diagonal)	76.2 / 30″ – 762 / 300″
  Zoom	x1.7
  Focus Adjustment	Manual
  CONNECTIVITY
  RGB (analog)	Input: 1 x Mini D-sub 15-pin, compatible to component (YPbPr)
  	Output: 1 x Mini D-sub 15 pin
  Digital	Input: 2 x HDMI™ (Deep Color, Lip sync)
  Audio	Input: 1 x 3.5 mm Stereo Mini Jack; 1 x RCA Stereo
  	Output: 1 x 3.5 mm Stereo Mini Jack
  Control	Input: 1 x D-Sub 9 pin (RS-232) (male)
  LAN	1 x RJ45; Optional WLAN
  USB	1 x Type B; 1x Type A (USB 2 high speed) with 2 Power Supply
  Video Signals	NTSC; PAL; PAL60; SECAM
  REMOTE CONTROL
  Remote Control	Aspect Ratio; Auto Adjust; AV Mute; Digital Zoom; Freeze; ID set; Optional Presentation and Mouse Control
  ELECTRICAL
  Power Supply	120-240 V AC; 50 – 60 Hz
  Power Consumption [W]	335 (Normal) / 177 (Eco) / 2 (Network Stand-by) / 0.5 (Stand-by)
  MECHANICAL
  Dimensions (W x H x D)	405 x 137 x 358 (without lens and feet)
  Weight [kg]	7.95
  Fan Noise [dB (A)]	27 / 37 (Eco / Normal)
  Colour Versions	White
  ENVIRONMENTAL CONDITIONS
  Operating Temperature	0 to 40
  Operating Humidity	20 to 88
  Storage Temperature	-10 to 50
  ERGONOMICS
  Speakers [W]	1 x 16 (mono)
  ADDITIONAL FEATURES
  Special Characteristics	AMX Beacon; Auto Eco Mode; Carbon Savings Meter; Colour Management; Content Transmission via Network; Crestron RoomView; PJ LINK
  GREEN FEATURES
  Ecological Materials	100% recyclable packaging; Downloadable manuals; ECO packaging
  WARRANTY
  Projectors	3 years pan-European service
  Light Source	3 years or 10000h (whatever comes first)
  SHIPPING CONTENT
  Shipping Contents	2x AAA Batteries; IR Remote Control (RD-477E); Mini D-SUB Signal Cable (1.8 m); Quick Setup Guide; Security Sticker; Users Manual on CD-ROM; Utility software
  OPTIONAL ACCESSORIES
  Optional Accessories	Universal Ceiling Mounts (PJ01UCM); Wireless LAN module (NP05LM2; NP05LM4; NP05LM5)

• Description	Downloads
  Data sheet	Download
