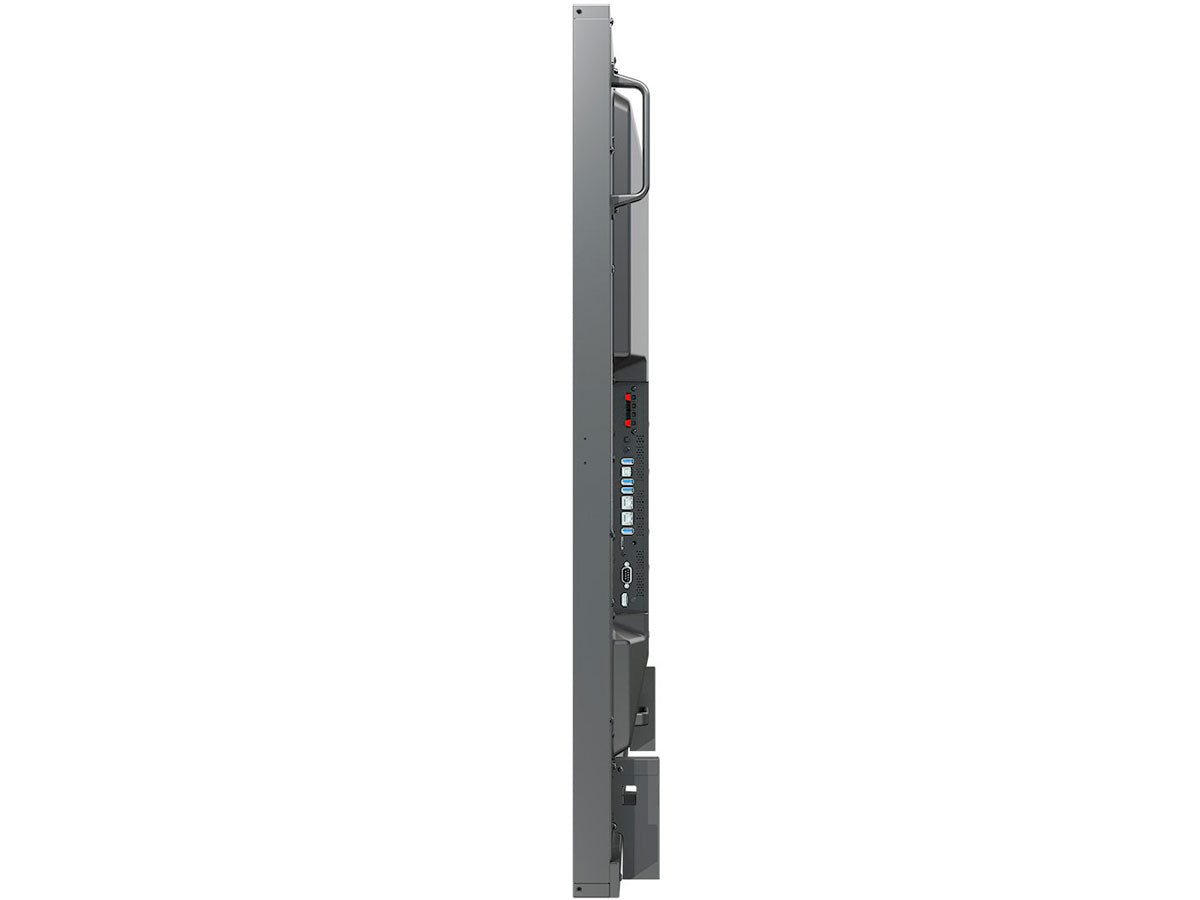

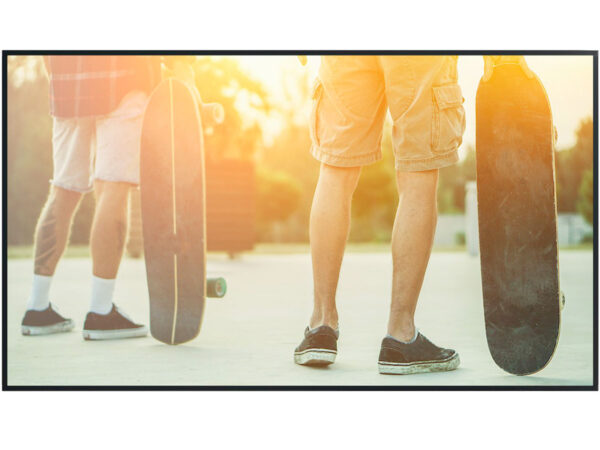

NEC MultiSync® P555 PG-2 LCD 55″ 4K Protective Glass Large Format Display | 60005859

• Description
• Specifications
• Downloads

• NEC MultiSync® P555 PG-2 LCD 55″ 4K Protective Glass Large Format Display


  Professional Protection for Professional Signage
  The NEC MultiSync® P555 PG-2 models combine professional protection of your investment with unparalleled display performance. Deliver your message with impact and seamless simplicity for the most convincing results.

  Guaranteed reliability even under the toughest conditions is achieved with the super robust 4mm thick protective glass designed to withstanding external impacts. The anti-reflective glass surface combined with high brightness levels of 700 cd/m² provides crisp and clear images and readability from different viewing angles and distances even in bright ambient light conditions.

  The enhanced durability makes the MultiSync® P555 PG-2 series the ideal signage solution for short and medium viewing distances in public spaces with high volumes of people such as for applications in transportation, retail, hospitality and digital out of home as well as for tough environments in industrial applications.

  Benefits
  Maximum investment security – assured as the display is protected against damage from external impacts such as knocks and blows.
  Protects the public – the thermally toughened protective glass will disintegrate into small fragments reducing the risk of injury should it suffer extreme damage.
  Mission-critical 24/7 ready operation – the meticulous selection of industrial-grade components and careful design focused on demanding usage scenarios accompany an impressive and continuous viewer experience.
  Superb readability – supported through the use of anti-reflective and high light-transmission GroGlass® protective glass.

• Category	Specification
  Panel Tech	IPS with Edge LED backlights
  Screen Size	55 inch / 138.8 cm
  Aspect Ratio	16:9
  Brightness	700 cd/m²
  Contrast Ratio	≥ 8000:1
  Viewing Angle	178° H / 178° V
  Colour Depth	1.073 billion (10bit)
  Colour Gamut	86% of DCI
  Response Time	8 ms (typical)
  Refresh Rate	60 Hz
  Haze Level	Pro (28%)
  Orientation	Landscape, Portrait, Face Up, Face Down
  Glass Type	GroGlass® 4mm, anti-glare, protective
  Light Transmission	≥ 97%
  Reflection Rate	1%
  Native Resolution	3840 x 2160 (4K UHD)
  Supported Resolutions	1024×768 to 7680×4320
  Horizontal Freq.	15 – 135 kHz
  Vertical Freq.	23 – 76 Hz
  Video Inputs	2 x DisplayPort, 2 x HDMI (HDCP)
  Audio Inputs	1 x DisplayPort, 2 x HDMI
  Control Inputs	LAN (100Mbit), RS232, 3.5mm remote
  Data Inputs	2 x USB 2.0, 1 x USB Type-B
  Video Outputs	1 x DP, 1 x HDMI (loop through)
  Audio Output	1 x 3.5 mm jack
  Control Output	1 x LAN (100Mbit)
  Input Detect	Custom, First, Last
  PiP / PbP	Dual-Split, Quad-Split, scalable picture
  Factory Calibration	Gamma, RGB, Intensity, Uniformity, White Point
  Sensor Calibration	USB Sensor (MDSVSensor3), White Copy
  Software Calibration	Gamma, RGB, Uniformity, White Point
  Calibration Software	NEC Display Wall Calibrator
  Intel® SDM Slot	Supports SDM-L & SDM-S (up to 66W)
  Compute Slot	RPi Compute Module 4
  Light Sensor	Integrated, programmable
  Temp. Sensors	3 integrated, programmable
  Power Use	110 W (shipping)
  Standby Power	< 0.5 W / < 2 W (network standby)
  Power Supply	100–240 V AC, 50/60 Hz, internal
  Operating Temp.	0°C to 40°C
  Operating Humidity	20% to 80%
  Storage Temp.	-20°C to 60°C
  Storage Humidity	10% to 90%
  Dimensions (mm)	1260 x 723 x 71
  Weight (kg)	38.5 kg
  VESA Mount	300 x 300 mm, M6, 4 holes
  IP Rating	Front: IP5x, Back: IP2x
  Package Size (mm)	1430 x 920 x 250
  Package Weight	48.6 kg
  Bezel Colour	Pantone 426M (black)
  Material	Metal
  Accessories	Feet, Sensor, Soundbar, Speaker, Trolley, Wall Mount
  Certifications	CE, FCC, RoHS, VCCI, EMC Class B, EnergyStar 8, UL94-5VB, ISO 9241-307 Class 1
  Energy Use	109 kWh/1000h, Class G, LED backlight
  Eco Standards	EnergyStar 8.0
  Audio	Integrated Speakers (2 x 10W)
  Special Features	DICOM Sim, HDMI ARC, Powered USB (10W), Removable Logo
  Included in Box	Display, Remote, HDMI & Power Cable, 2x AAA, Manual
  Warranty	3 years incl. backlight (extensions available)
  Operating Hours	24/7 continuous use
  External Control	AMX, ASCII, Crestron, PJLink, HDMI CEC, HTTP, Timer, SNMP
  Remote Management	Email Alerts, NEC NaViSet Admin 2
  Security	HW Button Lock, IR Lock, Emergency Notification
