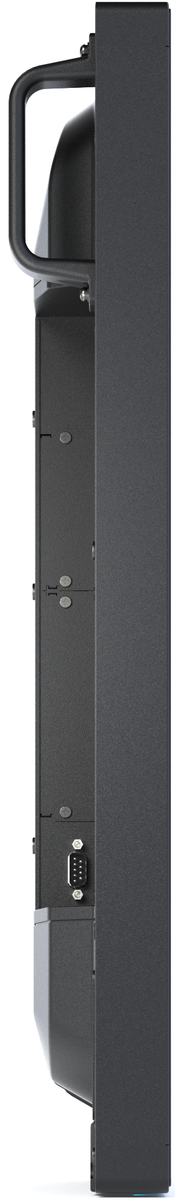

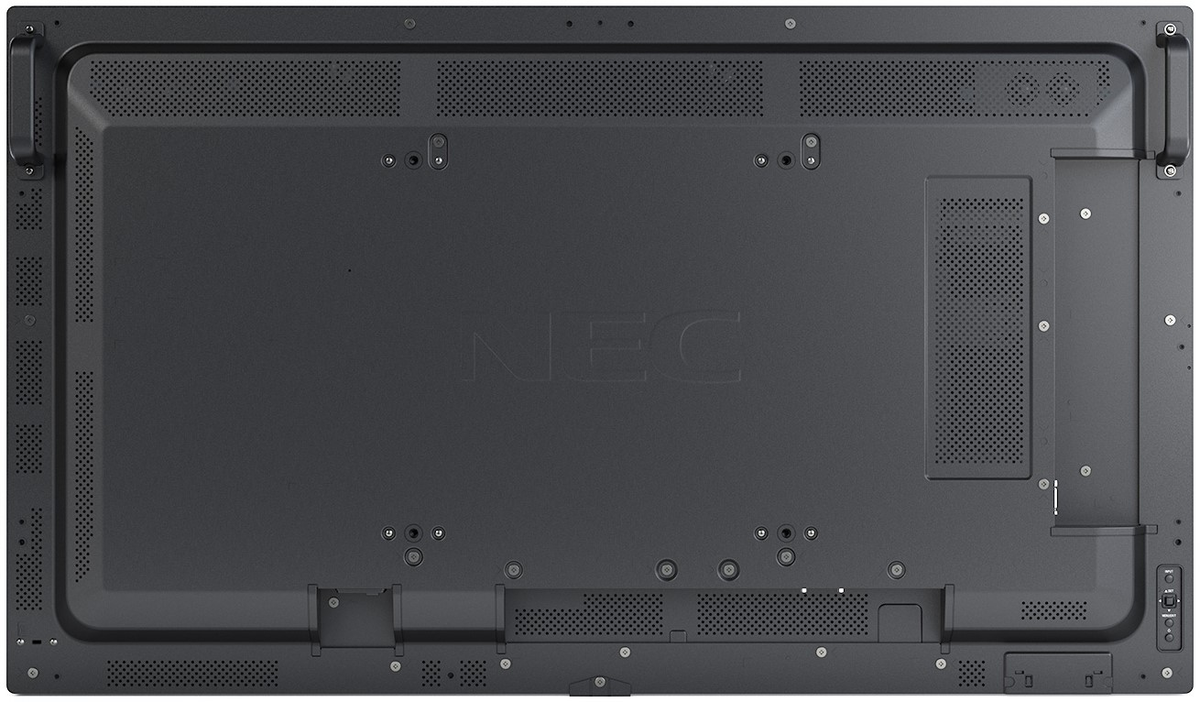

• NEC MultiSync® P435 LCD 43″ Professional Large Format Display


  When imaging precision cannot be compromised
  When imaging precision and 24/7 operational reliability cannot be compromised, the 5th generation of NEC MultiSync® P series presents best-in-class performance with an advanced feature set for mission-critical applications

  Unparalleled clarity of detail and colour accuracy is achieved with 8K signal processing, wide colour gamut and the integrated NEC SpectraView® engine controlling all visual parameters. Even in bright ambient light conditions, high brightness levels of 700 cd/m² combined with a high haze filter guarantees exceptional readability with no annoying reflections. Despite its slim, elegant profile, the quality build is robust for use in public spaces, with an all-metal chassis for fire-retardancy. Featuring NEC Open Modular Intelligence (OMI) slot-in technology, choose scalable computing power with Raspberry Pi Compute Module 4 or the more powerful Intel® Smart Display Modules (Intel®SDM) for tailor-made signage solutions.

  For best visualisation in control rooms and production lines, for passenger information and wayfinding signage; the NEC P Series is trusted for safety and long-life, fit-for-purpose performance.

  Benefits
  Secure remote management – control your devices remotely and securely using NEC NaviSet Administrator 2; proactively manage maintenance requirements saving time and resources
  Unhindered readability – no reflections from windows or other light sources means no disruption to the visibility of signage content or meeting room presentation
  Safe for public environments – a metal back cover and intelligent heat management ensure safe use in public spaces where fire-retardancy is mandatory
  Enhanced imaging performance – advanced settings of all relevant visual parameters allow full control of brightness, colour, gamma and uniformity via the SpectraView Engine for precise, natural images.
  Mission-critical 24/7 ready operation – the meticulous selection of industrial-grade components and careful design focused on demanding usage scenarios accompany an impressive and continuous viewer experience.

• Specification	Value
  Panel Technology	IPS with Edge LED backlights
  Screen Size [inch/cm]	43 / 108
  Aspect Ratio	16:9
  Brightness [cd/m²]	700
  Contrast Ratio	≥ 8000:1
  Viewing Angle [°]	178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
  Colour Depth [bn]	1.073 (10bit)
  Colour Gamut	86% of DCI
  Response Time (typ.) [ms]	8
  Panel Refresh Rate [Hz]	60
  Haze Level [%]	Pro (28)
  Native Resolution	3840 x 2160
  Supported Resolutions	1024 x 768; 1280 x 1024; 1280 x 720; 1360 x 768; 1400 x 1050; 1440 x 900; 1600 x 1200; 1920 x 1080; 1920 x 2160; 2560 x 1440; 2560 x 1600; 3840 x 2160; 4096 x 2160; 7680 x 4320
  Horizontal Frequency [kHz]	15 – 135
  Vertical Frequency [Hz]	23 – 76
  Input Video Digital	2 x DisplayPort (with HDCP); 2 x HDMI (with HDCP)
  Input Audio Digital	1 x DisplayPort; 2 x HDMI
  Input Control	LAN 100Mbit; remote control wire (3,5mm jack); RS232
  Input Data	1 x USB 2.0 (Downstream); 1 x USB 2.0 (Powered 5V/2A, Firmware Updates); 1 x USB 2.0 Type-B (Downstream)
  Output Video Digital	1 x DisplayPort (loop through: DisplayPort, SDM slot-in PC); 1 x HDMI (loop through: HDMI, SDM slot-in PC)
  Output Audio Analogue	1 x 3,5 mm jack
  Output Control	1 x LAN 100Mbit
  Input Detect	Custom; First; Last
  PiP/PbP	Dual-Split; Quad-Split; scalable picture size
  Factory Calibration	Gamma; Intensity; RGB; Uniformity; White Point
  Sensor Calibration	PC-less Calibration with USB Sensor MDSVSensor3; White Copy (post self-calibration)
  Calibration with Software	Corner Uniformity; Gamma; Intensity; RGB; Update Factory Calibration; White Point
  Calibration Software	NEC Display Wall Calibrator
  Intel® SDM	accepts Intel® Smart Display Modules Large and Small up to 66 W
  Compute Module Slot	RPi Compute Module 4
  Ambient Light Sensor	Integrated, triggered actions programmable
  Temperature Sensor	Integrated, 3 sensors, triggered actions programmable
  Power Consumption Eco/max. [W]	90 shipping
  Power Savings Mode [W]	< 0.5; < 2 (Networked Standby)
  Power Management	VESA DPMS
  Power Supply	100-240 V AC; 50/60 Hz; internal
  Operating Temperature [°C]	+0 to +40
  Operating Humidity [%]	20 to 80
  Storage Humidity [%]	10 to 90
  Storage Temperature [°C]	-20 to 60
  Dimensions (W x H x D) [mm]	968.2 x 561 x 67.1
  Weight [kg]	18.5
  Bezel Width [mm]	11 (left, right and top); 15.6 (bottom)
  VESA Mounting [mm]	300 x 300 (FDMI); 4 holes; M6
  Ingress Protection	IP5x (front); IP2x (back)
  Packaging Dimensions (W x H x D) [mm]	1,120 x 700 x 203
  Packaging Weight

• In Warranty Support
  Warranty Period 36 Months
  Contact: NEC Display Solutions
  Email [email protected]
  Manufacturers Website http://www.nec-display-solutions.co.uk

  NEC deal with all your AfterCare requirements for the product you have purchased, they can help with technical queries and offer advice.


  Please contact them direct.
  You will need the following information to hand:

  * Customer Name
  * Email Address
  * Product Model Number
  *Proof of Purchase
  * Serial Number
  * Details of the fault
  * Any permanent security markings?
  * Any physical damage?
  * Any non-NEC repair or modi?caon?

  Once provided NEC will be able to issue a return and provide a replacement if required.

  If you have any questions or would like further advise, please feel free to contact our AfterCare Team (ACE) on 02081 919223 / who will be happy to assist

  3 Year On-Site Warranty. Please contact NEC for full Ts & Cs (exclusions apply).
