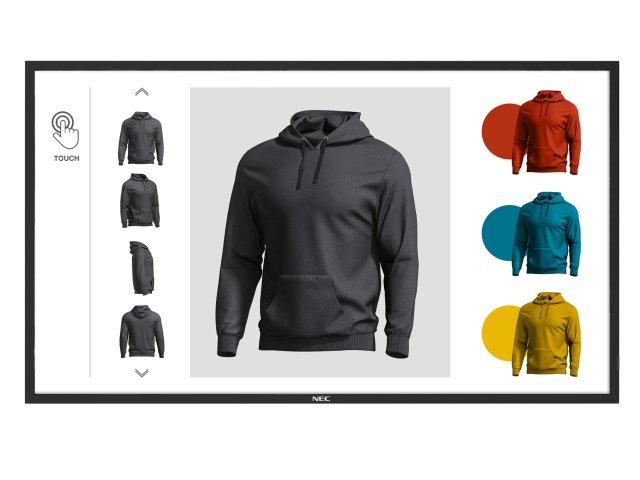

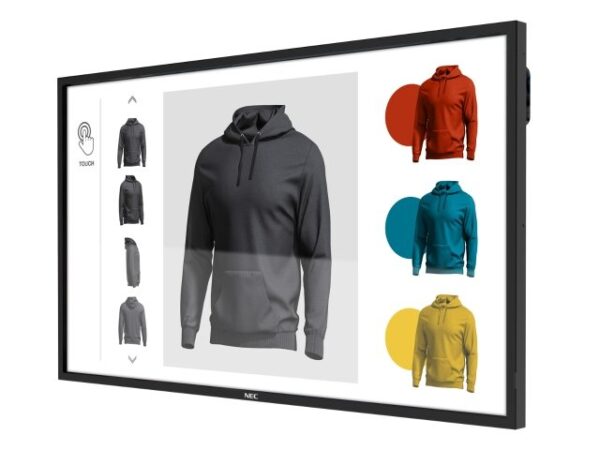

NEC MultiSync® ME501IR | 60005081 50″ Infrared Touch Display
- Description
- Specifications
- Warranty
-
Reliable touch performance for budget-driven usage
Offering a professional feature set and Sharp/NEC’s renowned high reliability, yet at a very attractive price point, the NEC ME series with infrared touch delivers a satisfying user experience with a fast and precise touch response. Only commercial-grade displays are capable of delivering reliable, longlife performance and the ME series presents lower budget business operators the upgrade path to professional interactive digital signage without requiring specialist expertise
Thanks to Sharp/NEC’s modular computing approach and compatibility with all major operating systems, the ME series infrared touch provides all the flexibility you need to address all kinds of different use cases. Capable of landscape or portrait orientation and up to 18/7 hours continuous operation, the M series with infrared touch is designed for local retailers, restaurants and small business enterprises to assist shoppers, take orders and facilitate interaction in small meeting spaces.
Modern and slim design – robust yet elegant allowing for an unobtrusive integration into any application and environment.
Inspiring touch performance boosts user experience – the fast, stable and robust touch performance supports up to 20 touch points.
Resilient and durable – thermal tempered glass with anti-glare coating withstands vandalism and ensures perfect readability with reduced reflection and minimal visibility of finger prints.
Future Ready Connectivity – featuring multiple industry standard digital and analogue signal inputs for flexible integration into AV infrastructures.
Secure remote management – control your devices remotely and securely using NEC NaviSet Administrator 2; proactively manage maintenance requirements saving time and resources -
Category Specifications Panel Technology VA with Direct LED backlights Screen Size (inch/cm) 50 / 125.7 Aspect Ratio 16:9 Brightness (cd/m²) 400 Contrast Ratio (default) > 8000:1 Viewing Angle (°) 178 horizontal / 178 vertical (typ. at contrast ratio 10:1) Colour Depth (bn) 1,073 (8bit + FRC) Response Time (ms) 8 Panel Refresh Rate (Hz) 60 Supported Orientation Landscape; Portrait Touch Technology Infrared Number of Touches Real multi-touch up to 20 touches Frame Rate (Hz) 125 Touch Method Finger; Gloves; Stylus (≥ 2 mm) Supported Operating System Android; Linux; Mac OS; Raspberry Pi; Windows Data Interface USB-HID Accuracy (mm) +/- 2 Palm Rejection No Windows Ink No Glass Thermal-tempered, anti-glare coating Thickness (mm) 3 Light Transmission (%) 92 (+/- 2%) Haze Level (%) 4 Hardness (H) 7 Native Resolution 3840 x 2160 Supported Resolutions 1024 x 768; 1280 x 1024; 1280 x 720; 1360 x 768; 1366 x 768; 1400 x 1050; 1440 x 900; 1600 x 1200; 1650 x 1050; 1920 x 1080; 1920 x 1200; 1920 x 2160; 2560 x 1440; 2560 x 1600; 3840 x 2160; 4096 x 2160 Horizontal Frequency (kHz) 26 – 135 Vertical Frequency (Hz) 23 – 86 Input Video 1 x DisplayPort (with HDCP); 2 x HDMI (with HDCP) Input Audio 1 x DisplayPort; 2 x HDMI Input Control LAN 100Mbit; remote control wire (3.5mm jack); RS232 Input Data 1 x USB 2.0 (MediaPlayer) Output Audio 1 x 3.5mm jack Input Detect Custom; First; Last Intel SDM Compatibility Accepts Intel Smart Display Modules Large and Small up to 66 W Compute Module Slot RPi Compute Module 4 Temperature Sensor Integrated, 3 sensors, triggered actions programmable Power Consumption (W) Eco/max: 85 (shipping) Power Savings Mode (W) < 0.5; < 2 (Networked Standby) Power Management VESA DPMS Power Supply 100-240 V AC; 50/60 Hz Operating Temperature (°C) +0 to +35 Operating Humidity (%) 20 to 80 Storage Humidity (%) 10 to 90 Storage Temperature (°C) -20 to 60 Dimensions (W x H x D) (mm) 1,143 x 661.5 x 80 Weight (kg) 27.8 Bezel Width (mm) 18.95 (left and right); 20 (top and bottom) VESA Mounting (mm) 4 holes; 400 x 400 (FDMI); M6 Ingress Protection IP5x (front); IP2x (back) Packaging Dimensions (W x H x D) (mm) Box 1: 1,298 x 860 x 224 Packaging Weight (kg) Box 1: 34.6 Supported File Storage / File System USB 2.0 / FAT16, FAT32 Supported Image Formats JPG (baseline, progressive, RGB, CMYK); max. resolution 15360 x 8640 Supported Video Formats MPG (MPEG1/2/4, max res 1080p@30Hz); MP4 (MPEG2/4, H.263, H.264, HEVC/H.265, max res 3840×2160@60Hz); TS (MPEG2, H.264, HEVC/H.265, max res 3840×2160@60Hz); audio: LPCM, MP3, AAC; WMV (video H.264, Windows Media Video 9, max res 1080p@30Hz, audio WMA 9, WMA 10 Pro) Supported Audio Formats MP3 (MP3); max. bit-rate 320 kBit/s Available Options Feet (ST-401; ST-43M); Passive Pens (CB-PENS-3); Presence Sensor (KT-RC3); Soundbar (SP-ASCM-IQ2; SP-ASCM-2; SP-AS2); Speaker (SP-RM3a); Trolley (PD04Tipster); Wall mount (PDW S 32-55 L/P) Energy Efficiency Energy consumption: 85 kWh/1000 h; LED backlight Ecological Standards EnergyStar 8.0 Special Characteristics HDMI ARC; Powered USB Port (10 W) Safety and Ergonomics BSMI; CE; EAC; EMC Class B; Energy Star 8; FCC Class B; KC/KCC; PSB; RCM; RoHS; VCCI Pixel Failure Class ISO 9241-307, Class 1 Audio Integrated Speakers (10 W + 10 W) Shipping Content 2x AAA batteries; Display; HDMI Cable; Power Cable; Remote Control; Setup Manual; USB cable Warranty 3 years warranty incl. backlight; additional services available Operating Hours 18/7 External Control AMX NetLinx Support; ASCII Control Commands; Crestron Connected; HDMI CEC; HTTP Browser; PJLink; Scheduled Timer; SNMP Remote Management Automated Email Alerts; NEC NaViSet Administrator 2 Security Disable HW Buttons; Disable IR Functionality; Disable IR Functionality; Emergency Notification; Emergency Notification -
In Warranty Support
Warranty Period 36 Months
Contact: NEC Display Solutions
Tel. No. 01952 237003
Email [email protected]
Manufacturers Website http://www.nec-display-solutions.co.ukNEC deal with all your AfterCare requirements for the product you have purchased, they can help with technical queries and offer advice.
Please contact them direct.
You will need the following information to hand:* Customer Name
* Email Address
* Product Model Number
*Proof of Purchase
* Serial Number
* Details of the fault
* Any permanent security markings?
* Any physical damage?
* Any non-NEC repair or modi?caon?Once provided NEC will be able to issue a return and provide a replacement if required.
If you have any questions or would like further advise, please feel free to contact our AfterCare Team (ACE) on 02081 919223 / who will be happy to assist
3 Year On-Site Warranty. Please contact NEC for full Ts & Cs (exclusions apply).
