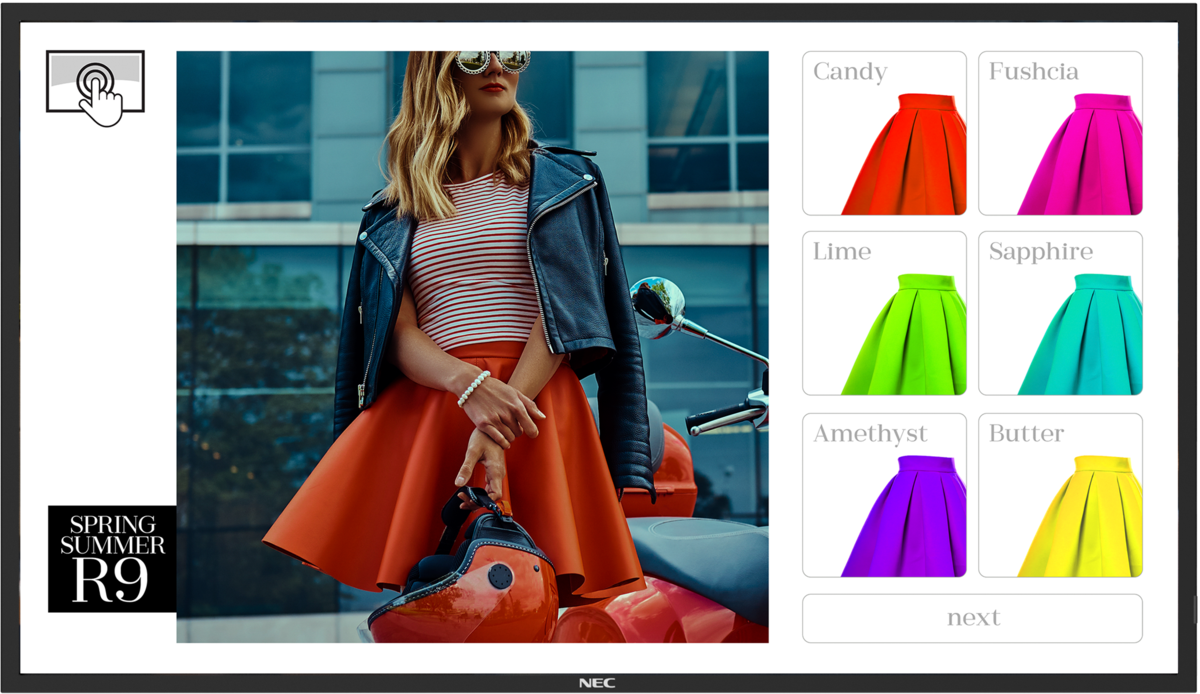

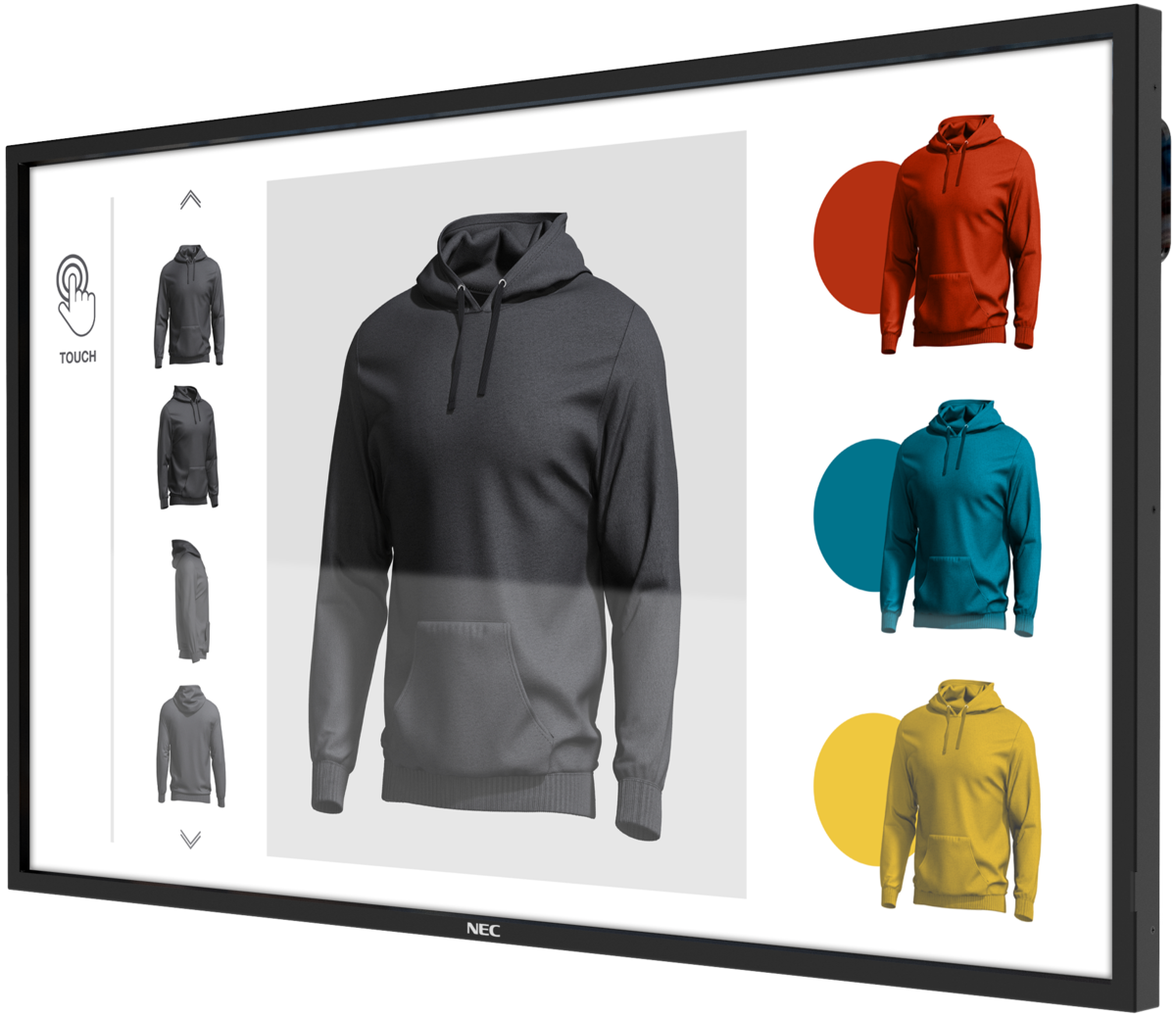

NEC MultiSync® ME431 IR-2 | 60005950 43″ LCD Infrared Touch Display
- Description
- Specifications
- Warranty
-
Reliable touch performance for budget-driven usage
Offering a professional feature set and Sharp/NEC’s renowned high reliability, yet at a very attractive price point, the NEC ME series with infrared touch delivers a satisfying user experience with a fast and precise touch response. Only commercial-grade displays are capable of delivering reliable, longlife performance and the ME series presents lower budget business operators the upgrade path to professional interactive digital signage without requiring specialist expertise
Thanks to Sharp/NEC’s modular computing approach and compatibility with all major operating systems, the ME series infrared touch provides all the flexibility you need to address all kinds of different use cases. Capable of landscape or portrait orientation and up to 18/7 hours continuous operation, the M series with infrared touch is designed for local retailers, restaurants and small business enterprises to assist shoppers, take orders and facilitate interaction in small meeting spaces.
Modern and slim design – robust yet elegant allowing for an unobtrusive integration into any application and environment.
Inspiring touch performance boosts user experience – the fast, stable and robust touch performance supports up to 20 touch points.
Resilient and durable – thermal tempered glass with anti-glare coating withstands vandalism and ensures perfect readability with reduced reflection and minimal visibility of finger prints.
Secure remote management – control your devices remotely and securely using NEC NaviSet Administrator 2; proactively manage maintenance requirements saving time and resources -
Category Specification Display Panel Technology IPS with Direct LED backlights Screen Size 43″ / 108 cm Aspect Ratio 16:9 Brightness 400 cd/m² (without glass) Contrast Ratio 1200:1 Viewing Angle 178° horizontal / 178° vertical (typical at contrast ratio 10:1) Response Time 6 ms Panel Refresh Rate 60 Hz Supported Orientation Landscape; Portrait Touch Touch Technology Infrared Number of Touches Real multi-touch up to 20 touches Response Time ≤ 5 ms Touch Method Finger; Gloves; Stylus (≥ 2 mm) Supported OS Android; Linux; Raspberry Pi; Windows Data Interface USB-HID Accuracy +/- 1 mm Palm Rejection No Windows Ink No Glass Type Thermal-tempered, anti-glare coating Thickness 3 mm Light Transmission 92% (+/- 2%) Haze Level 4% Hardness 7H Resolution Native Resolution 3840 x 2160 Supported Resolutions 1024 x 768; 1280 x 1024; 1280 x 720; 1360 x 768; 1366 x 768; 1400 x 1050; 1440 x 900; 1600 x 1200; 1650 x 1050; 1920 x 1080; 1920 x 2160; 2560 x 1440; 2560 x 1600; 3840 x 2160; 4096 x 2160 Synchronization Rate Horizontal Frequency 26 – 135 kHz Vertical Frequency 23 – 86 Hz Connectivity Input Video 1 x DisplayPort (with HDCP); 2 x HDMI (with HDCP) Input Audio 1 x DisplayPort; 2 x HDMI Input Control LAN 100Mbit; remote control wire (3.5mm jack); RS232 Input Detect Custom; First; Last Open Modular Intelligence Intel® SDM accepts Intel® Smart Display Modules Large and Small up to 45 W; compatible with Intel Celeron CPUs or CPUs with lower power consumption Compute Module Slot RPi Compute Module 4 Electrical Power Consumption Eco/max. [W]: 80 (shipping) Power Savings Mode < 0.5 W; < 2 W (Networked Standby) Power Management VESA DPMS Power Supply 100-240 V AC; internal Environmental Conditions Operating Temperature +0 to +35 °C Operating Humidity 20% to 80% Storage Humidity 10% to 90% Mechanical Dimensions (W x H x D) [mm]: 991 x 579.2 x 85.6 Weight 21.7 kg Bezel Width 24.25 mm (left and right); 24.35 mm (top and bottom) VESA Mounting 200 x 200 (FDMI); 4 holes; M6 Packaging Dimensions Box 1: 1,120 x 700 x 203 mm Packaging Weight 27.4 kg MediaPlayer Supported File Storage / File System USB 2.0 / FAT16, FAT32 Supported Image Formats JPG (baseline, progressive, RGB, CMYK); max. resolution 15360 x 8640 Supported Video Formats MPG (MPEG1/2/4, max res 1080p@30Hz); MP4 (MPEG2/4, H.263, H.264, HEVC/H.265, max res 3840×2160@60Hz); TS (MPEG2, H.264, HEVC/H.265, max res 3840×2160@60Hz); audio: LPCM, MP3, AAC; WMV (video H.264, Windows Media Video 9, max res 1080p@30Hz, audio WMA 9, WMA 10 Pro) Supported Audio Formats MP3 (MP3); max. bit-rate 320 kBit/s Available Options Accessories: Soundbar (SP-ASCM-IQ2, SP-ASCM-2, SP-AS2); Trolley (PD04 Tipster); Wall mount (PDW S 32-65 L, PDW S 32-65 P) Green Features Energy Efficiency Energy consumption: 77 kWh/1000 h; LED backlight Additional Features HDMI ARC; Powered USB Port (10 W) Safety and Ergonomics CE; EMC Class B; REACH; RoHS Pixel Failure Class ISO 9241-307, Class 1 Audio Integrated Speakers (10 W + 10 W) Shipping Content 2x AAA batteries; Display; HDMI Cable; Power Cable; Remote Control; Setup Manual; USB cable; User Manual Warranty 3 years warranty incl. backlight; additional services available Operating Hours 18/7 External Control AMX NetLinx Support; ASCII Control Commands; Crestron Connected; HDMI CEC; HTTP Browser; PJLink; Scheduled Timer; SNMP Remote Management Automated Email Alerts; NEC NaViSet Administrator 2 Security Disable HW Buttons; Disable IR Functionality; Emergency Notification -
In Warranty Support
Warranty Period 36 Months
Contact: NEC Display Solutions
Tel. No. 01952 237003
Email [email protected]
Manufacturers Website http://www.nec-display-solutions.co.ukNEC deal with all your AfterCare requirements for the product you have purchased, they can help with technical queries and offer advice.
Please contact them direct.
You will need the following information to hand:* Customer Name
* Email Address
* Product Model Number
*Proof of Purchase
* Serial Number
* Details of the fault
* Any permanent security markings?
* Any physical damage?
* Any non-NEC repair or modi?caon?Once provided NEC will be able to issue a return and provide a replacement if required.
If you have any questions or would like further advise, please feel free to contact our AfterCare Team (ACE) on 02081 919223 / who will be happy to assist
3 Year On-Site Warranty. Please contact NEC for full Ts & Cs (exclusions apply).
