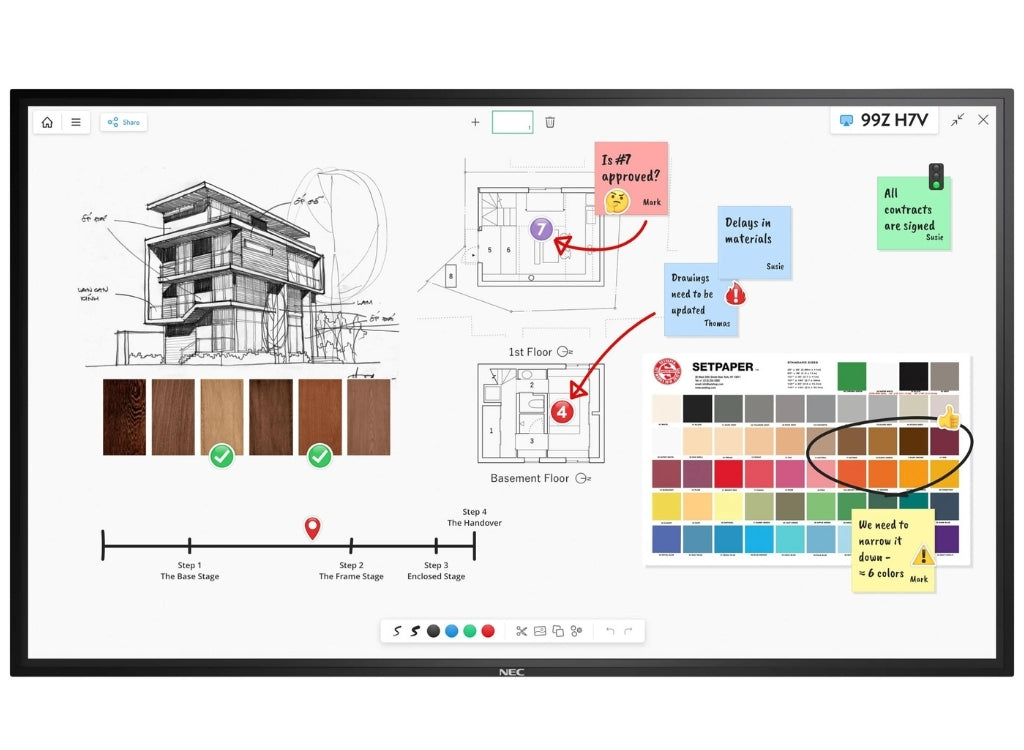

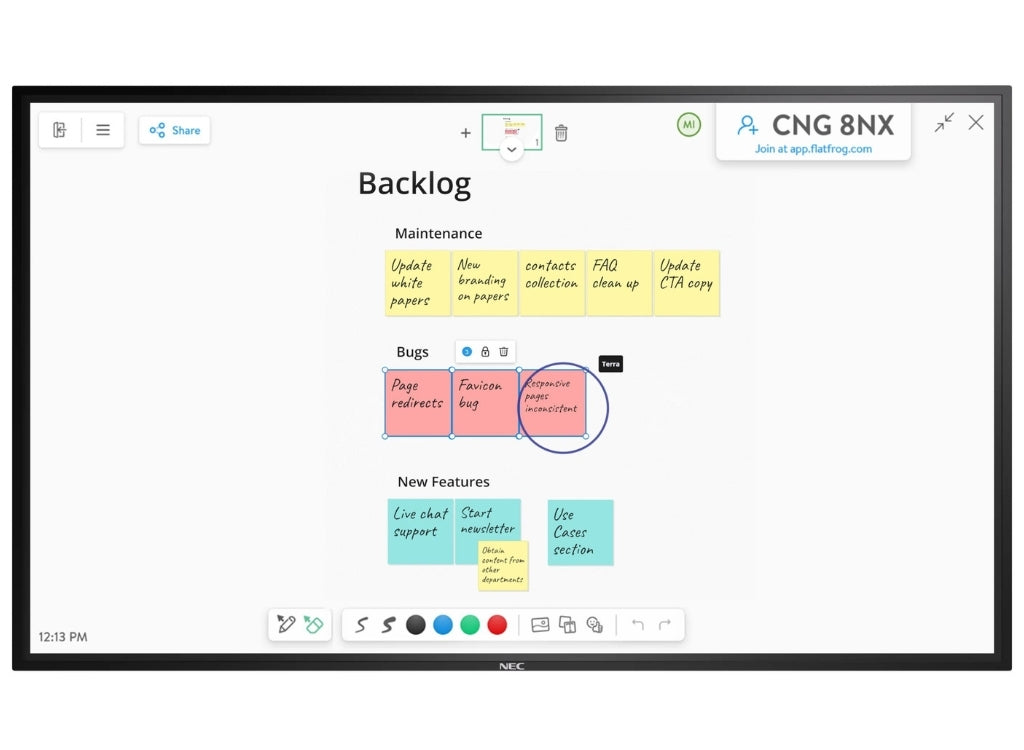

NEC Multisync® M861 60005949 86″ InGlass Touch Display
Modern meeting spaces drive the demand for advanced touch technology with innovative design. To support interactive sessions, the NEC InGlassTM Touch Board along with the responsive passive pen brings superior paper-like writing with minimal latency to a digital canvas. With its slim bezel design, the technology seamlessly integrates into modern interior styling.
High brightness levels ensure excellent readability and image reproduction even in today’s typically bright meeting spaces where maintaining a motivational environment is paramount. The anti-glare coating minimizes disturbing reflections and helps to eliminate niggling fingerprints on the touch surface.
Key Features of NEC MultiSync® M861 IGB 86” UHD Touch Display
Best-in-class visual performance – benefit from a ”pixel-free” Ultra-High Definition (UHD) visual performance.
Natural writing experience – it’s like working on paper! Whether using finger or pen, the InGlass™ touch technology provides seamless interactive touch performance including Windows Ink and palm rejection.
Featuring NEC Open Modular Intelligence (OMI) slot-in technology – choose scalable computing power with Raspberry Pi Compute Module 4 or the more powerful Intel® Smart Display Modules (Intel®SDM) for tailor-made solutions.
Mission-critical 24/7 ready operation – the meticulous selection of industrial-grade components and careful design focused on demanding usage scenarios accompany an impressive and continuous viewer experience.
Be more productive – get a one-year free license of FlatFrog Board for Rooms! FlatFrog Board whiteboard software makes hybrid work easy and equally productive for everyone. -
Feature Details Display Panel Technology IPS with Direct LED backlights Screen Size (inch/cm) 86 / 217.4 Aspect Ratio 16:9 Brightness (without glass) 500 cd/m² Contrast Ratio ≥ 8000:1* (local dimming ON) Viewing Angle (°) 178 horizontal / 178 vertical (typ. at contrast ratio 10:1) Colour Depth (bn) 1.073 (10bit) Colour Gamut 68% of DCI Response Time (ms) 8 Panel Refresh Rate (Hz) 60 Haze Level (%) Pro (28) Supported Orientation Landscape; Portrait Touch Touch Technology InGlass™ Number of Touches Real multi-touch up to 20 touches Response Time (ms) ≤ 15 Touch Method Finger; Gloves; Stylus (≥ 2 mm) Supported Operating System Native Multi-Touch: Windows 7, Windows 8, Windows 10, Linux, Android; Default Mouse: Windows XP, Windows Vista, Mac OS X Data Interface USB-HID Accuracy (mm) < 1 Windows Ink Yes Palm Rejection Yes Glass Type Premium toughened glass, anti-glare coating Thickness (mm) 3 Hardness (H) 7 Resolution Native Resolution 3840 x 2160 Supported Resolutions 1024 x 768; 1280 x 1024; … (see details) Synchronisation Rate Horizontal Frequency (kHz) 15 – 135 Vertical Frequency (Hz) 23 – 76 Connectivity Input Video Digital 2 x DisplayPort (with HDCP); 2 x HDMI (with HDCP) Input Audio Digital 1 x DisplayPort; 2 x HDMI Input Control LAN 100Mbit; remote control wire (3,5mm jack); RS232 Input Data 1 x USB 2.0 (Downstream); 1 x USB 2.0 (Powered 5V/2A, Firmware Updates); 1 x USB 2.0 Type-B (Downstream) Output Video Digital 1 x DisplayPort (loop through: DisplayPort, SDM slot-in PC); 1 x HDMI (loop through: HDMI, SDM slot-in PC) Output Audio Analogue 1 x 3,5 mm jack Output Control 1 x LAN 100Mbit Input Detect Custom; First; Last PiP/PbP Dual-Split; Quad-Split; scalable picture size Calibration Factory Calibration Gamma; Intensity; RGB; Uniformity; White Point Sensor Calibration PC-less Calibration with USB Sensor MDSVSensor3; White Copy (post self-calibration) Calibration with Software Corner Uniformity; Gamma; Intensity; RGB; Update Factory Calibration; White Point Calibration Software NEC Display Wall Calibrator Open Modular Intelligence Intel® SDM Accepts Intel® Smart Display Modules Large and Small up to 66 W Compute Module Slot RPi Compute Module 4 Sensors Temperature Sensor Integrated, 3 sensors, triggered actions programmable Electrical Power Consumption (Eco/max.) 320 W (shipping) Power Savings Mode < 0.5; ≤ 2 (Networked Standby) Power Management VESA DPMS Power Supply 100-240 V AC; 50/60 Hz; internal Environmental Conditions Operating Temperature (°C) +0 to +35 Operating Humidity (%) 20 to 80 Storage Humidity (%) 10 to 80 Storage Temperature (°C) -20 to 60 Mechanical Dimensions (W x H x D) (mm) 1,972 x 1,142 x 91.5 Weight (kg) 76 Bezel Width (mm) 22.5 VESA Mounting (mm) 4 holes; 600 x 400 (FDMI); M8 Ingress Protection IP5x (front); IP2x (back) Green Features Energy Efficiency Energy consumption: 193 kWh/1000 h; LED backlight Ecological Standards EnergyStar 8.0 Additional Features Special Characteristics DICOM Simulation; HDMI ARC; Powered USB Port (10 W) Safety and Ergonomics CE; EMC Class B; Energy Star 8; RoHS Pixel Failure Class ISO 9241-307, Class 1 Audio Integrated Audio Amplifier (for optional speakers up to 2 x 15 W); Integrated Speakers (10 W + 10 W) Shipping Content 2 x Passive Stylus; 2x AAA batteries; Display; HDMI Cable; Power Cable; Remote Control; Setup Manual; USB cable Warranty 3 years warranty incl. backlight Operating Hours 24/7 External Control AMX NetLinx Support; ASCII Control Commands; Crestron Connected; HDMI CEC; HTTP Browser; PJLink; Scheduled Timer; SNMP Remote Management Automated Email Alerts; NEC NaViSet Administrator 2 Security Disable HW Buttons; Disable IR Functionality; Emergency Notification -
Description Downloads NEC Multisync® M861 60005949 86″ InGlass Touch Display DataSheet Download
