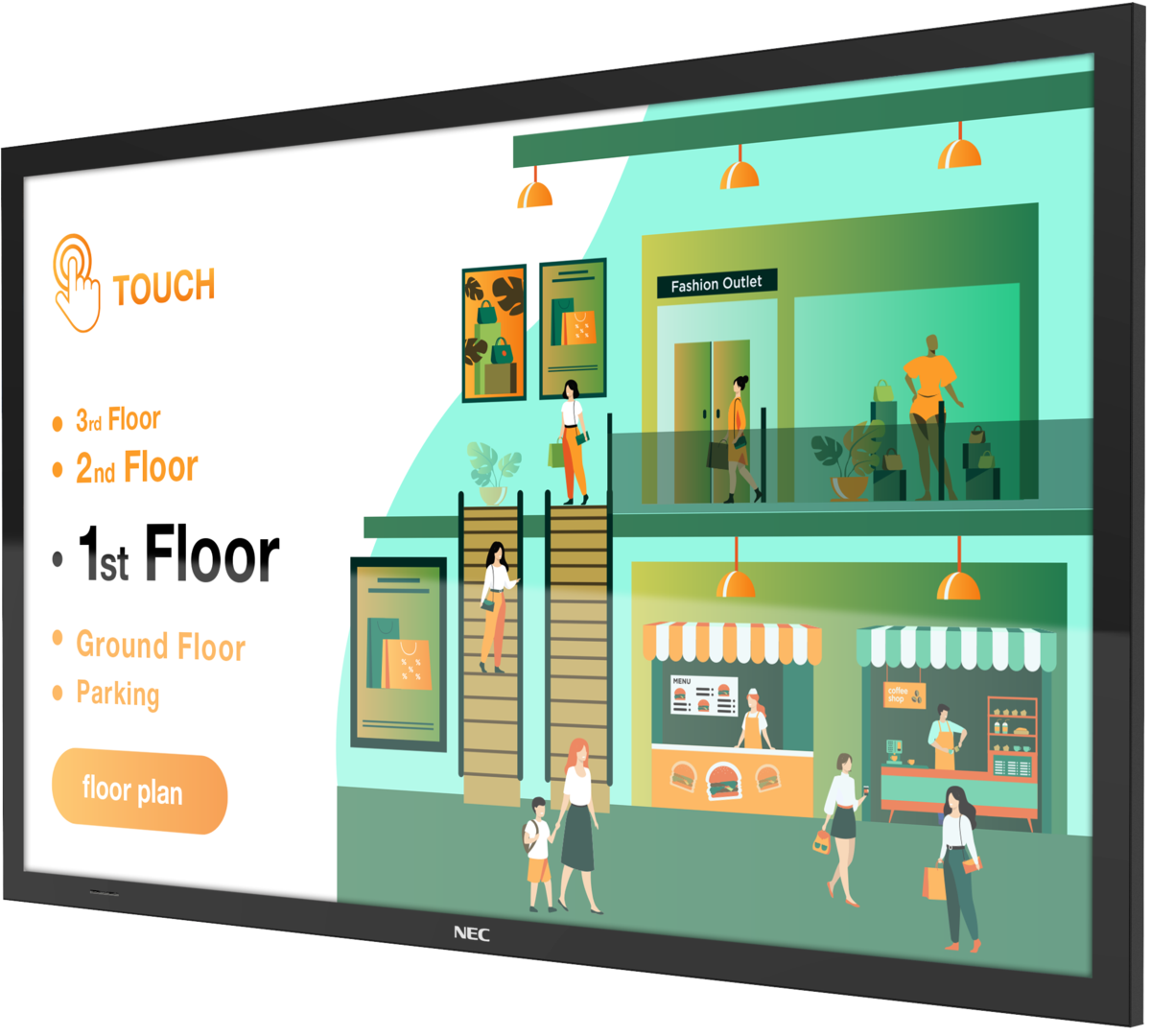

NEC MultiSync® M491 PCAP | 60005080 49″ LCD PCAP Touch Display
- Description
- Specifications
- Warranty
-
Superior touch performance for demanding environments
Great first impressions can make all the difference; presenting your business in the best possible way will boost your brand. With a modern, bezel-free styling, 24/7 operation and reduced reflections when ambient light is high, the NEC MultiSync® M series PCAP touch engages audiences and facilitates collaboration.
With the powerful Intel® Smart Display Module (Intel® SDM) computing device, you are primed and ready to provide an exceptional interactive experience to your customers. Perfectly suited to the rigors of public usage, the robust glass surface is resistant to scratches whilst its anti-glare property makes the M series PCAP touch models suitable for use even in areas of high ambient light.
Modern and easy to clean design – edge-to-edge allowing for unobtrusive integration into any application and environment.
Exceptional touch performance – with up to 20 touch points the PCAP technology offers excellent touch responsiveness for both finger and pen usage
Unhindered readability – no reflections from windows or other light sources means no disruption to the visibility of signage content or meeting room presentation
Mission-critical 24/7 ready operation – the meticulous selection of industrial-grade components and careful design focused on demanding usage scenarios accompany an impressive and continuous viewer experience.
Secure remote management – control your devices remotely and securely using NEC NaviSet Administrator 2; proactively manage maintenance requirements saving time and resources -
Category Specification Panel Technology IPS with Edge LED backlights Screen Size 49 inches / 123.2 cm Aspect Ratio 16:9 Brightness 500 cd/m² (without glass) Contrast Ratio > 8000:1 Viewing Angle 178° horizontal / 178° vertical (typical at contrast ratio 10:1) Colour Depth 1.076 billion (10-bit) Response Time 8 ms Panel Refresh Rate 60 Hz Supported Orientation Face Up 1; Landscape; Portrait Touch Technology PCAP Number of Touches Real multi-touch up to 20 touches Touch Method Conductive Passive Stylus; Finger Supported Operating System Android; Linux; Raspberry Pi; Windows Data Interface USB-HID Accuracy +/- 1.5 mm Palm Rejection No Windows Ink No Glass Thickness 4.45 mm Light Transmission 85% (+/- 5%) Haze Level 5-10% Hardness 6 Native Resolution 3840 x 2160 Supported Resolutions 1024 x 768; 1280 x 1024; 1280 x 720; 1360 x 768; 1366 x 768; 1400 x 1050; 1440 x 900; 1600 x 1200; 1650 x 1050; 1900 x 1200; 1920 x 1080; 1920 x 2160; 2560 x 1440; 2560 x 1600; 3840 x 2160; 4096 x 2160 Horizontal Frequency 26-135 kHz Vertical Frequency 23-86 Hz Input Video Digital 1 x DisplayPort (with HDCP); 2 x HDMI (with HDCP) Input Audio Digital 1 x DisplayPort; 2 x HDMI Input Control LAN 100Mbit; remote control wire (3.5mm jack); RS232 Input Data 1 x USB 2.0 (MediaPlayer) Output Audio Analogue 1 x 3.5 mm jack Input Detect Custom; First; Last Intel® SDM Accepts Intel® Smart Display Modules Large and Small up to 66 W Compute Module Slot RPi Compute Module 4 Temperature Sensor Integrated, 3 sensors, triggered actions programmable Power Consumption 80 W (shipping) Power Savings Mode < 0.5 W; < 2 W (Networked Standby) Power Management VESA DPMS Power Supply 100-240 V AC; 50/60 Hz; internal Operating Temperature +0 to +35°C Operating Humidity 20% to 80% Storage Humidity 10% to 90% Storage Temperature -20 to 60°C Dimensions 1139.9 x 669.9 x 65.08 mm Weight 30.3 kg Bezel Width Edge-to-edge flush design (no bezel) VESA Mounting 300 x 300 (FDMI); 4 holes; M6 Ingress Protection IP5x (front); IP2x (back) Supported File Storage USB 2.0 / FAT16, FAT32 Supported Image Formats JPG (baseline, progressive, RGB, CMYK); max. resolution 15360 x 8640 Supported Video Formats MPG (MPEG1/2/4, max res 1080p@30Hz); MP4 (MPEG2/4, H.263, H.264, HEVC/H.265, max res 3840×2160@60Hz); TS (MPEG2, H.264, HEVC/H.265, max res 384 -
In Warranty Support
Warranty Period 36 Months
Contact: NEC Display Solutions
Tel. No. 01952 237003
Email uklcdservice@emea.nec.com
Manufacturers Website http://www.nec-display-solutions.co.ukNEC deal with all your AfterCare requirements for the product you have purchased, they can help with technical queries and offer advice.
Please contact them direct.
You will need the following information to hand:* Customer Name
* Email Address
* Product Model Number
*Proof of Purchase
* Serial Number
* Details of the fault
* Any permanent security markings?
* Any physical damage?
* Any non-NEC repair or modi?caon?Once provided NEC will be able to issue a return and provide a replacement if required.
If you have any questions or would like further advise, please feel free to contact our AfterCare Team (ACE) on 02081 919223 / who will be happy to assist
3 Year On-Site Warranty. Please contact NEC for full Ts & Cs (exclusions apply).
