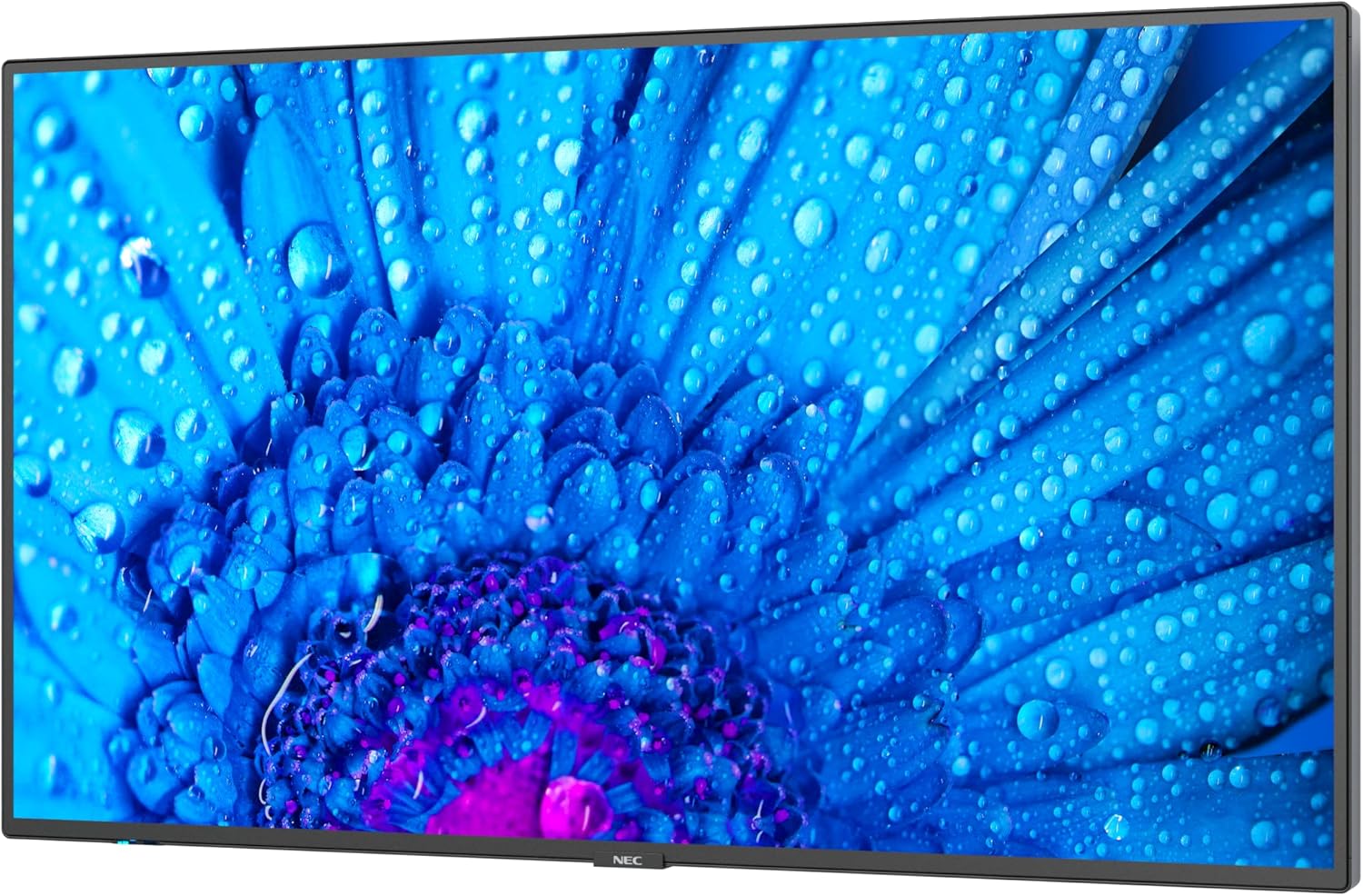

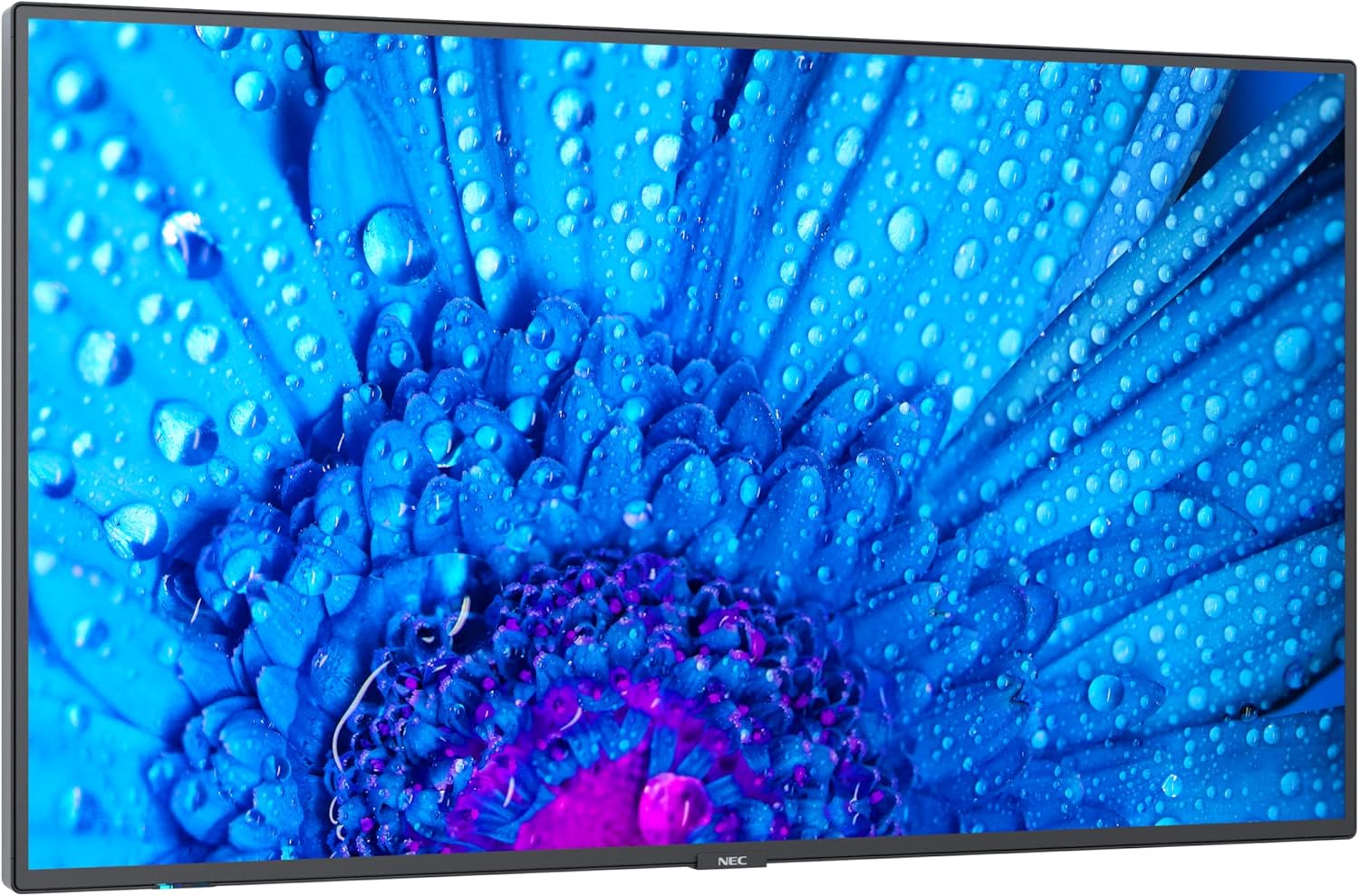

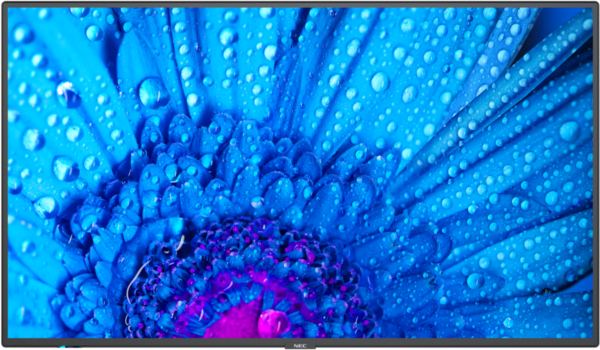

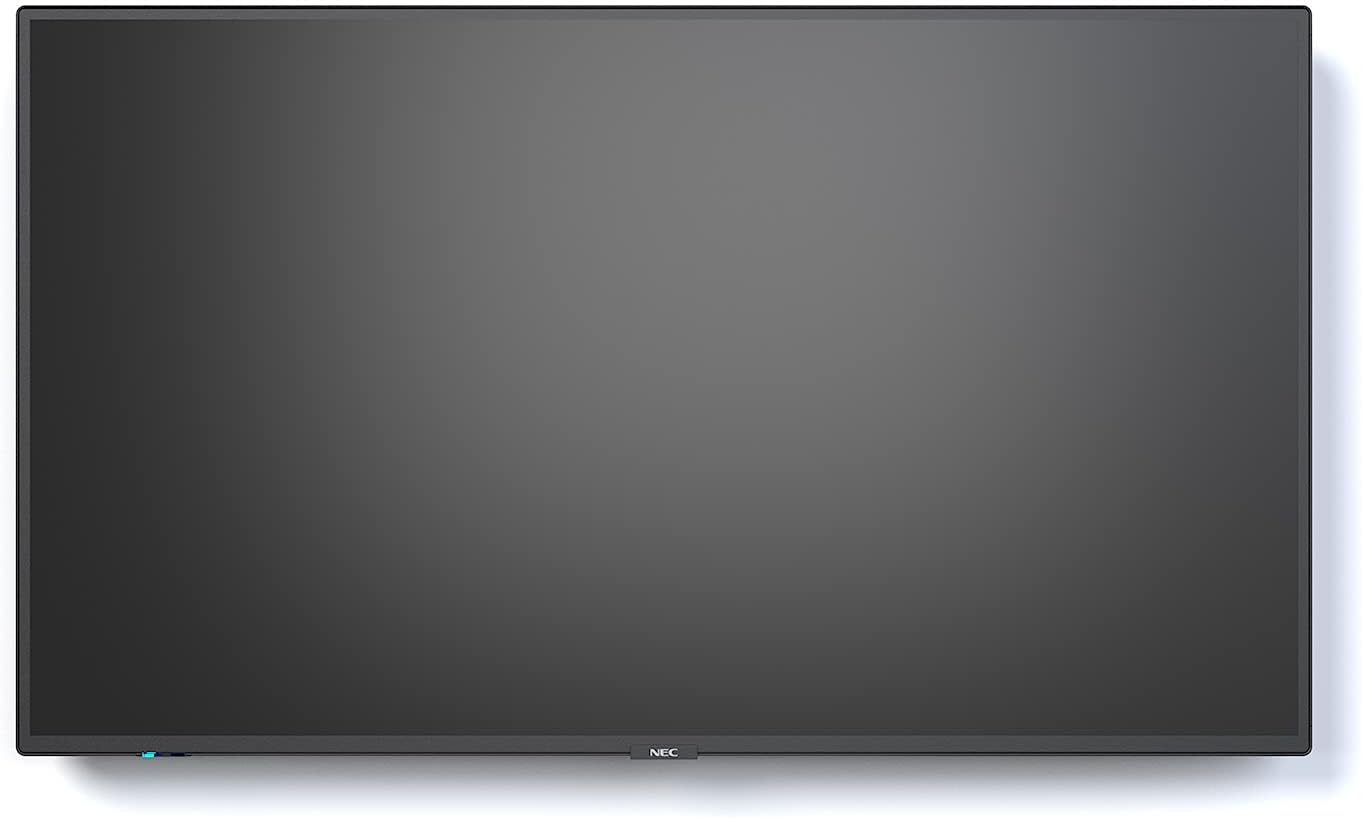

NEC MultiSync® M431 LCD 43″ 4K Message Large Format Display
The NEC MultiSync® M431 is a high-quality 43″ LCD message large format display designed to captivate and engage audiences in various commercial settings. With its impressive size and advanced features, this display delivers impactful visual messaging with exceptional clarity. The MultiSync® M431 boasts a large 43″ screen, providing ample space to showcase your content and grab the attention of viewers. Whether it’s in retail stores, corporate environments, or public spaces, this display ensures that your messages are seen and heard.
Great first impressions can make all the difference; presenting your business in the best possible way will boost your brand. With slim, modern styling, 24/7 operation and high haze panel to reduce reflections when ambient light is high, the M series is the professional way to deliver your message, yet at an attractive price point.
With the optional NEC MediaPlayer or the more powerful Intel® Smart Display Module (Intel® SDM) computing device, you are primed and ready for intuitive signage creation delivering real-time media playback for exceptional visual experiences. For advertising, infotainment and meeting room applications, the M Series provides powerful, upgradable functionality and all the aesthetic appeal to effortlessly reflect your brand credentials.
Benefits
Modern and slim design – robust yet elegant allowing for an unobtrusive integration into any application and environment.
Secure remote management – control your devices remotely and securely using NEC NaviSet Administrator 2; proactively manage maintenance requirements saving time and resources
Unhindered readability – no reflections from windows or other light sources means no disruption to the visibility of signage content or meeting room presentation
Mission-critical 24/7 ready operation – the meticulous selection of industrial-grade components and careful design focused on demanding usage scenarios accompany an impressive and continuous viewer experience.
Future Ready Connectivity – featuring multiple industry standard digital and analogue signal inputs for flexible integration into AV infrastructures. -
Specification Value Panel Technology IPS with Edge LED backlights Screen Size (inch/cm) 43 / 108 Aspect Ratio 16:9 Brightness (cd/m²) 500 Contrast Ratio ≥ 8000:1 1 Viewing Angle (°) 178 horizontal / 178 vertical (typ. at contrast ratio 10:1) Colour Depth (bn) 1.076 (10bit) Response Time (ms) 8 Panel Refresh Rate (Hz) 60 Supported Orientation Landscape; Portrait Native Resolution 3840 x 2160 Supported Resolutions 1024 x 768; 1280 x 1024; 1280 x 720; 1360 x 768; 1366 x 768; 1400 x 1050; 1440 x 900; 1600 x 1200; 1650 x 1050; 1920 x 1080; 1920 x 1200; 1920 x 2160; 2560 x 1440; 2560 x 1600; 3840 x 2160; 4096 x 2160 Horizontal Frequency (kHz) 26 – 91.1 Vertical Frequency (Hz) 23 – 86 Input Video Digital 1 x DisplayPort (with HDCP); 2 x HDMI (with HDCP) Input Audio Digital 1 x DisplayPort; 2 x HDMI Input Control LAN 100Mbit; remote control wire (3,5mm jack); RS232 Input Data 1 x USB 2.0 (MediaPlayer) Output Audio Analogue 1 x 3,5 mm jack Intel® SDM accepts Intel® Smart Display Modules Large and Small up to 45 W; compatible with Intel Celeron CPUs or CPUs with lower power consumption Compute Module Slot RPi Compute Module 4 Ambient Light Sensor Integrated, triggered actions programmable Temperature Sensor Integrated, 3 sensors, triggered actions programmable Power Consumption (W) 80 shipping Power Savings Mode (W) < 0.5; < 2 (Networked Standby) Operating Temperature (°C) +0 to +40 Operating Humidity (%) 20 to 80 Storage Humidity (%) 10 to 90 Storage Temperature (°C) -20 to 60 Dimensions (W x H x D) 968.2 x 561 x 67.1 Weight (kg) 17.8 Bezel Width (mm) 11 (left, right and top); 15.6 (bottom) VESA Mounting (mm) 300 x 300 (FDMI); 4 holes; M6 Ingress Protection IP5x (front); IP2x (back) Packaging Dimensions (W x H x D) 1,120 x 700 x 203 Packaging Weight (kg) 23 Energy Efficiency Energy consumption: 68 kWh/1000 h; Energy efficiency class: G; LED backlight Ecological Standards EnergyStar 8.0 Special Characteristics DICOM Simulation; HDMI ARC; Powered USB Port (10 W); Removable Logo Audio Integrated Speakers (10 W + 10 W) Operating Hours 24/7 External Control AMX NetLinx Support; ASCII Control Commands; Crestron Connected; HDMI CEC; HTTP Browser; PJLink; Scheduled Timer; SNMP Remote Management Automated Email Alerts; NEC NaViSet Administrator 2 Security Disable HW Buttons; Disable IR Functionality; Emergency Notification Resistance to Fire Metal backcover, plastic material certified acc. to UL94-5VB Warranty 3 years warranty incl. backlight; additional services available; optional 4. + 5. year warranty extension 2 Pixel Failure Class ISO 9241-307, Class -
In Warranty Support
Warranty Period 36 Months
Contact: NEC Display Solutions
Email [email protected]
Manufacturers Website http://www.nec-display-solutions.co.ukNEC deal with all your AfterCare requirements for the product you have purchased, they can help with technical queries and offer advice.
Please contact them direct.
You will need the following information to hand:* Customer Name
* Email Address
* Product Model Number
*Proof of Purchase
* Serial Number
* Details of the fault
* Any permanent security markings?
* Any physical damage?
* Any non-NEC repair or modi?caon?Once provided NEC will be able to issue a return and provide a replacement if required.
If you have any questions or would like further advise, please feel free to contact our AfterCare Team (ACE) on 02081 919223 / who will be happy to assist
3 Year On-Site Warranty. Please contact NEC for full Ts & Cs (exclusions apply).
-
