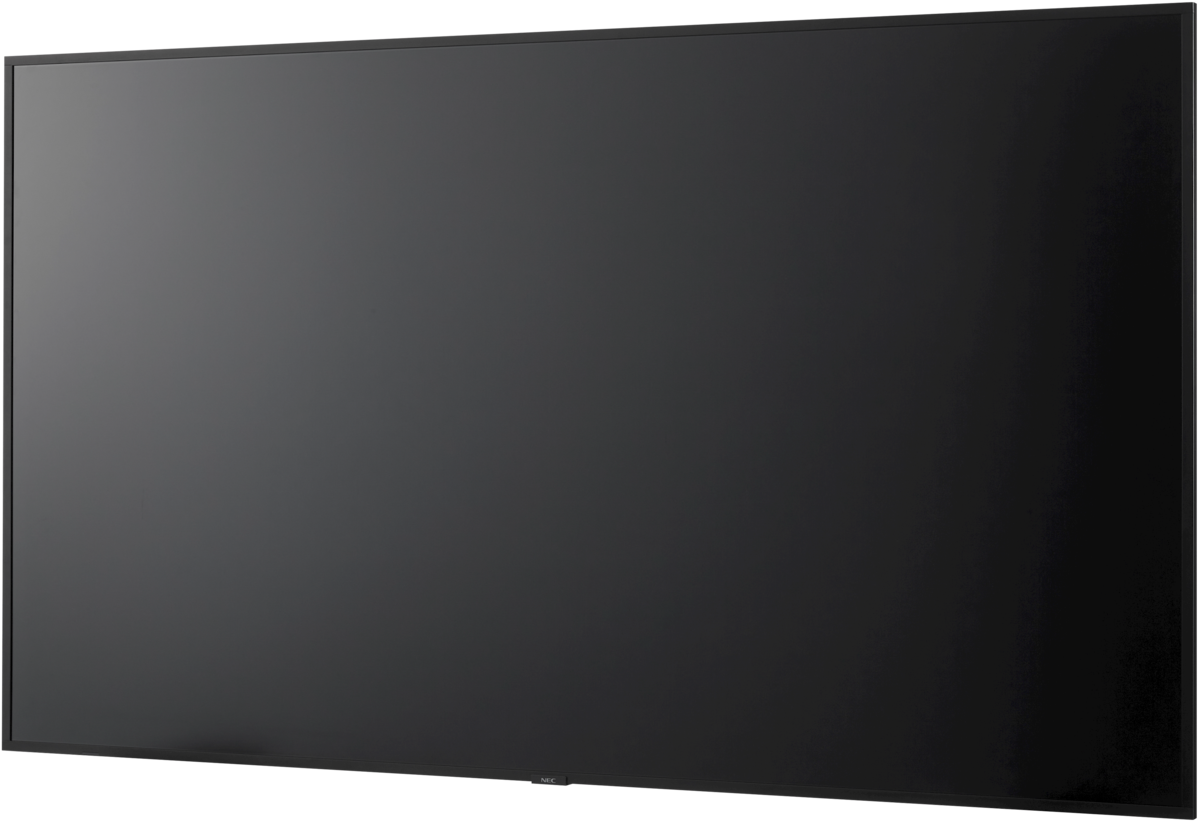

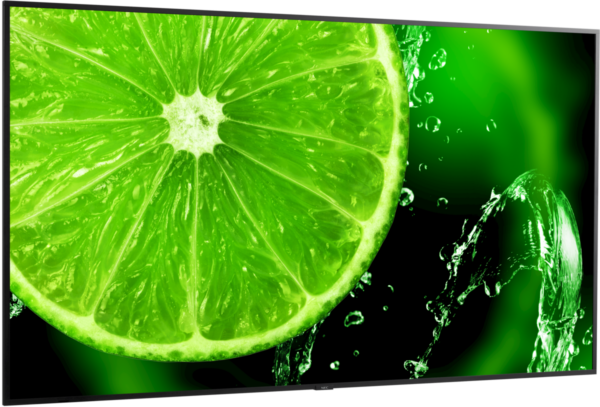

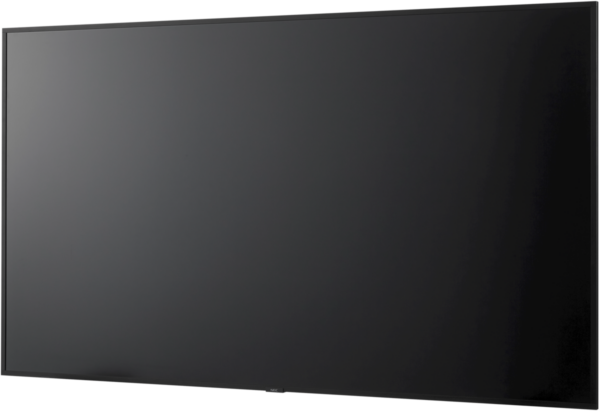

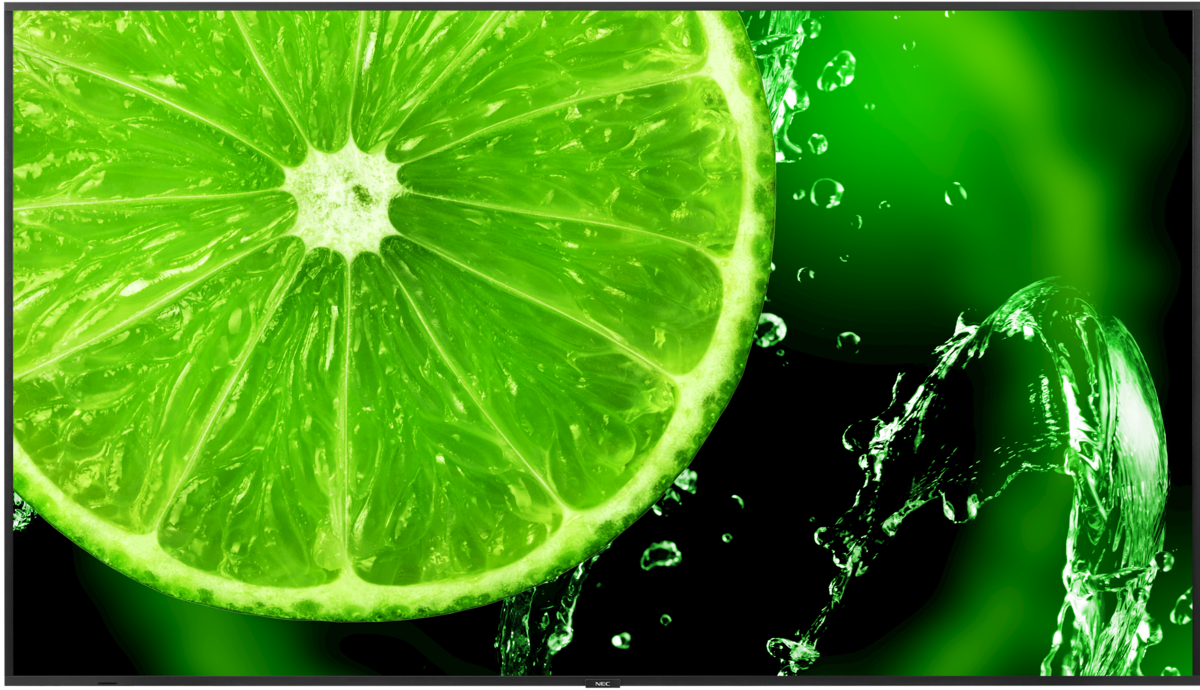

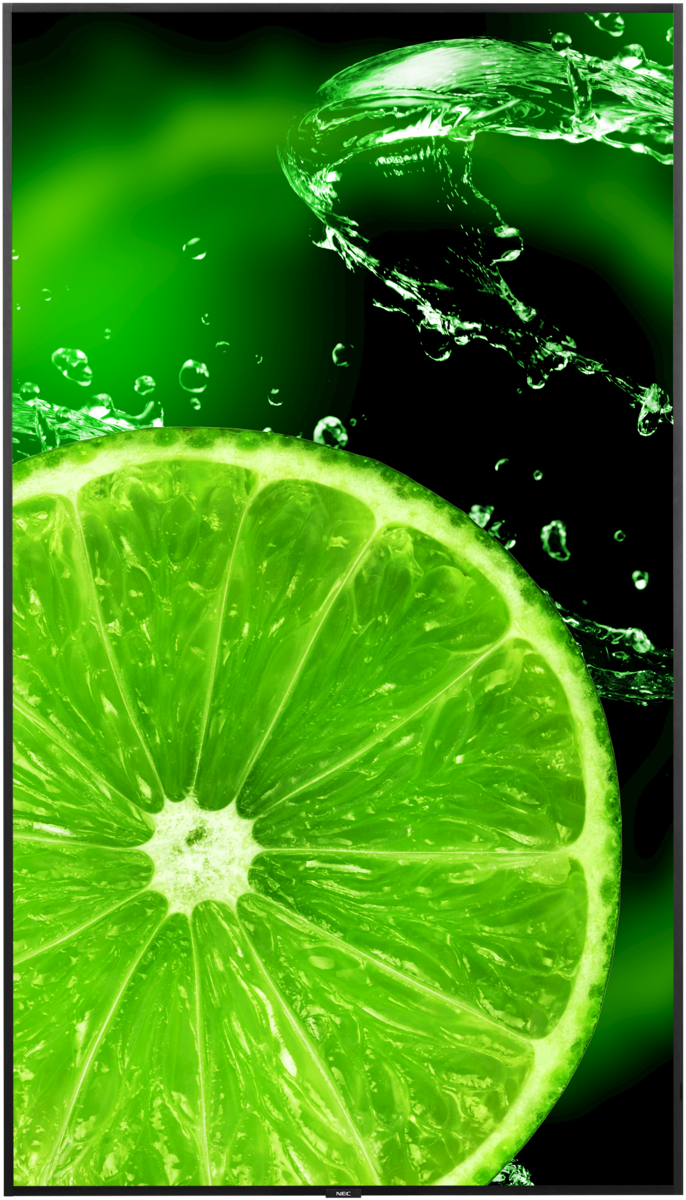

• NEC MultiSync® E988 LCD 98″ 4K Essential Large Format Display


  Functionality you need for presentations and digital signage
  Designed for the rigours of commercial usage, yet at an impressively low total cost of ownership, with 24/7 operating hours the 98-inch MultiSync® E988 Large Format Display delivers the functionality and reliability you need for large meeting rooms and digital signage. The robust metal chassis which naturally dissipates heat is safeguarding long life performance, fire safety and sustainable waste management.

  A professional haze level (Pro 28) supports excellent visibility without distracting reflections; combined with brightness of up to 400 cd/m², the E988 meets the demands of today’s meeting room environments. Presenters can feel confident, benefiting from instant meeting start-up, thanks to auto input detection and easy switching between HDMI sources.

  An integrated MediaPlayer supports native UHD resolution and High Dynamic Range (HDR) for deep contrasts and natural looking content playback with auto-play function. Requiring no additional cables, external devices or signage software, the USB MediaPlayer enables a simple seamless professional signage solution.

  Facilities managers will welcome the ability to remotely control their digital estate via the network thanks to the integrated LAN and NEC NaViSet Administrator 2 functionality making this display the perfect choice for corporate meeting rooms and entry level digital signage.

  Benefits
  Reduced Installation and Operating Costs – highly energy efficient LED backlit display ensures low power consumption, longer backlight lifetime and lighter design for easy transportation, mounting and integration.
  Slim Design and Integrated Speakers – the aesthetic design is pleasing to the eye and enables easy, low cost installation.
  Future Ready Connectivity – featuring multiple industry standard digital and analogue signal inputs for flexible integration into AV infrastructures.
  Standalone operation – the display is designed for straightforward standalone operation due to integrated USB media player, speakers and scheduling functionality.
  Effortless content playback – the integrated USB media player supports various image video file formats for effortless and standalone content playback.

• Category	Specification
  Panel Technology	IPS with Direct LED backlights
  Screen Size	97.5″ / 247.7 cm
  Aspect Ratio	16:9
  Active Area (W x H)	2158.85 x 1214.35 mm
  Pixel Pitch	0.5622 mm
  Brightness	400 cd/m²
  Contrast Ratio	≥ 8000:1
  Viewing Angle	178° (H/V)
  Colour Depth	1.073 billion (10bit)
  Response Time	8 ms (typ.)
  Refresh Rate	60 Hz
  Haze Level	28% (Pro)
  Orientation	Landscape / Portrait
  Native Resolution	3840 x 2160 (4K UHD)
  Supported Resolutions	1920×1080, 1920×1200, 3840×2160
  Horizontal Frequency	15 – 136 kHz
  Vertical Frequency	24 – 75 Hz
  Analog Video Input	VGA, Component (RCA), Composite (RCA)
  Digital Video Input	3x HDMI
  Audio Input	3x HDMI, 1x 3.5mm jack
  Control Input	LAN (100Mbit), RS232
  Data Input	1x USB 2.0 (MediaPlayer), 1x USB-C (5V/3A power)
  Audio Output	1x 3.5mm jack, 1x SPDIF
  Remote Control	IR Remote, RS-232C (9-pin)
  Ambient Light Sensor	Integrated, programmable actions
  Power Consumption	200 W (shipping)
  Power Saving Mode	<0.5 W / <2 W (Networked Standby)
  Power Supply	100–240 V AC; 50/60 Hz; internal
  Operating Temp	0°C to 40°C
  Operating Humidity	20% to 80%
  Storage Temp	-20°C to 60°C
  Storage Humidity	10% to 90%
  Dimensions (WxHxD)	2194.65 x 1250.15 x 84.3 mm (without stand)
  Weight	65.4 kg (without stand)
  Bezel Width	15.9 mm
  VESA Mounting	600 x 400 mm (M8, 4 holes)
  IP Rating	IP5x (front); IP2x (back)
  Package Dimensions	2350 x 1400 x 310 mm
  Package Weight	96.5 kg
  Bezel Colour	Pantone 426M (Black)
  Material	Metal
  File System Support	USB 2.0 / FAT16, FAT32
  Supported Image Formats	JPG (up to 15360 x 8640)
  Video Formats	MPG, MP4, TS, WMV (up to 3840×2160@60Hz)
  Audio Formats	MP3 (up to 320 kbps)
  Embedded Features	USB Media Player, Scheduler, Equalizer, Energy saving mode
  External Control	Crestron Connected
  System Compatibility	Mac & Windows
  Remote Management	NaViSet Administrator 2, SNMP, Scheduler, HDMI CEC
  Energy Consumption	161 kWh/1000h (Energy Class F)
  Certifications	Energy Star 8, EMC B, FCC, VCCI, TÜV S, UL/C-UL, RoHS
  3rd Party Certifications	Crestron CCV2, XiO Cloud
  Audio	Integrated 2x 10 W speakers
  Accessories	Feet (ST-801)
  Included in Box	Display, Remote, HDMI Cable, Power Cable, 2x AAA batteries, Manual
  Warranty	3 years incl. backlight
  Operating Hours	24/7
