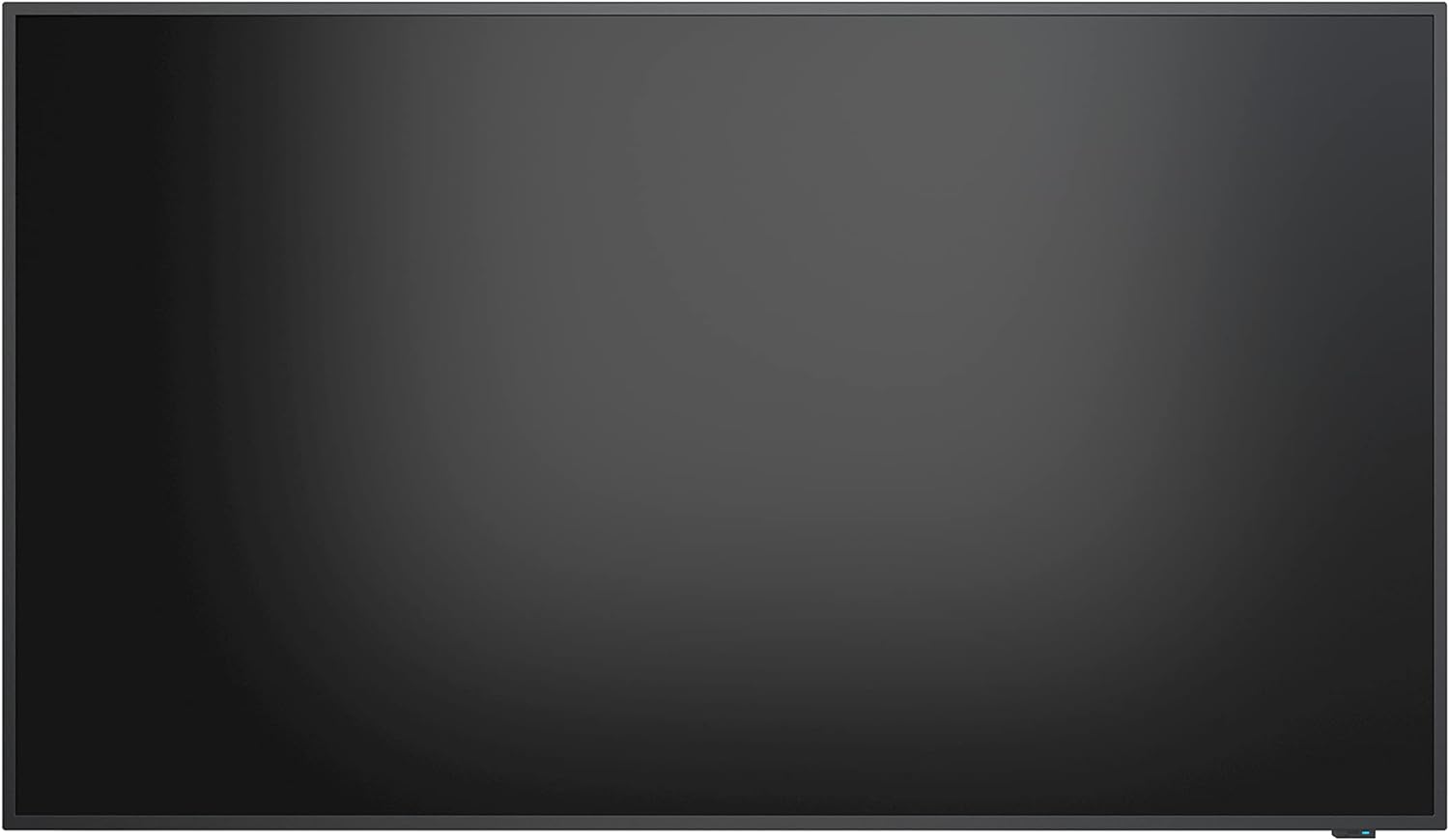

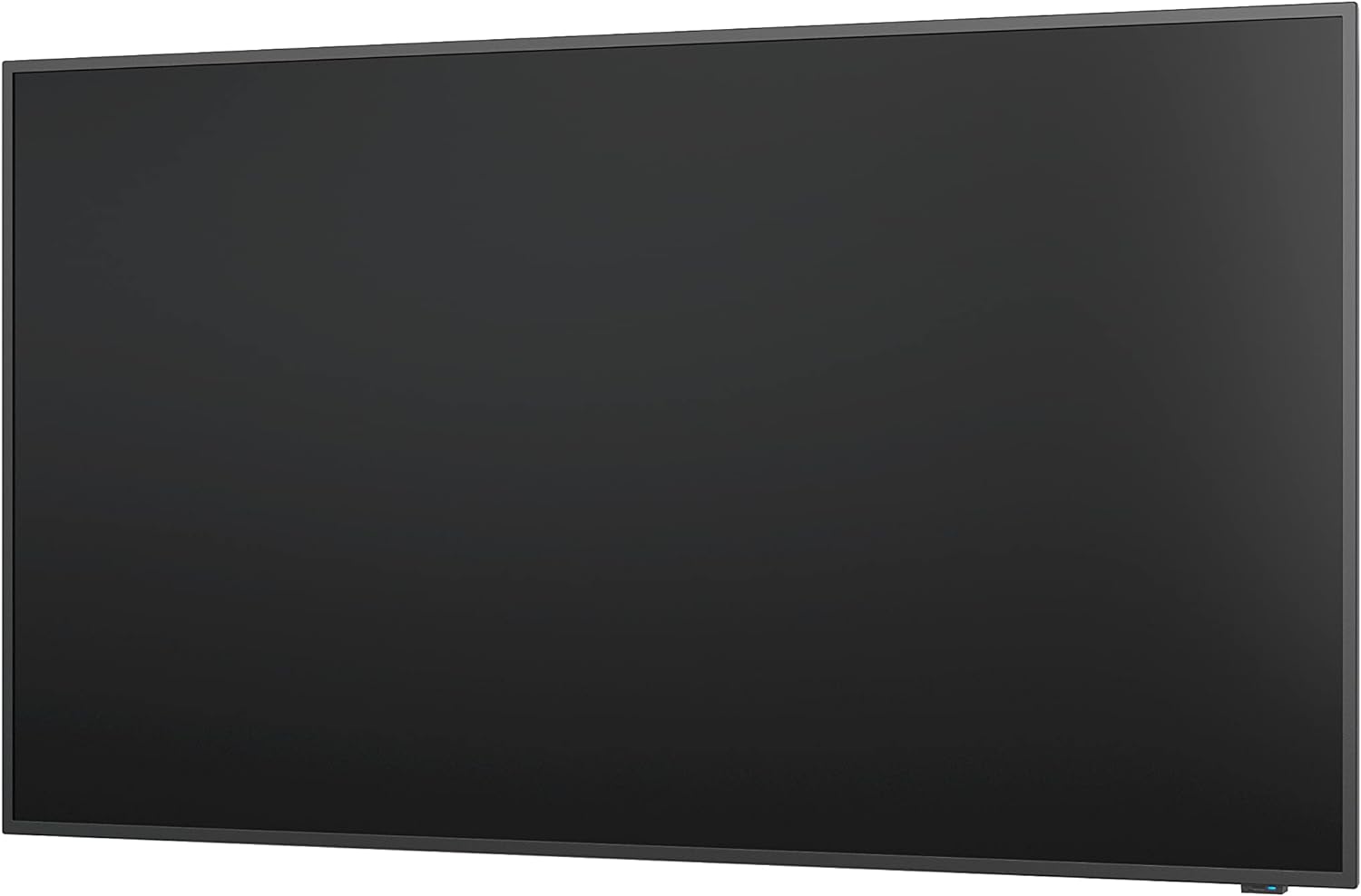

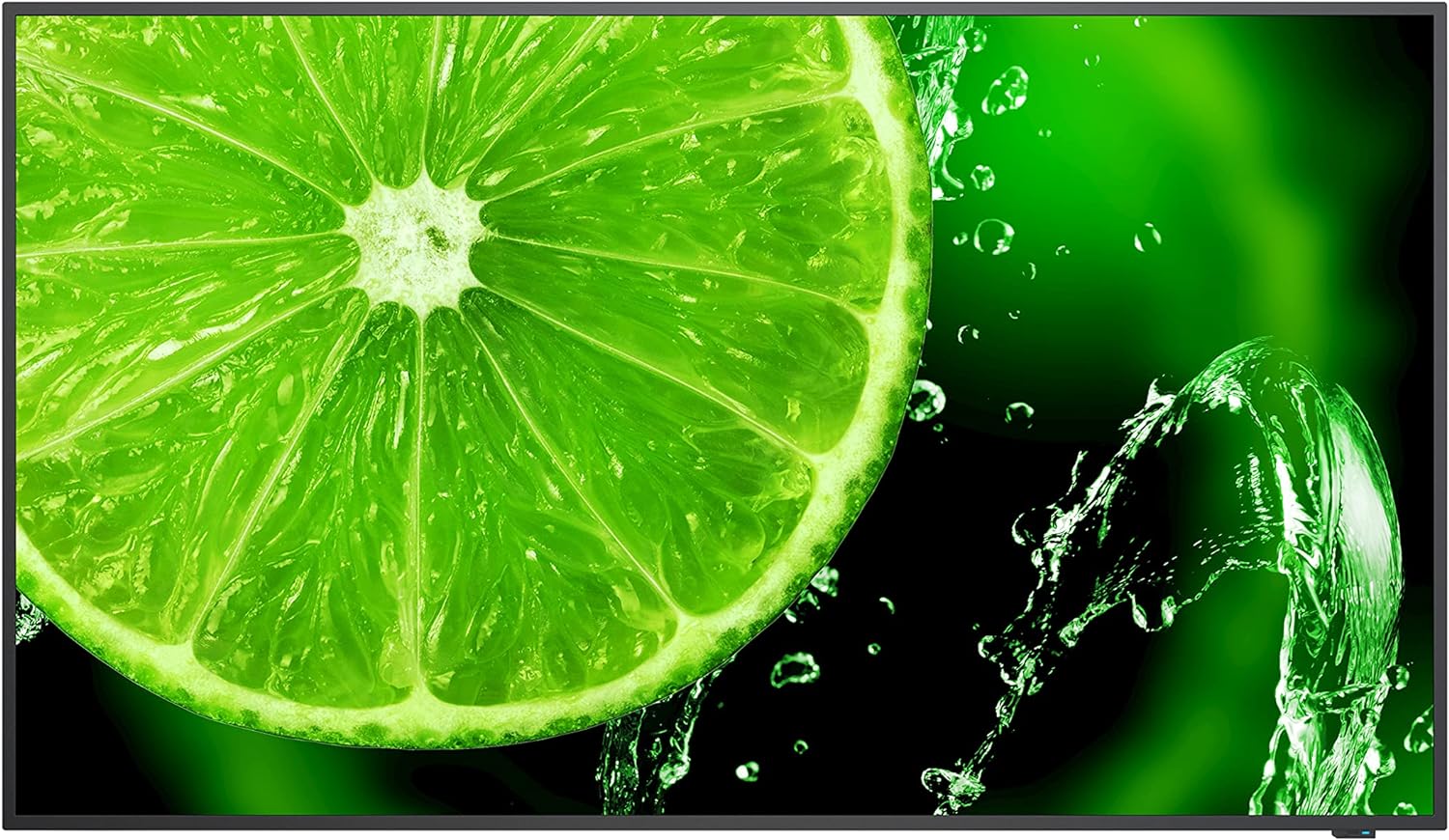

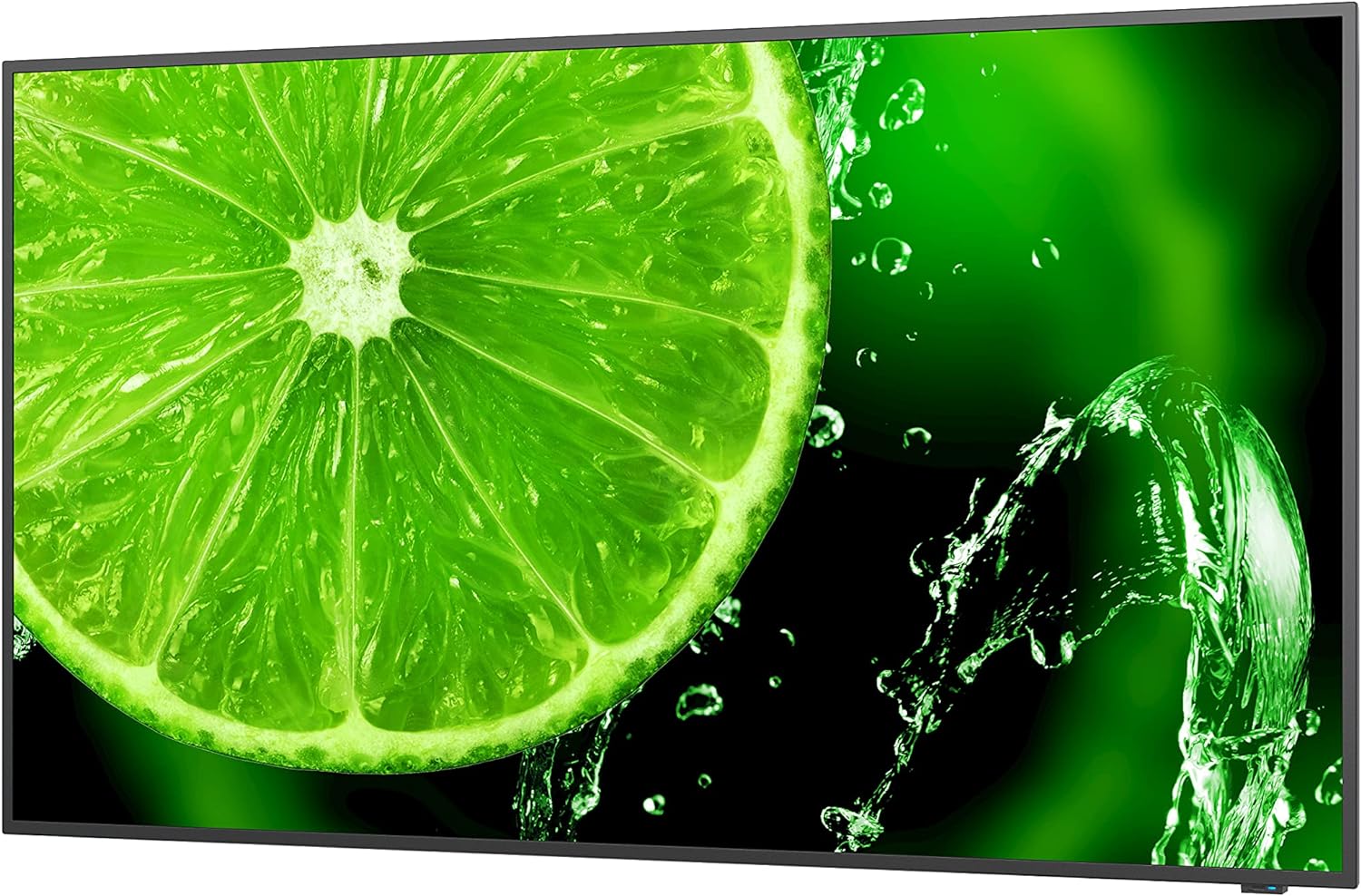

• NEC MultiSync® E438 LCD 43″ 4K Essential Large Format Display


  Functionality you need, at the price you want

  A professional solution for low-budget applications, the E series forestalls the lure of domestic TVs which are not fit-for-purpose. Designed for the rigours of commercial usage, the E Series delivers the functionality and reliability you need, at the price you want.

  An integrated MediaPlayer supports native UHD resolution and High Dynamic Range (HDR) for deep contrasts and natural looking content playback with auto-play function. Requiring no additional cables, external devices or signage software, the USB MediaPlayer enables a simple seamless professional signage solution. Meanwhile, a 10W USB interface supports connection of external devices should additional computing power be required.

  For instant start-up in meeting spaces, inputs are detected automatically with easy switching between HDMI sources. Facilities managers will welcome the ability to remotely control their digital estate via the network thanks to the integrated LAN and NEC’s NaviSet Administrator 2 functionality making the E Series the perfect choice for corporate meeting rooms and entry level digital signage.

  Benefits
  Slim Design and Integrated Speakers – the aesthetic design is pleasing to the eye and enables easy, low cost installation.
  Future Ready Connectivity – featuring multiple industry standard digital and analogue signal inputs for flexible integration into AV infrastructures.
  Effortless content playback – the integrated USB media player supports various image video file formats for effortless and standalone content playback.
  Professional integration – enriched with essential RS232 functionality, IR and button lock out as well as digital audio output S/PDIF, the display can easily be integrated into professional applications in public environments.
  Standalone operation – the display is designed for straightforward standalone operation due to integrated USB media player, speakers and scheduling functionality.

• Category	Specification
  Panel Tech	IPS with Direct LED backlights
  Active Area (mm)	941 x 529
  Screen Size	42.5 inch / 108 cm
  Aspect Ratio	16:9
  Pixel Pitch	0.245 mm
  Brightness	400 cd/m²
  Contrast Ratio	1200:1 (typical)
  Viewing Angle	178° H / 178° V
  Colour Depth	1.073 billion (10bit)
  Response Time	8 ms (typical)
  Refresh Rate	60 Hz
  Haze Level	Standard (1%)
  Orientation	Landscape, Portrait
  Native Resolution	3840 x 2160 (4K UHD)
  Supported Resolutions	640×480 to 4096×2160
  Horizontal Freq.	15 – 136 kHz
  Vertical Freq.	24 – 75 Hz
  Analog Video Inputs	1 x VGA, Component (RCA), Composite (RCA)
  Digital Video Inputs	3 x HDMI
  Audio Inputs	1 x 3.5 mm jack (analog), 3 x HDMI (digital)
  Control Inputs	LAN (100Mbit), RS232
  Data Inputs	1 x USB 2.0 (MediaPlayer), 1 x USB-C (5V/3A)
  Audio Outputs	1 x 3.5 mm jack, 1 x SPDIF
  Remote Control	IR, RS-232C (9-pin D-sub)
  Ambient Light Sensor	Integrated, programmable
  Temp Sensor	1 integrated, programmable
  Power Use	72 W (shipping)
  Standby Power	< 0.5 W / < 2 W (network standby)
  Power Supply	100–240 V AC, 50/60 Hz, internal
  Operating Temp.	0°C to 40°C
  Operating Humidity	10% to 80%
  Storage Temp.	-10°C to 60°C
  Storage Humidity	5% to 85%
  Dimensions (mm)	970.2 x 559.8 x 71 (without stand)
  Weight (kg)	8.9 (without stand)
  Bezel Width (mm)	12.5 (top/sides), 13.9 (bottom)
  VESA Mount	400 x 200 mm, M6, 4 holes
  MediaPlayer Storage	USB 2.0 / FAT16, FAT32
  Supported Images	JPG (up to 15360×8640)
  Supported Videos	MPG, MP4, TS, WMV (up to 3840×2160@60Hz)
  Supported Audio	MP3 (max. 320 kbps)
  Accessories	Feet, Wall Mount
  Certifications	CE, FCC, TÜV GS, UL, RCM, VCCI, EMC Class B, EnergyStar 8
  Energy Use	55 kWh/1000h, Class G, LED backlight
  Eco Standards	EnergyStar 8.0
  Crestron Cert.	Certified for Crestron CCV2 & XiO Cloud
  Audio	Integrated Speakers (2 x 10W)
  Special Features	HDR, CEC, Equalizer, Scheduler, Retail Mode, Powered USB, NaViSet Admin
  Colour	Black Front Bezel, Black Back Cabinet
  Included in Box	Display, Remote, HDMI & Power Cable, 2x AAA, Manual
  Warranty	3 years incl. backlight
  Operating Hours	16/7 continuous use

• In Warranty Support
  Warranty Period 36 Months
  Contact: NEC Display Solutions
  Email [email protected]
  Manufacturers Website http://www.nec-display-solutions.co.uk

  NEC deal with all your AfterCare requirements for the product you have purchased, they can help with technical queries and offer advice.


  Please contact them direct.
  You will need the following information to hand:

  Once provided NEC will be able to issue a return and provide a replacement if required.

  If you have any questions or would like further advise, please feel free to contact our AfterCare Team (ACE) on 02081 919223 / who will be happy to assist

  3 Year On-Site Warranty. Please contact NEC for full Ts & Cs (exclusions apply).

• Description	Downloads
  Datasheet	Downloads
  User Manual	Downloads
  Product Drawings	Downloads
  Energy Label	Downloads
