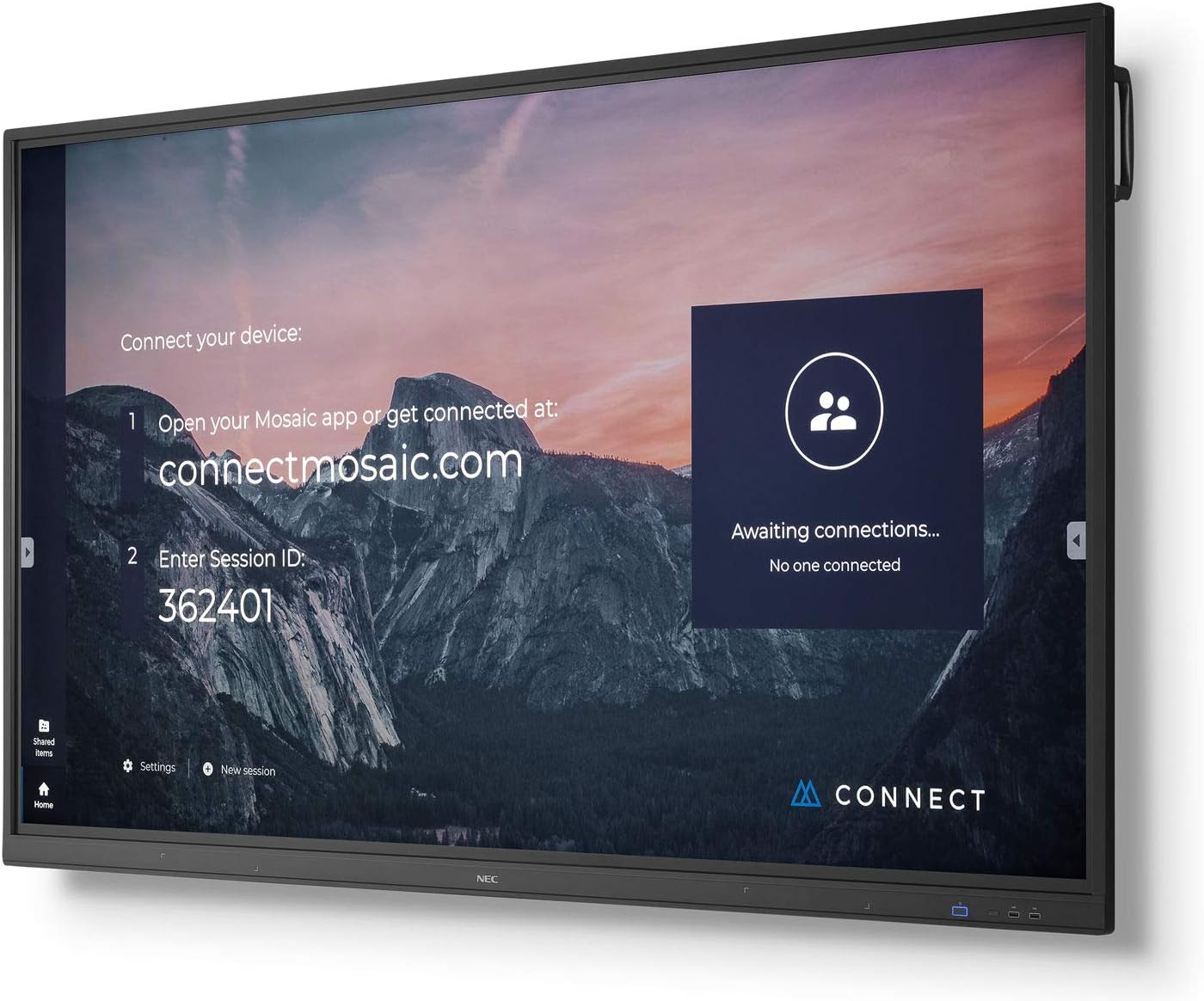

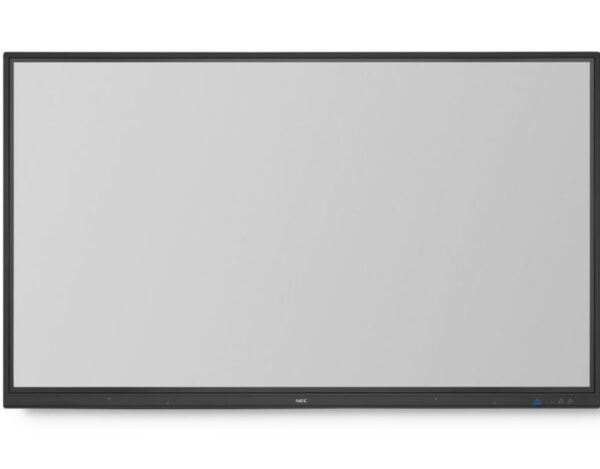

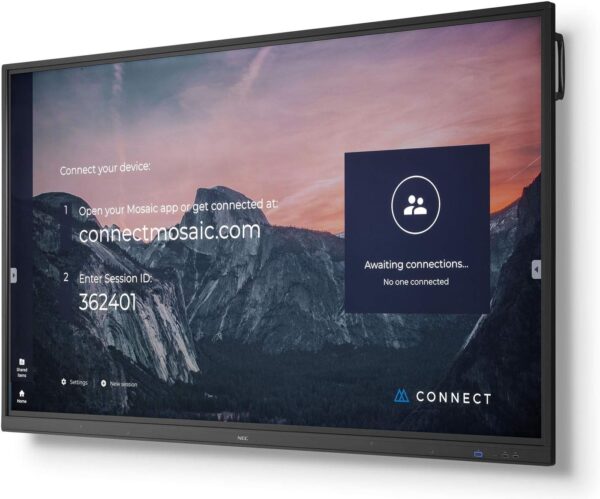

• NEC MultiSync® CB861Q | 60004825 86″ Infrared Touch Collaboration Display


  Enter a world of interactive white-boarding

  Upgrade your lectures and meetings with NEC’s all-in-one collaboration boards, in three different sizes, featuring UHD resolution and up to 20 touch points. Based on infrared touch technology the user experiences perfect usability with a rapid touch response. Business and educational sessions start-up instantly with built-in whiteboard and wireless screen sharing functionalities without any hidden costs. The embedded annotation tool lets you annotate over any content shown on the screen.

  For more demanding applications, the OPS slot provides the opportunity to enhance the computing power. With sizes including 65’’, 75’’ and 86’’, the NEC CB Series offers the ideal solution for your meeting and class rooms.

  All NEC CB Series displays come with three magnetic pens and a wall-mount fitting for easy installation.

  Out-of-the-box collaboration – thanks to embedded computing with built-in annotation tools and wireless presentation capabilities.
  Multi-Touch – true multi-touch support with up to 20 simultaneous touch points.
  Protective Glass – premium toughened glass protects the security of the panel yet delivers a perfect touch experience with anti-glare coating to minimise reflections and fingerprints.
  Simple operation – with easy front access to USB ports and controls for major functionalities
  Cost Saving Device Management – save effort whilst managing all connected NEC devices from a centralised location by using the NaViSet Administrator 2 software tool.

• Parameter	Value
  Panel Technology	IPS with Direct LED backlights
  Active Screen Area (W x H)	1,895 x 1,066 mm
  Screen Size	86 inch / 217.4 cm
  Aspect Ratio	16:9
  Pixel Pitch	0.4935 mm
  Brightness	350 cd/m² (300 cd/m² in shipment setting)
  Contrast Ratio	1200:1
  Viewing Angle	178° horizontal / 178° vertical (at contrast ratio > 10:1)
  Colour Depth	1.073 billion (10-bit)
  Response Time	8 ms (grey-to-grey)
  Haze Level	3%
  Supported Orientation	Landscape
  Touch Technology	Infrared
  Number of Touches	Real multi-touch up to 20 touches
  Touch Method	Finger, Gloves, Stylus (≥ 8 mm)
  Supported Operating System	Native Multi-Touch: Windows 7, 8, 10, Linux, Android; Default Mouse: Windows XP, Vista, Mac OS X
  Data Interface	USB-HID
  Accuracy	< 2 mm
  Palm Rejection	No
  Windows Ink	No
  Glass Type	Thermal-tempered with anti-glare coating
  Glass Thickness	4 mm
  Light Transmission	88% (+/- 1%)
  Reflection Rate	4%
  Glass Hardness	7H
  Native Resolution	3840 x 2160
  Supported Resolutions	1920 x 1080, 3840 x 2160, 4096 x 2016
  Supported Resolutions (HDMI)	3840 x 2160 (60 Hz), 4096 x 2016 (24 Hz)
  Horizontal Frequency	26 – 135 kHz
  Vertical Frequency	23 – 80 Hz
  Input Video Analogue	1 x VGA
  Input Video Digital	3 x HDMI (with HDCP)
  Input Audio Analogue	1 x 3.5 mm jack
  Input Audio Digital	3 x HDMI
  Input Control	LAN 100Mbit, RS232
  Input Data	2 x USB Type-B (Upstream), 6 x USB 2.0 (Downstream)
  Output Audio Analogue	1 x 3.5 mm jack
  Output Audio Digital	1 x SPDIF
  Output Control	LAN 100Mbit
  OPS Slot	Open pluggable specification (NEC / Intel OPS standard)
  OPS Max. Current / Power	3.5 A / 63 W
  Power Consumption	Eco: 365 W (shipment setting), Max: 620 W
  Power Savings Mode	< 0.5 W, < 2 W (Networked Standby)
  Operating Temperature	+0 to +40 °C
  Operating Humidity	10 to 90%
  Dimensions (W x H x D)	Without stand: 1,957.1 x 1,159.8 x 86.8 mm
  Weight	Without stand: 67.3 kg
  Bezel Width	17.7 mm (left, right, and top), 45.7 mm (bottom)
  VESA Mounting	4 holes; 800 x 600 (FDMI); M8
  Built-in Applications	File Manager, Input Select, Setting, Web Browser, Whiteboard – Mosaic Canvas, Wireless Presentation – Mosaic Connect
  System Memory	2 GB RAM
  Internal Storage	16 GB ROM
  Accessories	Soundbar, Trolley, Wall mount, Wireless LAN module
  Special Characteristics	AMX NetLinx Support, HDMI with UHD at 60 Hz, NaViSet Administrator 2, Scheduler
  Colour Versions	Black Front Bezel, Black Back Cabinet
  Safety and Ergonomics	BSMI, CE, EAC, EMC Class B, FCC, PSB, RCM, REACH, RoHS, SASO, UL/C-UL
  Audio	Integrated Speakers (2 x 12 W)
  Shipping Content	3 x Stylus, HDMI Cable, Power Cable, Remote Control, USB cable, User Manual, VGA cable, Wall Mount
  Warranty	3 years warranty incl. backlight
  Operating Hours	12/7

• In Warranty Support
  Warranty Period 36 Months
  Contact: NEC Display Solutions
  Tel. No. 01952 237003
  Email [email protected]
  Manufacturers Website http://www.nec-display-solutions.co.uk

  NEC deal with all your AfterCare requirements for the product you have purchased, they can help with technical queries and offer advice.


  Please contact them direct.
  You will need the following information to hand:

  * Customer Name
  * Email Address
  * Product Model Number
  *Proof of Purchase
  * Serial Number
  * Details of the fault
  * Any permanent security markings?
  * Any physical damage?
  * Any non-NEC repair or modi?caon?

  Once provided NEC will be able to issue a return and provide a replacement if required.

  If you have any questions or would like further advise, please feel free to contact our AfterCare Team (ACE) on 02081 919223 / who will be happy to assist

  3 Year On-Site Warranty. Please contact NEC for full Ts & Cs (exclusions apply).
