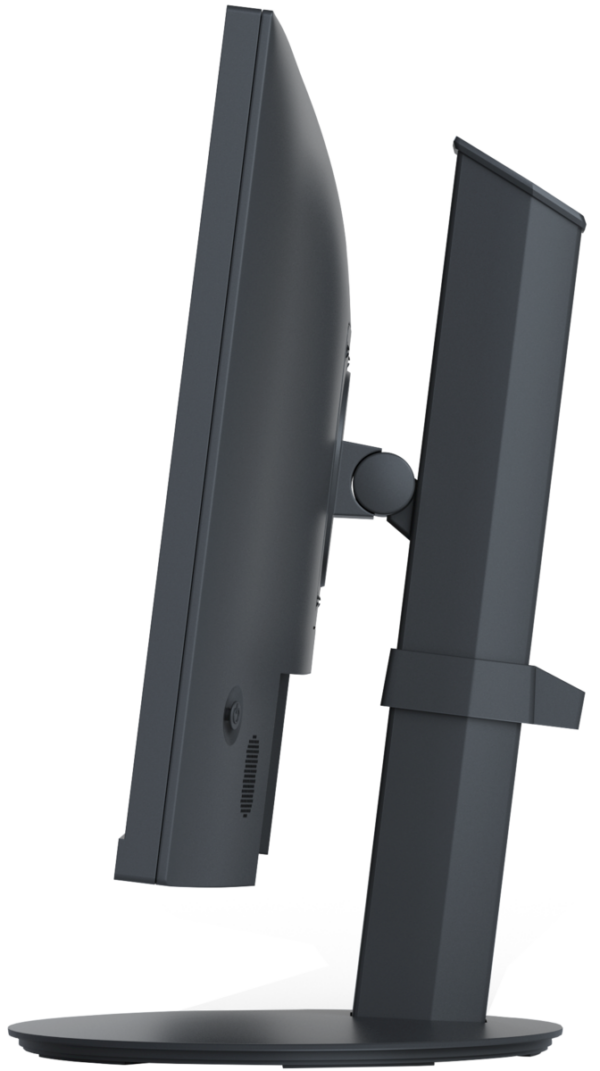

NEC MultiSync 60005829/E244F 24 Inch Full HD 60Hz TFT Monitor

NEC MultiSync 60005829/E244F 24 Inch Full HD 60Hz TFT Monitor

• Description
• Specifications
• Downloads

• NEC MultiSync® E244F
  LCD 24″ Enterprise Display

  The workspace essential

  Driving down costs without compromising quality, the desktop E Series presents all the reliable performance you expect from Sharp/NEC, against a very competitive price tag.

  With user comfort prioritised, workspace ergonomics is a key design feature. Height adjustability to 120 mm with swivel, tilt and pivot functionality ensures a personalised set up, whilst built-in Low Blue Light and Flicker-Free technology protects the viewers’ eyes without sacrificing best picture quality. Available in black or white, choose the best fit to complement your office setting and ergonomics – white displays reduce the impression of tunnel vision when in front of white walls.

  With a fresh On-Screen Display (OSD) design, users benefit from highly intuitive operation, saving time and frustration during set up and adjustment. This Full HD display with VA screen technology is well placed to equip the home office and small to medium sized businesses for general office applications.

  Cost and time saving operation – based on an intuitive OSD design making set-up simpler.
  Ergonomic Office – full height adjustability (120 mm), swivel, tilt and pivot functionality ensures perfect individual workspace set-up.
  Black and white colour versions – white is is considered to reduce the impression of tunnel vision when placed in front of a white background such as office walls.
  Safeguarding user wellbeing – built-in Low Blue Light technology filters out hazardous blue light emissions whilst Flicker-Free technology eliminates any backlight flickering, thus protecting the users’ eyes against cataracts and macular degeneration.
  Best in form and function – future-ready design with 3-sided ultra-narrow bezel, available in black or white, complementing a fresh professional office interior.

• DISPLAY
  Panel Technology	VA TFT with W-LED backlight
  Screen Size [inch/cm]	24 / 60
  Screen Aspect Ratio	16:9
  Pixel Pitch [mm]	0.275
  Brightness (typ.) [cd/m²]	250
  Contrast Ratio (typ.)	3000:1
  Viewing Angle [°]	178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
  Response Time (typ.) [ms]	6
  Colours [Mio.]	16.77
  SYNCHRONISATION RATE
  Vertical Frequency [Hz]	50 – 75
  RESOLUTION
  Optimum Resolution	1920 x 1080 at 60 Hz
  CONNECTIVITY
  Digital	1 x DisplayPort; 1 x HDMI
  Analog	1 x D-sub 15 pin
  ELECTRICAL
  Power Consumption on Mode [W]	12 (Eco Mode 2); 17 (typ.)
  Power Savings Mode [W]	0.22
  Power Supply	integrated power supply
  ENVIRONMENTAL CONDITIONS
  Operating Temperature [°C]	+5 to +35
  Operating Humidity [%]	20 to 80
  Storage Humidity [%]	10 to 85
  Storage Temperature [°C]	-10 to 60
  ERGONOMICS
  Height adjustable stand [mm]	120
  Screen Tilt [°]	-5 to 25
  Screen Swivel [°]	170 to -170
  Screen Rotate [°]	-90 to 90 (landscape to portrait mode)
  MECHANICAL
  Bezel Type	3-sided Ultra Narrow Bezel
  Bezel Width [mm]	16.3 (bottom); 2.9 (left/right/top)
  Dimensions (W x H x D) [mm]	540.5 x 381 – 501 x 233.2 (Landscape mode)
  Weight [kg]	With stand: 5.6; Without stand: 3.5
  VESA Mounting [mm]	100 x 100
  ADDITIONAL FEATURES
  Special Characteristics	Flicker Free; Low Blue Light
  Colour Versions	Black Front Bezel, Black Back Cabinet; White Front Bezel, White Back Cabinet
  Cable Management	yes
  Kensington security slot	yes
  Plug and Play	VESA DDC2Bi
  Audio	1W + 1W (De-activateable); Headphone Jack
  Shipping Content	DisplayPort Cable; Power Cable; Setup Guide
  Safety and Ergonomics	Flicker-free; Low Blue Light; RoHS; TÜV Ergonomics; TÜV GS; WEEE
  Warranty	3 years warranty incl. backlight
  GREEN FEATURES
  Energy Efficiency	Carbon Footprint Meter / Carbon Savings Meter; ECOMode
  Ecological Standards	RoHS compliant

• Description	Downloads
  Datasheet for NEC MultiSync® E244F	Download
  E224F_Product Manuals_V1.pdf	Download
