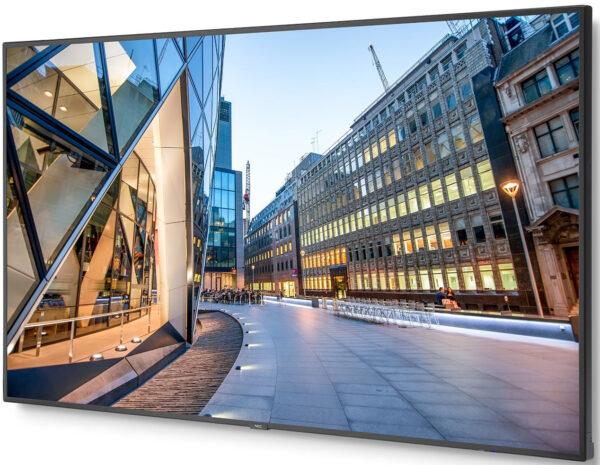

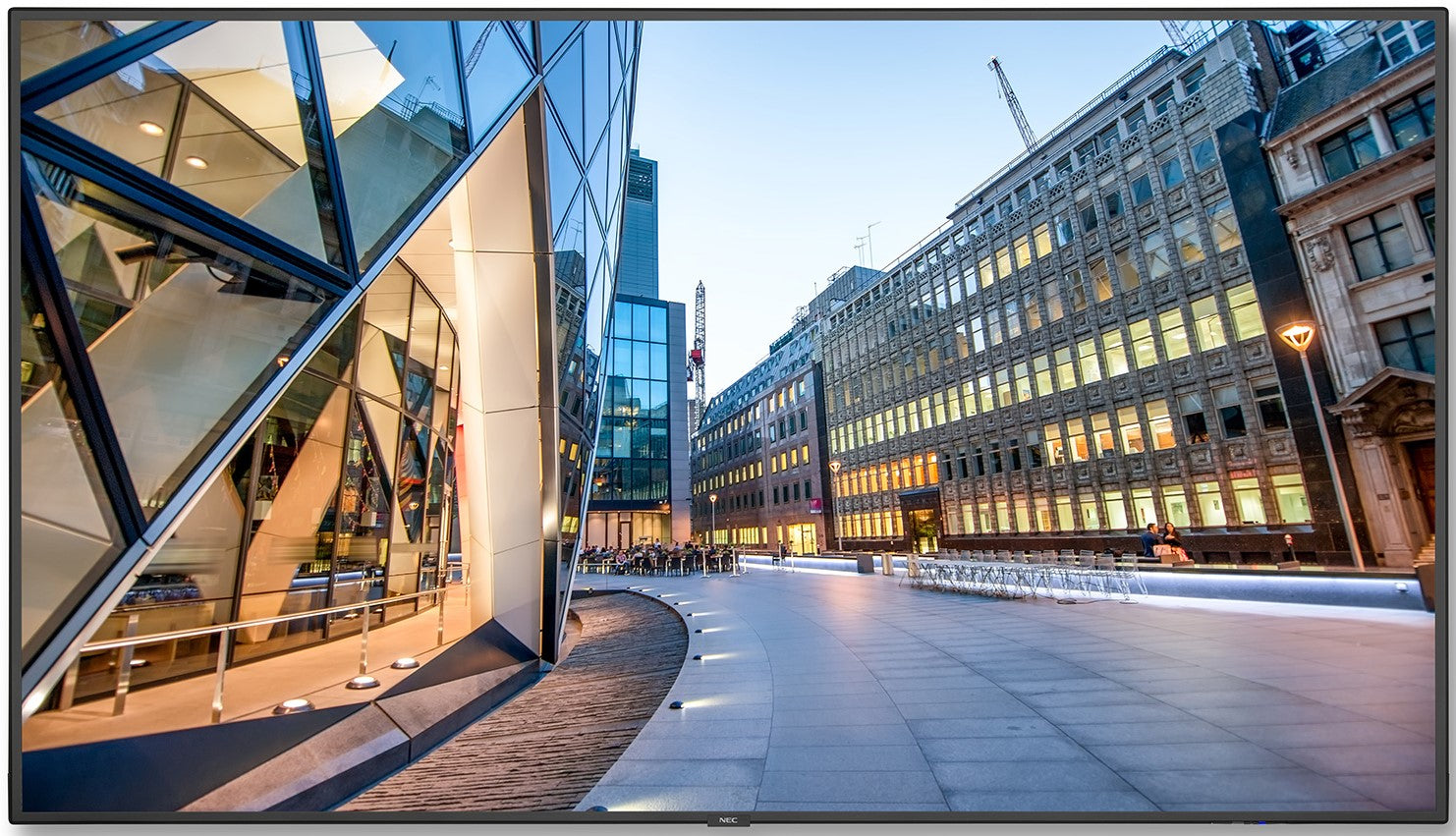

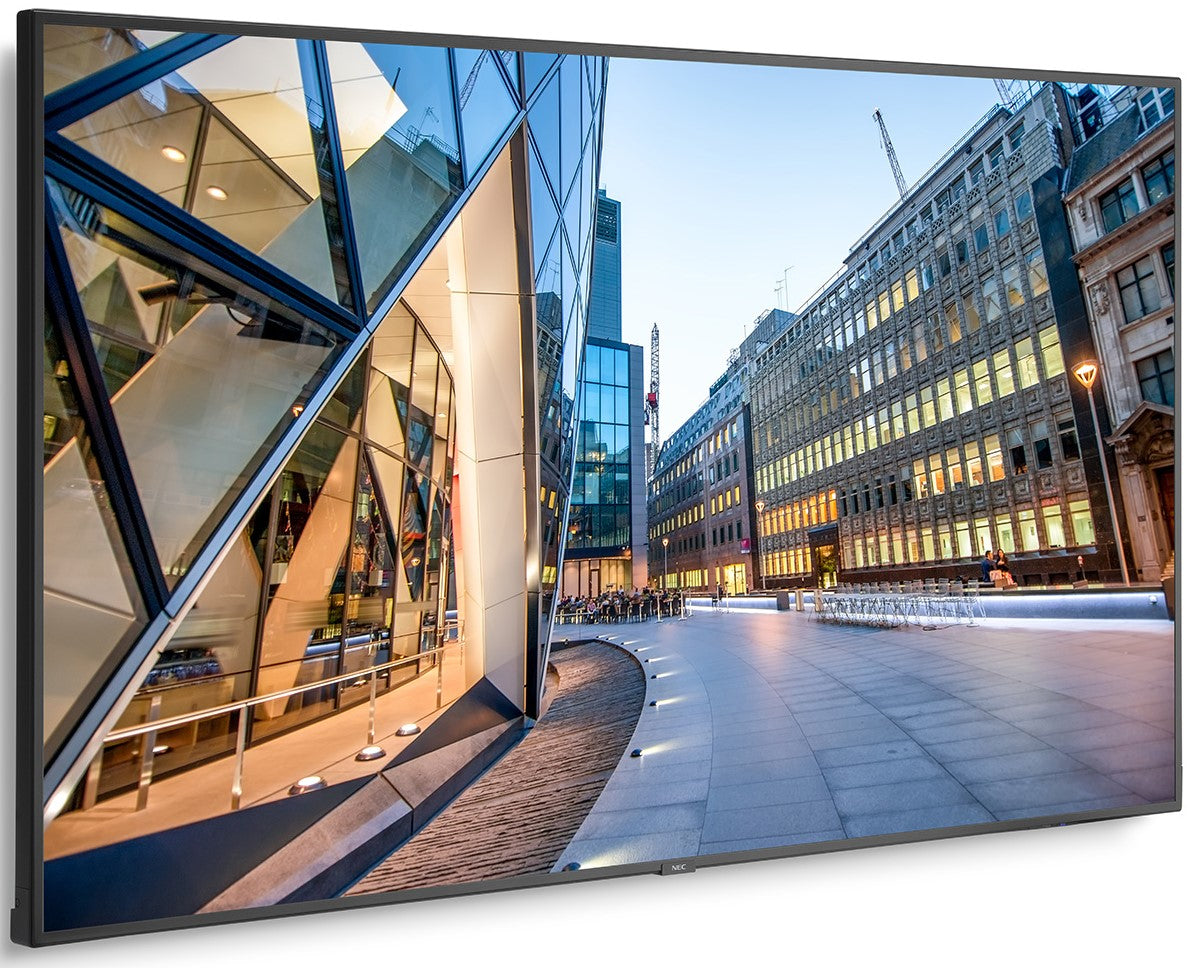

• NEC C750Q 75″ C-series 4K Large Format Display


  Stunning visibility for presentations and digital signage

  Enhance your meeting and conferencing performance with stunning UHD resolution. Get high-end quality and reliability at a low total cost of ownership with long life-times.

  Professional haze levels ensure great visibility without distracting reflections – along with brightness of up to 350 cd/m², the NEC MultiSync C Series meets the demands of today’s meeting environments. Slim bezels and a modern appearance complement state of the art architecture to integrate perfectly into interior designs. With embedded office functionalities, start up ad-hoc meetings without the hassle of setting up the display environment first. Wake-up on connection is just one of many features which make meetings more efficient.

  With the NEC MultiSync C750Q, presenters will feel confident during meetings of up to 12 participants whilst retailers and hospitality facilities can boost sales through digital signage.

  Future Ready with Open Modular Intelligence Expansion – upgrade the power of your display at any time by seamlessly integrating one of Sharp/NEC’s options for OPS Slot-in PCs or signal interfaces for content feed and computing.

  Mission-critical 24/7 ready operation – the meticulous selection of industrial-grade components and careful design focused on demanding usage scenarios accompany an impressive and continuous viewer experience.

  Ease of use and operation – smart installation, operation and maintenance functionality ensures accurate performance over the entire lifetime of the display saving time, effort and resources.

  Cost Saving Device Management – save effort whilst managing all connected NEC devices from a centralised location by using the NaViSet Administrator 2 software tool.

  Future-proof signal connectivity and processing – numerous native UHD resolution inputs with 60Hz refresh rate including DisplayPort and HDMI, plus automatic upscaling to UHD for other signals, provide “pixel-free viewing“ on a large scale.

• Category	Data
  DISPLAY
  Panel Technology	IPS with Edge LED backlights
  Active Screen Area (W x H) [mm]	1,649.7 x 927.9
  Screen Size [inch/cm]	75 / 189
  Brightness [cd/m²]	350, 250 (shipment setting)
  Contrast Ratio (typ.)	1200:1
  Viewing Angle [°]	178 / 178 (at contrast ratio > 10:1)
  Colour Depth [bn]	1.073 (10bit)
  Response Time (typ.) [ms]	8 (grey-to-grey)
  Haze Level [%]	Pro (28)

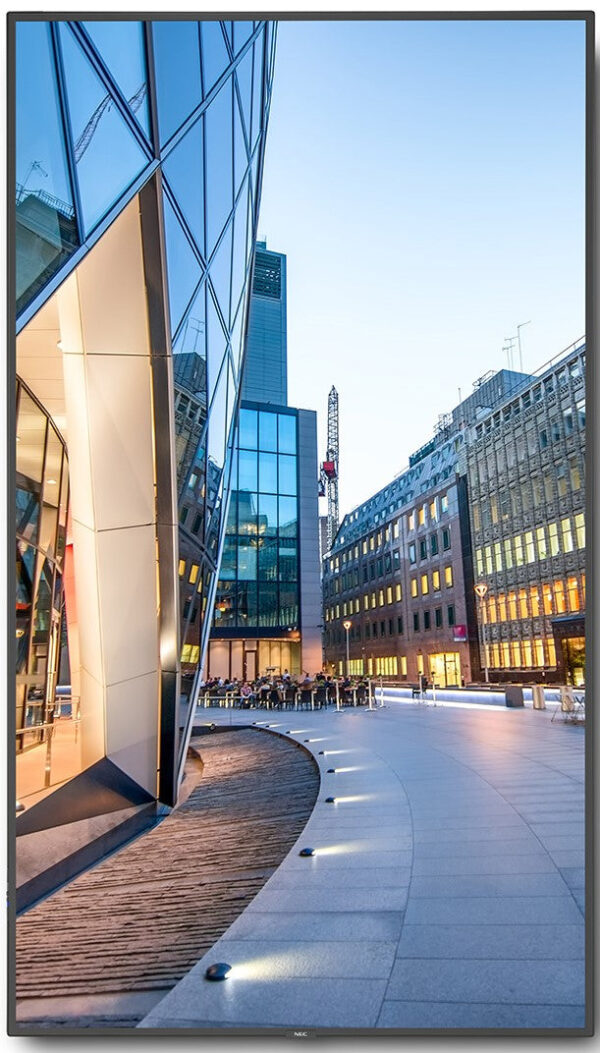

  Supported Orientation	Landscape; Portrait
  RESOLUTION
  Native Resolution	3840 x 2160
  Supported Resolutions	1920 x 1080; 1920 x 2160; 3840 x 2160; 4096 x 2160
  SYNCHRONISATION RATE
  Horizontal Frequency [kHz]	31.5 – 91.1
  Vertical Frequency [Hz]	24 – 85
  CONNECTIVITY
  Input Video Digital	1 x DisplayPort (with HDCP); 2 x HDMI (with HDCP)
  Input Audio Digital	1 x DisplayPort; 2 x HDMI
  Input Control	1 x LAN 100Mbit; 1 x Remote Control (3.5 mm jack); 1 x RS232
  Input Data	1 x USB 2.0 (MediaPlayer)
  Output Audio Analogue	1 x 3,5 mm jack
  Input Detect	Custom; First; Last
  OPEN MODULAR INTELLIGENCE
  OPS Slot	Slot Technology: Open pluggable specification (NEC / Intel OPS standard)
  OPS Max. Current / Power Consumption [A / W]	4.7 / 75
  SENSORS
  Ambient Light Sensor	Integrated, triggered actions programmable
  Human Sensor	Optional, external, 4-5m range, triggered actions programmable
  Temperature Sensor	Integrated, 3 sensors, triggered actions programmable
  ELECTRICAL
  Power Consumption [W]	195 shipping
  Power Savings Mode [W]	< 0.5; < 2 (Networked Standby)
  Power Management	VESA DPMS
  Power Supply	100-240 V AC
  ENVIRONMENTAL CONDITIONS
  Operating Temperature [°C]	+0 to +40
  Operating Humidity [%]	20 to 80
  MECHANICAL
  Dimensions (W x H x D) [mm]	Without stand: 1,681 x 960 x 71
  Weight [kg]	53
  Bezel Width [mm]	14.8 (left and right); 14.8 (top and bottom)
  VESA Mounting [mm]	4 holes; 400 x 400 (FDMI); 600 x 400 (FDMI); M8
  Ingress Protection	IP5x (front); IP2x (back)
  Packaging Dimensions (W x H x D) [mm]	1,830 x 1,190 x 280
  Packaging Weight [kg]	65.5
  Colour Bezel	Pantone 426M (black)
  Material	Metal
  MEDIAPLAYER
  Supported File Storage / File System	USB 2.0 / FAT16, FAT32
  Supported Image Formats	JPG (baseline, progressive, RGB, CMYK); max. resolution 15360 x 8640
  Supported Video Formats	MPG (MPEG1/2/4, max res 1080p@30Hz); MP4 (MPEG2/4, H.263, H.264, HEVC/H.265, max res 3840×2160@60Hz); TS (MPEG2, H.264, HEVC/H.265, max res 3840×2160@60Hz); audio: LPCM, MP3, AAC; WMV (video H.264, Windows Media Video 9, max res 1080p@30Hz, audio WMA 9, WMA 10 Pro)
  Supported Audio Formats	MP3 (MP3); max. bit-rate 320 kBit/s
  AVAILABLE OPTIONS
  Accessories	Feet (ST-801); Trolley (PD02MHA, PD03MHA, PDMHM-L); Wall mount (PDW T XL-2)
  OPS Slot	HDBaseT receiver; Intel® Atom, Celeron and Core CPUs
  GREEN FEATURES
  Energy Efficiency	Ambient light sensor; Carbon savings meter; Energy consumption: 165 kWh/1000 h; Energy efficiency class: G; Local dimming
  ADDITIONAL FEATURES
  Special Characteristics	DICOM Simulation; HDMI ARC; Powered USB Port (10 W); Removable Logo
  Safety and Ergonomics	CE; EAC; EMC Class B; FCC; SASO; TÜV GS; UL/C-UL or CSA; VCCI
  Pixel Failure Class	ISO 9241-307, Class 1
  Audio	Integrated Speakers (10 W + 10 W)
  Shipping Content	2x AAA batteries; Display; HDMI Cable; Power Cable; Remote Control; Setup Manual
  Warranty	3 years warranty incl. backlight; optional 4. + 5. year warranty extension 1
  Operating Hours	24/7
  External Control	AMX NetLinx Support; ASCII Control Commands; Crestron Connected; Crestron Connected; Crestron Connected; HDMI CEC; HTTP Browser; PJLink; Scheduled Timer; SNMP
  Remote Management	Automated Email Alerts; NEC NaViSet Administrator 2
  Security	Disable HW Buttons; Disable IR Functionality; Emergency Notification

• In Warranty Support
  Warranty Period 36 Months
  Contact: NEC Display Solutions
  Tel. No. 01952 237003
  Email [email protected]
  Manufacturers Website http://www.nec-display-solutions.co.uk

  NEC deal with all your AfterCare requirements for the product you have purchased, they can help with technical queries and offer advice.


  Please contact them direct.
  You will need the following information to hand:

  * Customer Name
  * Email Address
  * Product Model Number
  *Proof of Purchase
  * Serial Number
  * Details of the fault
  * Any permanent security markings?
  * Any physical damage?
  * Any non-NEC repair or modi?caon?

  Once provided NEC will be able to issue a return and provide a replacement if required.

  If you have any questions or would like further advise, please feel free to contact our AfterCare Team (ACE) on 02081 919223 / who will be happy to assist

  3 Year On-Site Warranty. Please contact NEC for full Ts & Cs (exclusions apply).
