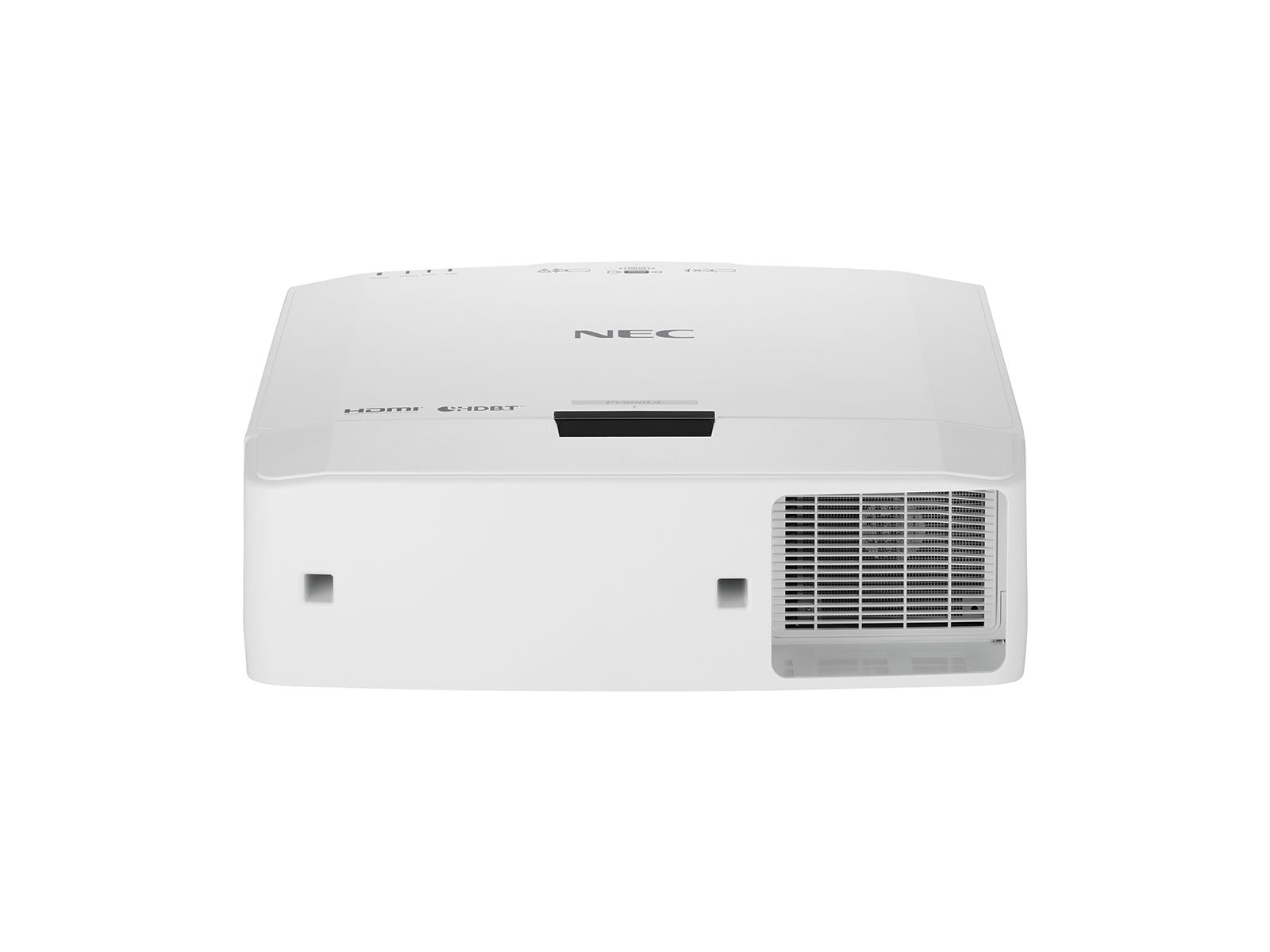

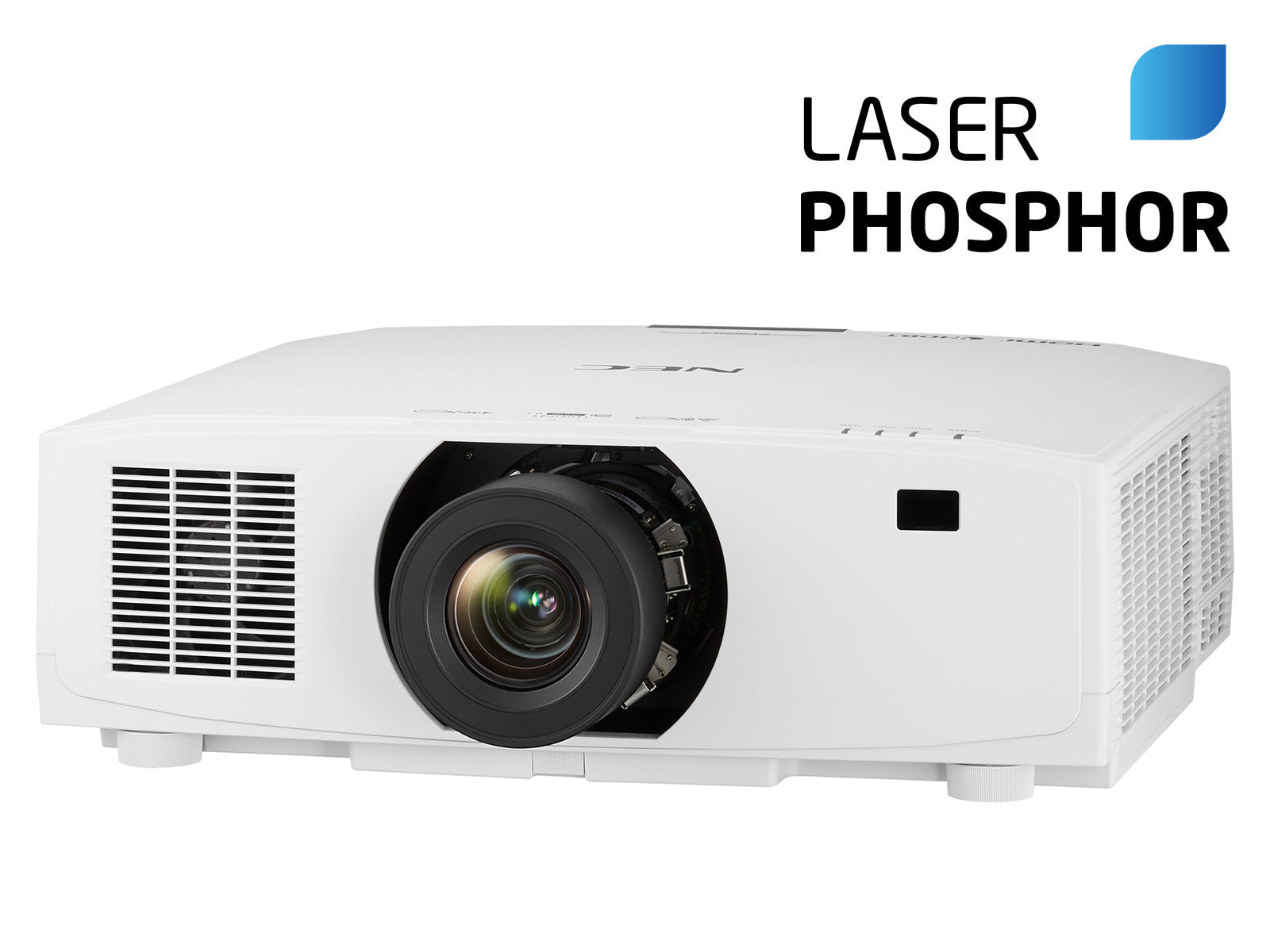

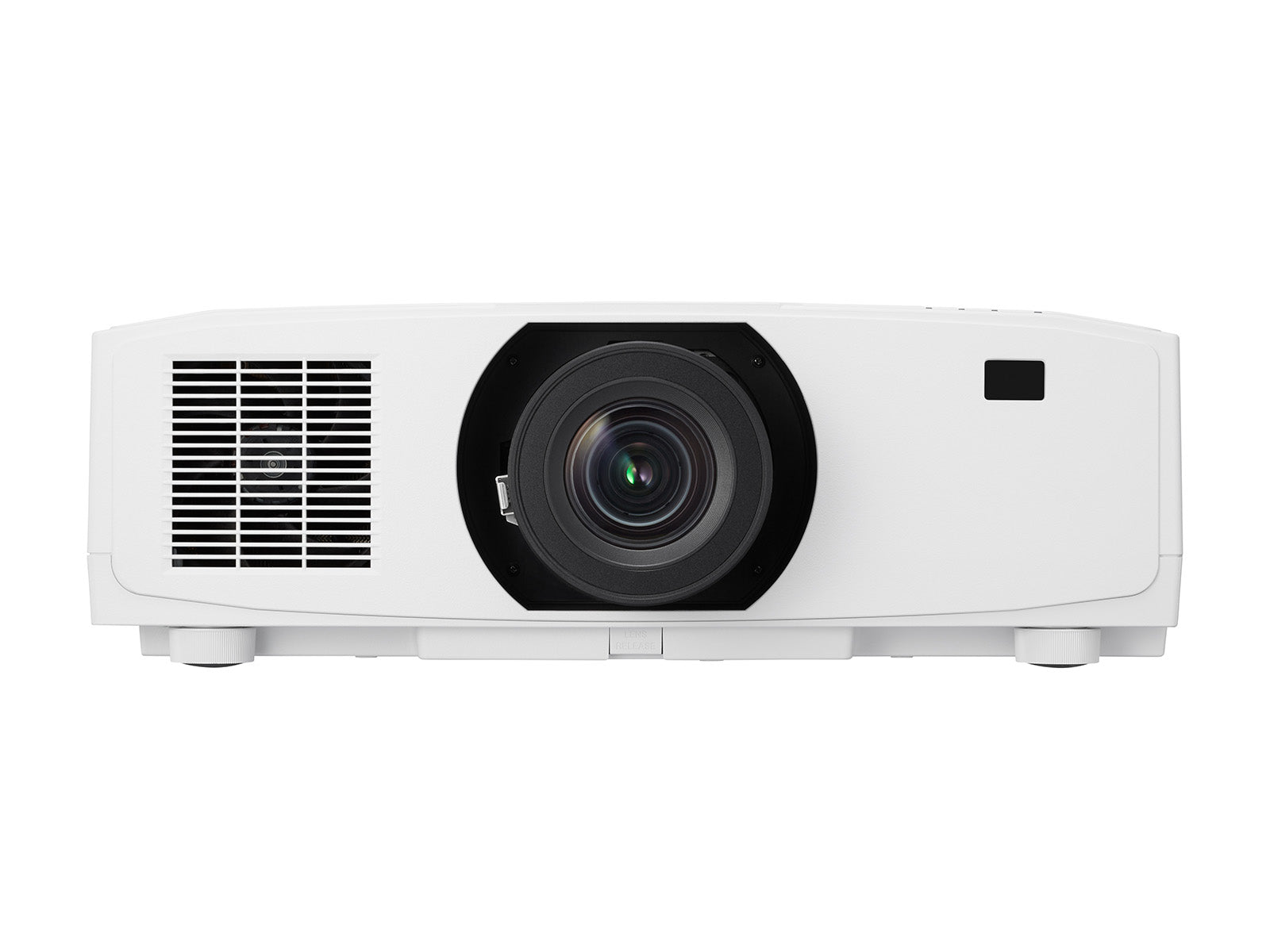

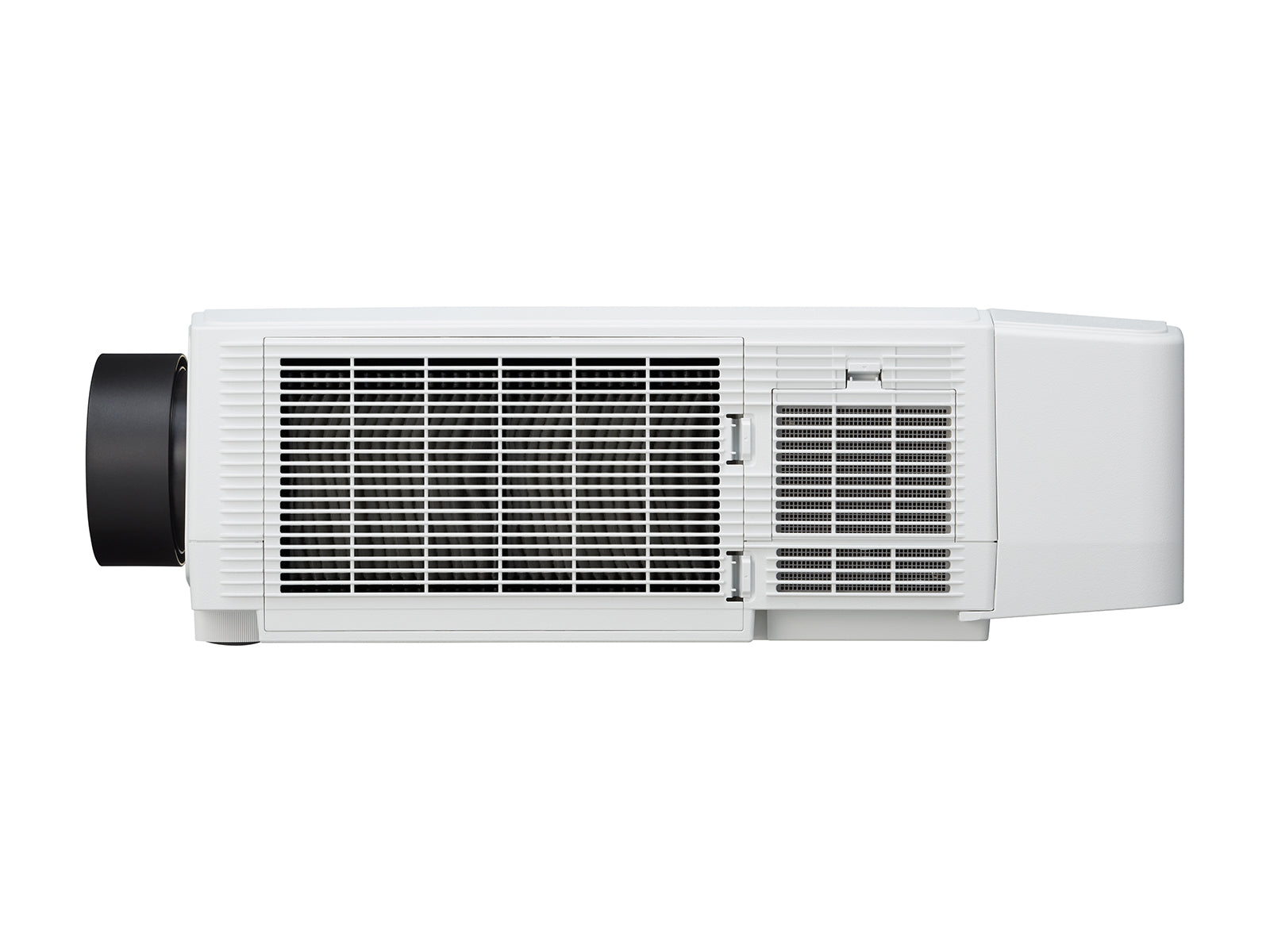

• NEC 60005575/PV710UL Full HD LCD Laser Projector – 7100 Lumens


  Cost-effective LCD-based laser projector with interchangeable lenses

  A highly economical projection solution, the PV710UL offers essential installation flexibility, low maintenance and long-life laser performance, yet remains impressively cost-efficient and conveniently compact.

  3LCD technology generates brilliantly vivid colour, which, at 7100 Lm brightness, promotes an outstanding visual perception. A broad range of interchangeable lens options are available, alongside essential professional features.

  The PV710UL offers the ideal upgrade path to transition to long-life, maintenance-free laser light source technology. Using the same mount and lenses as the lamp-based NEC PA Series projectors, operators can gain additional cost savings by utilising existing assets. For visualisation in large spaces, the PV710UL offers outstanding value for higher education, corporate, leisure and hospitality sectors.

  Benefits
  No lamp replacement – up to 20,000 h maintenance free operation possible due to Laser Light Source.

  Get Great Performance – while not compromising on quality and ease of use.

  Low Noise Level – with 31dB, the silent technology will not disturb your meeting.

  Impress with vivid colour & contrast – brilliant white and wide colour space with high dynamic contrast.

• Feature	Specification
  Projection Technology	3LCD Technology
  Native Resolution	1920 x 1200 (WUXGA)
  Aspect Ratio	16:10
  Contrast Ratio	3000000:1
  Brightness	7100 Lm Normal / 7400 Lm Center / 6400 Lm Silent Mode
  Lamp	Laser Light Source
  Light Source Life [hrs]	20000
  Lens	5 manual lens options; 5 motorized lens options
  Lens Adjustment	Motorized and manual (depending on lens)
  Lens shift	H: ±20, V: +50, -10
  Keystone correction	+/- 30° manual horizontal / +/- 30° manual vertical
  Projection Factor	Depending on lens selection (std. option NP13ZL at 1.46-2.95:1)
  Projection Distance [m]	0.7 – 50.9
  Screen Size (diagonal) [cm/inch]	Maximum: 1,270 / 500″; Minimum: 101.6 / 40″
  Zoom	Motorized and manual (depending on lens)
  Focus Adjustment	Motorized and manual (depending on lens)
  Supported Resolutions	See the list provided in the original text
  Frequency	Horizontal: analog: 0-0 kHz, digital: 15/24-100 kHz; Vertical: 50 – 120 Hz
  CONNECTIVITY
  Digital Input	1 x HDBaseT; 2 x HDMI™ supporting HDCP 1.4
  Audio Input	1 x HDBaseT audio support; 2 x HDMI audio support
  Audio Output	1 x 3.5 mm Stereo Mini Jack (variable)
  Control Input	1 x 3.5 mm Stereo Mini Jack (Wired Remote); 1 x D-Sub 9 pin (RS-232), Ethernet
  LAN	1 x RJ45
  USB	1 x Type A (USB 2.0 high speed)
  REMOTE CONTROL
  Input	1 x 3.5 mm Stereo Mini Jack
  Remote Control	Various functions listed in the original text
  ELECTRICAL
  Power Supply	100-240 V AC; 50 – 60 Hz
  Power Consumption [W]	434.0 Normal / 392.0 Silent Mode / 2.0 Network Stand-by / 0.5 Stand-by
  MECHANICAL
  Dimensions (W x H x D) [mm]	499 x 164 x 407 (without lens and feet)
  Weight [kg]	11.2
  Fan Noise [dB (A)]	40 / 31 (Normal / Silent)
  Colour Versions	Black; White
  ENVIRONMENTAL CONDITIONS
  Operating Temperature [°C]	0 to 40
  Operating Humidity [%]	20 to 80 non-condensing
  Storage Temperature [°C]	-10 to 50
  Storage Humidity [%]	20 to 80 non-condensing
  ERGONOMICS
  Safety and Ergonomics	CE; EAC; ErP; RoHS; TUEV Type Approved
  ADDITIONAL FEATURES
  Special Characteristics	Various features listed in the original text
  GREEN FEATURES
  Energy Efficiency	Various energy-saving features listed in the original text
  Ecological Materials	100% recyclable packaging; Downloadable manuals
  Ecological Standards	ErP compliant
  WARRANTY
  Projectors	3 years pan-European service
  Light Source	3 years or 10000h (whatever comes first)
