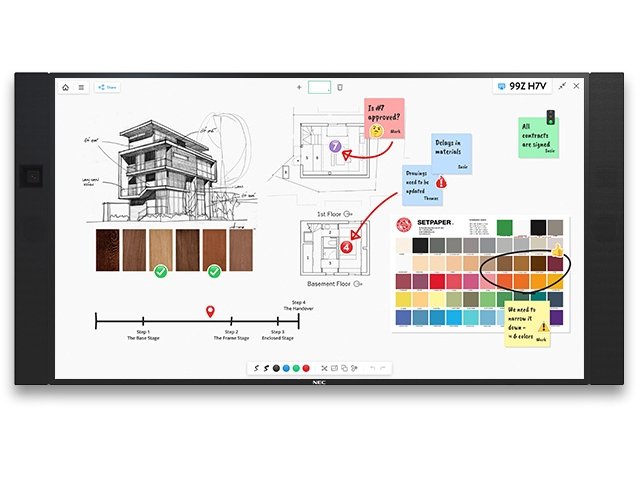

NEC 40001591 75″ InfinityBoard 2.2QL Interactive Display
- Description
- Specifications
- Warranty
-
Your meeting room companion
NEC’s InfinityBoard is a powerful and scalable workspace that is designed to fit any meeting scenario. Brainstorming, reviewing, video conferencing or collaborating, whatever the objectives of your meeting, the InfinityBoard is the modular solution that’s here to help create your ideal meeting space.
Designed to ‘just work’, the InfinityBoard supports any scenario – from multiple presenters to large groups with remote participation. In virtual workspaces, collaboration lifts to a new level and interactive meetings boost group work efficiency.

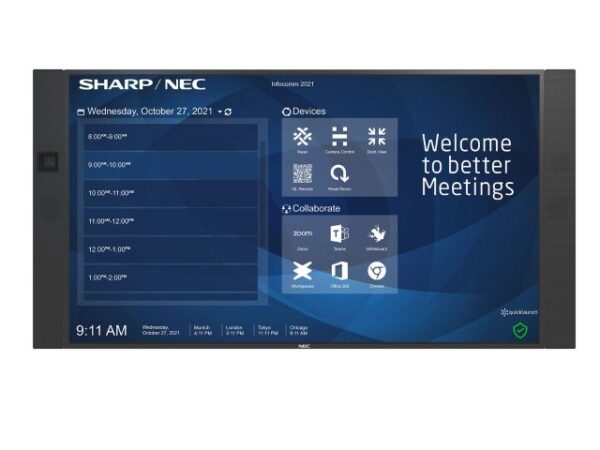

The InfinityBoard comes with an ultra-high definition InGlass™ touch display and two passive pens. Its design also includes an ultra-wide angle Huddly IQ video conferencing camera and high-end conference speakers. The combination of an open platform slot-in PC and Windows 10 Professional allows to tailor the solution according to the customers’ requirements without restriction to any particular software, video conferencing app or infrastructure. Quicklaunch™ is a simple and secure meeting room interface that provides multi-platform integration to transform the InfinityBoard into a one-click meeting space.
Natural writing experience – it’s like working on paper! Whether using finger or pen, the InGlass™ touch technology provides seamless interactive touch performance including Windows Ink and palm rejection.
Simplify smart video conferencing – enjoy perfect audio and video quality with an integrated ultra-wide-angle camera with auto-framing and high-end conference speakers.
Future-proof PC option and reduced footprint – the integrated Slot-In PC using the integrated OPS option slot future-proofs your investment whilst reducing the product footprint and installation efforts.
Easily launch and control any meeting – just “One Touch”to join meetings, collaborating, share devices and more.
Peace of mind – room reset and lockdown mode make it a secure solution for IT and end users. -
Parameter Value Panel Technology IPS with Edge LED backlights Active Screen Area (W x H) [mm] 1,649.7 x 927.9 Screen Size [inch/cm] 75 / 189 Brightness [cd/m²] 500, 350 (shipment setting) Contrast Ratio (typ.) 1200:1 Viewing Angle [°] 178 / 178 (at contrast ratio > 10:1) Colour Depth [bn] 1.073 (10bit) Response Time (typ.) [ms] 8 (grey-to-grey) Haze Level [%] Pro (28) Supported Orientation Face Up 1; Landscape; Portrait Touch Touch Technology InGlass™ Number of Touches Real multi-touch up to 20 touches Response Time [ms] ≤ 15 Touch Method Finger; Gloves; Stylus (≥ 2 mm) Supported Operating System Native Multi-Touch: Windows 7, Windows 8, Windows 10, Linux, Android; Default Mouse: Windows XP, Windows Vista, Mac OS X Data Interface USB-HID Accuracy [mm] < 1 Palm Rejection Yes Windows Ink Yes Glass Type Premium toughened glass, anti-glare coating Thickness [mm] 3 Light Transmission [%] 88 (+/- 1 %) Resolution Native Resolution 3840 x 2160 Supported Resolutions 1920 x 1080; 1920 x 2160; 3840 x 2160; 4096 x 2160 Synchronisation Rate Horizontal Frequency [kHz] 31.5 – 91.1 Vertical Frequency [Hz] 24 – 85 Connectivity Input Video Digital 2 x DisplayPort (with HDCP); 3 x HDMI (with HDCP) Input Audio Analogue 1 x 3.5 mm jack; Digital 2 x DisplayPort; 3 x HDMI Input Control 1 x LAN 100Mbit; 1 x Remote Control (3.5 mm jack); 1 x RS232 Input Data 1 x microSD (MediaPlayer); 1 x USB 2.0 (Downstream); 1 x USB 2.0 (MediaPlayer); 1 x USB Type-B (Upstream); 2 x USB 2.0 (Compute Module, 1 x 5V/2A powered) Output Video Digital 1 x DisplayPort (loop through: DisplayPort, OPS slot-in PC) Output Audio Analogue 1 x 3.5 mm jack Output Control 1 x LAN 100Mbit USB Hub 4x USB 3.0 Open Modular Intelligence OPS Slot Slot Technology: Open pluggable specification (NEC / Intel OPS standard) OPS Max. Current / Power Consumption [A / W] 4.7 / 75 Compute Module Slot Slot Technology: Compute Module 3 Slot (NEC proprietary standard) Sensors Human Sensor Optional, external, 4-5m range, triggered actions programmable Temperature Sensor Integrated, 3 sensors, triggered actions programmable Electrical Power Consumption Eco/max. [W] 167 (shipping) Power Savings Mode [W] < 0.5; < 2 (Networked Standby) Power Management VESA DPMS Environmental Conditions Operating Temperature [°C] +0 to +35 Operating Humidity [%] 20 to 80 Mechanical Dimensions (W x H x D) [mm] Without stand: 1,944.6 x 1,003 x 86 Weight [kg] 80.3 Bezel Width [mm] 18.8 (left and right); 18.8 (top and bottom) VESA Mounting [mm] 4 holes; 400 x 400 (FDMI); 600 x 400 (FDMI); M8 Ingress Protection IP5x (front); IP2x (back) Packaging Dimensions (W x H x D) [mm] Box 1: 1,830 x 280 x 1,190; Box 2: 1,400 x 250 x 250 Packaging Weight [kg] Box 1: 84.5; Box 2: 9.6 MediaPlayer Supported File Storage / File System MicroSDHC / FAT16, FAT32; USB 2.0 / FAT16, FAT32 Supported Image Formats JPG (baseline, progressive, RGB, CMYK); max. resolution 5000 x 5000; PNG (interlace, alpha channel); max. resolution 4000 x 4000 Supported Video Formats MP4 / MOV / FLV (video H.264, audio MP3, AAC); max. resolution 1080p at 30 Hz, 1080i at 60 Hz; MPG (video mpeg1/2, audio mpeg audio layer2/3, AAC-LC); MP @ ML, MP @ HL; WMV (video H.264, wmv advanced L3, wmv simple / main, audio mp3 wmv std); max. resolution 1080p at 30 Hz, 1080i at 60 Hz Supported Audio Formats MP3 (MP3); max. bit-rate 320 kBit/s; WAV (LPCM); max. 48 kHz sampling Video Conference Camera Camera Model Huddly IQ (no microphone) Viewing Angle [°] 150 diagonal / 120 horizontal / 90 vertical Resolution Output HD 1080p 30fps Aspect Ratio 16:9 Optical Capabilities Digital Pan / Tilt / Zoom with 3x lossless digital zoom Driver Plug&Play, driverless install Connectivity SuperSpeed USB Software Specification 3D noise reduction; 3DNR sensor-model-based visual noise reduction; Flicker elimination; Genius Framing; High-quality video scaling and dewarping; Huddly InSights analytics API; Optical aberration correction; Robust automatic white balance; Spatio-temporal noise filtering Conference Speakers Input (max.) [W] 40 Rated Speaker Impedance [Ω] 8 Frequency Response Rate [Hz-kHz] 70 to 15 Sound Pressure Level [dB] 82.1 (2.83 V) OPS Slot-In PC CPU Intel® Core i7; 8M Cache 4×3 GHz Graphics Intel® HD Graphics 630 SSD SATA SSD (Msata) 2 Gb/s (MLC); 256 GB RAM 16 GB (DDR4), dual channel mode Operating System Microsoft Windows 10 Professional Interfaces Frontside 1 x Micro Sim Card; 1 x USB 2.0; 1 x USB 3.1 Gen1 Type C; 2 x Antenna for WiFi; 2 x DisplayPort 1.2 ++; 2 x USB 3.0; RJ45 10 / 100 / 1000 Mbps Interfaces Backside Internal HDMI 1.4 or DisplayPort 1.2; Internal OPS interface to OPS slot-in PC (JAE 80-pin connector) Wi-Fi Intel Dual Band Wireless-AC 8260 802.11ac, dual band; Wi-Fi and bluetooth 4.2 adapter Security TPM (Trusted Platform Module) EDID/DDC Support Internal OPS Interface DisplayPort up to 4096 x 2160 at 60 Hz Pre-installed Applications Software FlatFrog Board for Rooms; Hoylu Connected Workspaces™; Quicklaunch Ultimate Edition (incl. 3 years maintenance and support); Windows 10 Professional Available Options Accessories Trolley (PD02MHA, PD03MHA); Wall mount (PDW T XL-2) Compute Module Slot NEC Compute Module; Raspberry Pi Compute Module 1 and 3 Green Features Energy Efficiency Carbon savings meter; ECOMode; Local dimming Additional Features Special Characteristics 12-bit Look Up table; AMX NetLinx Support; ASCII Control Commands; Auto ID assignment; Auto tiling function; Automated Email Alert; CEC Support; Cisco Webex Kit compatible; Crestron Connected Support; DICOM Simulation; Display Browser Control; Emergency Notification; HDMI with UHD at 60 Hz; HDR Gamma Support (HLG, PQ); KeyGuide; MediaPlayer with Browser Control; NaViSet Administrator 2; OmniColor Control; OSD rotation for portrait mode; PIN as theft protection; PJLink Support; Powered USB-Port; Scheduler; Slim LED Indicator; SNMP Support; TileMatrix (10 x 10); User readable log function Safety and Ergonomics CE; EAC; EMC Class B; FCC; RCM; REACH; RoHS; UL/C-UL Shipping Content 1x 10 cm USB Cable; 2 x Stylus; 2x 300 cm USB Cable; Cable Clamps; CD-ROM (User Guides/Manuals); Display; Display -
In Warranty Support
Warranty Period 36 Months
Contact: NEC Display Solutions
Tel. No. 01952 237003
Email [email protected]
Manufacturers Website http://www.nec-display-solutions.co.ukNEC deal with all your AfterCare requirements for the product you have purchased, they can help with technical queries and offer advice.
Please contact them direct.
You will need the following information to hand:* Customer Name
* Email Address
* Product Model Number
*Proof of Purchase
* Serial Number
* Details of the fault
* Any permanent security markings?
* Any physical damage?
* Any non-NEC repair or modi?caon?Once provided NEC will be able to issue a return and provide a replacement if required.
If you have any questions or would like further advise, please feel free to contact our AfterCare Team (ACE) on 02081 919223 / who will be happy to assist
3 Year On-Site Warranty. Please contact NEC for full Ts & Cs (exclusions apply).
