NEC 40001571 65″ Du-Co Room System | Get an Enhanced Meeting Experience

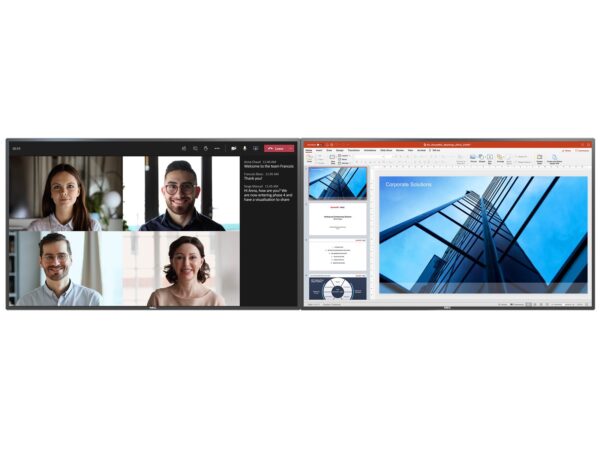

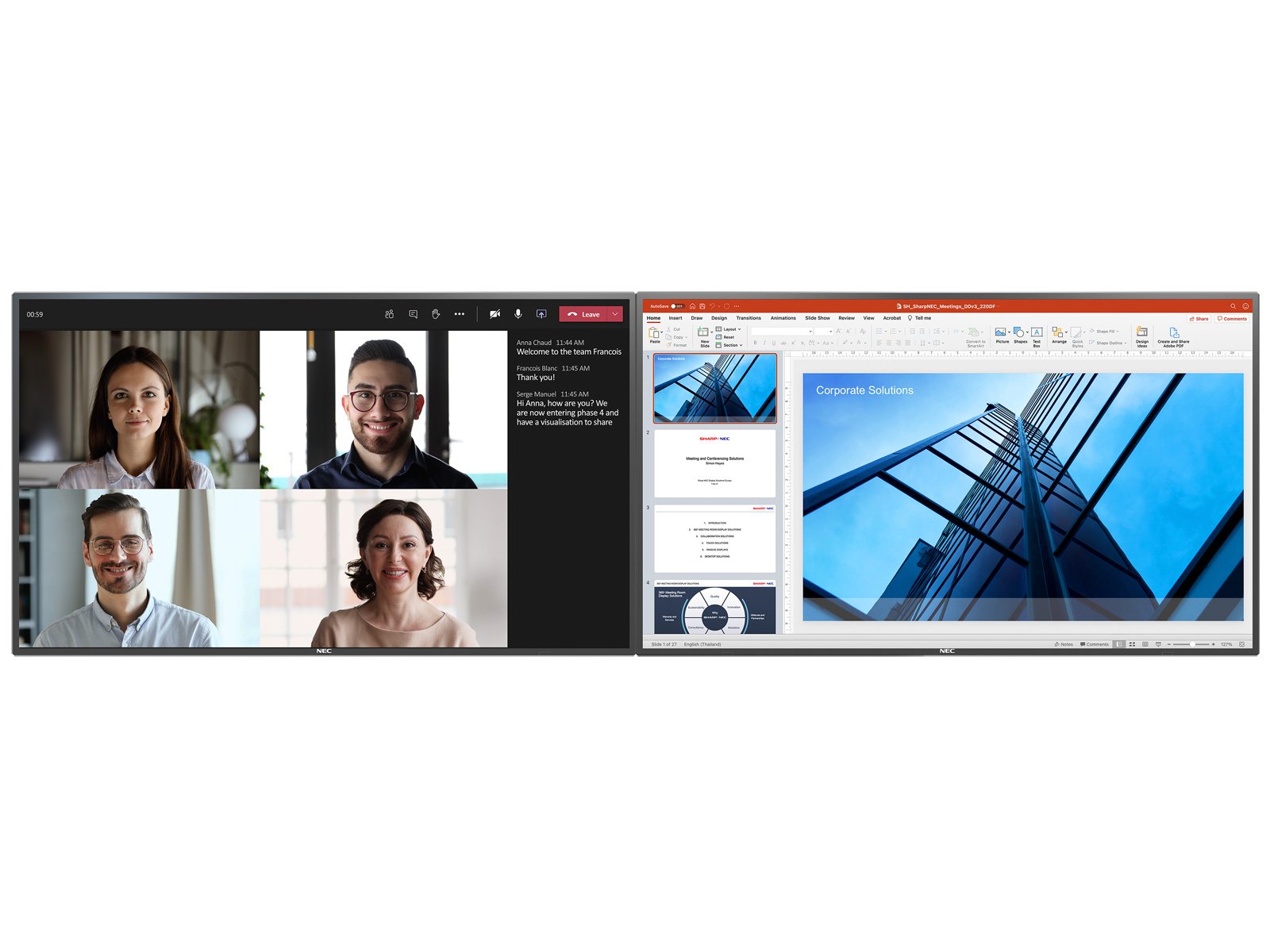

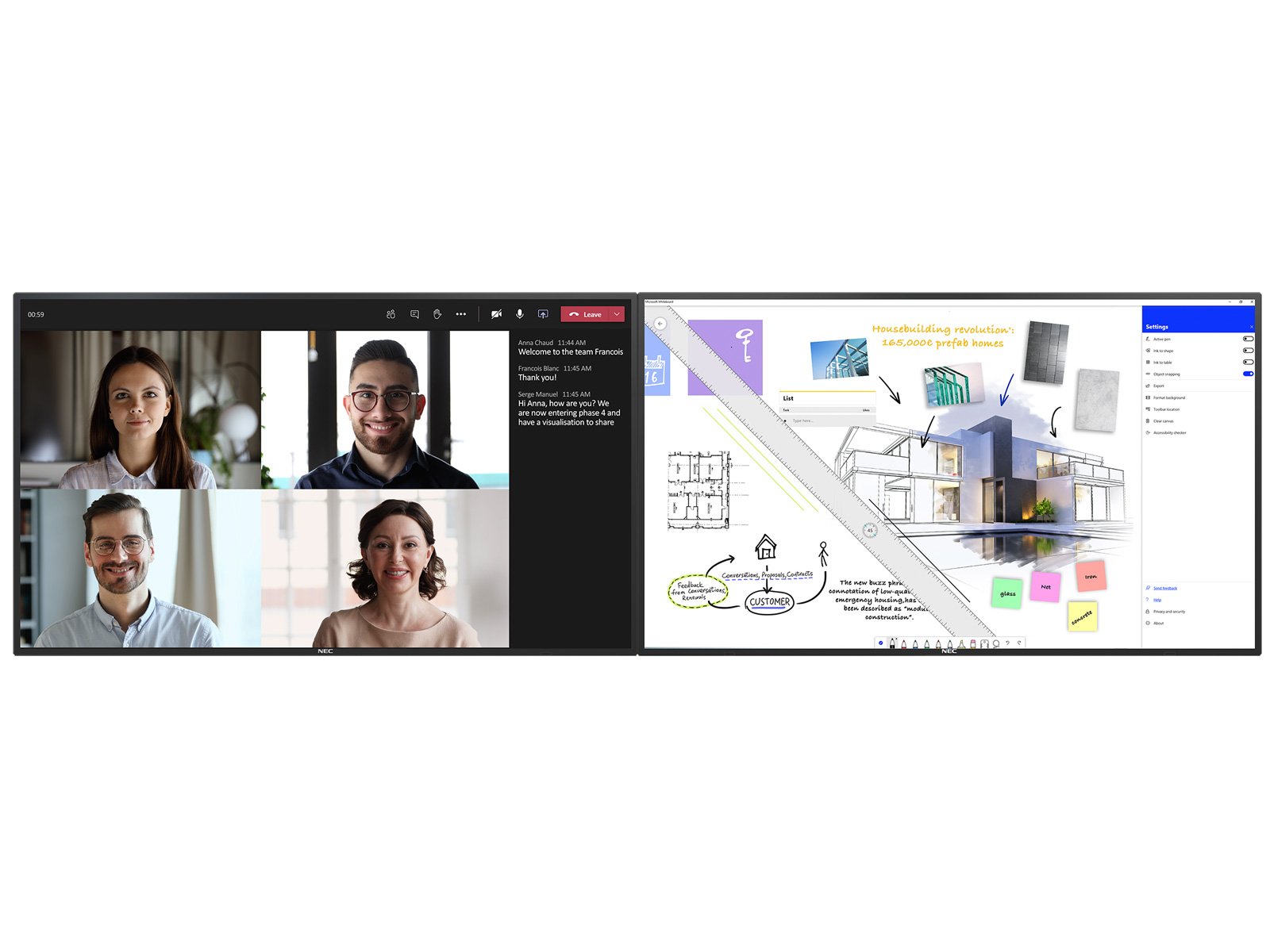

Dual-Screen Room System for creative and interactive hybrid meetings
The 65” NEC Dual-Screen Room System combines two displays, an interactive NEC MultiSync® M651 IGB and an identically designed non-interactive MultiSync® M651 IGB non-touch, into a comprehensive user-friendly system. It is ideally suited for meeting and collaboration environments, whether for fully present or hybrid team meetings. With a sleek and elegant design, the display solution seamlessly fits into modern office spaces.
When working with an interactive and a non-interactive display in a dual-screen scenario, users no longer need to compromise between design and functionality. With the 65” NEC Du-Co Room System, users not only benefit from a visually pleasing solution but also an enhanced usability. Equipped with an InGlass™ touch display, the system offers a best-in-class pen-on-paper writing experience. Optimised for video conferencing (VC) room systems, the display solution facilitates creative processes in hybrid meetings, such as in Microsoft Teams or Zoom.
Don’t compromise on design – combining an interactive and non-interactive display with the same sleek and elegant design.
Natural writing experience – it’s like working on paper! Whether using finger or pen, the InGlass™ touch technology provides seamless interactive touch performance including Windows Ink and palm rejection.
Both displays featuring NEC Open Modular Intelligence (OMI) slot-in technology – choose scalable computing power with Raspberry Pi Compute Module 4 or the more powerful Intel® Smart Display Modules (Intel® SDM) for tailor-made solutions.
Mission-critical 24/7 ready operation – the meticulous selection of industrial-grade components and careful design focused on demanding usage scenarios accompany an impressive and continuous viewer experience.
Be more productive – get a one-year free license of FlatFrog Board for Rooms! FlatFrog Board whiteboard software makes hybrid work easy and equally productive for everyone. -
Parameter Value Panel Technology IPS with Direct LED backlights Screen Size [inch/cm] 65 / 163.9 Aspect Ratio 16:9 Brightness (without glass) [cd/m²] 500 Contrast Ratio (default) > 8000:1 Viewing Angle [°] 178 horizontal / 178 vertical (typ. at contrast ratio 10:1) Colour Depth [bn] 1.076 (10bit) Response Time (typ.) [ms] 8 Panel Refresh Rate [Hz] 60 Supported Orientation Face Up 1, Landscape, Portrait Touch Technology InGlass™ Number of Touches Real multi-touch up to 20 touches Response Time [ms] ≤ 15 Touch Method Finger, Gloves, Stylus (≥ 2 mm) Supported Operating System Native Multi-Touch: Windows 7, Windows 8, Windows 10, Linux, Android Default Mouse: Windows XP, Windows Vista, Mac OS X Raspberry Pi Data Interface USB-HID Accuracy [mm] < 1 Palm Rejection Yes Windows Ink Yes Glass Premium toughened glass, anti-glare coating Thickness [mm] 3 Haze Level [%] ≤ 5 ± 3 Hardness [H] 7 Native Resolution 3840 x 2160 Supported Resolutions 1024 x 768, 1280 x 1024, 1280 x 720, 1360 x 768, 1366 x 768, 1400 x 1050, 1440 x 900, 1600 x 1200, 1650 x 1050, 1900 x 1200, 1920 x 1080, 1920 x 2160, 2560 x 1440, 2560 x 1600, 3840 x 2160, 4096 x 2160 Synchronization Rate Horizontal Frequency [kHz]: 26 – 91.1 Vertical Frequency [Hz]: 23 – 86 Connectivity Input Video Digital: 1 x DisplayPort (with HDCP), 2 x HDMI (with HDCP) Input Audio Digital: 1 x DisplayPort, 2 x HDMI Input Control: LAN 100Mbit, remote control wire (3.5mm jack), RS232 Input Data: 1 x USB 2.0 (MediaPlayer) Output Audio Analog: 1 x 3.5 mm jack Input Detect: Custom, First, Last Open Modular Intelligence: Intel® SDM Compute Module Slot: RPi Compute Module 4 Sensors Temperature Sensor: Integrated, 3 sensors, triggered actions programmable Electrical Power Consumption Eco/max. [W]: 120 shipping Power Savings Mode [W]: < 0.5 Power Management: VESA DPMS Power Supply: 100-240 V AC, 50/60 Hz, internal Environmental Conditions Operating Temperature [°C]: +0 to +35 Operating Humidity [%]: 20 to 80 Storage Humidity [%]: 10 to 90 Storage Temperature [°C]: -20 to 60 Mechanical Dimensions (W x H x D) [mm]: 1,501.3 x 879 x 73.2 Weight [kg]: 53.5 Bezel Width [mm]: 18.5 (left and right), 18.5 (top and bottom) VESA Mounting [mm]: 4 holes, 400 x 400 (FDMI), M8 Ingress Protection: IP5x (front), IP2x (back) Packaging Dimensions (W x H x D) [mm]: Box 1: 1,736 x 1,033 x 280 Box 2: 1,736 x 1,033 x 280 Packaging Weight [kg]: Box 1: 65, Box 2: 64 MediaPlayer Supported File Storage / File System: USB 2.0 / FAT16, FAT32 Supported Image Formats: JPG (baseline, progressive, RGB, CMYK) Supported Video Formats: MPG (MPEG1/2/4, max res 1080p@30Hz), MP4 (MPEG2/4, H.263, H.264, HEVC/H.265, max res 3840×2160@60Hz), TS (MPEG2, H.264, HEVC/H.265, max res 3840×2160@60Hz), audio: LPCM, MP3, AAC Supported Audio Formats: MP3 (MP3), max. bit-rate 320 kBit/s Available Options Accessories: Presence Sensor (KT-RC3), Soundbar (SP-ASCM-IQ2, SP-ASCM-2), Speaker (SP-RM3a), Wall mount (PDW T XL-2) Green Features Energy Efficiency: Energy consumption: 116 kWh/1000 h, LED backlight Ecological Standards: EnergyStar 8.0 Additional Features Special Characteristics: DICOM Simulation, HDMI ARC, Powered USB Port (10 W) Safety and Ergonomics CE, EAC, RoHS Pixel Failure Class ISO 9241-307, Class 1 Audio Integrated Speakers (10 W + 10 W) Shipping Content 2 x Stylus, 2x AAA batteries, Display, HDMI Cable, Power Cable, Remote Control, Setup Manual, USB cable Warranty 3 years warranty incl. backlight, additional services available Operating Hours 24/7 External Control AMX NetLinx Support, ASCII Control Commands, Crestron Connected, HDMI CEC, HTTP Browser, PJLink, Scheduled Timer, SNMP Remote Management Automated Email Alerts, NEC NaViSet Administrator 2 Security Disable HW Buttons, Disable IR Functionality, Emergency Notification -
In Warranty Support
Warranty Period 36 Months
Contact: NEC Display Solutions
Tel. No. 01952 237003
Email [email protected]
Manufacturers Website http://www.nec-display-solutions.co.ukNEC deal with all your AfterCare requirements for the product you have purchased, they can help with technical queries and offer advice.
Please contact them direct.
You will need the following information to hand:* Customer Name
* Email Address
* Product Model Number
*Proof of Purchase
* Serial Number
* Details of the fault
* Any permanent security markings?
* Any physical damage?
* Any non-NEC repair or modi?caon?Once provided NEC will be able to issue a return and provide a replacement if required.
If you have any questions or would like further advise, please feel free to contact our AfterCare Team (ACE) on 02081 919223 / who will be happy to assist
3 Year On-Site Warranty. Please contact NEC for full Ts & Cs (exclusions apply).
-
