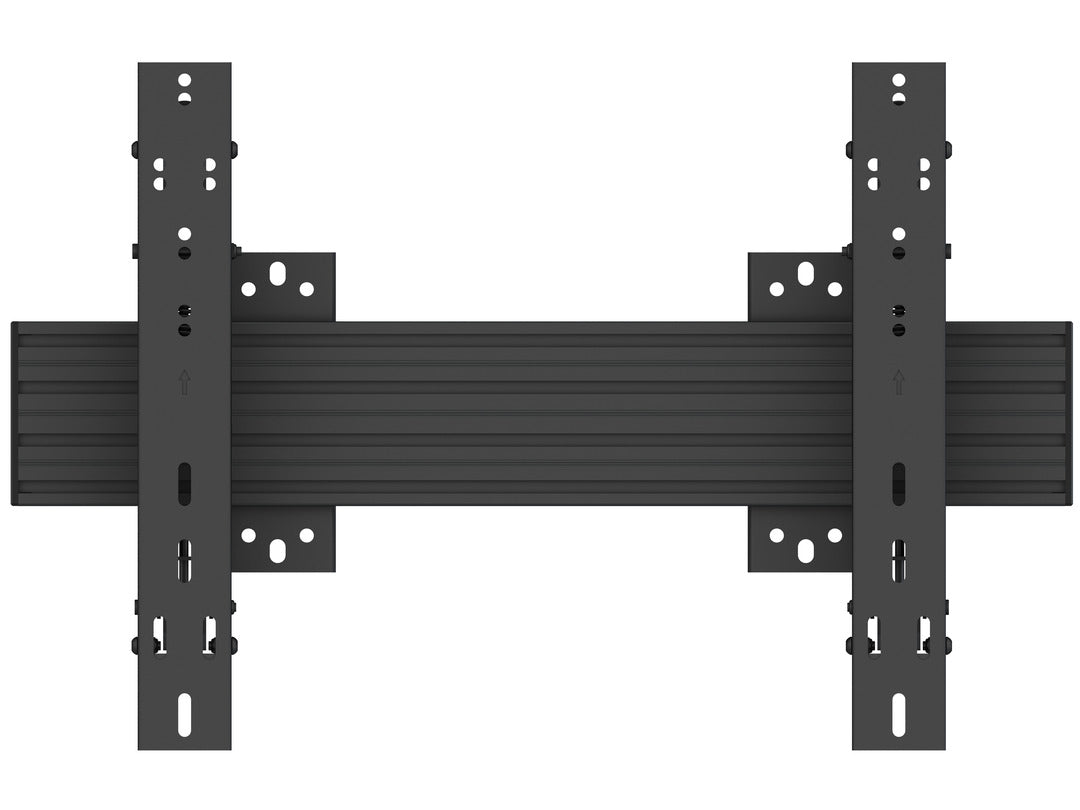

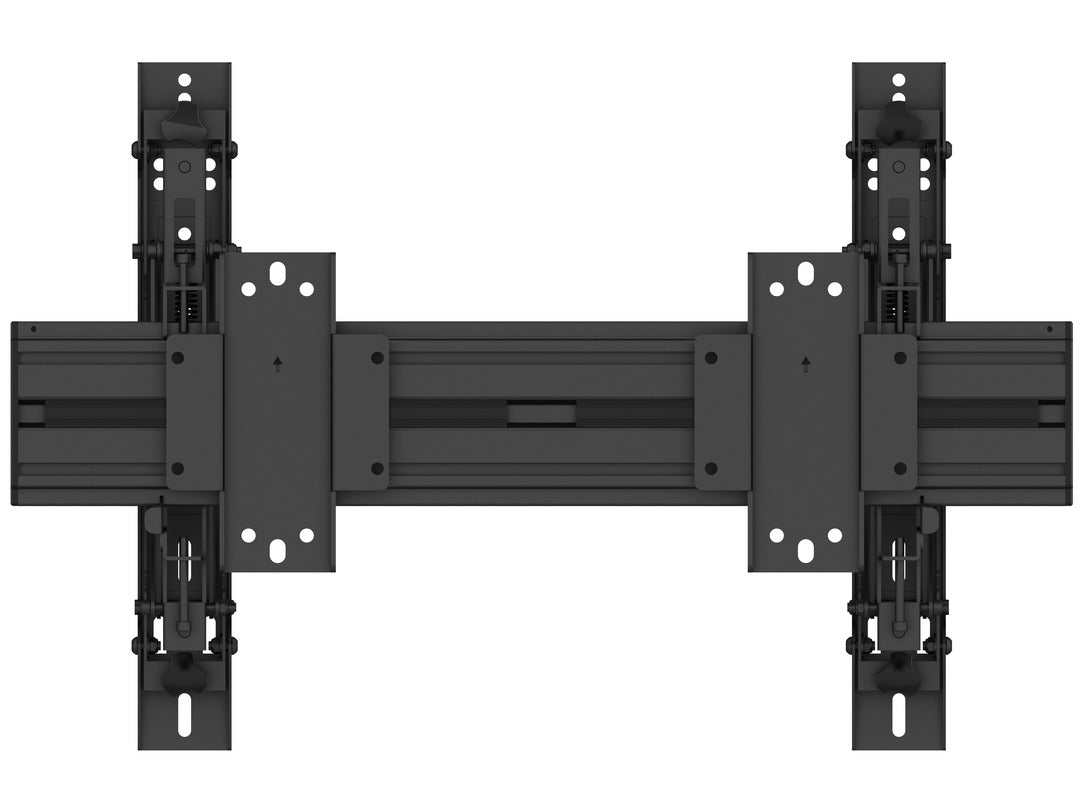

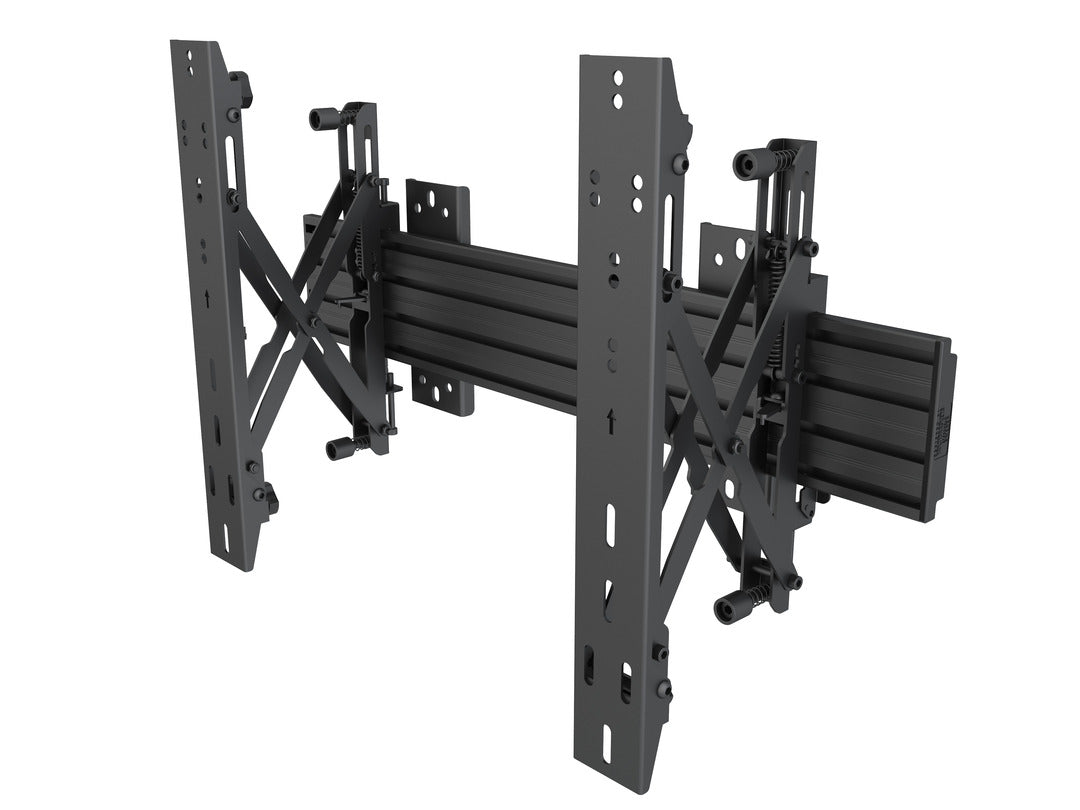

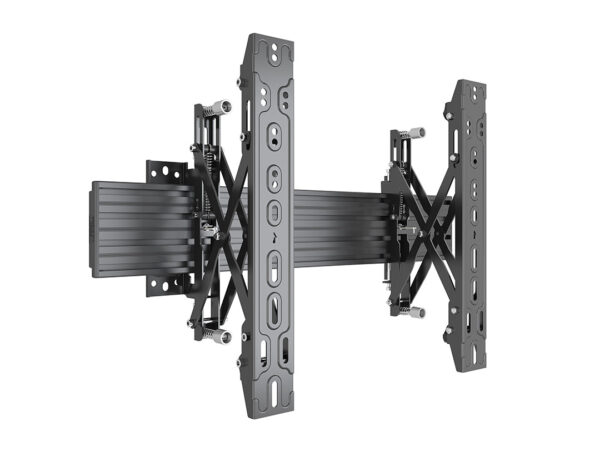

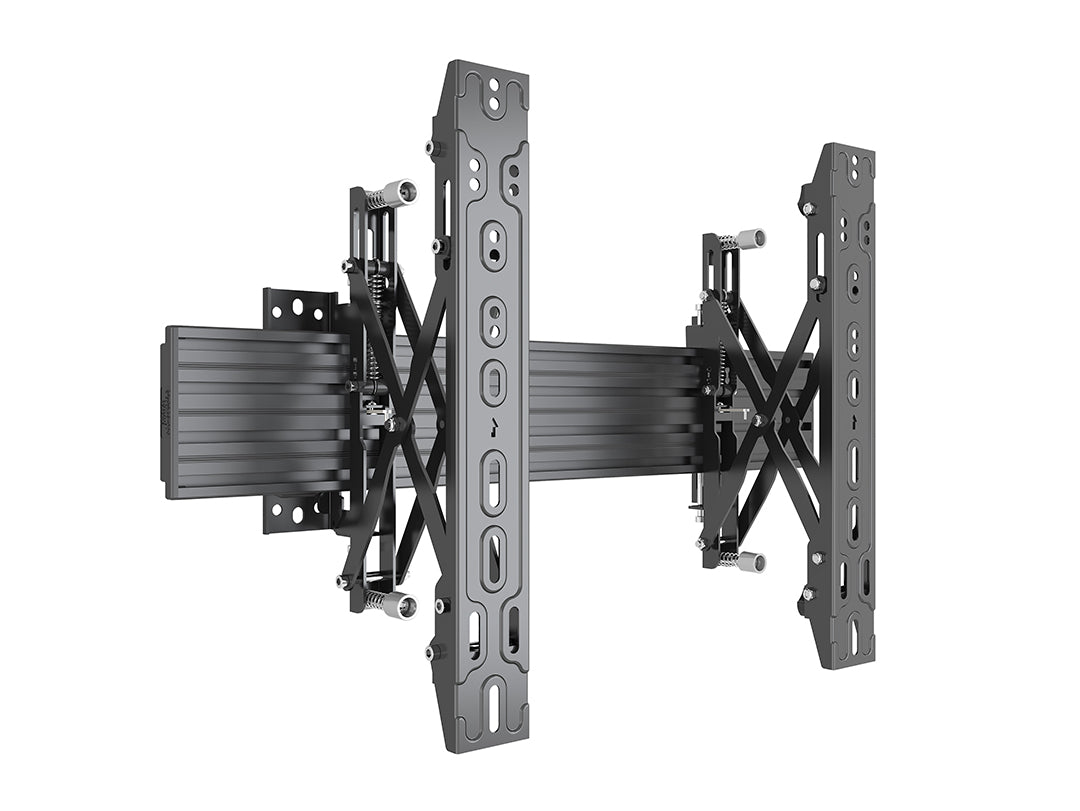

Multibrackets MBW1U Push In Pop Out M Wallmount Pro – (40″ – 75″)

Multibrackets MBW1U Push In Pop Out M Wallmount Pro – (40″ – 75″)

• Description
• Specifications
• Downloads

• M Wallmount Pro MBW1U Push In Pop Out Black – Wall mount for LCD display, steel, 1 screen, single side, adjustable, VESA Max 600×400 – Maxload 40kg – screen size: 40″-75″ – black

  Multibrackets Pro Series M Wallmount Pro MBW1U Push In Pop Out Black is our innovative – ready to be installed Single-Display Wallmount.

  The new professional Pro Series A/V line from Multibrackets was designed with the installer in mind. Modular, easy to configure, quick to install, and simple to maintain. Working closely with installers we created a range with close to unlimited flexibility. This model the M Wallmount Pro MBW1U Push In Pop Out Black is no exception. The product provides the versatility and flexibility demanded by installers. Based upon the Pro Series strong and ultra-flexible aluminum rail it is completely modular and has built in cable management throughout the entire solution to quicken installation and creating an esthetic result worth the public eye.

  With its modular construction installers have vast possibilities to change, create, update and reconfigure its design if ideas change over time, then Pro Series can follow.

  Designed with our Scandinavian heritage in mind and providing a clean Nordic look each part and detail serves its purpose. The result is a sleek Nordic solution emphasizing quality and function. Used in a variety of environments this ceiling mount is truly versatile and is made of the highest quality materials.

  The Pro Series possibilities to extend aluminum rail change brackets and add details by individual choice is vast so that one can tailor each mount to its location and function. The Pro Series includes hardware so that a basic installation should not be a hassle.

  Multibrackets Pro Series Public Wallmounts is ideal for any large screen digital signage wallmount application such as videowalls, menuboards and more.

  Highlights
  A flexible system product ideal for video walls and menuboards
  Includes VESA adapters for compatibility up to VESA 600×400
  Module based aluminum rails creates desirable length without cutting
  Integrated cable management throughout the entire solution
  Power click install for an easy, fast and safe installation
  Dual wallplates included
  Portrait or landscape position of screen possible
  Hardware kit included

• Article No	7 350 073 734 115
  For screen size	40”-75″
  Type	Single Side MBW1U
  Universal & VESA standard	Adjustable from 100×100 to 600×400 max
  Optional VESA	800×600
  Material	Steel, Aluminium
  Color	Black
  Surface Finish	Powder coating/Anodic Oxidation
  Weight	9 kg
  Measurements	68x49x9 cm
  Max Load	40 kg per screen (TÜV 30kg)
  Height adjustment	Yes, 0-5mm
  Depth adjustment	Yes, 0-15mm
  Tilt adjustment	Yes, ±3°
  Cable Management	Yes
  Options	M Pro Series Parts
  Certifications	CE
  Warranty	5 years
  Retail Package Specification
  Package Parcels	1 pcs
  Package Measurements	70 x 17.5 x 13 cm
  Package Weight	9.00 kg

• Download Type	Downloads
  Drawing PDF	Downloads
  Product Fact Sheet	Downloads
  Manual	Downloads
  PDF Catalogue	Downloads
