Multibrackets MBFC2U M Floorstands Column Pro – (32″-65″)

Multibrackets MBFC2U M Floormount Column Pro – (32″-65″)

• Description
• Specifications
• Downloads

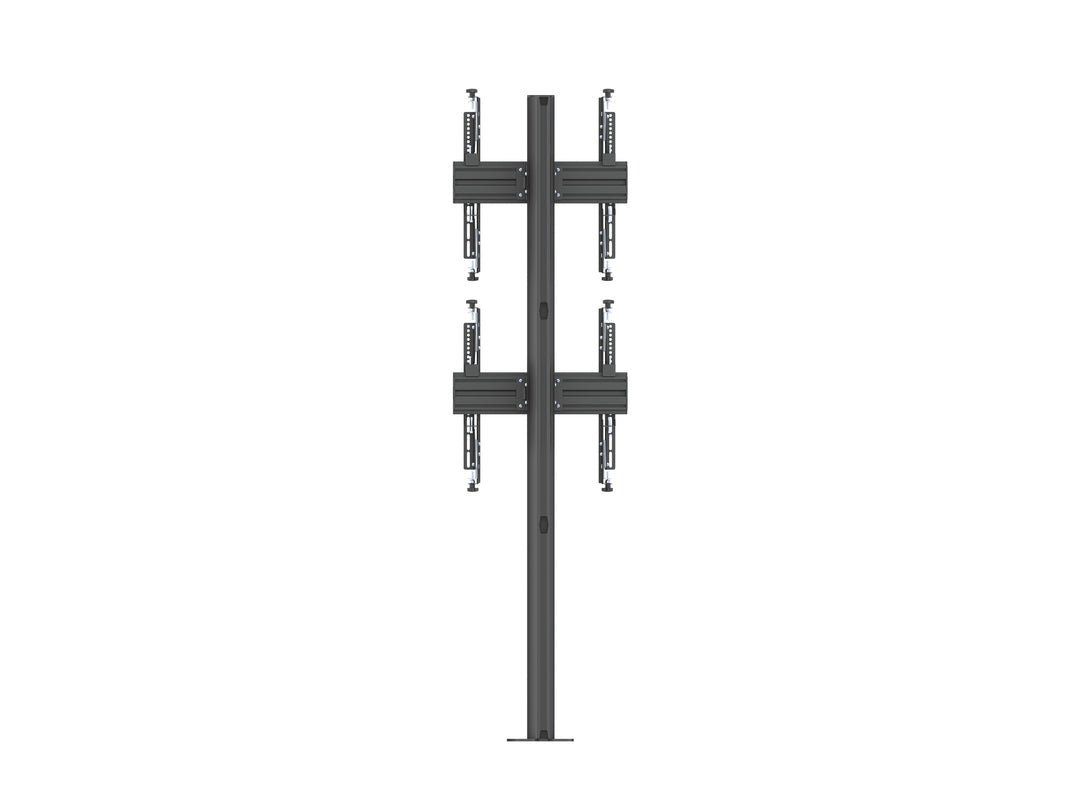

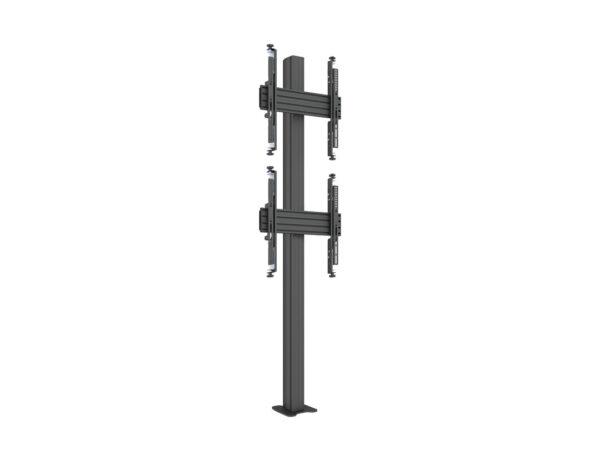

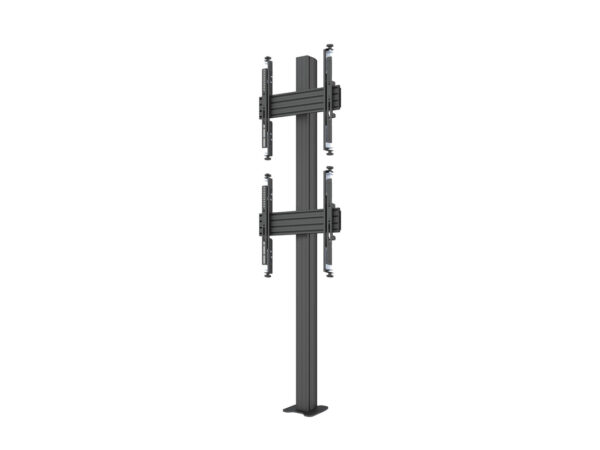

• M Floormount Column Pro MBFC2U 180 Micro-Adjustable – Floor column mount for LCD, steel, 1.8m height, 2 screens, single side, micro-adjustable arms, VESA Max 400×400 – screen size: 32″-65″ – black

  M Floormount Column Pro MBFC2U 180 Micro-Adjustable is a signage solution – ready to be installed.

  The professional Pro Series A/V line from Multibrackets was designed with the installer in mind. Modular, easy to configure, quick to install, and simple to maintain. Developed together with installers we added close to unlimited flexibility and versatility. Based on the Pro Series ultra-flexible aluminum rail it is completely modular and has built-in cable management throughout the entire solution to quicken installation and create an esthetic result worth the public eye.

  With its modular construction installers can tailor the MBFC2U 180 Micro-Adjustable with the client’s needs in mind. Possibilities to change, update, and reconfigure its design and if ideas change over time Pro Series can follow

  The M Floormount Column Pro MBFC2U 180 Micro-Adjustable creates a rock-steady screen display solution aimed for the retail store, mall, or any other public area. 50mm black, brass or chrome tubes can be tailored to fit the environment in which the unit is positioned. Mount screens with tilt or fixed displays. Place them side by side and/or above each other.

  This M Floormount Column series was designed with our Scandinavian heritage in mind and provides a clean Nordic look where each part and detail is made as simple as can be and still services its function. The result is a sleek Nordic solution emphasizing quality and function by design and its material choices throughout the entire solution.

  Our Pro Series includes hardware so that a basic installation should not be a hassle. The Pro Series possibilities to extend tubes and add details by choice are so vast that one can tailor each solution to its location and needed function.

  Multibrackets Pro Series Floormount Column is ideal for any large-screen digital signage application

  Highlights
  A professional, flexible, and modular product
  Includes VESA adapters for compatibility up to VESA 400×400
  Integrated cable management throughout the entire solution
  Power click install for an easy, fast, and safe installation
  A portrait or landscape position of the screen is possible
  Hardware kit included

• Property	Details
  Article No	7 350 105 210 310
  Color	Black
  For Screen Size	32″~65″
  Universal & VESA Standard	75×75,100×100,200×200,300×300,400×400
  Material	Steel, Aluminium, Plastic
  Surface Finish	Powder Coating
  Weight	15.5 kg
  Measurements	1860x180x125 + 580x190x170
  Max Load	30 kg per screen
  Height	10 mm height adjustment
  Tilt	±4°
  Swivel	0°
  Rotate	0°
  Installation	Floormount
  Cable Management	N/A
  Options	Article no: 4733: M Pro Series – Extender kit 600
  Warranty	5 years
  Retail Package Specification
  Package Parcels	2 pcs
  Parcel 1	186.7×18.5×12.9cm 8.5kg
  Parcel 2	59.5×20.2×19.5cm 11kg
  Package Measurements	0 x 0 x 0 cm
  Package Weight	19.50 kg

• Download Type	Downloads
  Drawing PDF	Downloads
  Product Fact Sheet	Downloads
  Manual	Downloads
  PDF Catalogue	Downloads
