• Multibrackets MBC4UHD Display Ceiling Mount Pro

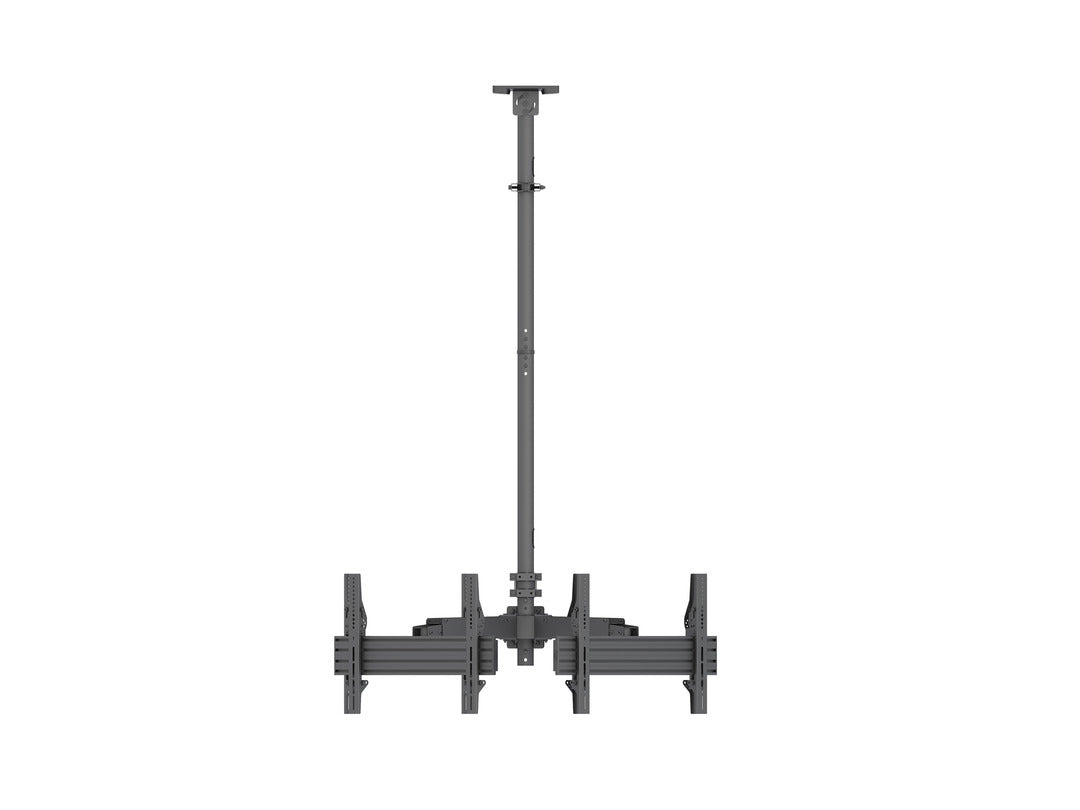

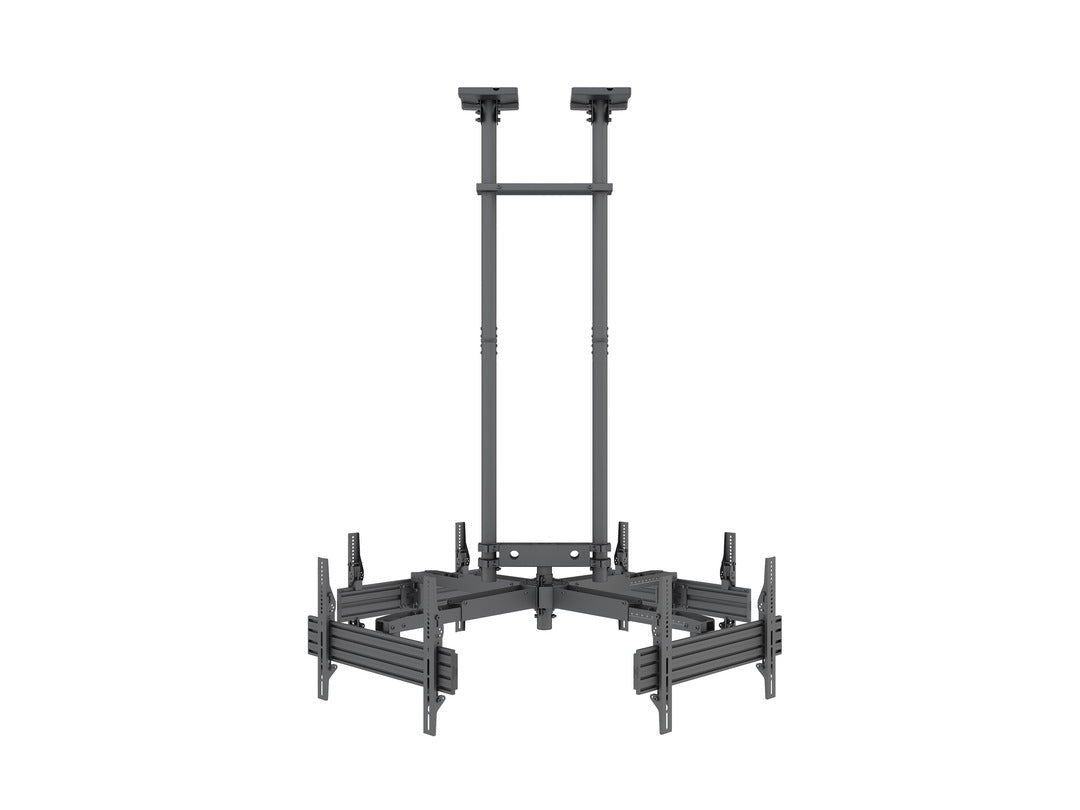

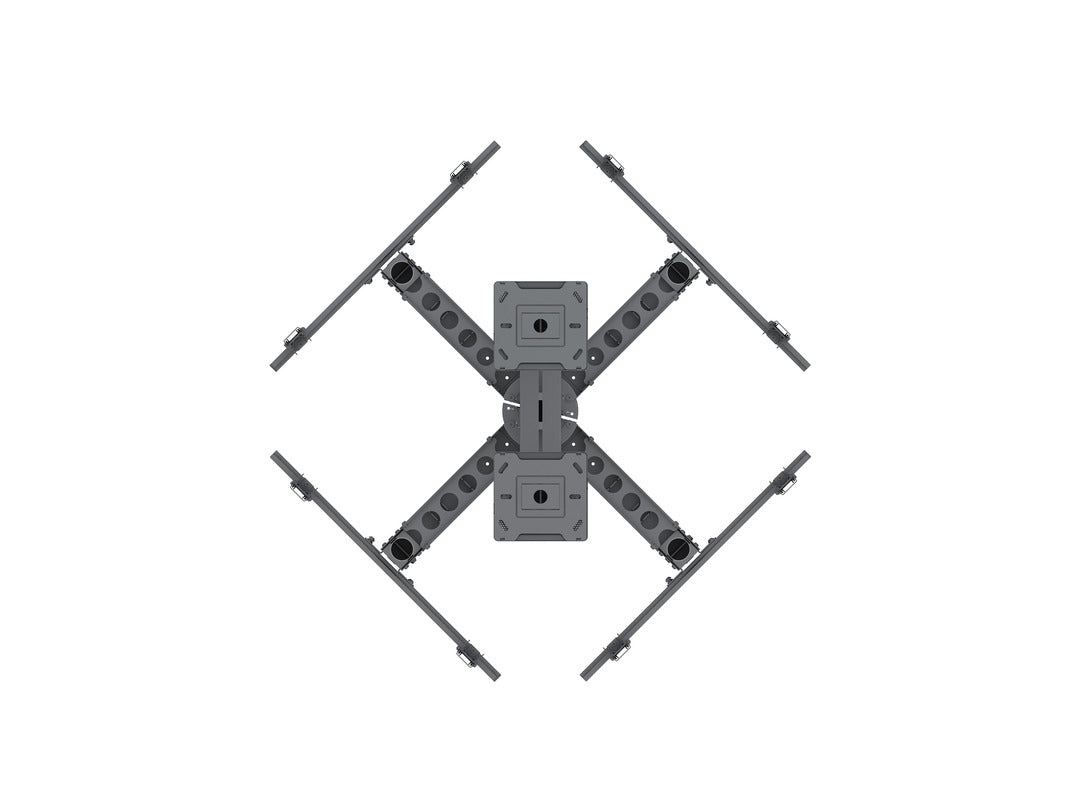

  M Ceiling Mount Pro MBC4UHD – Ceiling mount for LCD display, steel, 3m length, 4 screens, four side, tilt arms, VESA Max 600×400 – screen size: 50″-75″ – black
  Multibrackets Pro Series M Ceiling Mount Pro MBC4UHD is our innovative – ready to be installed Four Side Display Ceiling Mount.

  The new professional Pro Series A/V line from Multibrackets was designed with the installer in mind. Modular, easy to configure, quick to install, and simple to maintain. Working closely with installers we created a range with close to unlimited flexibility. This model the M Ceiling Mount Pro MBC4UHD is no exception. The product provides the versatility and flexibility demanded by installers. Based upon the Pro Series strong and ultra-flexible aluminum rail it is completely modular and has built in cable management throughout the entire solution to quicken installation and creating an esthetic result worth the public eye.

  With its modular construction installers have vast possibilities to change, update and reconfigure its design if ideas change over time then Pro Series can follow.

  Designed with our Scandinavian heritage in mind and providing a clean Nordic look each part and detail serves its purpose. The result is a sleek Nordic solution emphasizing quality and function. Used in a variety of environments this ceiling mount is truly versatile and is made of the highest quality materials.

  The Pro Series possibilities to extend pipes and add details by individual choice is vast so that one can tailor each mount to its location and function. The Pro Series includes hardware so that a basic installation should not be a hassle.

  Multibrackets Pro Series Public Ceiling Mounts is ideal for any large screen digital signage ceiling application.

  Highlights
  A professional, flexible and modular product
  Includes VESA adapters for compatibility up to VESA 600×400
  Integrated cable management throughout the entire solution
  Power click install for an easy, fast and safe installation
  Ceiling plate included
  Portrait or landscape position of screen possible
  Hardware kit included

• Parameter	Specification
  For screen size	Portrait: 50”-75″ (seamless edge to edge installation possible) Landscape: 50″-75″
  Type	Four Side MBC4UHD
  Universal & VESA standard	100×100, 200×200, 400×400, 600×400 mm
  Material	Steel, Aluminium, Plastic
  Color	Black
  Surface Finish	Powder coating
  Weight	54.5 kg
  Measurements	105.0×51.5×18 cm
  Max Load	45 kg per screen
  Pillar length	860~3415mm from ceiling to VESA plate center
  Extension pipes	3m (800mm*8pcs) included
  Tilt	Yes, -6°~+15°
  Swivel	Yes, 360°
  Rotate	Yes, 90°
  Cable Management	Yes
  Options	Extension pipes: 0.8m, 1.5m, 3.0m
  Certifications	CE
  Warranty	5 years
  Retail Package Specification	Package Parcels: 1 pcs Package Measurements: 96.5 x 29.5 x 19.5 cm Package Weight: 33.80 kg

• Download Type	Downloads
  Drawing PDF	Downloads
  Product Fact Sheet	Downloads
  Manual	Downloads
