Multibrackets MBC2X1U M Menu Board Mount Pro – (40″-65″)

• Description
• Specifications
• Downloads

• Multibrackets MBC2X1U M Menu Board Mount Pro – (40″-65″)

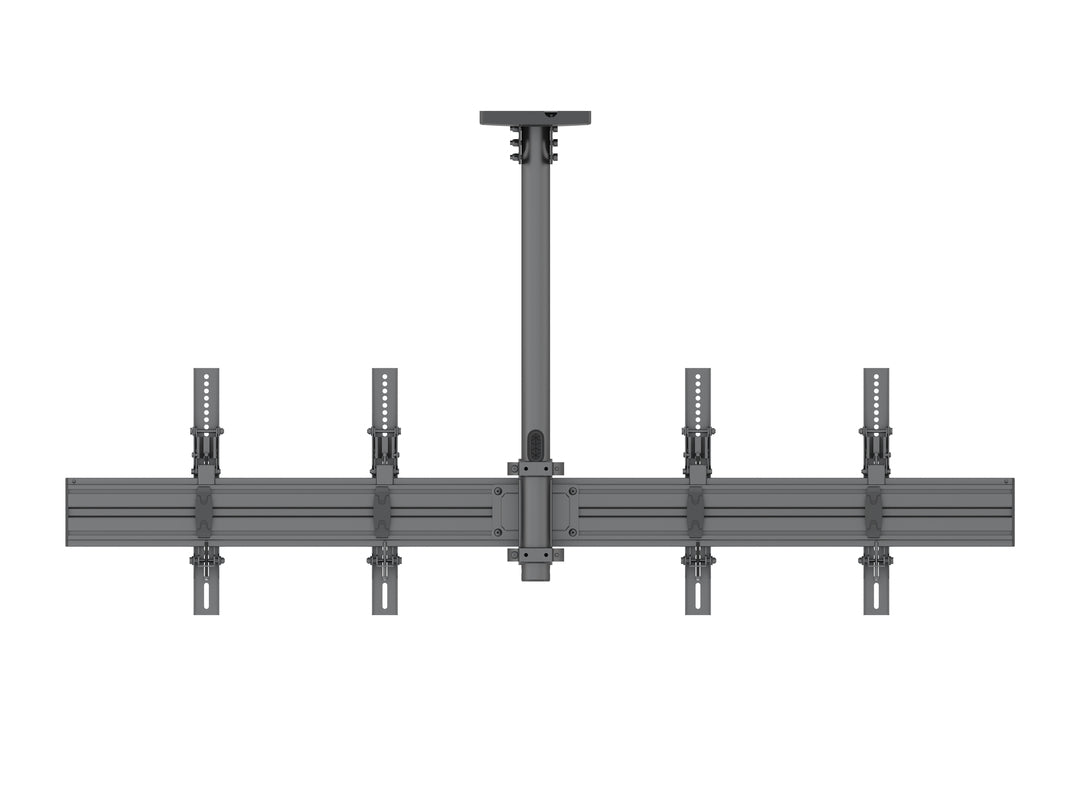

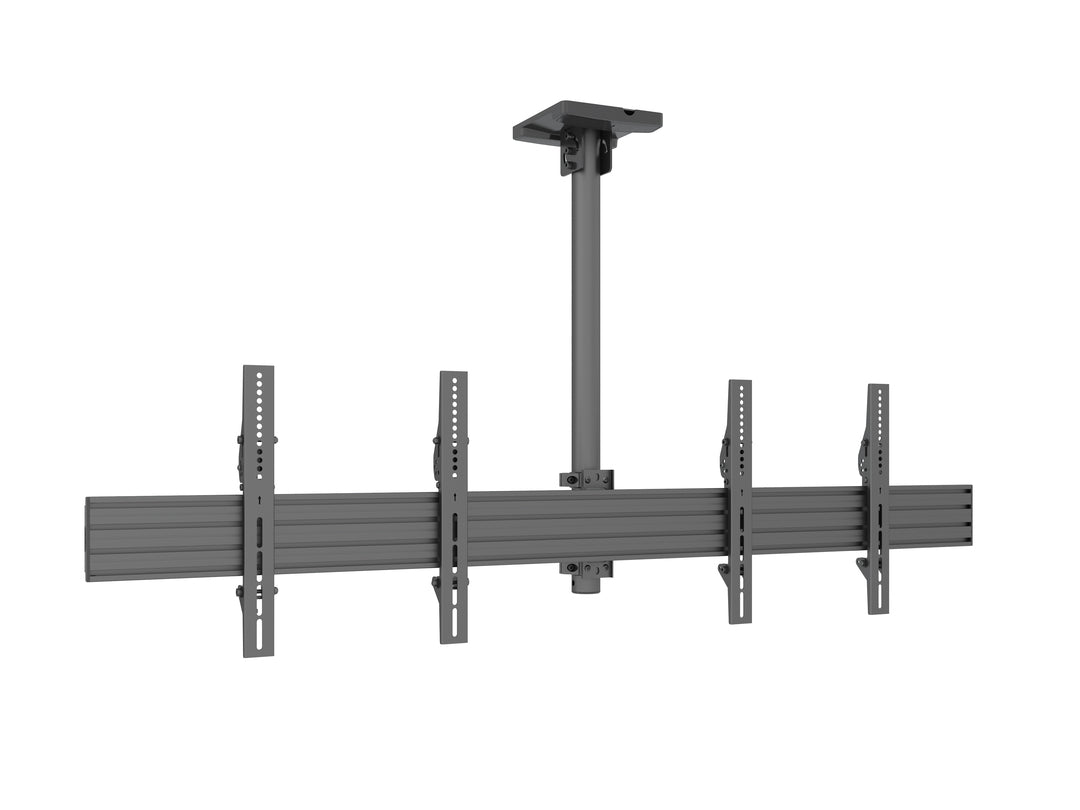

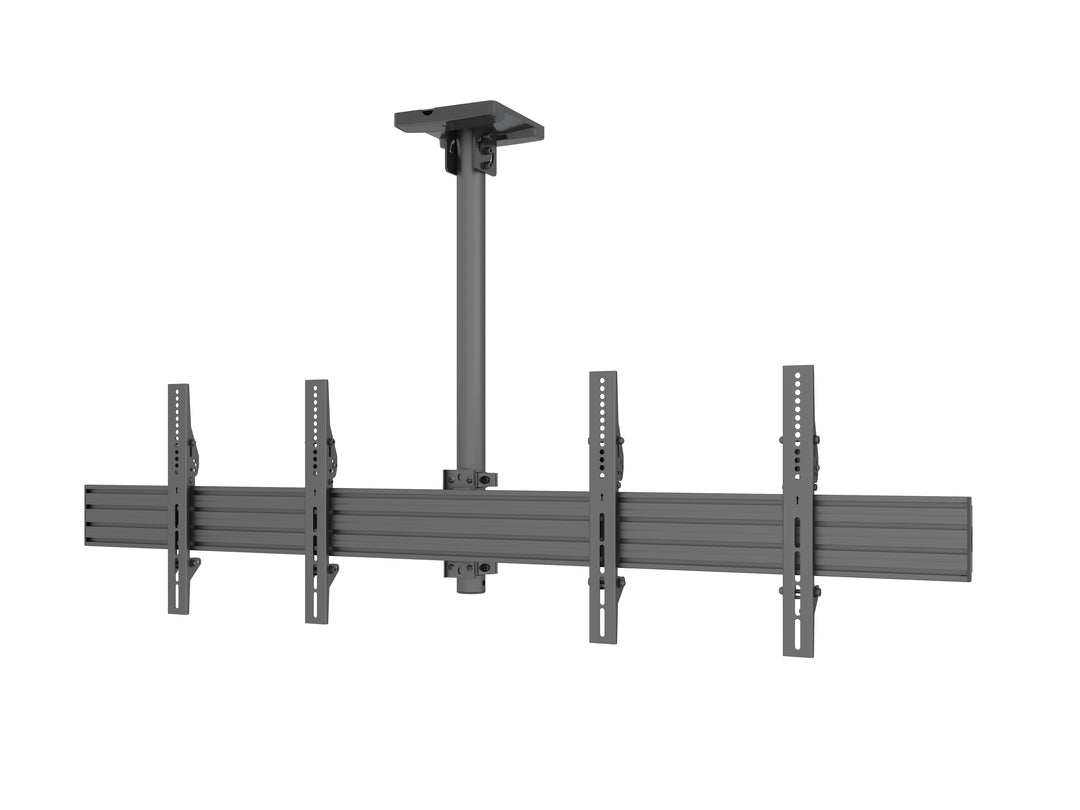

  M Menuboard Mount Pro MBC2X1U – Ceiling mount for LCD display, steel, 3m length, 2 screens, single side, tilt arms, VESA Max 600×400 – screen size: 40″-65″ – black

  The M Menuboard Mount Pro MBC2X1U is our 2 screen side by side menuboard system – ready to be installed.

  The professional Pro Series A/V line from Multibrackets was designed with the installer in mind. Modular, easy to configure, quick to install and simple to maintain. Developed together with installers we added close to unlimited flexibility and versatility. Based on the Pro Series ultra-flexible aluminum rail it is completely modular and has built in cable management throughout the entire solution to quicken installation and create an esthetic result worth the public eye.

  With its modular construction installers can tailor the MBC2X1U with the clients need in mind. Possibilities to change, update and reconfigure its design and if ideas change over time Pro Series can follow.

  The M Menuboard Mount Pro MBC2X1U creates a seamless mounting surface through the aluminum rail. The tilted mounting of the displays allow all displays to be placed side by side and tilted at the same angle with ease creating alignment and true menuboard perfection.

  Designed with our Scandinavian heritage in mind Pro Series provides a clean Nordic look where each part and detail is made as simple as can be and still service its function. Possible to use in a variety of environments our Pro Series Menuboards are truly versatile. The Pro Series possibilities to extend pipes and add details by individual choice is vast so that one can tailor each mount to its location and function. With included hardware kit a basic installation should not be a hassle.

  Multibrackets Pro Series Menuboards is simply ideal for any large screen digital signage application.

  Highlights
  A professional, flexible and modular product
  Includes VESA adapters for compatibility up to VESA 600×400
  Integrated cable management throughout the entire solution
  Power click install for an easy, fast and safe installation
  Ceiling plate included
  Portrait or landscape position of screen possible
  Hardware kit included

• Parameter	Specification
  Article No	7 350 073 733 934
  For screen size	40”-65″
  Type	Single Side MBC2X1U
  Universal & VESA standard	Adjustable from 100×100, 100×200 to 600×400 max
  Optional VESA	800×600
  Material	Steel, Aluminium
  Color	Black
  Surface Finish	Powder coating/Anodic Oxidation
  Weight	25 kg
  Measurements	222x338x20 cm
  Max Load	30 kg per screen
  Pillar length	Min: 580mm to Max: 1550 mm from ceiling to VESA plate center
  Extension pipes	1.5m (800mm*2pcs) included
  Tilt	Yes, 0~15°
  Swivel	Yes, 360°
  Rotate	Yes, ±4°
  Cable Management	Yes
  Options	Extension pipes: 0.8m, 1.5m, 3.0m
  Certifications	CE
  Warranty	5 years
  Retail Package Specification	Package Parcels: 1 pcs
  Package Measurements	102 x 20 x 18 cm
  Package Weight	17.30 kg

• Download Type	Downloads
  Drawing PDF	Downloads
  Product Fact Sheet	Downloads
  Manual	Downloads
  PDF Catalogue	Downloads
