Multibrackets MBC1UX2 Display Ceiling Mount Pro | 7350073733453

• Description
• Specifications
• Downloads

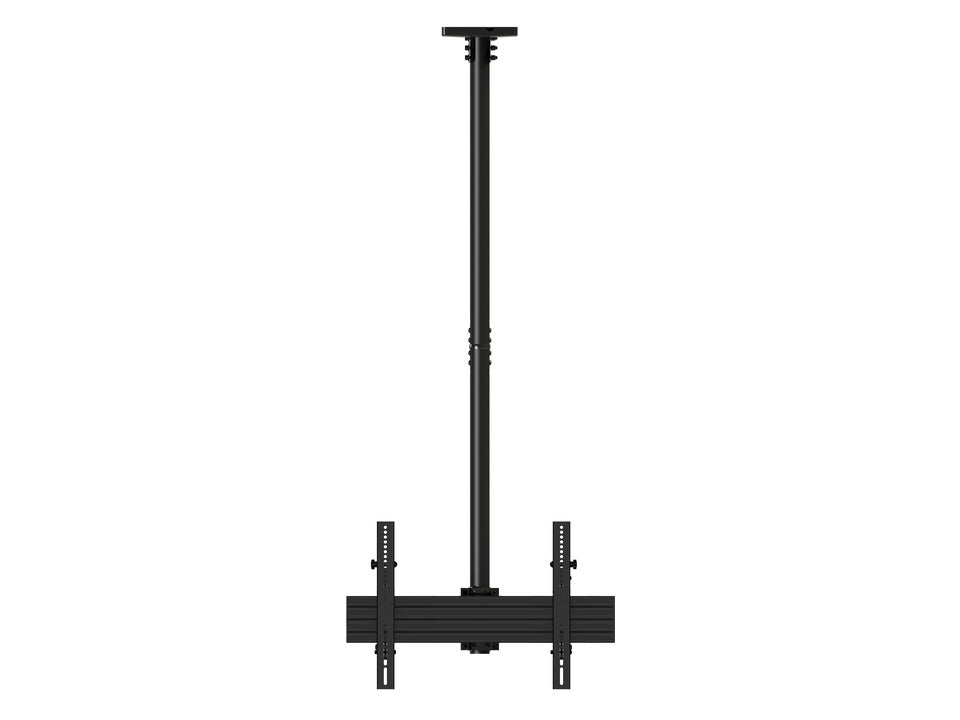

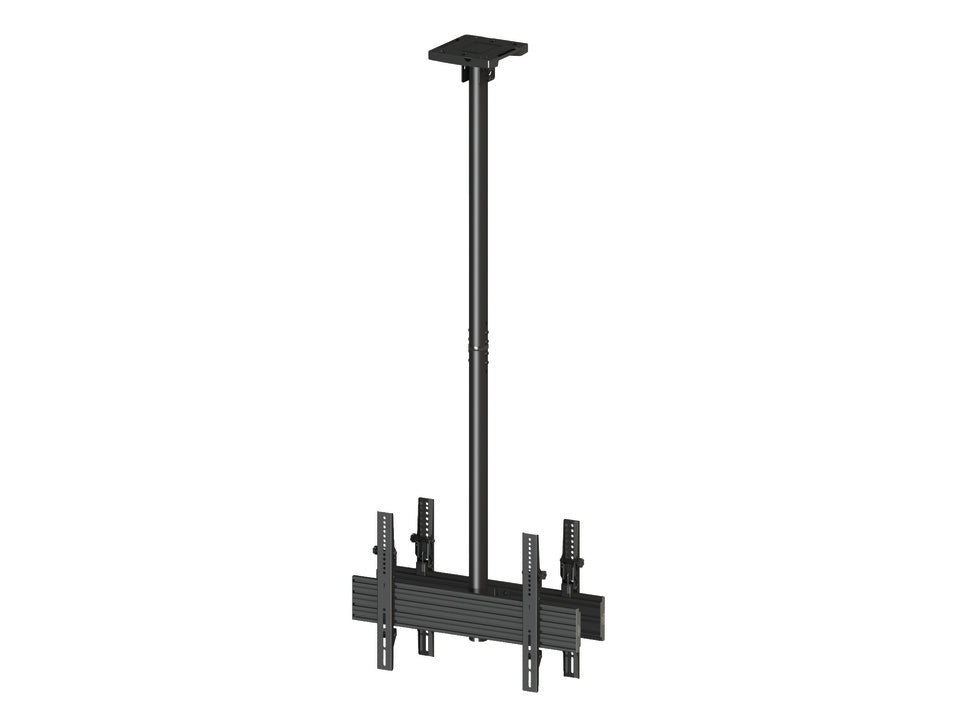

• Multibrackets MBC1UX2 Display Ceiling Mount Pro

  M Ceiling Mount Pro MBC1UX2 – Ceiling mount for LCD display, steel, 1.5m length, 2 screens, dual side, tilt arms, VESA Max 600×400 – Maxload 45kg – screen size: 42″-75″ – black
  Multibrackets Pro Series M Ceiling Mount Pro MBC1UX2 is our innovative – ready-to-be-installed Dual Side-Display Ceiling Mount.

  The new professional Pro Series A/V line from Multibrackets was designed with the installer in mind. Modular, easy to configure, quick to install, and simple to maintain. Working closely with installers we created a range with close to unlimited flexibility. This model the M Ceiling Mount Pro MBC1UX2 is no exception. The product provides the versatility and flexibility demanded by installers. Based upon the Pro Series strong and ultra-flexible aluminum rail it is completely modular and has built-in cable management throughout the entire solution to quicken installation and create an esthetic result worth the public eye.

  Its modular construction installers have vast possibilities to change, update, and reconfigure its design if ideas change over time then the Pro Series can follow.

  Designed with our Scandinavian heritage in mind and providing a clean Nordic look each part and detail serves its purpose. The result is a sleek Nordic solution emphasizing quality and function. Used in a variety of environments this ceiling mount is truly versatile and is made of the highest quality materials.

  The Pro Series possibilities to extend pipes and add details by individual choice are vast so that one can tailor each mount to its location and function. The Pro Series includes hardware so a basic installation should not be a hassle.

  Multibrackets Pro Series Public Ceiling Mounts is ideal for any large screen digital signage ceiling application.

  Highlights
  A professional, flexible, and modular product
  Includes VESA adapters for compatibility up to VESA 600×400
  Integrated cable management throughout the entire solution
  Power click install for an easy, fast, and safe installation
  Ceiling plate included
  Portrait or landscape position of the screen possible
  Hardware kit included

• Specification	Details
  Article No	7 350 073 733 453
  For Screen Size	42”-75″
  Type	Dual MBC1UX2
  Universal & VESA Standard	Adjustable from 100×100 to 600×400 max, Optional VESA 800×600
  Material	Steel, Aluminium
  Color	Black
  Surface Finish	Powder Coating/Anodic Oxidation
  Weight	11 kg
  Measurements	69x178x20 cm
  Max Load	45 kg per screen
  TUV Approved	30 kg per screen (TUV approved)
  Pillar Length	Min: 580mm to Max: 1550 mm (from ceiling to VESA plate center)
  Extension Pipes	1.5m (800mm*2pcs) included
  Tilt	Yes, -6°~+15°
  Swivel	Yes, 360°
  Rotate	Yes, ±4°
  Cable Management	Yes
  Options	Extension pipes: 0.8m, 1.5m, 3.0m
  Certifications	CE
  Warranty	5 years
  Retail Package Specification
  Package Parcels	1 pcs
  Package Measurements	82 x 20 x 18 cm
  Package Weight	13.40 kg
