Multibrackets M Pro Series Micro Adjustable Arms – 600mm

Multibrackets M Pro Series Micro Adjustable Arms – 600mm

• Description
• Specifications
• Downloads

• M Pro Series – Micro-Adjustable Arms 600 mm – Micro adjustable Arms, Part for Pro Series, steel, length: 655mm, 30kg max weight capacity, adjustable y-axis 0-10mm, z-axis 0-15mm, 3° rotate, 2 pcs – black

  With its modular construction Pro Series parts have vast possibilities to change, update and reconfigure a Pro Series installation. Combine the parts with a Pro Series installation and create a new configuration.

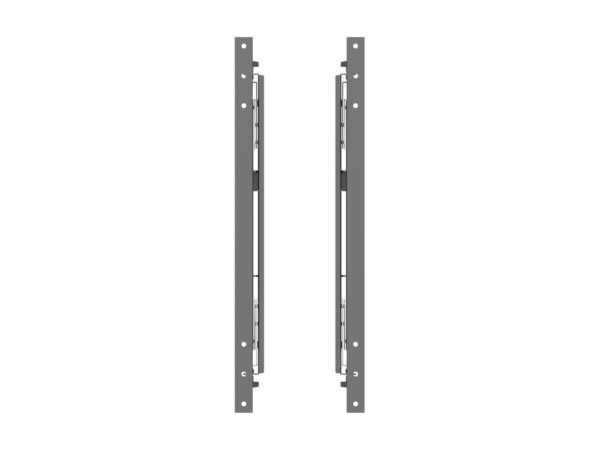

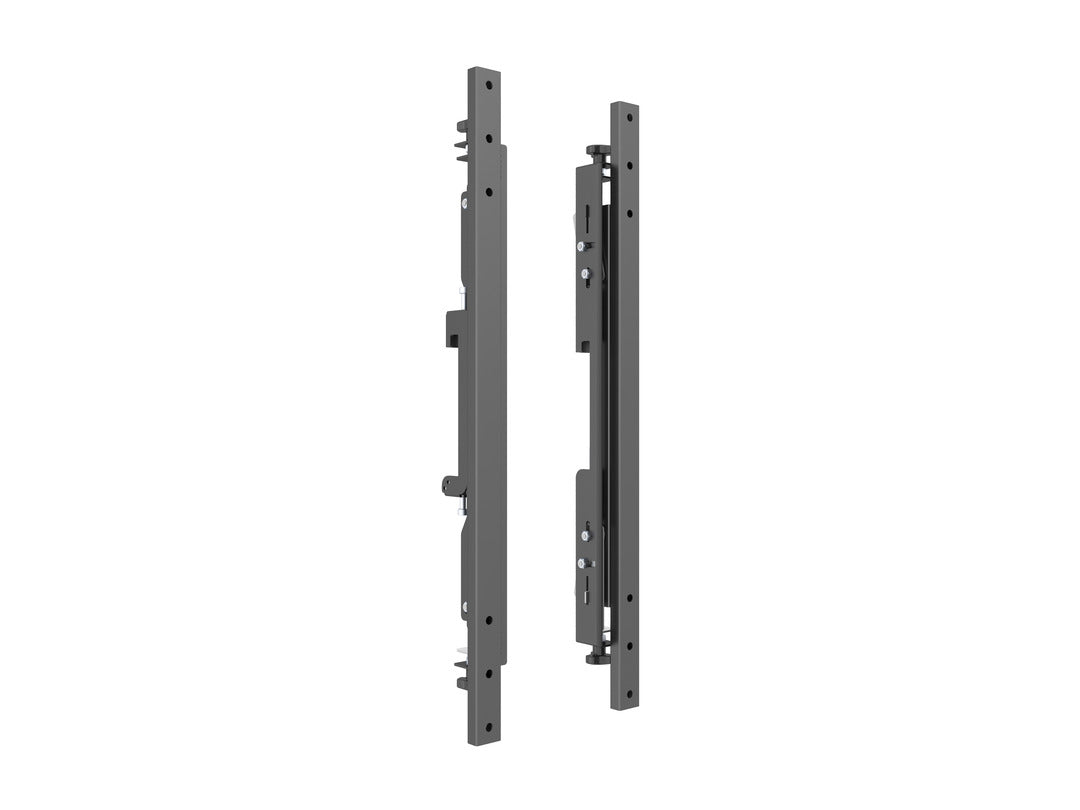

  Micro-Adjustable Arms 655 mm are ideal screen mounts when fine tuning screen of position is needed.

  This Part for M Pro Series is made of steel and has a 30kg max weight capacity
  Adjustable y-axis 0-10mm
  Adjustable z-axis 0-15mm
  Adjustable ±3° rotate

  MB Pro Series is design protected by Multibrackets

• Article No:	7 350 105 210 457
  Article Composed of:	3798+4733
  For screen size:	40”-65″
  Type:	Part for M Pro Series
  Universal & VESA standard:	Adjustable from 100×100 to 600×400 max
  Material:	Steel
  Color:	Black
  Surface Finish:	Powder coating/Anodic Oxidation
  Weight:	3.5 + 4.3 kg (2 pcs)
  Measurements:	655x120x72 mm
  Max Load:	30 kg per screen
  Height adjustment:	Yes, 0-10mm
  Depth adjustment:	Yes, 0-15mm
  Tilt adjustment:	Yes, ±3°
  Warranty:	5 years
  Retail Package Specification:
  Package Parcels:	1 pcs
  Package Measurements:	65.5 x 12 x 7.2 cm
  Package Weight:	4.00 kg

• Download Type	Downloads
  Drawing PDF	Downloads
