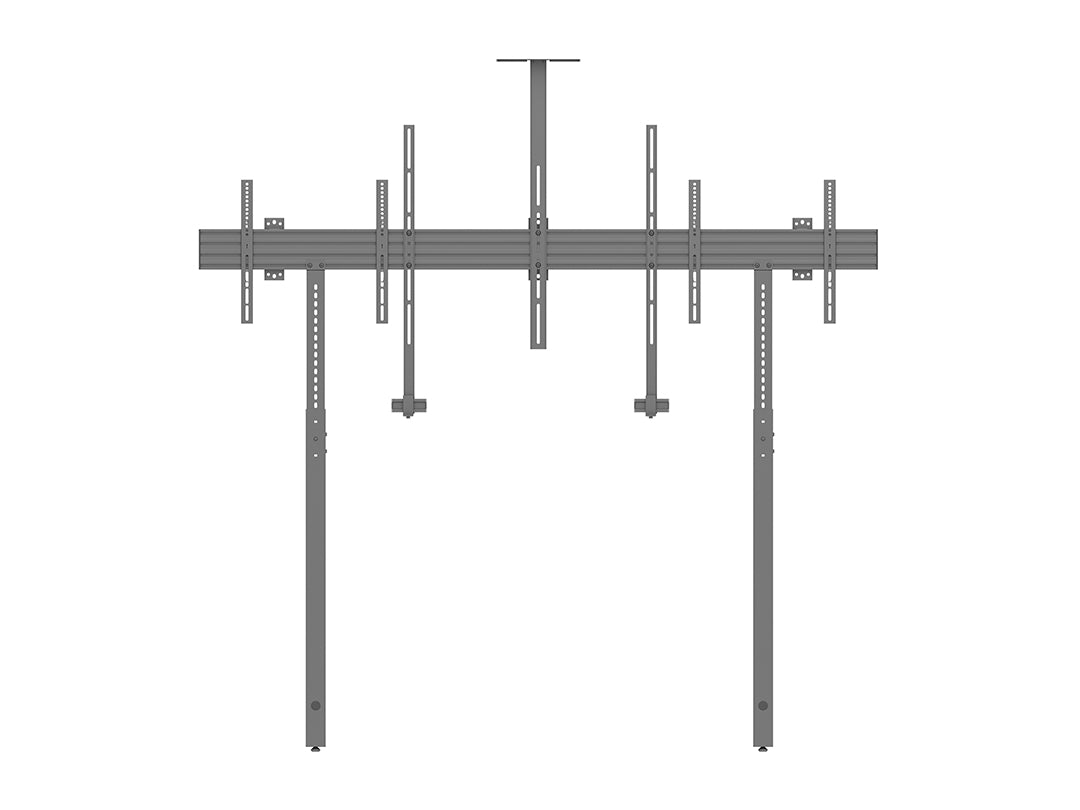

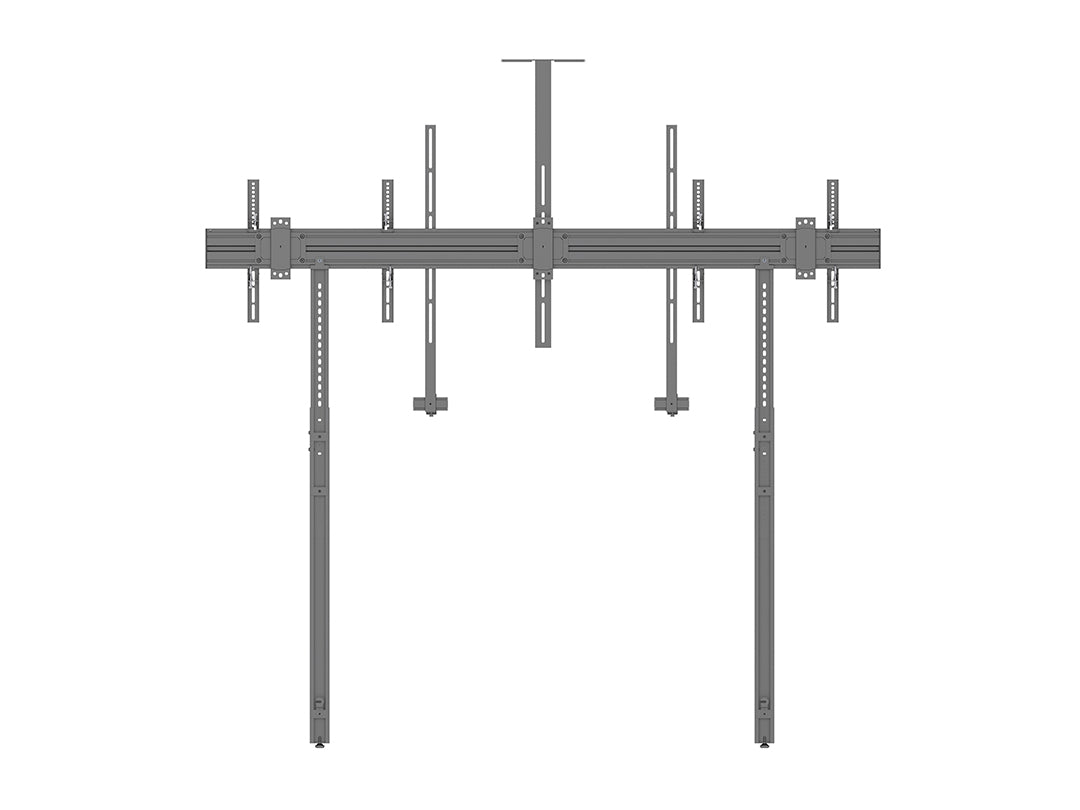

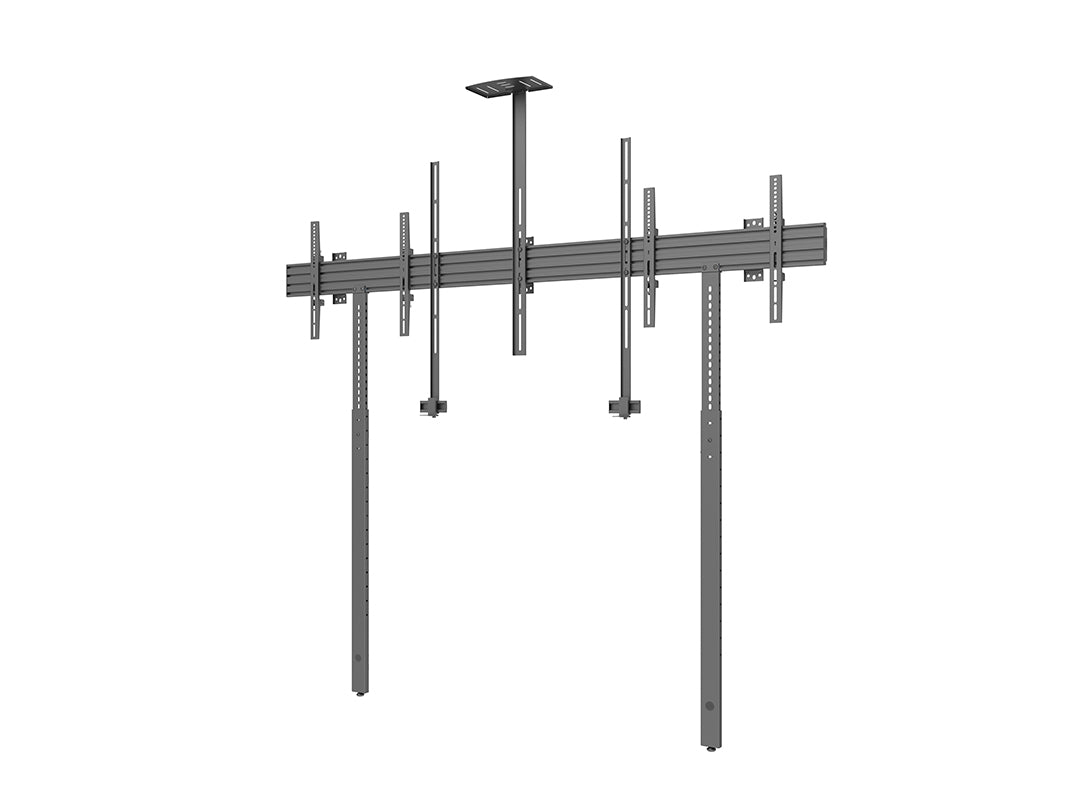

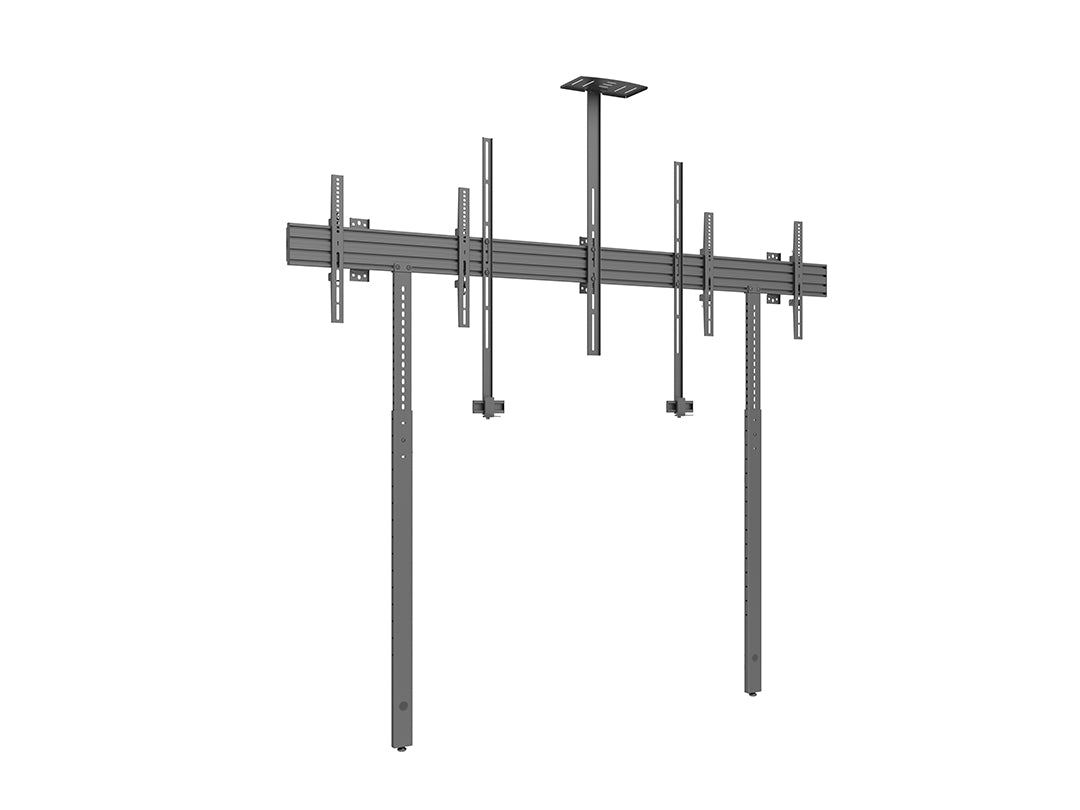

Multibrackets M Pro Series Collaboration Side by Side (32″ – 75″)

Multibrackets M Pro Series Collaboration Side by Side (32″ – 75″)

• Description
• Specifications
• Downloads

• M Pro Series – Collaboration – Side by Side with brackets 75″ – with Floorsupport 1025-1705mm – Wall mount for LCD display, steel, 2 screen, single side, fixed, VESA Max 600×400 – screen size: 32″-75″ – black

  M Pro Series – Collaboration – Side by Side with brackets 75″ – with Floorsupport 1025-1705mm is our innovative – ready to be installed Dual-Display Wallmount for collaboration.

  The new professional Pro Series A/V line from Multibrackets was designed with the installer in mind. Modular, easy to configure, quick to install, and simple to maintain. Working closely with installers we created a range with close to unlimited flexibility. This model M Pro Series – Collaboration – Side by Side with brackets 75″ – with Floor support is no exception. The product provides the versatility and flexibility demanded by installers. Based upon the Pro Series strong and ultra-flexible aluminum rail it is completely modular and has built in cable management throughout the entire solution to quicken installation and creating an esthetic result worth the public eye.

  With its modular construction installers have vast possibilities to change, create, update and reconfigure its design if ideas change over time, then Pro Series can follow.

  Designed with our Scandinavian heritage in mind and providing a clean Nordic look each part and detail serves its purpose. The result is a sleek Nordic solution emphasizing quality and function. Used in a variety of environments this ceiling mount is truly versatile and is made of the highest quality materials.

  The Pro Series possibilities to extend aluminum rail change brackets and add details by individual choice is vast so that one can tailor each mount to its location and function.

  The Pro Series includes hardware so that a basic installation should not be a hassle.

  Multibrackets Pro Series Public Wallmounts is ideal for any large screen digital signage wallmount application such as videowalls, menuboards and more.

  Highlights
  A flexible system product ideal for video walls and menuboards
  Includes VESA adapters for compatibility up to VESA 600×400
  Module based aluminum rails creates desirable length without cutting
  Integrated cable management throughout the entire solution
  Power click install for an easy, fast and safe installation
  Dual wallplates included
  Portrait or landscape position of screen possible
  Hardware kit included

• Article No	7 350 073 738 915
  For screen size	32″-75″
  Universal & VESA standard	100×100, 100×200, 200×100, 200×200, 300×300, 400×200, 400×400, 600×400
  Material	Steel, Aluminium, Plastic
  Color	Black
  Surface Finish	Powder coating
  Weight	20.3 kg
  Measurements	1020 x 155 x 125 mm + 1075 x 75 x 70 mm
  Max Load	45 kg per screen
  Tilt	No
  Swivel	No
  Rotate	No
  Cable Management	No
  Options	M Pro Series Parts
  Certifications	CE
  Warranty	5 years
  Retail Package Specification	Package Parcels: 0 pcs, Package Measurements: 0 x 0 x 0 cm, Package Weight: 0 kg

• Download Type	Downloads
  Drawing PDF	Downloads
  PDF Catalogue	Downloads
