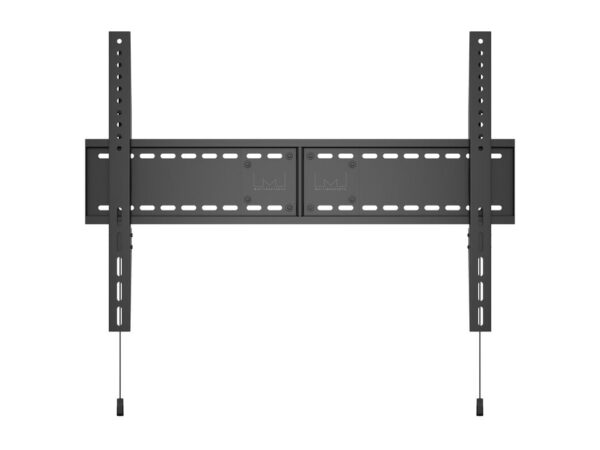

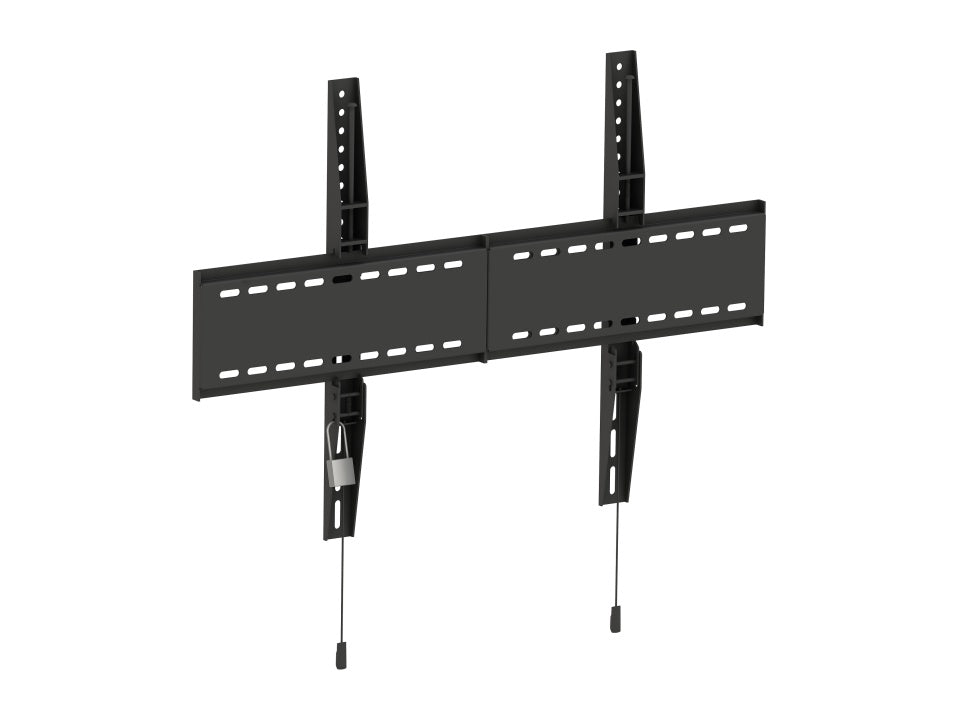

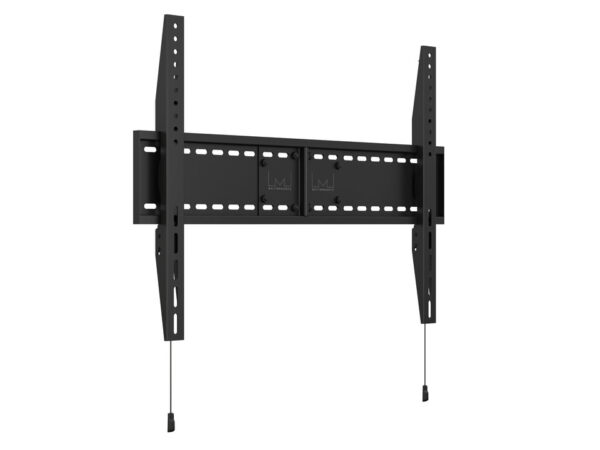

Multibrackets 60″-110″ Universal Ultra Thin Fixed Wall Mount
Multibrackets M Universal Wallmount Fixed SD – Wall mount for LCD / LED panel – arms latch securely – 3mm cold-rolled steel – black – screen size: 60″ – 110″ – mounting interface: up to 800 x 600 mm
The Multibrackets M Universal Fixed SD is a versatile wall mount for large display installations. With its smart design the mount can be used for both landscape and portrait installations. With a maxweight capacity of 125kg it can handle screens up to 110″. With a wide VESA range of 800×600 it can also handle most VESA specifications large screens are using.The Multibrackets M Universal Mount SD series of fixed, tilt and pull-out mounts from Multibrackets are engineered to solve tough installation problems such as leveling and stud location. Installerinspired features make installation and maintenance safe and easy. This series of mounts makes it easy to take control of your installation. Universal and with low-profile mounts they are engineeredfor speed of installation and usability. With a variety of products ranging from a single TV to a video wall matrix for digital signage, Multibrackets SD mounts are the perfect solution for manyapplications.
Highlights
Create almost any Video Wall configurations imaginable
Clean look & easy to install
Perfect for digital signage, educational and corporate installations.
To be used in both landscape and portait installations.
Engineered for speed of installation and usability.
Slim 45mm distance to wall
Super Duty (SD) 125kg max load
Superduty 3mm cold-rolled steel
Arms latch securely

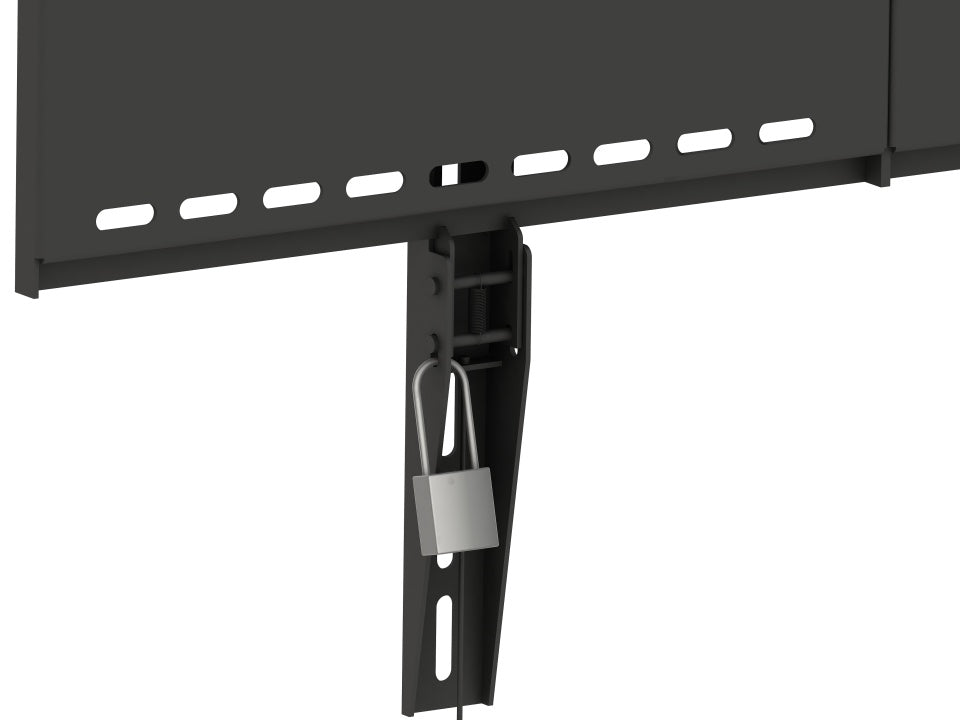

Anti-theft: Lock and key (optional) -
Property Value Screen Size 60-110″ Universal & VESA Standard (Landscape) 800×600, 800×500, 800×400, 800×300, 600×600, 600×400, 600×300, 600×200, 400×400 Universal & VESA Standard (Portrait) 400×600, 300×600, 200×600, 400×400, 200×500, 200×400, 200×300 Article No 7 350 073 731 091 Colour Black Max Load 125 kg Net Weight 8.5 kg Gross Weight 9.8 kg Options Anti-theft: Lock and key (optional) Warranty 5 years Distance to Wall 39 mm Backplate Measurement (Landscape) 907 mm (W) Backplate Measurement (Portrait) 453.7 mm (W) Retail Package Specification Package Parcels 1 pcs Package Measurements 67 x 20 x 10 cm Package Weight 8.00 kg Distribution Package Specification Retail Package Parcels 5 pcs Package Measurements 68 x 50 x 23 cm Package Weight 39.40 kg -
Download Type Downloads Drawing PDF Downloads Product Fact Sheet Downloads Manual Downloads
